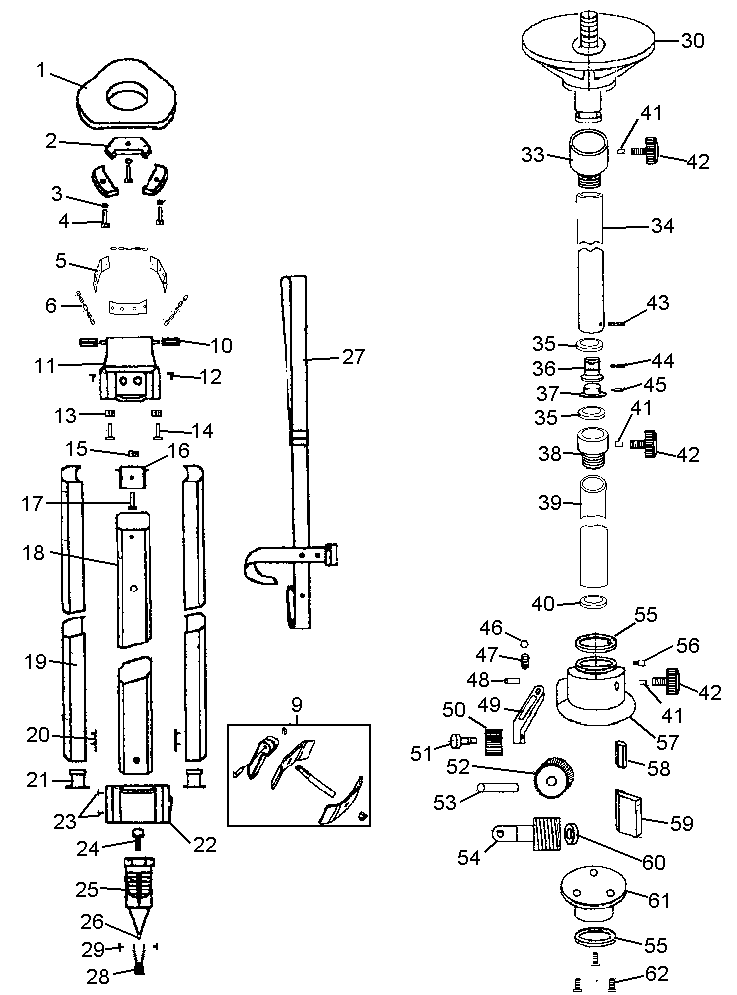

DE0735 TRIPOD Type 1 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 1 | 596543-01 | 1 | PLATE | HEAD | XJ |  |
|
| 1 | 943024-01 | 1 | SCREW | XJ | |
||
| 2 | 596543-02 | 3 | CLAMP | BLOCK | XJ | |
|
| 2 | 862217-92 | 1 | HOUSING | XJ |  |
||
| 3 | 596543-03 | 3 | WASHER SPRING | XJ | |
||
| 3 | 11711 | 1 | STRAP | XJ | |
||
| 4 | 596543-04 | 3 | BOLT | XJ | |
||
| 5 | 596543-05 | 3 | PLATE | ANCHOR FOR CHAIN | XJ | |
|
| 6 | 596543-06 | 3 | CHAIN | ANTI-SLIP | XJ | |
|
| 6 | 11154 | 1 | SCREW | XJ | |
||
| 7 | 726325 | 1 | RIVET | XJ | |
||
| 9 | 596543-09 | 3 | CLAMP SA | QUICK CLAMP LOCK | XJ | |
|
| 9 | 375750-01 | 2 | BLADE SET | XJ | |
||
| 10 | 596543-10 | 6 | BUSHING | NYLON | XJ | |
|
| 10 | 11709 | 1 | STRAP | XJ | |
||
| 11 | 596543-11 | 3 | HINGE | XJ | |
||
| 12 | 596543-12 | 6 | SCREW | SELF TAP | XJ | |
|
| 12 | 577850-01 | 8 | INTERSHAFT SA | XJ | |
||
| 13 | 596543-13 | 6 | NUT | XJ | |
||
| 13 | 132156 | 4 | BASE | XJ | |
||
| 14 | 596543-14 | 6 | BOLT | XJ | |
||
| 14 | N110358 | 10 | BEARING | XJ | |
||
| 15 | 596543-15 | 3 | LOCK NUT | XJ | |
||
| 16 | 596543-16 | 3 | CAP | TOP CAP EXT. LEG | XJ | |
|
| 16 | 11725 | 4 | STRAP | XJ | |||
| 17 | 596543-17 | 3 | BOLT | XJ | |
||
| 18 | 596543-18 | 3 | LEG | EXTENSION | XJ | |
|
| 18 | 11726 | 6 | STRAP | XJ | |||
| 19 | 596543-19 | 6 | LEG | SIDE FIXED | XJ | |
|
| 20 | 596543-20 | 6 | GUIDE BLOCK | XJ | |
||
| 21 | 596543-21 | 3 | CAP | LOWER CAP | XJ | |
|
| 21 | 477198-02 | 2 | SERVICE KIT 120V | XJ | |||
| 22 | 596543-22 | 3 | RETAINER | LOWER | XJ | |
|
| 22 | 11723 | 4 | STRAP | XJ | |
||
| 23 | 596543-23 | 6 | SCREW | SELF TAP | XJ | |
|
| 23 | 449630-00 | 1 | SPACER | XJ | |||
| 24 | 596543-24 | 3 | BOLT | XJ | |
||
| 25 | 596543-25 | 3 | SHOE | LEG SHOE | XJ | |
|
| 25 | 588696-01 | 3 | HOUSING HANDLE | DeWalt | XJ | ||
| 26 | 596543-26 | 1 | SHOE | SHOE POINT | XJ | |
|
| 26 | 862085-01 | 1 | GUARD | XJ | |
||
| 27 | 596543-27 | 1 | STRAP | XJ | |
||
| 27 | 861055-01 | 1 | FLANGE | XJ | |
||
| 28 | 596543-28 | 3 | RUBBER PAD | SHOE PAD | XJ | |
|
| 28 | 391908-00 | 2 | HOUSING | Clutch | XJ | |
|
| 29 | 596543-29 | 6 | SCREW | SHOE PAD SCREW | XJ | |
|
| 29 | 862047-00 | 2 | NUT | XJ | |
||
| 30 | 596543-30 | 1 | PLATE | TOP 5/8*11 | XJ | |
|
| 30 | 610822-00 | 1 | MODULE | XJ | |
||
| 31 | 862127-00 | 1 | HOUSING | XJ | |
||
| 32 | 943172-02 | 1 | HANDLE SA | XJ | |
||
| 33 | 596543-33 | 1 | HOLDER | TOP PLATE | XJ | |
|
| 34 | 596543-34 | 1 | TUBE SA | INNER TUBE | XJ | |
|
| 34 | 581642-00 | 1 | HOUSING | XJ | |
||
| 35 | 596543-35 | 1 | WASHER NYLON | XJ | |
||
| 36 | 596543-36 | 1 | GUIDE | NYLON GUIDE | XJ | |
|
| 37 | 596543-37 | 1 | RUBBER | CUSHION | XJ | |
|
| 37 | 613234-00 | 1 | REAR LEG | XJ | |||
| 38 | 596543-38 | 1 | ADAPTOR | INNER TUBE | XJ | |
|
| 39 | 596543-39 | 1 | TUBE LOWER | OUTER TUBE | XJ | |
|
| 40 | 596543-40 | 1 | END CAP | XJ | |
||
| 41 | 596543-41 | 3 | STUD | NYLON STUD | XJ | |
|
| 41 | 621215-00 | 2 | HOUSING | XJ | |
||
| 42 | 596543-42 | 3 | LOCK KNOB | XJ | |
||
| 43 | 596543-43 | 1 | PIN | 4*26 | XJ | |
|
| 44 | 596543-44 | 1 | PIN | 2*26 | XJ | |
|
| 45 | 596543-45 | 1 | PIN | 2*28 | XJ | |
|
| 46 | 596543-46 | 1 | BEARING,BALL | 5mm | XJ | |
|
| 47 | 596543-47 | 1 | SPRING | XJ | |
||
| 48 | 596543-48 | 1 | PIN | 4*1 | XJ | |
|
| 49 | 596543-49 | 1 | ARM | CRANKING ARM | XJ | |
|
| 50 | 596543-50 | 1 | HANDLE | CRANKING HANDLE | XJ | |
|
| 51 | 596543-51 | 1 | BOLT | SET BOLT | XJ | |
|
| 52 | 596543-52 | 1 | GEAR | BRASS GEAR | XJ | |
|
| 53 | 596543-53 | 1 | PIN | 8*38 | XJ | |
|
| 54 | 596543-54 | 1 | WHEEL | WORM | XJ | |
|
| 55 | 596543-55 | 2 | WASHER NYLON | XJ | |
||
| 56 | 596543-56 | 4 | SCREW | SET SCREW | XJ | |
|
| 57 | 596543-57 | 1 | Seat | ELEVATOR SEAT | XJ | |
|
| 58 | 596543-58 | 1 | BLOCK | NYLON BLOCK | XJ | |
|
| 59 | 596543-59 | 1 | BLOCK | STOPPER BLOCK | XJ | |
|
| 60 | 596543-60 | 1 | WASHER NYLON | XJ | |
||
| 61 | 596543-61 | 1 | PLATE | ELEVATOR SEAT | XJ | |
|
| 62 | 596543-62 | 3 | SCREW | SET SCREW | XJ | |
