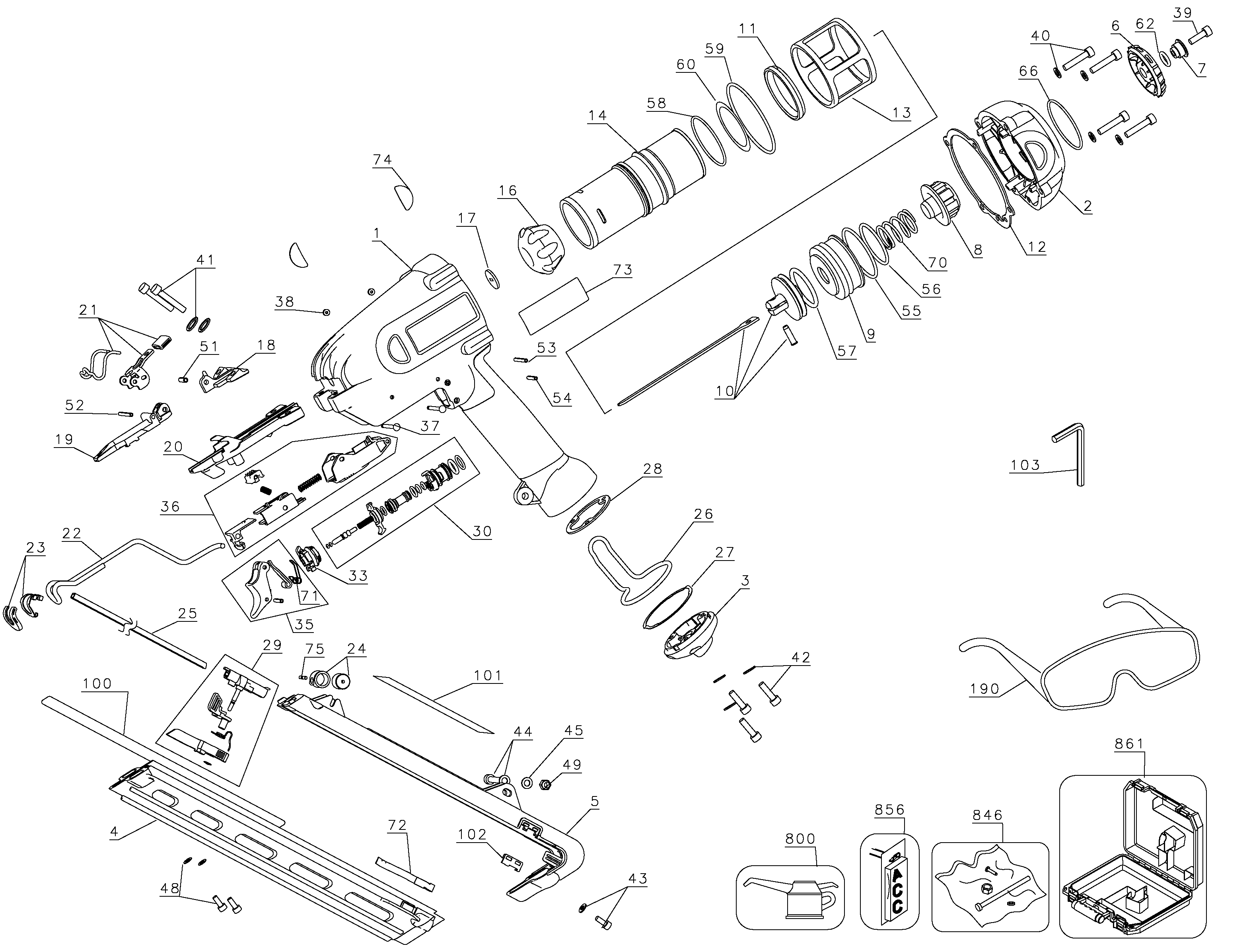

D51275K ANGLED FINISH NAILER Type 2 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 1 | 609115-00 | 1 | HOUSING | XJ |  |
||
| 2 | 621869-00 | 1 | CAP | XJ | |
||
| 3 | 395078-00 | 1 | END CAP | XJ | |
||
| 4 | 609116-00 | 1 | MAGAZINE | INC. 72,100 | XJ | |
|
| 5 | 609119-00 | 1 | MAGAZINE | XJ | |
||
| 6 | 395058-00 | 1 | DEFLECTOR | XJ | |
||
| 7 | 619175-00 | 1 | BUSHING | DEFLECTOR | XJ | |
|
| 8 | 640884-00 | 1 | BUMPER | XJ | |||
| 9 | 395063-00 | 1 | VALVE | XJ | |
||
| 10 | 395071-00 | 1 | PISTON SA | XJ | |
||
| 11 | 395065-00 | 1 | SEAL | XJ | |
||
| 12 | 395061-00 | 1 | GASKET | XJ | |
||
| 13 | 619253-00 | 1 | HOLDER | XJ | |
||
| 14 | 621866-00 | 1 | CYLINDER | XJ | |
||
| 16 | 631041-00 | 1 | BUMPER | XJ | |
||
| 17 | 395073-00 | 1 | PLATE | XJ | |
||
| 18 | 619178-00 | 1 | DOOR | XJ | |
||
| 19 | 623096-00 | 1 | DOOR | XJ | |
||
| 20 | 395099-00 | 1 | NOSE | XJ | |
||
| 21 | 653129-00 | 1 | LATCH | XJ |  |
||
| 22 | 395104-00 | 1 | CONTACT | XJ | |
||
| 23 | 619943-00 | 1 | PAD | XJ | |
||
| 24 | 606337-00 | 1 | SPRING | XJ | |
||
| 25 | 395115-00 | 1 | LINER | XJ | |
||
| 26 | 395079-00 | 1 | HOOK | XJ | |
||
| 27 | 395080-00 | 1 | PLATE | XJ | |
||
| 28 | 395430-00 | 1 | GASKET | XJ | |
||
| 29 | 618015-00 | 1 | SLIDER SA | XJ | |
||
| 30 | N566148 | 1 | TRIGGER | XJ | |
||
| 33 | N566148 | 1 | TRIGGER | XJ | |
||
| 35 | 398219-00 | 1 | TRIGGER | BUMP | XJ | |
|
| 36 | 395110-00 | 1 | ADJUSTER | DEPTH | XJ | |
|
| 37 | 395091-00 | 2 | PIN | XJ | |
||
| 38 | 391814-00 | 2 | GROMMET | XJ | |
||
| 39 | 98119-14 | 1 | SCREW | M4 X 14 SHCS | XJ | |
|
| 40 | 608174-00 | 4 | SCREW | XJ | |
||
| 41 | 608175-00 | 2 | SCREW | XJ | |
||
| 42 | 608178-00 | 3 | SCREW | XJ | |
||
| 43 | 608177-00 | 1 | SCREW | M4 x 10 | XJ | |
|
| 44 | 608176-00 | 1 | SCREW | XJ | |
||
| 45 | 330016-07 | 1 | WASHER | XJ | |
||
| 48 | 608179-00 | 2 | SCREW | XJ | |
||
| 49 | 607155-00 | 1 | NUT | XJ | |
||
| 51 | 330036-23 | 1 | ROLL PIN | XJ | |
||
| 52 | 330036-21 | 1 | ROLL PIN | XJ | |
||
| 53 | 330036-20 | 1 | ROLL PIN | 3 x 26mm | XJ | |
|
| 54 | 330036-19 | 1 | ROLL PIN | 3 x 18mm | XJ | |
|
| 55 | 609018-00 | 1 | O RING | XJ | |
||
| 56 | 398156-00 | 1 | O RING | XJ | |
||
| 57 | 398157-00 | 1 | O RING | XJ | |
||
| 58 | 398158-00 | 1 | O RING | XJ | |
||
| 59 | 398159-00 | 1 | O RING | XJ | |
||
| 60 | 398167-00 | 1 | O RING | XJ | |
||
| 62 | 390748-00 | 1 | O RING | XJ | |
||
| 66 | 622418-00 | 1 | O RING | XJ | |
||
| 70 | 395064-00 | 1 | SPRING | XJ | |
||
| 71 | 391813-00 | 1 | SPRING | XJ | |
||
| 72 | 395122-00 | 1 | RETAINER | XJ | |
||
| 73 | 613089-00 | 1 | BRAND LABEL | XJ | |
||
| 74 | 619127-00 | 4 | LABEL | BUMPER | XJ | |
|
| 75 | 395085-00 | 1 | PIN | XJ | |
||
| 100 | 609117-00 | 1 | WARNING LABEL | XJ | |
||
| 101 | 609120-00 | 1 | LABEL | XJ | |
||
| 102 | 395120-00 | 1 | CATCH | XJ | |
||
| 103 | 604407-02 | 1 | WRENCH | 3MM | XJ | |
|
| 103 | 497570-02 | 1 | KEY | 4mm | XJ | |
|
| 190 | 609123-00 | 1 | SAFETY GLASSES | XJ | |
||
| 800 | 429995-00 | 1 | GREASE 150 GMS | XJ | |
||
| 800 | 395440-00 | 1 | OIL | 1 oz BOTTLE | XJ | ||
| 800 | 605709-00 | 1 | OIL | 20 Ounces | XJ | |
|
| 800 | 605708-00 | 1 | OIL | 8 Ounces | XJ | |
|
| 846 | 605706-00 | 1 | PISTON SA | XJ | |
||
| 846 | 605707-00 | 1 | BUMPER | XJ | |
||
| 846 | 606132-00 | 1 | TRIGGER | D510005 | XJ | |
|
| 846 | 609988-00 | 1 | TRIGGER | SEQUENTIAL KIT | XJ | |
|
| 846 | 623235-00 | 1 | O RING KIT | XJ | |
||
| 856 | 606134-00 | 1 | TRIGGER | XJ | |
||
| 861 | 607315-00 | 1 | KITBOX | XJ | |
