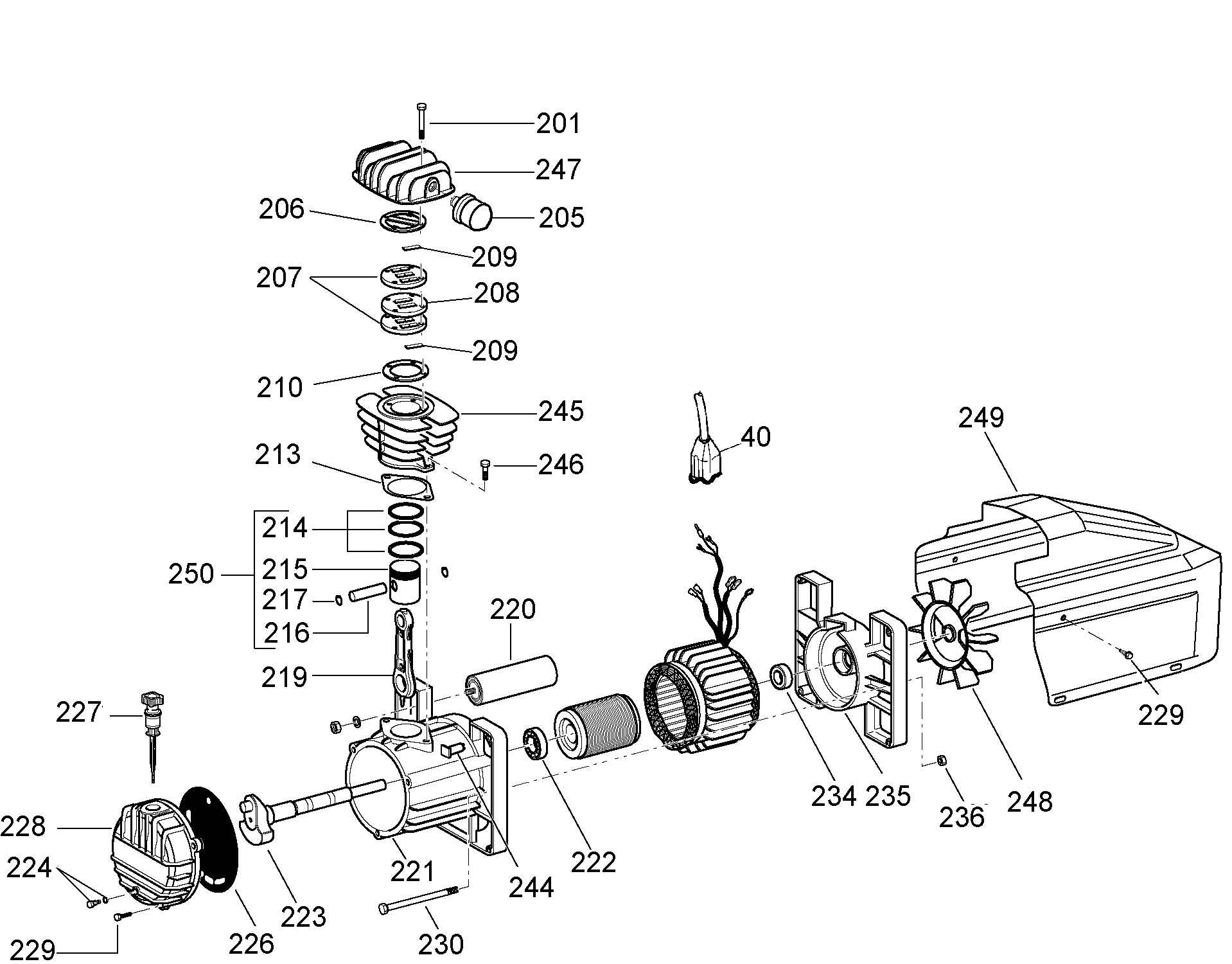

D55155 COMPRESSOR ELEC 2HP 4 GAL Type 1 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 1 | 626197-00 | 4 | ROLL PIN | LX | |||
| 2 | N003695 | 1 | HANDLE ASSY. | INCL. 1 | LX | ||
| 3 | 5130343-01 | 1 | TANK | LX |  |
||
| 4 | 5130004-00 | 10 | SCREW | 1/4-20 x 1/2" | LX | |
|
| 6 | 5130351-01 | 1 | PANEL SA | LX | |
||
| 8 | 5130008-00 | 4 | FOOT | LX | |
||
| 9 | 5136086-00 | 1 | MOTOR & PUMP SA 115V | 1.5HP 115V 50Hz CE | LX | |
|
| 10 | 5130010-00 | 8 | NUT | 1/4" - 20 | LX | |
|
| 11 | A12446 | 4 | SELF TAPPING SCREW | LX | |||
| 12 | 5130360-00 | 1 | SADDLE SA | LX | |
||
| 13 | N072023 | 1 | DRAIN COCK | 1/4-NPT MALE | LX |  |
|
| 14 | 5140122-07 | 1 | TUBING | 1/4x30in W/SLVS&NUTS | INCL. 34 | LX | |
| 15 | 5136180-00 | 2 | COUPLING | LX | |
||
| 16 | 5130344-00 | 1 | VALVE | INCL. 18,21,29,30 | LX | |
|
| 17 | 5130345-00 | 1 | PIPE | INCL. 2 OF 31,32 | LX | |
|
| 18 | 5130018-00 | 1 | CONNECTOR | 3/8 COMPRESSION | LX | |
|
| 19 | 5130019-01 | 4 | SCREW | 1/4"-20 X 3/4" | LX | |
|
| 20 | SSP-491 | 1 | BUSHING REDUCING 3/4 | LX | |||
| 21 | 5130021-00 | 1 | CONNECTOR | COMPRESSION TYPE | USED ON EARLY UNITS | LX | |
| 21 | 5130021-00 | 1 | CONNECTOR | COMPRESSION TYPE | LX | |
|
| 22 | 5130022-00 | 1 | TUBE | PLASTIC 3/8 | LX | ||
| 23 | 5130023-00 | 1 | FLARED ELBOW | 3/8 COMPRESSION | LX | |
|
| 24 | 5140047-17 | 1 | MANIFOLD ASSEMBLY | W/REGULATOR,COUPLERS | Incl. 25,26,28,29,33 | LX | |
| 25 | 5130026-01 | 2 | GAUGE | LX | |
||
| 26 | 5130027-00 | 1 | REPAIR KIT | LX | |
||
| 27 | 5140100-95 | 1 | SWITCH SA | Incl. 29,36,37,38 | LX | |
|
| 28 | 5130031-00 | 2 | REDUCER | 38/ NPT TO 1/4 NPT | LX | |
|
| 29 | SS-3222-CD | 3 | PLUG PIPE | 1/4-18 NPT | LX | ||
| 30 | 5130033-00 | 1 | VALVE | LX | |
||
| 31 | 5130034-00 | 2 | SLEEVE | LX | |
||
| 32 | 5130035-00 | 2 | NUT | 3/8 COMPRESSION | LX | |
|
| 33 | 5130037-00 | 2 | FLARED ELBOW | 1/4 NPT 3/8 | LX | |
|
| 34 | 5140169-20 | 1 | INSERT | BRASS | LX | ||
| 36 | SSP-7811 | 1 | ASSY NUT SLEEVE 1/4 | LX | |||
| 37 | AB-9050628 | 1 | NIPPLE CLOSE 1/4-18 | 7/8 long | LX | ||
| 38 | 5130030-00 | 1 | VALVE | 1/4 NPT, 165 PSI | LX | |
|
| 40 | 5135589-00 | 1 | CORDSET | LX | |||
| 41 | A12475 | 1 | ISOLATOR | RUBBER, 24 IN. LONG | LX | ||
| 42 | 438010040063 | 1 | BUSHING | HEYCO | .625 inch/15.875 mm | LX | |
| 42 | 33821-00 | 1 | BUSHING | LX | |
||
| 43 | 5136271-00 | 1 | CORD PROTECTOR | LX | |
||
| 44 | 5136272-00 | 1 | LOCK NUT | LX | |
||
| 201 | 5130077-00 | 4 | BOLT | Torque to 72-84 in-lbs. | LX | |
|
| 205 | 5140206-58 | 1 | AIR FILTER | NPP | LX | ||
| 206 | 5140206-30 | 1 | HEAD GASKET | LX | |||
| 207 | 5130079-00 | 2 | PLATE | LX | |
||
| 208 | 5140206-34 | 1 | GASKET | LX | |||
| 209 | 5140016-73 | 2 | VALVE BLADE | LX | |||
| 210 | 5130094-00 | 1 | GASKET SET | LX | |
||
| 213 | 5130094-00 | 1 | GASKET SET | LX | |
||
| 214 | 5140206-38 | 1 | PISTON RING KIT | LX | |||
| 215 | 5140228-05 | 1 | PISTON | LX | |||
| 216 | 5140206-40 | 1 | PISTON PIN | LX | |||
| 217 | 5130087-00 | 2 | RETAINER | LX | |
||
| 219 | 5140206-42 | 1 | CONNECTING ROD | LX | |||
| 220 | 5140206-43 | 1 | CAPACITOR | 60uF / 250V | LX | ||
| 221 | 5130090-00 | 1 | CRANKCASE | LX | |
||
| 222 | 5130091-00 | 1 | BEARING | LX | |
||
| 223 | 5130092-00 | 1 | CRANKSHAFT | LX | |
||
| 224 | 5140016-82 | 1 | SCREW | LX | |||
| 224 | 5140016-81 | 1 | O-RING | LX | |||
| 226 | 5130094-00 | 1 | GASKET SET | WAS 5130095-00 | LX | |
|
| 227 | 5130007-00 | 1 | DIPSTICK | LX | |
||
| 228 | 5130096-00 | 1 | COVER | LX | |
||
| 229 | 5130097-00 | 7 | SCREW | LX | |
||
| 230 | 5140016-91 | 2 | SCREW | Torque to 84-108 in-lbs. | LX | ||
| 234 | 5134652-00 | 1 | BEARING | LX | |||
| 235 | 5134707-00 | 1 | COVER | LX | |
||
| 236 | 5130101-00 | 2 | NUT | LX | |
||
| 244 | 5140206-54 | 1 | THERMAL BREAKER | LX | |||
| 245 | 5130104-00 | 1 | CYLINDER | LX | |
||
| 246 | 5130105-00 | 2 | BOLT | LX | |
||
| 247 | 5134694-00 | 1 | HEAD | LX | |
||
| 248 | 5140206-36 | 1 | FAN | LX | |||
| 249 | 5140206-29 | 1 | SHROUD | LX | |||
| 250 | 5130102-00 | 1 | PISTON SA | INCL. 214-217 | LX | |
|
| 800 | 5130702-00 | 1 | OIL | 114 gms - 4 oz | LX | |
|
| 846 | 5130238-00 | 1 | REPAIR KIT | INCL. GASKET/RINGS/VALVES/FILTER | LX | |
|
| 846 | 5130094-00 | 1 | GASKET SET | INCL. 206,208,210,213,226 | LX | |
|
| 846 | 5130331-01 | 1 | LABEL | LX | |
||
| 846 | 5130239-00 | 1 | FILTER | 6 PACK | LX | |
