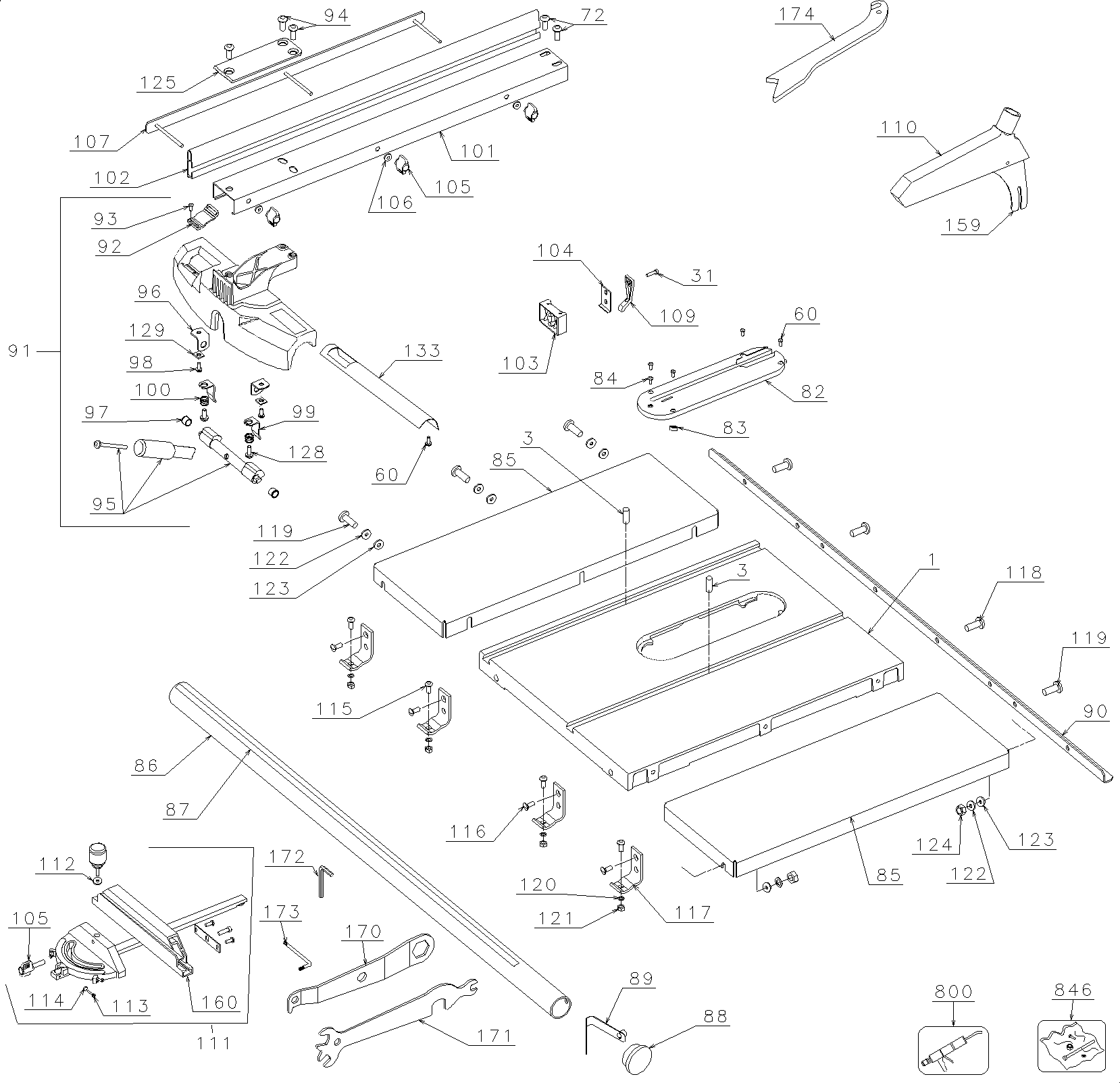

DW746 250MM TABLE SAW Type 1 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 1 | 389839-00 | 1 | TABLE | HEAVY PART CHARGE | XJ |  |
|
| 3 | 5140096-84 | 2 | SET SCREW | M10x1.5x35 FLAT PT | XJ | ||
| 4 | 387164-01 | 1 | TRUNNION | XJ | |
||
| 5 | 330045-39 | 6 | SCREW | XJ | |
||
| 6 | 389615-00 | 1 | FRONT BRACKET | INCL. 7-14 | XJ | |
|
| 7 | 388410-00 | 2 | DRIVE SHAFT | XJ | |
||
| 8 | 330036-08 | 4 | PIN | XJ |  |
||
| 9 | 389355-00 | 4 | WASHER | XJ | |
||
| 10 | 85903-00 | 2 | SLEEVE BEARING | XJ | |
||
| 11 | 389297-00 | 2 | WASHER SPRING | XJ | |
||
| 12 | 391048-00 | 2 | SLEEVE | XJ | |
||
| 14 | 389355-00 | 2 | WASHER | XJ | |
||
| 15 | 389875-01 | 1 | BRACKET SA | INCL. 7-14,25,26,27,134 | XJ | |
|
| 16 | 448373-00 | 1 | WASHER SPRING | XJ | |
||
| 17 | 389057-00 | 1 | CIRCLIP | XJ | |
||
| 18 | 387158-01 | 1 | ARBOR | XJ | |
||
| 19 | 388313-01 | 1 | SPINDLE SA | XJ | |
||
| 20 | 389298-00 | 2 | PULLEY | XJ | |
||
| 21 | 330016-05 | 2 | WASHER | XJ | |
||
| 22 | 330021-08 | 2 | NUT | XJ | |
||
| 23 | 5140117-85 | 1 | WAVE WASHER | XJ | |||
| 24 | 605040-31 | 1 | BEARING | XJ | |
||
| 27 | 153404-02 | 2 | PLATE | XJ | |
||
| 28 | 387160-00 | 1 | BEVEL GEAR | XJ | |
||
| 29 | 388315-00 | 1 | COVER | XJ | |
||
| 30 | 388314-00 | 1 | SHROUD | XJ | |
||
| 31 | 330019-13 | 5 | SCREW | M4X19 T20 | XJ | |
|
| 32 | 153778-01 | 4 | SCREW | XJ | |
||
| 33 | 389254-00 | 1 | SPRING | XJ | |
||
| 37 | 389838-00 | 1 | SWITCHBOX & CABLE | XJ | |
||
| 40 | 389888-01 | 1 | MOTOR SA 1PH | 1PH, 50HZ | XJ | |
|
| 41 | 389281-00 | 2 | PULLEY | XJ | |
||
| 42 | 389077-00 | 1 | SPACER | XJ | |
||
| 43 | 388301-00 | 3 | CLIP | XJ | |
||
| 46 | 153443-01 | 2 | SLEEVE | XJ | |
||
| 47 | 392457-00 | 1 | BOLT | XJ | |
||
| 48 | 392458-00 | 1 | LOCK NUT | XJ | |
||
| 49 | 388316-01 | 1 | DUST EXTRACTOR | XJ | |
||
| 50 | 389226-00 | 1 | V-BELT | XJ | |
||
| 51 | 386764-02 | 1 | OUTER FLANGE | XJ | |
||
| 52 | 388956-02 | 1 | ARBOR NUT | XJ | |||
| 53 | 149138-03 | 2 | CABLE TIE | 0.2 x11 INCHES | XJ | |
|
| 55 | 388284-00 | 1 | PANEL FRONT | XJ | |
||
| 57 | 388293-02 | 1 | PANEL LH | XJ | |
||
| 58 | 388297-00 | 2 | BRACE | XJ | |
||
| 59 | 388289-00 | 1 | BEVEL SCALE | XJ | |
||
| 60 | 330045-44 | 8 | SCREW | XJ | |
||
| 61 | 389835-02 | 1 | EMBLEM | XJ | |||
| 62 | 388298-00 | 3 | LEG | XJ | |
||
| 63 | 391100-00 | 1 | LEG FRONT LEFT HAND | XJ | |
||
| 65 | 098198-05 | 4 | WASHER | LOCK, M6 | XJ | |
|
| 66 | 489128-00 | 4 | BOLT | XJ | |
||
| 67 | 330045-39 | 4 | SCREW | XJ | |
||
| 68 | 330045-32 | 24 | SCREW | M8x1.25x20 MTLTHDFMG | XJ | |
|
| 69 | 389118-00 | 24 | NUT | XJ | |
||
| 70 | 388300-00 | 4 | FOOT | XJ | |
||
| 71 | 389147-00 | 17 | GROMMET | XJ | |
||
| 72 | 90614124-06 | 22 | SCREW | XJ | |
||
| 73 | 330016-02 | 5 | WASHER | XJ | |
||
| 75 | 153669-00 | 1 | CORD CLAMP | XJ | |
||
| 76 | 330045-24 | 2 | SCREW | XJ | |
||
| 77 | 388306-00 | 2 | HANDLE SA | XJ | |
||
| 78 | 388308-00 | 2 | LOCK KNOB | XJ | |
||
| 79 | 388309-00 | 1 | POINTER | XJ | |
||
| 80 | 330045-06 | 5 | SCREW | XJ | |
||
| 81 | 389046-00 | 1 | NUT | XJ | |
||
| 82 | 388292-01SV | 1 | PLATE SA | XJ | |
||
| 83 | 390858-00 | 1 | CAM | XJ | |
||
| 84 | 330019-12 | 1 | SCREW | XJ | |
||
| 85 | 390955-00 | 1 | EXTENSION TABLE | XJ | |
||
| 86 | 389685-04 | 1 | RAIL | XJ | |
||
| 87 | 388250-02 | 1 | SCALE | XJ | |
||
| 88 | 388256-00 | 2 | END CAP | XJ | |
||
| 89 | 380105-03 | 2 | BUTTON | XJ | |
||
| 90 | 388253-00 | 1 | RAIL REAR | XJ | |
||
| 91 | 389837-01 | 1 | FENCE HEAD SA | XJ | |
||
| 92 | 389238-00 | 1 | SCALE | XJ | |
||
| 93 | 153460-03 | 1 | SCREW | XJ | |
||
| 94 | 98106-01 | 3 | SCREW | XJ | |
||
| 95 | 389645-00 | 1 | HANDLE | XJ | |
||
| 96 | 389687-00 | 2 | BRACKET | XJ | |
||
| 97 | 153443-01 | 2 | SLEEVE | XJ | |
||
| 98 | 330045-32 | 2 | SCREW | M8x1.25x20 MTLTHDFMG | XJ | |
|
| 99 | 388225-00 | 2 | CAM LEVER | XJ | |
||
| 100 | 389043-00 | 2 | SPRING | XJ | |
||
| 101 | 388979-00 | 1 | FENCE BEAM | XJ | |
||
| 102 | 397285-00 | 1 | FENCE | XJ | |
||
| 103 | 388238-00 | 1 | CAP | XJ | |
||
| 104 | 390484-00 | 1 | RETAINER | XJ | |
||
| 105 | 147107-00 | 4 | KNOB | XJ | |
||
| 106 | 389354-00 | 3 | WASHER | XJ | |
||
| 107 | 392947-00 | 1 | PLATE SA | XJ | |
||
| 109 | 390478-00 | 1 | RETAINER | XJ | |
||
| 110 | 389883-00 | 1 | GUARD SA | XJ | |
||
| 111 | 389858-01 | 1 | MITRE FENCE | XJ | |
||
| 112 | 99361-14 | 1 | WASHER | XJ | |
||
| 113 | 330045-08 | 3 | SCREW | XJ | |
||
| 114 | 330015-01 | 3 | NUT | XJ | |
||
| 115 | 98130-20 | 4 | CARRIAGE BOLT | XJ | |
||
| 116 | 5140095-71 | 4 | FLAT HEAD SCREW | M10x1.5x30 | XJ | ||
| 117 | 388257-00 | 4 | SUPPORT BRACKET | XJ | |
||
| 118 | 98026-35 | 2 | SCREW | XJ | |
||
| 119 | 5140095-70 | 8 | SCREW | M10x1.5x25 | XJ | ||
| 120 | 098197-09 | 4 | WASHER | XJ | |
||
| 121 | 330015-03 | 4 | NUT | M8x1.25 | XJ | |
|
| 122 | 98197-07 | 14 | WASHER LOCK | XJ | |
||
| 123 | 330016-04 | 18 | WASHER | XJ | |
||
| 124 | 5140110-60 | 8 | HEX NUT | M10x1.5 | XJ | ||
| 125 | 389229-00 | 1 | COVERPLATE | XJ | |
||
| 126 | 388299-00 | 1 | MOTOR COVER | XJ | |
||
| 127 | 388294-00 | 1 | IDENTITY LABEL | XJ | |
||
| 128 | 153460-02 | 2 | SCREW | XJ | |
||
| 129 | 389686-00 | 2 | WASHER | XJ | |
||
| 130 | 390671-00 | 2 | WASHER SPRING | XJ | |
||
| 131 | 389874-00 | 1 | HOOK | XJ | |
||
| 132 | 388317-02 | 1 | SHIM | XJ | |
||
| 132 | 388317-00 | 1 | SHIM | XJ | |
||
| 132 | 388317-04 | 1 | SHIM | XJ | |
||
| 132 | 388317-03 | 1 | SHIM | XJ | |
||
| 132 | 388317-06 | 1 | SHIM | XJ | |
||
| 132 | 388317-05 | 1 | SHIM | XJ | |
||
| 132 | 388317-01 | 1 | SHIM | XJ | |
||
| 133 | 429902-00 | 1 | STRIP | XJ | |
||
| 134 | 390672-00 | 1 | PIN | XJ | |
||
| 135 | 391382-00 | 1 | RETAINER | XJ | |
||
| 136 | 390573-00 | 1 | LABEL | XJ | |
||
| 138 | 392459-00 | 2 | WASHER | XJ | |
||
| 140 | 389598-00 | 1 | SUPPORT BRACKET | XJ | |
||
| 141 | 389065-00S | 1 | RETAINING RING | DELTA PART | XJ | ||
| 142 | 389719-00 | 2 | SCREW | XJ | |
||
| 143 | 153403-01 | 4 | SHIM | XJ | |
||
| 144 | 389540-00 | 1 | LINK | XJ | |
||
| 145 | 153639-00 | 2 | SCREW | XJ | |
||
| 146 | 98208-01 | 1 | SCREW | XJ | |
||
| 147 | 390030-00 | 1 | PLATE | XJ | |
||
| 148 | 390249-00 | 1 | SHEATH | XJ | |
||
| 149 | 388302-00 | 1 | BOTTOM PLATE | XJ | |
||
| 150 | 389671-00 | 1 | COVER REAR | XJ | |
||
| 151 | 389843-00 | 1 | HOSE | XJ | |
||
| 152 | 389845-00 | 1 | HOSE PLATE | XJ | |
||
| 153 | 389832-00 | 1 | FOAM | XJ | |
||
| 154 | 389833-00 | 1 | DUST PORT | XJ | |
||
| 155 | 389147-01 | 3 | NUT | XJ | |
||
| 156 | 330019-20 | 3 | SCREW | XJ | |
||
| 157 | 389689-00 | 1 | BRACKET | XJ | |
||
| 158 | 391160-00 | 1 | SCREW | XJ | |
||
| 159 | 389541-00 | 1 | RIVING KNIFE | XJ | |
||
| 160 | 389294-01 | 1 | FENCE | XJ | |
||
| 161 | 429915-00 | 1 | PLATE KIT | XJ | |
||
| 170 | 153430-00 | 1 | WRENCH | XJ | |
||
| 171 | 389339-01 | 1 | WRENCH SPECIAL | XJ | |
||
| 172 | 098000-11 | 1 | HEX KEY | XJ | |
||
| 173 | 152693-01 | 1 | TORX 50 WRENCH | XJ | |
||
| 174 | 389276-00SV | 1 | PUSHSTICK&CHAIN | XJ | |||
| 175 | 393104-00 | 1 | PUSH BLOCK | XJ | |
||
| 190 | 429953-00 | 1 | CAPACITOR | FOR SINGLE PHASE MOTOR | XJ | |
|
| 190 | 429953-01 | 1 | CAPACITOR | FOR SINGLE PHASE MOTOR | XJ | |
|
| 800 | 429698-00 | 1 | GREASE | BD-L 2 | XJ | |
|
| 846 | 389642-01 | 1 | PARTS PACK | INCL. 115-124,170-173 | XJ | |
