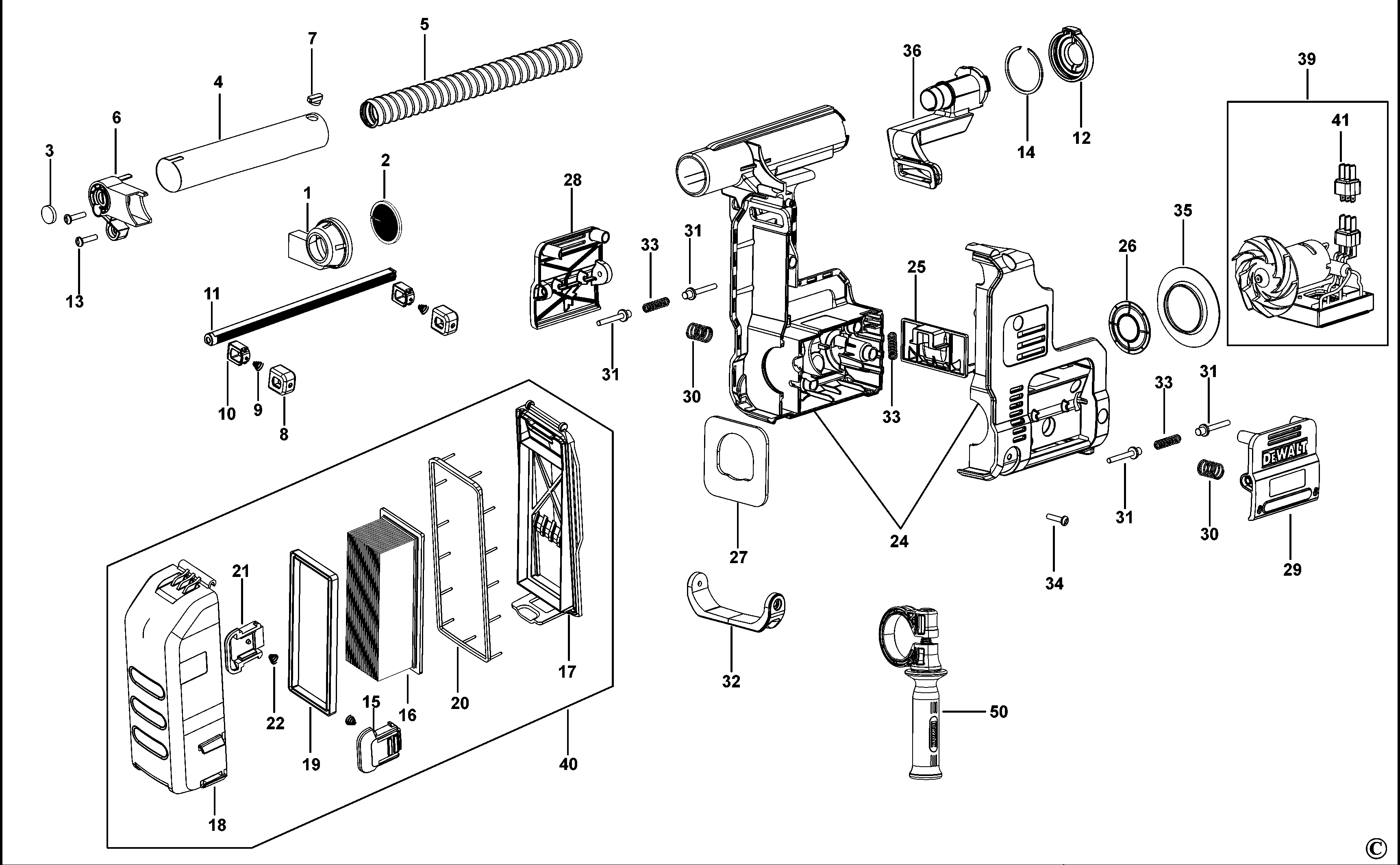

D25303DH DUST EXTRACTOR Type 1 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 1 | N388472 | 1 | HEAD | XJ |  |
||
| 2 | 580255-00 | 1 | TOOL BRUSH | XJ | |
||
| 3 | 496549-00 | 1 | FELT | XJ | |
||
| 4 | N389556 | 1 | VACUUM TUBE SA | XJ | |
||
| 5 | N404443 | 1 | TUBE | XJ | |
||
| 6 | N388457 | 1 | HOLDER | XJ | |
||
| 7 | N388456 | 1 | INSERT | XJ | |
||
| 8 | 580262-00 | 2 | HOUSING | XJ | |
||
| 9 | 584458-00 | 2 | SPRING | XJ | |
||
| 10 | 580261-00 | 2 | KNOB | XJ | |
||
| 11 | 1008326-00 | 1 | ADJUSTER | XJ | |
||
| 12 | N411895 | 1 | COVER | XJ | |
||
| 13 | 330065-08 | 2 | SCREW | M4x18 T20 | XJ | |
|
| 14 | N414801 | 1 | CIRCLIP | XJ | |
||
| 15 | N398726 | 1 | LATCH | XJ | |
||
| 16 | 6010391-38 | 1 | FILTER | XJ | |
||
| 17 | N393518 | 1 | COVER | XJ | |
||
| 18 | N393002 | 1 | BOX | XJ | |
||
| 19 | N418186 | 1 | FRAME | XJ | |
||
| 20 | N416874 | 1 | SEAL | XJ | |
||
| 21 | N398724 | 1 | LATCH | XJ | |
||
| 22 | 584458-00 | 2 | SPRING | XJ | |
||
| 24 | 6010391-39 | 1 | HOUSING PAIR | XJ | |
||
| 25 | N392702 | 1 | EJECTOR | XJ | |
||
| 26 | N416875 | 1 | SEAL | XJ | |
||
| 27 | N416876 | 1 | SEAL | XJ | |
||
| 28 | N392627 | 1 | LATCH | XJ | |
||
| 29 | N392626 | 1 | LATCH | XJ | |
||
| 30 | N414163 | 2 | SPRING | XJ | |
||
| 31 | N400748 | 4 | PIN | XJ | |
||
| 32 | N406485 | 1 | CLAMP | XJ | |
||
| 33 | N417064 | 2 | SPRING | XJ | |
||
| 34 | 330065-08 | 10 | SCREW | M4x18 T20 | XJ | |
|
| 35 | 588804-00 | 1 | FAN COVER | XJ | |
||
| 36 | N407856 | 1 | DUCT | XJ | |
||
| 39 | 6010391-40 | 1 | MOTOR SA | XJ | |
||
| 40 | N684523 | 1 | FILTER | XJ | |
||
| 41 | N394540 | 1 | CONNECTOR | XJ | |
||
| 50 | N411724 | 1 | HANDLE SIDE SA | XJ | |
||
| 333 | XJ256CHK | 1 | TESTER | XJ |
