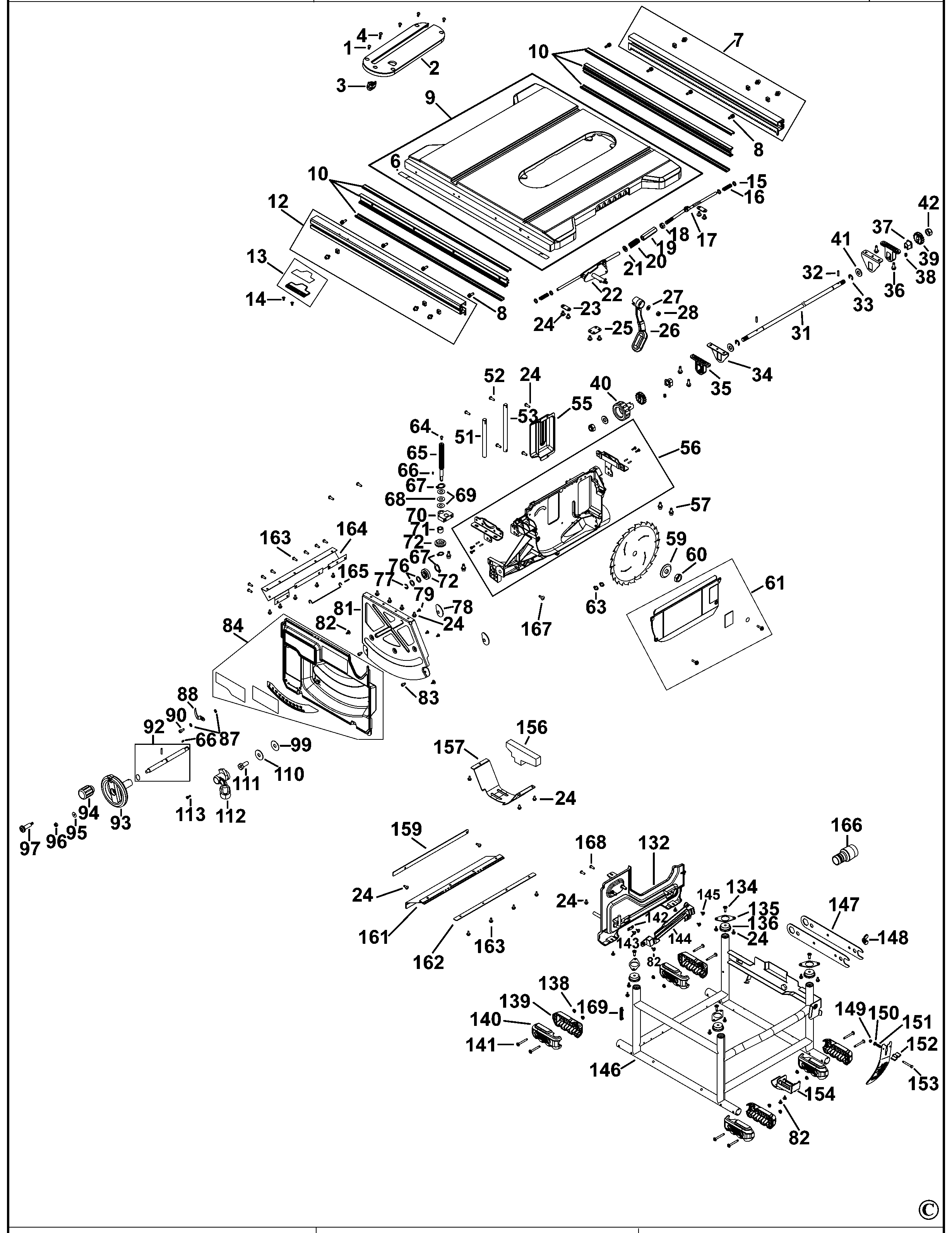

DWE7485 TABLE SAW Type 1 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 1 | N695959 | 4 | SCREW | LX |  |
||
| 2 | N705230 | 1 | TABLE INSERT | LX | |
||
| 3 | N705229 | 1 | CAM | LX | |
||
| 4 | N705228 | 1 | SCREW | LX | |
||
| 6 | N692656 | 1 | SCALE | LX | |
||
| 7 | N689415 | 1 | RAIL REAR | LX | |
||
| 8 | N694571 | 8 | SCREW.SPECIAL | LX | |
||
| 9 | N773296 | 1 | TABLE SA | LX | |
||
| 10 | N694553 | 2 | RAIL SA | LX | |
||
| 12 | N688778 | 1 | RAIL SA | LX | |
||
| 13 | N773302 | 1 | INDICATOR | LX | |
||
| 14 | N695962 | 2 | SCREW.SPECIAL | LX | |
||
| 15 | N697008 | 4 | WASHER | LX |  |
||
| 16 | N697009 | 2 | SPRING | LX | |
||
| 17 | N697015 | 1 | SHAFT SA | LX | |
||
| 18 | N697154 | 1 | NUT M8 | LX | |
||
| 19 | N697018 | 1 | ADJUSTER BLOCK | LX | |
||
| 20 | N697156 | 1 | SPRING | LX | |
||
| 21 | N697155 | 1 | WASHER | LX | |
||
| 22 | N694584 | 1 | SHAFT SA | LX | |
||
| 23 | N697014 | 2 | PLATE | LX | |
||
| 24 | N697013 | 26 | SCREW.SPECIAL | LX | |
||
| 25 | N697012 | 1 | PLATE | LX | |
||
| 26 | N694598 | 1 | LEVER LOCK | LX | |
||
| 27 | N697006 | 1 | WASHER | LX | |
||
| 28 | N697007 | 1 | NUT M6 | LX | |
||
| 31 | N697158 | 1 | SHAFT | LX | |
||
| 32 | N697159 | 2 | PIN | LX | |
||
| 33 | N697168 | 2 | RETAINER | LX | |
||
| 34 | N697160 | 2 | BRACKET | LX | |
||
| 35 | N697163 | 2 | BLOCK | LX | |
||
| 36 | N697169 | 4 | SCREW.SPECIAL | LX | |
||
| 37 | N697164 | 2 | BEARING BLOCK | LX | |
||
| 38 | N697162 | 2 | SPRING | LX | |
||
| 39 | N697165 | 2 | GEAR | LX | |
||
| 40 | N697166 | 1 | KNOB | LX | |
||
| 41 | N697161 | 3 | WASHER M10 | LX | |
||
| 42 | N697167 | 2 | NUT M10 | LX | |
||
| 51 | N697210 | 1 | SHAFT | LX | |
||
| 52 | N697209 | 3 | SCREW | LX | |
||
| 53 | N697211 | 1 | SHAFT | LX | |
||
| 55 | N697227 | 1 | GUARD | LX | |
||
| 56 | N773338 | 1 | CASTING | LX | |
||
| 57 | N697228 | 4 | SCREW | LX | |
||
| 59 | N704956 | 1 | WASHER CLAMP | LX | |
||
| 60 | N695943 | 1 | NUT | LX | |
||
| 61 | N773312 | 1 | PANEL SA | LX | |
||
| 63 | N697207 | 2 | SCREW.SPECIAL | LX | |
||
| 64 | N697208 | 1 | SCREW.SPECIAL | LX | |
||
| 65 | N697206 | 1 | SHAFT | LX | |
||
| 66 | N697195 | 2 | KEY | LX | |
||
| 67 | N697197 | 3 | RETAINER | LX | |
||
| 68 | N697204 | 1 | WASHER SPRING | LX | |
||
| 69 | N697203 | 2 | WASHER | LX | |
||
| 70 | N697202 | 1 | BLOCK | LX | |
||
| 71 | N697201 | 1 | SPACER | LX | |
||
| 72 | N697196 | 2 | BEVEL GEAR | LX | |
||
| 76 | N697194 | 2 | WASHER | LX | |
||
| 77 | N697168 | 1 | RETAINER | LX | |
||
| 78 | N695358 | 2 | CAM | LX | |
||
| 79 | N695595 | 3 | SCREW | LX | |
||
| 81 | N695357 | 1 | PLATE | LX | |
||
| 82 | N697179 | 8 | SCREW | LX | |
||
| 83 | N695589 | 2 | SCREW | LX | |
||
| 84 | N773335 | 1 | PANEL FRONT | LX | |
||
| 87 | N695603 | 2 | WASHER M5 | LX | |
||
| 88 | N695604 | 1 | INDICATOR | LX | |
||
| 90 | N695606 | 1 | SCREW | LX | |
||
| 92 | N697188 | 1 | SHAFT SA | LX | |
||
| 93 | N695937 | 1 | WHEEL ADJUSTER | LX | |
||
| 94 | N695939 | 1 | KNOB | LX | |
||
| 95 | N697155 | 1 | WASHER | LX | |
||
| 96 | N695941 | 1 | LOCK NUT | LX | |
||
| 97 | N695940 | 1 | HANDLE SCREW SA | LX | |
||
| 99 | N695931 | 1 | WASHER PLASTIC | LX | |
||
| 101 | N696390 | 3 | SCREW | LX | |
||
| 102 | N773276 | 1 | GUARD SA | LX | |
||
| 103 | N696395 | 7 | SCREW | LX | |
||
| 104 | N696362 | 1 | DUST PORT | LX | |
||
| 105 | N705243 | 1 | RIVING KNIFE | LX | |
||
| 106 | N696338 | 1 | DUST PORT | LX | |
||
| 107 | N773280 | 1 | GUARD SA | LX | |
||
| 108 | N696394 | 1 | WASHER NYLON | LX | |
||
| 109 | N696392 | 1 | SCREW | LX | |
||
| 110 | N695932 | 1 | WASHER | LX | |
||
| 111 | N695933 | 1 | SHAFT SA | LX | |
||
| 112 | N695934 | 1 | HANDLE | LX | |
||
| 113 | N695935 | 1 | SCREW | LX | |
||
| 114 | N714330 | 4 | SCREW | LX | |
||
| 116 | N739385 | 1 | CORD PROTECTOR | LX | |
||
| 117 | N697176 | 1 | HOUSING SWITCH | LX | |
||
| 118 | N697171 | 1 | SWITCH SUPPORT | LX | |
||
| 119 | N603746 | 1 | SWITCH 115V | LX | |
||
| 120 | N697172 | 1 | FLAP | LX | |
||
| 121 | N697175 | 1 | LOCKING PIN | LX | |
||
| 122 | N697173 | 1 | PADDLE | LX | |
||
| 123 | N719835 | 1 | CORDSET | LX | |
||
| 130 | N563569 | 1 | INSULATOR | LX | |
||
| 132 | N695597 | 1 | PANEL LH | LX | |
||
| 134 | N695344 | 4 | SCREW | LX | |
||
| 135 | N694575 | 4 | BRACKET | LX | |
||
| 136 | N694577 | 4 | BUMPER | LX | |
||
| 138 | N695348 | 8 | LOCK NUT | LX | |
||
| 139 | N715236 | 4 | FOOT | LX | |
||
| 140 | N715237 | 4 | FOOT | LX | |
||
| 141 | N695347 | 8 | SCREW.SPECIAL | LX | |
||
| 142 | N714336 | 1 | CORD CLAMP | LX | |
||
| 143 | N714330 | 2 | SCREW | LX | |
||
| 144 | N695598 | 1 | BRACKET | LX | |
||
| 145 | N733595 | 1 | SCREW | LX | |
||
| 146 | N715235 | 1 | CAGE | LX | |
||
| 147 | N695950 | 2 | SPANNER | LX | |
||
| 148 | N695949 | 1 | WING NUT | LX | |
||
| 149 | N695351 | 1 | LOCK NUT | LX | |
||
| 150 | N695352 | 1 | WASHER | LX | |
||
| 151 | N695355 | 1 | SPRING | LX | |
||
| 152 | N695353 | 1 | KNOB | LX | |
||
| 153 | N695354 | 1 | BOLT | LX | |
||
| 154 | N695349 | 1 | BRACKET | LX | |
||
| 156 | N697181 | 1 | FOAM | LX | |
||
| 157 | N694566 | 1 | GUARD | LX | |
||
| 159 | N697230 | 1 | BAR | LX | |
||
| 161 | N697232 | 1 | GUARD | LX | |
||
| 162 | N697231 | 1 | BAR | LX | |
||
| 163 | N714337 | 1 | SCREW | LX | |
||
| 164 | N694563 | 1 | GUARD | LX | |
||
| 165 | N743010 | 1 | PLATE | LX | |
||
| 166 | N070906 | 1 | ADAPTOR | VAC 2.25in to 35mm | LX | |
|
| 167 | N695947 | 1 | SCREW.SPECIAL | LX | |
||
| 168 | N719271 | 2 | SCREW | LX | |
||
| 169 | N765793 | 1 | BUMPER | LX | |
||
| 201 | N773286 | 1 | BRACKET SA | LX | |
||
| 202 | N696419 | 2 | LEAF SPRING | LX | |
||
| 203 | N696416 | 2 | PLATE | LX | |
||
| 204 | N696421 | 2 | SCREW | LX | |
||
| 205 | N696422 | 4 | BOLT | LX | |
||
| 206 | N696411 | 1 | CLIP | LX | |
||
| 207 | N773351 | 1 | FENCE | LX | |
||
| 208 | N696399 | 2 | SCREW.SPECIAL | LX | |
||
| 209 | N696412 | 1 | CLIP | LX | |
||
| 210 | N773292 | 1 | BRACKET SA | LX | |
||
| 211 | N696410 | 1 | BRACKET | LX | |
||
| 212 | N696403 | 1 | FENCE | LX | |
||
| 213 | N696408 | 2 | PLATE | LX | |
||
| 214 | N696425 | 2 | SCREW | LX | |
||
| 215 | N696409 | 1 | BRACKET | LX | |
||
| 216 | N696423 | 4 | SCREW | LX | |
||
| 217 | N696417 | 2 | SCREW | LX | |
||
| 218 | N696426 | 1 | PUSHER | LX | |
||
| 301 | N696329 | 1 | KNOB SA | LX | |
||
| 302 | N696334 | 1 | WASHER | LX | |
||
| 303 | N696336 | 1 | SCREW | LX | |
||
| 304 | N426424 | 1 | LABEL | LX | |
||
| 305 | N696331 | 1 | MITRE GUIDE | LX | |
||
| 306 | N696333 | 1 | SCREW | LX | |
||
| 307 | N696328 | 1 | POINTER | LX | |
||
| 308 | N696332 | 1 | BAR | LX | |
||
| 400 | N878752 | 1 | FENCE SA | LX | |
||
| 501 | N773307 | 1 | FIELDCASE | LX | |
||
| 502 | N695447 | 1 | ARMATURE SA | LX | |
||
| 503 | N719360 | 1 | FIELD 110V | LX | |
||
| 504 | N713246 | 2 | SCREW | LX | |
||
| 505 | N397490 | 1 | BAFFLE FAN | LX | |
||
| 506 | N705198 | 1 | O RING | LX | |
||
| 507 | N695375 | 1 | GEARCASE | LX | |
||
| 508 | N705196 | 1 | O RING | LX | |
||
| 510 | N796713 | 1 | BRUSH PAIR | LX | |
||
| 511 | N713211 | 4 | SCREW | LX | |
||
| 512 | N713238 | 2 | BRUSH CAP | LX | |
||
| 513 | N713241 | 2 | CORD PROTECTOR | LX | |
||
| 514 | N696108 | 1 | O RING | LX | |
||
| 515 | N695450 | 1 | ARBOR SA | LX | |
||
| 516 | N694571 | 3 | SCREW.SPECIAL | LX | |
||
| 601 | N697215 | 2 | SCREW | LX | |
||
| 602 | N697221 | 2 | SCREW | LX | |
||
| 603 | N704931 | 1 | END CAP | LX | |
||
| 604 | N697216 | 1 | SPRING | LX | |
||
| 605 | N704930 | 1 | NUT | LX | |
||
| 606 | N697213 | 1 | BRACKET | LX | |
||
| 607 | N697220 | 3 | SCREW | LX | |
||
| 608 | N697226 | 2 | SCREW | LX | |
||
| 609 | N704957 | 1 | RIVING KNIFE | LX | |
||
| 610 | N697214 | 1 | PLATE | LX | |
||
| 611 | N704949 | 1 | NUT | LX | |
||
| 612 | N704932 | 1 | KNOB SA | LX | |
