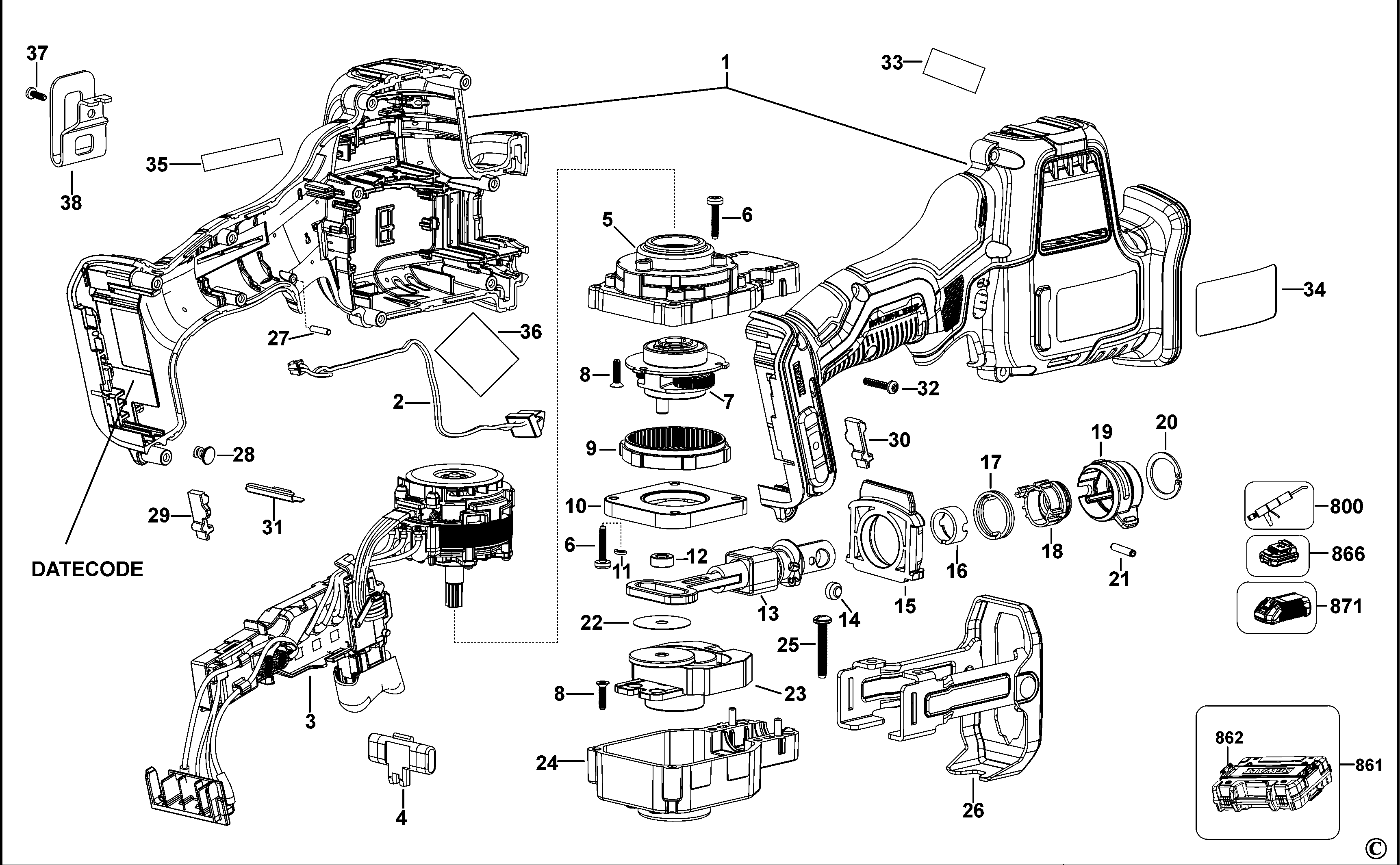

DCS369 CORDLESS RECIPROCATING SAW Type 1 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 1 | N719661 | 1 | CLAMSHELL SET | GB |  |
||
| 2 | N683436 | 1 | LED LIGHT | GB | |
||
| 3 | N774470 | 1 | MOTOR SA | GB | |
||
| 4 | N650938 | 1 | BUTTON LOCK-OFF | GB | |
||
| 5 | N658536 | 1 | GEARCASE | GB | |
||
| 6 | 330045-53 | 8 | SCREW | GB | |
||
| 7 | N773353 | 1 | CARRIER SA | GB | |
||
| 8 | N691339 | 7 | SCREW | M3 X 9 | GB | |
|
| 9 | N677836 | 1 | GEAR | GB | |
||
| 10 | N658540 | 1 | PLATE THRUST | GB | |
||
| 11 | N760370 | 4 | WASHER LOCK | M3 | GB | |
|
| 12 | N658544 | 1 | SLEEVE BEARING | GB | |
||
| 13 | N773357 | 1 | SHAFT SA | GB | |
||
| 14 | N690767 | 1 | PIN | GB | |
||
| 15 | N688751 | 1 | RUBBER BOOT | GB | |
||
| 16 | N690774 | 1 | SLEEVE | GB | |
||
| 17 | N690789 | 1 | SPRING | GB | |
||
| 18 | N690518 | 1 | CAM | GB | |
||
| 19 | N684560 | 1 | COLLAR | GB | |||
| 20 | N690786 | 1 | CIRCLIP | GB | |
||
| 21 | N096408 | 1 | SPIROL PIN | GB | |
||
| 22 | N658550 | 1 | WASHER | GB | |
||
| 23 | N773358 | 1 | ECCENTRIC SA | GB | |
||
| 24 | N773359 | 1 | GEARCASE COVER SA | GB | |
||
| 25 | 330045-08 | 1 | SCREW | GB | |
||
| 26 | N628892 | 1 | SHOE SA | GB | |
||
| 27 | N071836 | 1 | ROLL PIN | GB | |
||
| 28 | N453857 | 1 | TERMINAL BLOCK | GB | |||
| 29 | N239160 | 1 | BUMPER | GB | |
||
| 30 | N239159 | 1 | BUMPER | GB | |
||
| 31 | N467560 | 1 | PLATE | GB | |
||
| 32 | 682211-00 | 10 | SCREW | GB | |
||
| 33 | N719768 | 1 | LABEL | BRUSHLESS | GB | |
|
| 34 | N719783 | 1 | RATING PLATE | EURO | GB | ||
| 35 | N719775 | 1 | BRAND LABEL | 18V | GB | |
|
| 36 | N719779 | 1 | WARNING LABEL | EURO | GB | ||
| 37 | N086039 | 1 | HOOK | GB | |
||
| 38 | N042665 | 1 | SCREW | GB | |
||
| 800 | N017298 | 1 | GREASE | G-2008 Molykote | GB | |
|
| 861 | N614791 | 1 | KITBOX | GB | |
||
| 862 | H1500082008 | 1 | LATCH | GB | |||
| 866 | N195933 | 1 | BATTERY 18V - 4.0AH - 72WH | Li-Ion - DCB182; Li-Ion - DCB182-XJ | GB | |
|
| 871 | N450537 | 1 | CHARGER 10.8V - 18V | GB | |
