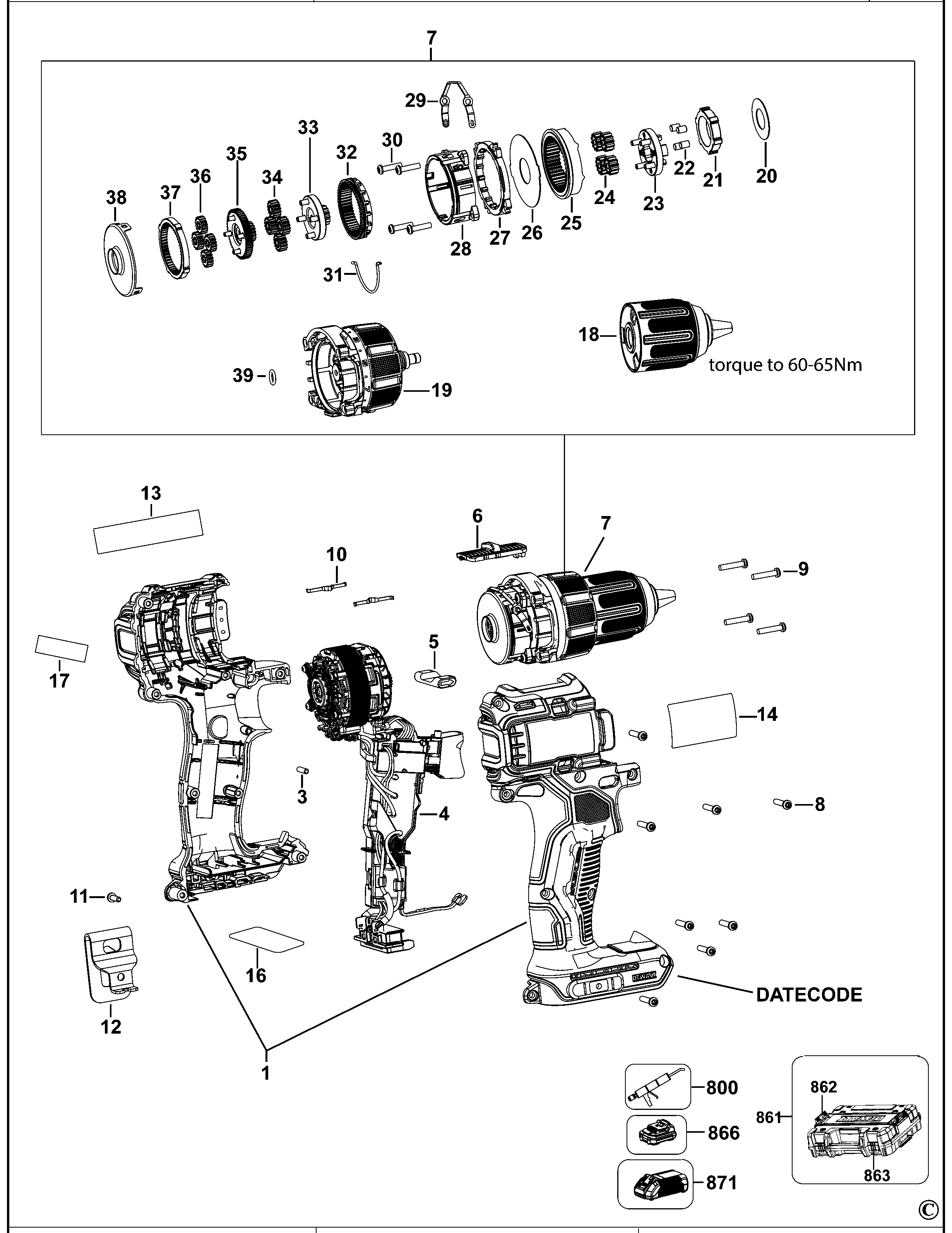

DCD708 CORDLESS DRILL Type 1 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 1 | N553813 | 1 | CLAMSHELL SET | GB |  |
||
| 3 | N071836 | 1 | ROLL PIN | GB | |
||
| 4 | N613571 | 1 | MOTOR & SWITCH SA | GB | |||
| 5 | N399342 | 1 | ACTUATOR FWD/REV | GB | |
||
| 6 | N696450 | 1 | SELECTOR SA | GB | |
||
| 7 | N703439 | 1 | TRANSMISSION ASSEMBLY | GB | |
||
| 8 | N463678 | 8 | SCREW | GB | |
||
| 9 | N474504 | 4 | SCREW | GB | |
||
| 10 | N014681 | 2 | LEAF SPRING | GB | |
||
| 11 | N042665 | 1 | SCREW | GB | |
||
| 12 | N086039 | 1 | HOOK | GB | |
||
| 13 | N616498 | 1 | BRAND LABEL | 18V XR | GB | |
|
| 14 | N614773 | 1 | RATING PLATE | EURO | GB | |
|
| 16 | N592684 | 1 | LABEL | GB |  |
||
| 17 | N618506 | 1 | LABEL | FOOT | GB | |
|
| 18 | N576254 | 1 | CHUCK KEYLESS | GB | |
||
| 19 | N642325 | 1 | HOUSING SA | GB | |
||
| 20 | N527659 | 1 | WASHER LOCK | GB | |
||
| 21 | N543525 | 1 | LOCKING RING | GB | |
||
| 22 | N549024 | 4 | PIN | GB | |
||
| 23 | N678082 | 1 | CARRIER SA | GB | |
||
| 24 | N543018 | 4 | GEAR | GB | |
||
| 25 | N551385 | 1 | GEAR | GB | |
||
| 26 | N548368 | 1 | WASHER | GB | |
||
| 27 | N543943 | 1 | GEAR | GB | |
||
| 28 | N544134 | 1 | HOUSING | GB | |
||
| 29 | N541904 | 1 | LINK | GB | |||
| 30 | N075506 | 4 | SCREW | GB | |
||
| 31 | N542091 | 1 | WIRE STEEL | GB | |
||
| 32 | N541279 | 1 | GEAR | GB | |
||
| 33 | N678083 | 1 | CARRIER SA | GB | |
||
| 34 | N541277 | 4 | GEAR | GB | |
||
| 35 | N678084 | 1 | CARRIER SA | GB | |
||
| 36 | N541274 | 4 | GEAR | GB | |
||
| 37 | N541276 | 1 | GEAR | GB | |
||
| 38 | N551410 | 1 | BACKPLATE | GB | |||
| 39 | N548029 | 1 | O RING | GB | |
||
| 800 | 286436-00 | 1 | GREASE | NYE RHEOLUBE 380, 500 GRAM JAR | GB | |
|
| 861 | N442424 | 1 | KITBOX | GB | |
||
| 862 | H1500082008 | 2 | LATCH | GB | |||
| 863 | P910190 | 2 | LATCH | GB | |
||
| 866 | N394624 | 1 | BATTERY 18V - 5.0AH - 90WH | GB | |
||
| 866 | N314783 | 1 | BATTERY 18V - 2.0AH - 36WH | DCB183-XJ | GB | |
|
| 866 | N314783 | 1 | BATTERY 18V - 2.0AH - 36WH | DCB183-XJ | DCD708S2T | GB | |
| 871 | N450537 | 1 | CHARGER 10.8V - 18V | GB | |
