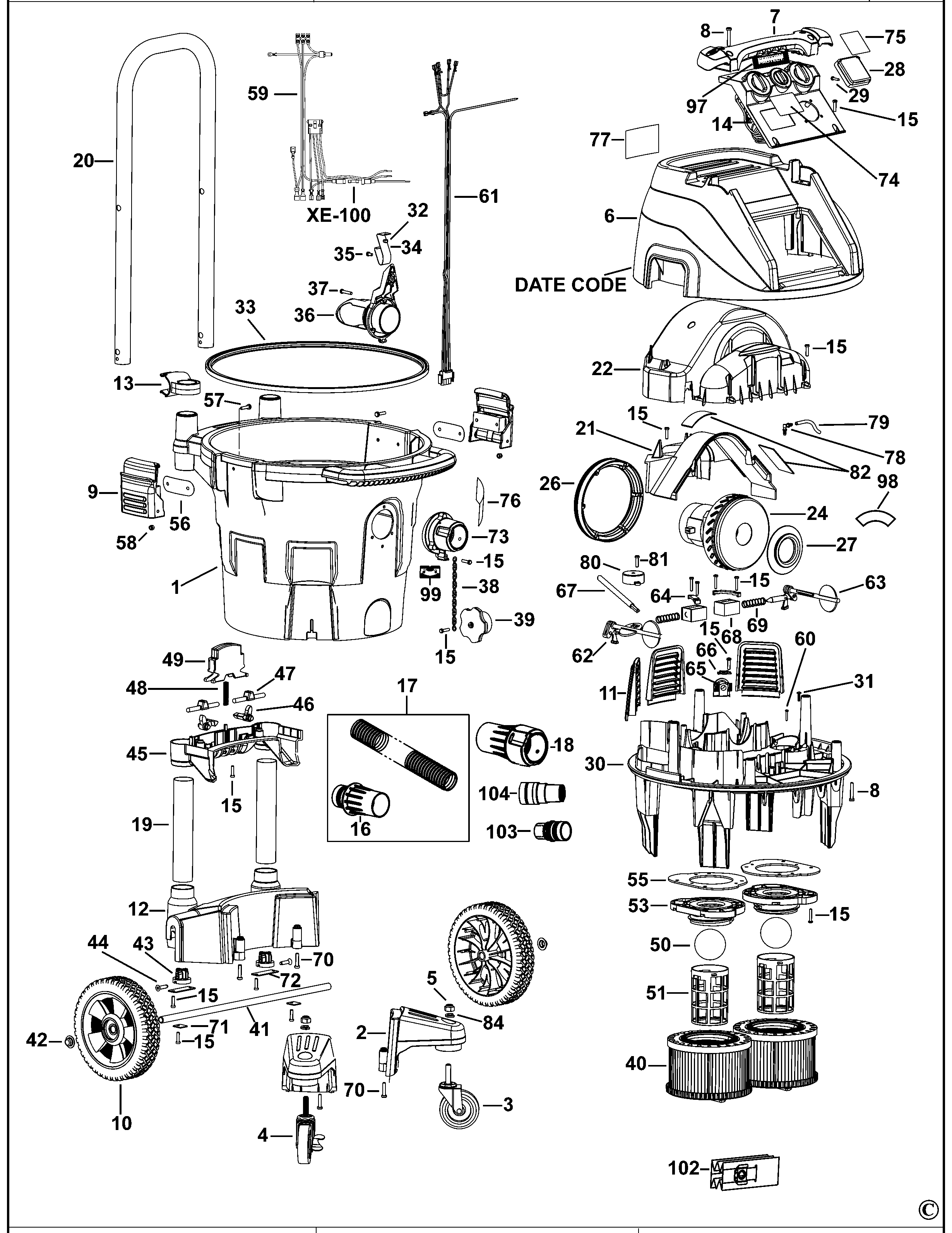

DWV902M DUST EXTRACTOR Type 13 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 1 | N116019 | 1 | TANK | GB |  |
||
| 2 | N395145 | 2 | MOUNTING BRACKET | GB | |
||
| 3 | N289839 | 1 | CASTOR | NON LOCK | GB | |
|
| 4 | N380031 | 1 | CASTOR | LOCKING | GB | |
|
| 5 | N371459 | 2 | NUT | 3/8 X 16 | GB | |
|
| 6 | N316266 | 1 | HEAD | GB | |
||
| 7 | N135179 | 1 | HANDLE | DWV902M | GB | |
|
| 8 | 330019-21 | 9 | SCREW.TEMP | GB | |
||
| 9 | 1004771-97 | 2 | LATCH | GB | |
||
| 10 | N417079 | 2 | WHEEL REAR | GB | |
||
| 11 | N135170 | 3 | VENT | GB | |
||
| 12 | N118223 | 1 | MOUNTING BRACKET | GB | |
||
| 13 | N147540 | 1 | CLAMP | GB | |
||
| 14 | 1004772-12 | 1 | CONTROL PANEL | 230V | GB | |
|
| 15 | 330019-13 | 37 | SCREW | M4X19 T20 | GB | |
|
| 16 | N145597 | 1 | HOSE PLATE | GB | |
||
| 17 | N208032 | 1 | HOSE SA | INCL 16 | GB | |
|
| 18 | N071898 | 1 | CONNECTOR | GB | |
||
| 19 | N139272 | 2 | TUBE | GB | |
||
| 20 | N138912 | 1 | HANDLE UPPER | GB | |
||
| 21 | N395655 | 1 | MOTOR COVER | GB | |
||
| 22 | N162177 | 1 | COVER | GB | |
||
| 24 | 1004772-00 | 1 | MOTOR SA 230V | 230V | GB | |
|
| 26 | N250119 | 1 | RING,GASKET | GB | |
||
| 27 | N137847 | 1 | GASKET | FRONT | GB | |
|
| 28 | N135487 | 1 | OUTLET | GB | GB | |
|
| 29 | 330019-03 | 2 | SCREW | GB | |
||
| 30 | 1004772-03 | 1 | MOUNT SA | GB | |
||
| 31 | N142836 | 1 | SCREW | GB | |
||
| 32 | N142838 | 1 | LOCK NUT | GB | |
||
| 33 | N124753 | 1 | GASKET | TANK | GB | |
|
| 34 | N137853 | 1 | PLATE | STATIC DISCHARGE ELE | GB | |
|
| 35 | N142827 | 1 | SCREW | GB | |
||
| 36 | N468428 | 1 | INLET | GB | |
||
| 37 | 330019-14 | 3 | SCREW | GB | |
||
| 38 | N185285 | 1 | CABLE | GB | |
||
| 39 | N143848 | 1 | CAP | GB |  |
||
| 40 | 1004772-04 | 2 | FILTER SA | GB | |
||
| 41 | N118225 | 1 | AXLE | GB | |
||
| 42 | N118234 | 2 | RETAINER | GB | |
||
| 43 | N137054 | 2 | BUNG | GB | |
||
| 44 | N147400 | 2 | SCREW | GB | |
||
| 45 | N133363 | 1 | COVER | GB | |
||
| 46 | N139136 | 2 | LEVER | GB | |
||
| 47 | N137872 | 2 | LOCK PIN | GB | |
||
| 48 | N142180 | 1 | SPRING | GB | |
||
| 49 | N137721 | 1 | BUTTON | GB | |
||
| 50 | N206771 | 2 | VALVE FLOATING | GB | |
||
| 51 | N265199 | 2 | CAGE | GB | |
||
| 53 | N294525 | 2 | MOUNT | GB | |
||
| 55 | N146653 | 2 | GASKET | GB | |
||
| 56 | N146843 | 2 | PLATE | GB | |
||
| 57 | 330045-15 | 4 | SCREW | GB | |
||
| 58 | 148641-00 | 4 | LOCK-NUT | GB | |
||
| 59 | N166680 | 1 | LEAD SA | GB | |
||
| 60 | 330019-24 | 1 | SCREW | GB | |
||
| 61 | 1004772-15 | 1 | LEAD SA | GB | |
||
| 62 | 1004772-06 | 1 | VALVE | RH | GB | |
|
| 63 | 1004772-07 | 1 | VALVE | LH | GB | |
|
| 64 | N395762 | 2 | STRAP | GB | |
||
| 65 | N135151 | 1 | CORD PROTECTOR | GB | |
||
| 66 | 450877-00 | 1 | CORD CLAMP | GB | |
||
| 67 | N251739 | 1 | CORDSET (M/PLUG) GB | GB | GB | |
|
| 68 | N378200 | 2 | SOLENOID ASSEMBLY | 230V | GB | |
|
| 69 | N362634 | 2 | SPRING | GB | |
||
| 70 | 330019-20 | 4 | SCREW | GB | |
||
| 71 | N118226 | 2 | PLATE | GB | |
||
| 72 | N134941 | 2 | PLATE | GB | |
||
| 73 | N150546 | 1 | INLET | GB | |
||
| 74 | 1004772-19 | 1 | RATING PLATE | GB | |
||
| 75 | N408096 | 1 | WARNING LABEL | 1600W | GB | |
|
| 76 | N405022 | 1 | BRAND LABEL | GB | |
||
| 77 | N154132 | 1 | WARNING LABEL | M CLASS | GB | |
|
| 78 | N149299 | 1 | CONNECTOR | ELBOW M CLASS | GB | |
|
| 79 | N149246 | 1 | TUBE PLASTIC | M CLASS | GB | |
|
| 80 | N139903 | 1 | SIREN | M CLASS | GB | |
|
| 81 | 330019-02 | 2 | SCREW | GB | |
||
| 82 | N177921 | 1 | FOAM | GB | |
||
| 84 | N371460 | 2 | WASHER LOCK | GB | |
||
| 97 | N177322 | 1 | LABEL | GB | |
||
| 98 | N183923 | 1 | LABEL | GB | |
||
| 99 | N199361 | 1 | LABEL | GB | |
||
| 102 | 1004772-10 | 1 | DUST BAG SA | GB | |
||
| 103 | N070902 | 1 | ADAPTOR | GB | |
||
| 104 | 1004772-11 | 1 | CONNECTOR | GB | |
