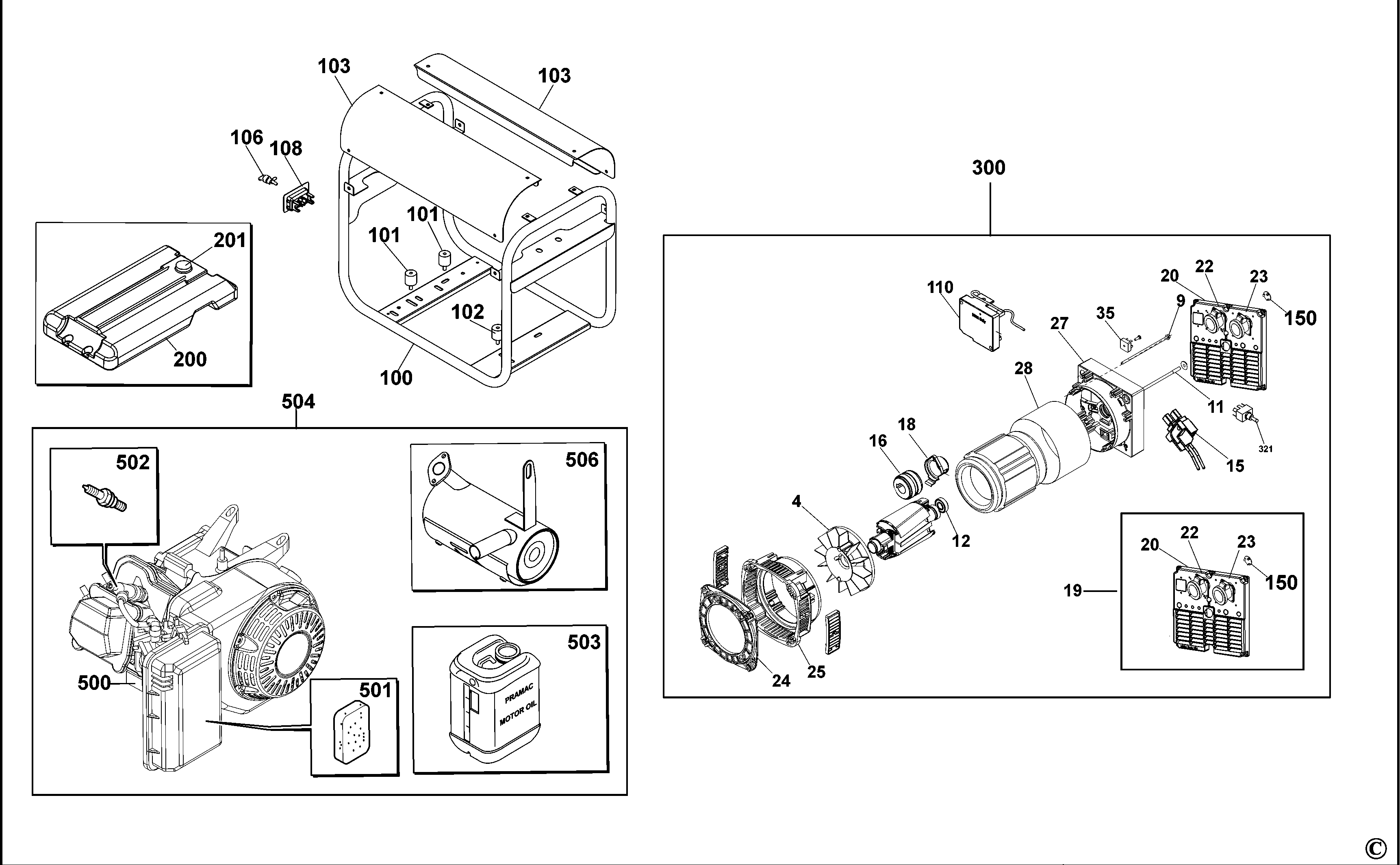

PE402SHI01A PETROL GENERATOR Type 1 | Drawings
Documents
- HONDA_GX120_GX160_GX200_GX240_GX270_GX340_GX390_CZ.pdf
- HONDA_GX240_GX270_GX340_GX390_RU.pdf
- HONDA_GX240_GX270_GX340_GX390_DE.pdf
- HONDA_GX120-GX390_PL.pdf
- HONDA_GX240_GX270_GX340_GX390_NL.pdf
- Sweden
- HONDA_GX240_GX270_GX340_GX390_GB.pdf
- HONDA_GX240_GX270_GX340_GX390_ES.pdf
- HONDA_GX240_GX270_GX340_GX390_FR.pdf
- Denmark
- Europe
- Bulgaria
- Europe
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 4 | 1004714-53 | 1 | FAN | XJ |  |
||
| 9 | 1004717-74 | 1 | BOLT | XJ | |
||
| 11 | 1004718-27 | 1 | ROD | XJ | |
||
| 12 | 1004714-36 | 1 | BEARING | XJ |  |
||
| 15 | 1004714-57 | 1 | BRUSH & HOLDER SA | XJ | |
||
| 16 | 1004714-62 | 1 | MANIFOLD ASSEMBLY | XJ | |
||
| 18 | 1004714-50 | 1 | COVER | XJ | |
||
| 19 | 1004717-83 | 1 | SOCKET SA | XJ | |
||
| 20 | 1004717-85 | 1 | SOCKET SA | XJ | |
||
| 22 | 1004717-84 | 1 | SOCKET | XJ | |
||
| 23 | 1004717-99 | 1 | SOCKET | XJ | |
||
| 24 | 1004714-79 | 1 | FLANGE | XJ | |
||
| 25 | 1004718-28 | 1 | HOUSING | XJ | |
||
| 27 | 1004714-61 | 1 | COVER SA | XJ | |
||
| 28 | 1004717-73 | 1 | COVER | XJ | |
||
| 35 | 1004714-67 | 1 | DIODE SA | XJ | |
||
| 100 | 1004714-74 | 1 | FRAME | XJ | |
||
| 101 | 1004714-75 | 1 | BLOCK | XJ | |
||
| 102 | 1004714-76 | 1 | BLOCK | XJ | |
||
| 103 | 1004714-77 | 1 | COVER-TOP | XJ | |
||
| 106 | 1004714-35 | 1 | VALVE | XJ | |
||
| 108 | 1004714-71 | 1 | HOLDER | XJ | |
||
| 110 | 1004714-43 | 1 | MODULE | XJ | |
||
| 150 | 1004714-63 | 1 | PLUG | XJ | |
||
| 200 | 1004714-37 | 1 | Fuel tank | XJ | |
||
| 201 | 1004714-34 | 1 | FUEL CAP | XJ | |
||
| 300 | 1004718-23 | 1 | ALTERNATOR | XJ | |
||
| 321 | 1004718-35 | 1 | SWITCH SA | XJ | |
||
| 500 | 000000-12 | 1 | CONTACT HONDA FOR SERVICE | XJ | |||
| 501 | 1004714-83 | 1 | FILTER | XJ | |
||
| 502 | 1004714-70 | 1 | SPARK PLUG | XJ | |
||
| 503 | 1004714-42 | 1 | OIL | XJ | |
||
| 504 | 1004714-84 | 1 | KIT | XJ | |
||
| 506 | 1004714-85 | 1 | Muffler | XJ | |
