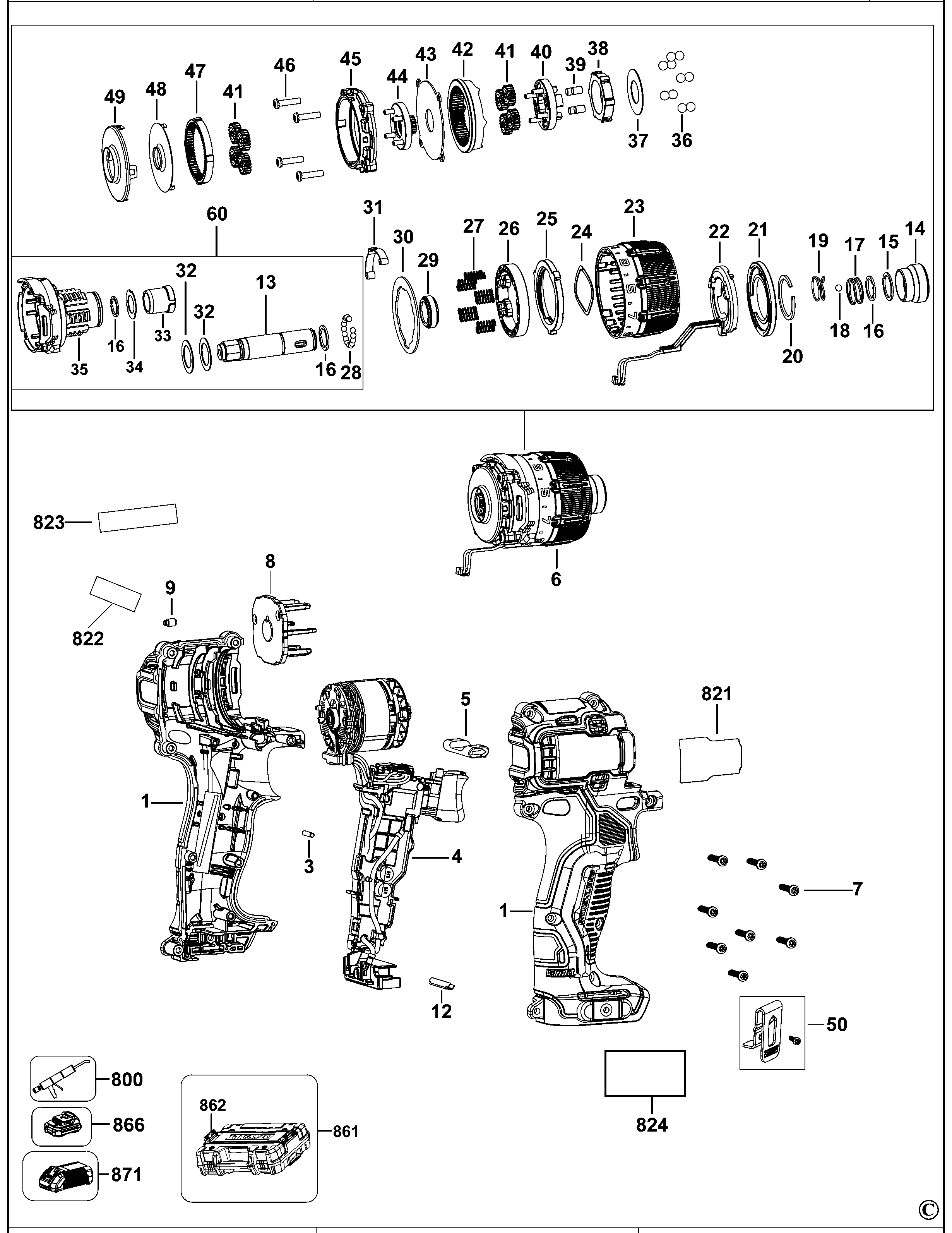

DCF601 SCREWDRIVER Type 1 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 1 | N612202 | 1 | CLAMSHELL SET | GB |  |
||
| 3 | N071836 | 1 | ROLL PIN | GB | |
||
| 4 | N735657 | 1 | MOTOR & SWITCH SA | GB | |
||
| 5 | N399342 | 1 | ACTUATOR FWD/REV | GB | |
||
| 6 | N682452 | 1 | TRANSMISSION ASSEMBLY | GB | |
||
| 7 | N463678 | 8 | SCREW | GB | |
||
| 8 | N552144 | 1 | PLASTIC ADAPTOR | GB | |
||
| 9 | N593131 | 1 | PLUG | GB | |
||
| 12 | N660916 | 1 | PIN | GB | |
||
| 13 | N702963 | 1 | SHAFT SA | GB | |
||
| 14 | N612522 | 1 | SLEEVE | GB | |
||
| 15 | N453417 | 1 | WASHER | GB | |
||
| 16 | N421245 | 3 | RING | GB | |
||
| 17 | N019351 | 1 | SPRING | GB | |
||
| 18 | N089668 | 1 | BALL STEEL | GB | |
||
| 19 | N437890 | 1 | SPRING | GB | |
||
| 20 | N597957 | 1 | RETAINER | GB | |
||
| 21 | N607311 | 1 | LENS | GB | |
||
| 22 | N628717 | 1 | LED LIGHT | GB | |
||
| 23 | N612584 | 1 | COLLAR | GB | |
||
| 24 | N597958 | 1 | WASHER BOW | GB | |
||
| 25 | N527880 | 1 | ADJUSTER TORQUE | GB | |
||
| 26 | N618199 | 1 | HOLDER | GB | |
||
| 27 | N527878 | 10 | SPRING | GB | |
||
| 28 | 389317-00 | 16 | BALL STEEL | GB | |
||
| 29 | N597951 | 1 | SPACER | GB | |
||
| 30 | N595962 | 1 | WASHER SPECIAL | CLUTCH | GB | |
|
| 31 | N597954 | 1 | DETENT | GB | |
||
| 32 | N595963 | 2 | WASHER THRUST | GB | |
||
| 33 | N593028 | 1 | BUSHING | GB | |
||
| 34 | N614470 | 1 | WASHER | GB | |
||
| 35 | N615587 | 1 | HOUSING | CLUTCH | GB | |
|
| 36 | 386690-00 | 10 | BALL | STEEL, 5MM | GB | |
|
| 37 | N527659 | 1 | WASHER LOCK | GB | |
||
| 38 | N543525 | 1 | LOCKING RING | GB | |
||
| 39 | N647513 | 4 | PIN | GB | |
||
| 40 | N682495 | 1 | CARRIER SA | SA 2ND CARRIER | GB | |
|
| 41 | N531637 | 8 | GEAR | GB | |
||
| 42 | N629339 | 1 | GEAR | 2ND RING GEAR | GB | |
|
| 43 | N595966 | 1 | PLATE | GB | |
||
| 44 | N682496 | 1 | CARRIER SA | SA 1ST CARRIER | GB | |
|
| 45 | N618176 | 1 | HOUSING | GB | |
||
| 46 | N075506 | 4 | SCREW | GB | |
||
| 47 | N549298 | 1 | GEAR | GB | |
||
| 48 | N550764 | 1 | WASHER | GB | |
||
| 49 | N602246 | 1 | PLATE | GB | |
||
| 50 | N702958 | 1 | HOOK SA | GB | |
||
| 60 | N743787 | 1 | HOUSING SA | GB | |
||
| 800 | 870889-02 | 1 | GREASE | GB | |
||
| 821 | N650895 | 1 | RATING PLATE | EURO | GB | ||
| 822 | N658202 | 1 | LABEL | GB | |
||
| 823 | N665281 | 1 | BRAND LABEL | GB | |
||
| 824 | N665617 | 1 | LABEL | FOOT | GB | |
|
| 861 | N614791 | 1 | KITBOX | GB | |
||
| 862 | H1500082008 | 2 | LATCH | GB | |||
| 866 | N757624 | 1 | BATTERY 12V-2AH-24WH | DCB122-XJ | DCF601D2 | GB | |
| 866 | N752771 | 1 | BATTERY 12V-3AH-36WH | DCB124-XJ | DCF601L2 | GB | |
| 871 | N394632 | 1 | CHARGER 10.8V - 18V | DCB112-GB - 2.0A | GB | |
