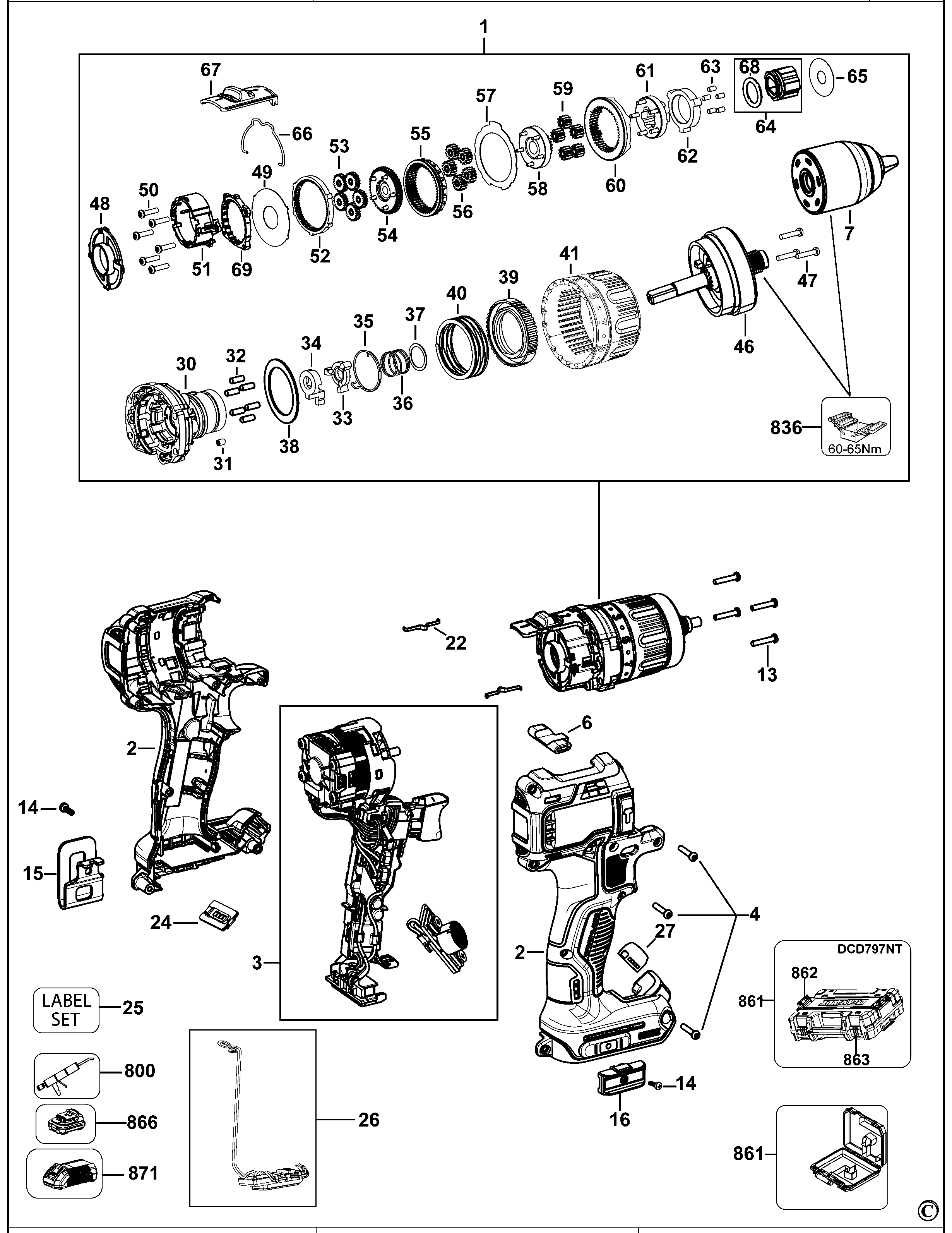

DCD797 CORDLESS DRILL/DRIVER Type 1 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 1 | N438603 | 1 | TRANSMISSION SA | GB |  |
||
| 2 | N497370 | 1 | CLAMSHELL | PAIR | GB | |
|
| 3 | N559232 | 1 | MOTOR & SWITCH SA | GB | |
||
| 4 | 682211-00 | 9 | SCREW | GB | |
||
| 6 | N399342 | 1 | ACTUATOR FWD/REV | GB | |
||
| 7 | N485661 | 1 | CHUCK KEYLESS | GB | |
||
| 13 | N377990 | 4 | SCREW | GB | |
||
| 14 | N042665 | 2 | SCREW | GB | |
||
| 15 | N086039 | 1 | HOOK | GB | |
||
| 16 | N475326 | 1 | HOLDER BIT | GB | |
||
| 22 | N014681 | 2 | LEAF SPRING | GB | |
||
| 24 | N470512 | 1 | SWITCH | TOOL CONNECT | GB | |
|
| 25 | N529535 | 1 | LABEL SET | inc Rating Label | GB | |
|
| 26 | N559236 | 1 | MODULE | GB | |
||
| 27 | N485905 | 1 | LABEL | BLE selector label | GB | |
|
| 30 | N438745 | 1 | GEARCASE SA | GB | |
||
| 31 | 326467-00 | 1 | DETENT | GB | |
||
| 32 | N411204 | 6 | PIN | GB | |
||
| 33 | N047986 | 1 | RATCHET | GB | |
||
| 34 | N047987 | 1 | RATCHET | GB | |
||
| 35 | N123162 | 1 | SPRING | GB | |
||
| 36 | N047988 | 1 | SPRING | GB | |
||
| 37 | N047985 | 1 | WASHER | GB | |
||
| 38 | N411205 | 1 | WASHER | GB | |
||
| 39 | N411207 | 1 | ADJUSTER TORQUE | GB | |
||
| 40 | N422472 | 1 | SPRING | GB | |
||
| 41 | N422233 | 1 | COLLAR | GB | |
||
| 46 | N438748 | 1 | SPINDLE SA | GB | |
||
| 47 | 682211-00 | 3 | SCREW | GB | |
||
| 48 | N396641 | 1 | ADAPTOR | GB | |
||
| 49 | N063567 | 1 | PLATE | GB | |
||
| 50 | N075506 | 6 | SCREW | GB | |
||
| 51 | N400716 | 1 | GEARCASE | GB | |
||
| 52 | N030988 | 1 | GEAR | GB | |
||
| 53 | N030999 | 5 | GEAR | GB | |
||
| 54 | N124371 | 1 | CARRIER SA | GB | |
||
| 55 | N031079 | 1 | GEAR | GB | |
||
| 56 | N031080 | 5 | GEAR | GB | |
||
| 57 | N032409 | 1 | WASHER | GB | |
||
| 58 | N122400 | 1 | CARRIER SA | GB | |
||
| 59 | N031083 | 5 | GEAR | GB | |
||
| 60 | N078410 | 1 | GEAR | GB | |
||
| 61 | N122401 | 1 | CARRIER SA | GB | |
||
| 62 | N022985 | 1 | LOCKING RING | GB | |
||
| 63 | N093416 | 5 | ROLLER | GB | |
||
| 64 | N442738 | 1 | ANVIL ASSEMBLY | GB | |
||
| 65 | N090435 | 1 | WASHER | GB | |
||
| 66 | N035441 | 1 | WIRE STEEL | GB | |
||
| 67 | N397466 | 1 | SELECTOR | GB | |
||
| 68 | N439123 | 1 | O RING | GB | |
||
| 69 | N400715 | 1 | RING | GB | |
||
| 800 | 808386-00 | 1 | GREASE | MOLYKOTE G68 100GMS | GB | ||
| 836 | 559661-99 | 1 | S.T.CHUCK REMOVAL JIG | GB | |
||
| 836 | 559697-99 | 1 | S.T.INSERT | GB | |
||
| 861 | N466901 | 1 | KITBOX | GB | |
||
| 866 | N436206 | 1 | BATTERY 18V - 2.0AH - 36WH | GB | |
||
| 866 | N436213 | 1 | BATTERY 18V - 5.0AH - 90WH | DCB184B BLUETOOTH | GB | |
|
| 871 | N450537 | 1 | CHARGER 10.8V - 18V | GB | |
