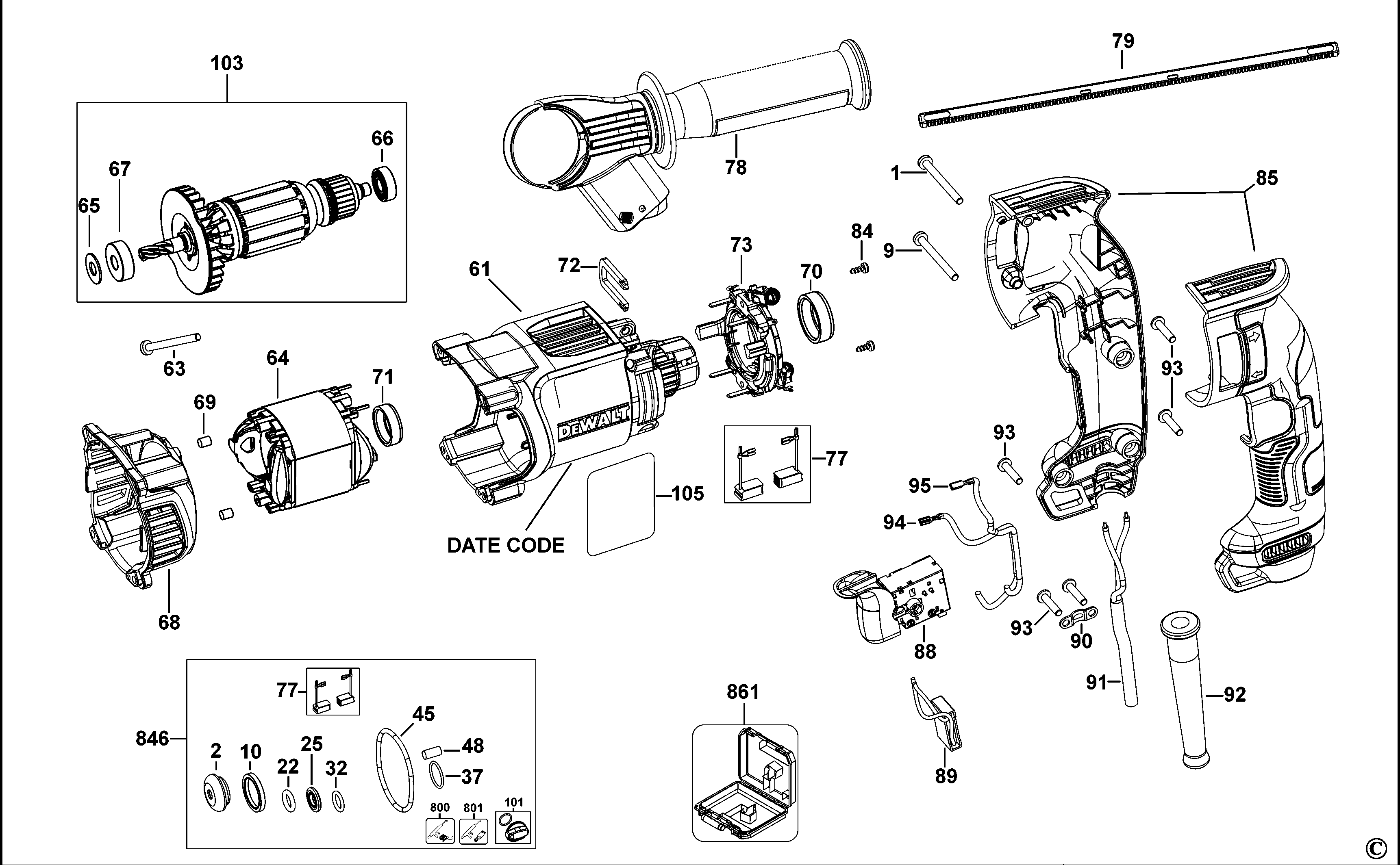

DWH24 ROTARY HAMMER Type 1 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 1 | N325879 | 1 | SCREW | XJ |  |
||
| 2 | 323489-00 | 1 | CAP | XJ | |
||
| 3 | 579212-00 | 1 | RING | XJ | |
||
| 4 | N720573 | 1 | TUBE | XJ | |
||
| 5 | 583890-00 | 1 | BALL | XJ | |
||
| 6 | 578387-00 | 1 | WASHER | XJ | |
||
| 7 | 871690 | 1 | SPRING | XJ | |
||
| 8 | N417731 | 1 | HOUSING SA | XJ | |
||
| 9 | 330065-16 | 1 | SCREW | XJ | |
||
| 10 | N496180 | 1 | SEAL | XJ | |
||
| 11 | N020023 | 1 | BEARING SPINDLE | XJ | |
||
| 13 | 1005788-00 | 1 | WASHER | XJ | |
||
| 17 | 589350-00 | 1 | WASHER | XJ | |
||
| 18 | N264677 | 1 | SPRING | XJ | |
||
| 19 | N417735 | 1 | LOCKING RING | XJ | |
||
| 20 | N417737 | 1 | GEAR | XJ | |
||
| 20 | N019978 | 1 | GEAR | 25T, HIGH SPD. | XJ | |
|
| 22 | N394276 | 1 | O RING | XJ | |
||
| 23 | N470388 | 1 | TUBE GUIDE | XJ | |
||
| 24 | N417744 | 1 | BEAT PIECE | XJ | |
||
| 25 | 580990-00 | 1 | O RING | XJ | |
||
| 26 | N531681 | 1 | WASHER | XJ | |
||
| 27 | N294259 | 1 | RING | XJ | |
||
| 28 | N267565 | 1 | RING | XJ | |
||
| 29 | N417745 | 1 | BEARING | XJ | |
||
| 32 | N264642 | 1 | O RING | XJ | |
||
| 33 | N425231 | 1 | PISTON | XJ | |
||
| 34 | 1005842-00 | 1 | WASHER | XJ | |
||
| 35 | N325041 | 1 | BEARING SPINDLE | XJ |  |
||
| 36 | N495931 | 1 | HOUSING BEARING | XJ | |
||
| 37 | N264673 | 1 | O RING | XJ | |
||
| 38 | N418018 | 1 | INTERSHAFT SA | XJ | |
||
| 44 | 1005844-00 | 1 | WASHER | XJ | |
||
| 45 | N264672 | 1 | O RING | XJ | |
||
| 46 | N417853 | 1 | COLLAR | XJ | |
||
| 47 | N417859 | 1 | GEAR | XJ | |
||
| 48 | 1005812-00 | 1 | FELT | XJ | |
||
| 49 | N445171 | 2 | SCREW | XJ | |
||
| 50 | 324006-15 | 3 | SCREW | XJ | |
||
| 51 | N493869 | 1 | PLATE | XJ | |
||
| 52 | 1005795-00 | 1 | SPRING | XJ | |
||
| 55 | N091381-00 | 1 | O RING | XJ | |
||
| 61 | N481043 | 1 | HOUSING MOTOR | XJ | |
||
| 63 | 330019-39 | 2 | SCREW | XJ | |
||
| 65 | N245239 | 1 | WASHER | XJ | |
||
| 66 | 1005895-00 | 1 | BEARING | XJ | |
||
| 67 | 330003-60 | 1 | BEARING | XJ | |
||
| 68 | N344965 | 1 | BAFFLE | XJ | |
||
| 69 | N476768 | 2 | RUBBER PAD | XJ | |
||
| 70 | N442577 | 1 | RING | XJ | |
||
| 71 | N442578 | 1 | COVER BEARING | XJ | |
||
| 72 | 1005894-00 | 1 | CLIP | XJ | |
||
| 79 | 798846-02 | 1 | DEPTH STOP | XJ | |
||
| 84 | N475466 | 2 | SCREW | XJ | |
||
| 90 | 329301-00 | 1 | CORD CLAMP | XJ | |
||
| 93 | 330065-08 | 5 | SCREW | M4x18 T20 | XJ | |
|
| 94 | N425379 | 1 | LEAD BLUE | XJ | |||
| 95 | 1005879-01 | 1 | LEAD RED | XJ | |
||
| 97 | N476832 | 4 | SCREW | XJ | |
||
| 100 | N424934 | 1 | SPINDLE SA | XJ | |||
| 101 | N417861 | 1 | SELECTOR SA | XJ | |
||
| 102 | N418035 | 1 | RAM SA | XJ | |
||
| 800 | 870889-02 | 1 | GREASE | XJ | |
||
| 801 | 487130-04 | 1 | GREASE | GLK FLUID 249 NLGI 000 (10G SERVICE) | XJ | |
|
| 836 | 596005-99 | 1 | S.T.CIRCLIP REMOVER | XJ | |
||
| 836 | 1003959-99 | 1 | S.T.CIRCLIP REMOVER | XJ | |
||
| 836 | 1003960-99 | 1 | S.T.CIRCLIP REMOVER | XJ | |
