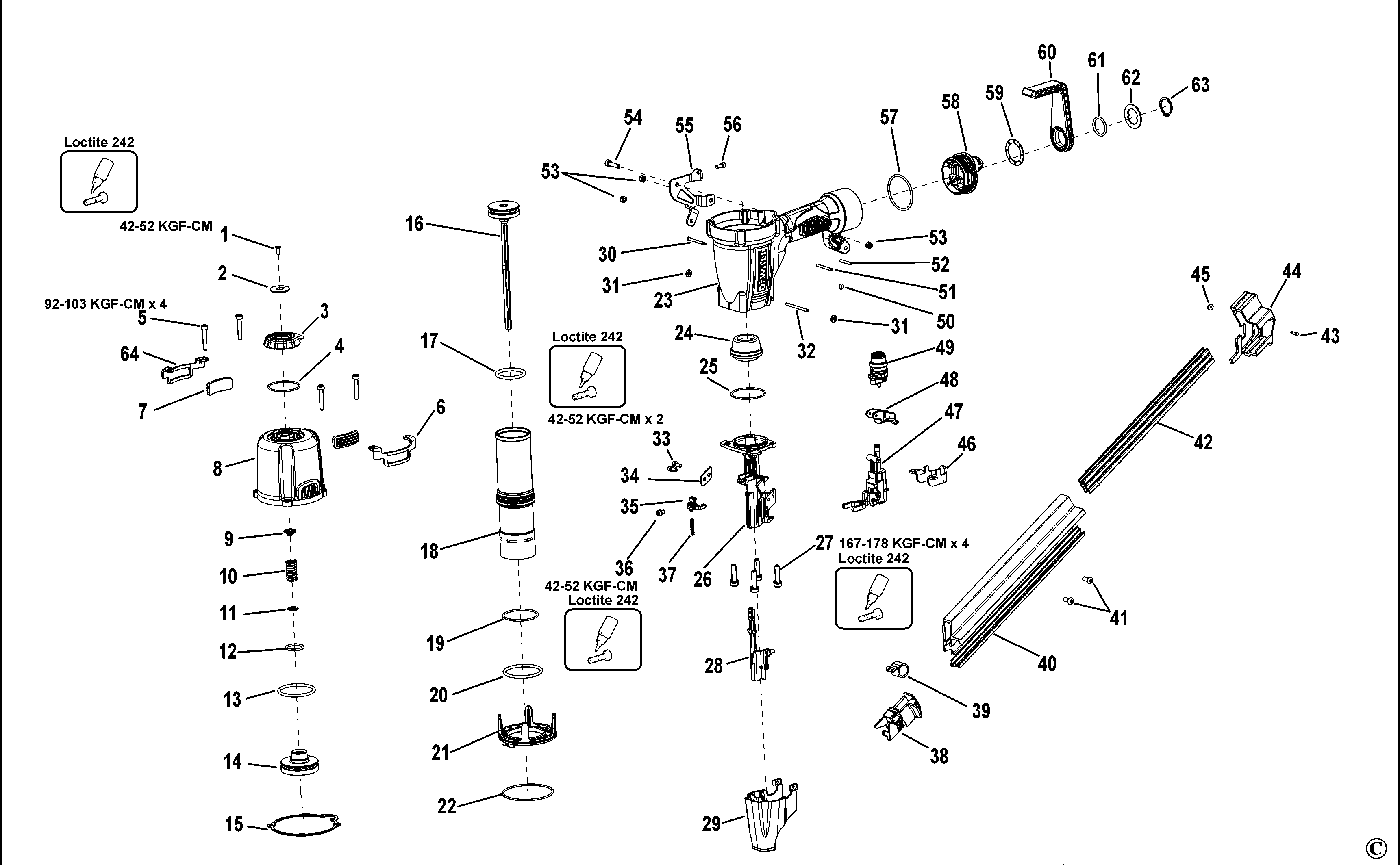

DPN250MCN NAILER Type 1 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 1 | 174041 | 1 | SCREW | XJ |  |
||
| 2 | 174042 | 1 | SPACER | XJ | |
||
| 3 | 174043 | 1 | COVER | XJ | |
||
| 4 | S06A003000 | 1 | O RING | XJ |  |
||
| 5 | 175554 | 4 | SCREW | M5x0.80x30 | XJ | |
|
| 6 | 9R203792 | 1 | BRACKET LH | XJ | |
||
| 7 | 9R203791 | 2 | RUBBER PAD | XJ | |
||
| 8 | 9R209549 | 1 | CAP SA | XJ | |
||
| 9 | 174049 | 1 | SEAL | XJ | |
||
| 10 | 174051 | 1 | SPRING COMPRESSION | XJ | |
||
| 11 | 174052 | 1 | WASHER SPECIAL | XJ | |
||
| 12 | 174053 | 1 | O RING | 20.8mmx2.4mm | XJ | |
|
| 13 | 174055 | 1 | O RING | XJ | |
||
| 14 | 174054 | 1 | VALVE | XJ | |
||
| 15 | 9R203793 | 1 | GASKET | XJ | |
||
| 16 | 9R199716 | 1 | PISTON SA | XJ | |
||
| 17 | 174060 | 1 | O RING | XJ | |
||
| 18 | 175558 | 1 | SLEEVE | XJ | |
||
| 19 | 174058 | 1 | O RING | 45.5mm x 2.0mm | XJ | |
|
| 20 | 86460 | 1 | O RING | 1.85 x 0.139 | XJ | |
|
| 21 | 175556 | 1 | COLLAR | XJ | |
||
| 22 | 174056 | 1 | O RING | 66.5mm x 2.0mm | XJ | |
|
| 23 | 9R203805 | 1 | FRAME | XJ | |
||
| 24 | 175562 | 1 | BUMPER | XJ | |
||
| 25 | 851483-S | 1 | O RING | XJ | |
||
| 26 | 9R209476 | 1 | NOSE SA | XJ | |
||
| 27 | 174078 | 4 | SCREW | XJ | |
||
| 28 | 9R209479 | 1 | NOSE | XJ | |
||
| 29 | 175569 | 1 | COVER | XJ | |
||
| 30 | 174062 | 1 | PIN | XJ | |
||
| 31 | 174087 | 2 | PLUG | XJ | |
||
| 32 | 174086 | 1 | ROLL PIN | XJ | |
||
| 33 | 174069 | 2 | SCREW | XJ | |
||
| 34 | 175577 | 1 | SPACER | XJ | |
||
| 35 | 174081 | 1 | FOLLOWER | XJ | |
||
| 36 | 174080 | 1 | SCREW | M4x0.7x8 | XJ | |
|
| 37 | 174082 | 1 | SPRING COMPRESSION | XJ | |
||
| 38 | 9R205723 | 1 | PUSHER | SA | XJ | |
|
| 39 | 175576 | 1 | PUSHER | SA | XJ | |
|
| 40 | 9R199710 | 1 | MAGAZINE | XJ | |
||
| 41 | 9R199719 | 2 | SCREW | M5x0.8x12 | XJ | |
|
| 42 | 9R199712 | 2 | LINER | XJ | |
||
| 43 | 174092 | 1 | PIN | XJ | |
||
| 44 | 9R199711 | 1 | COVER | XJ | |
||
| 45 | 174093 | 1 | WASHER | XJ | |
||
| 46 | 174085 | 1 | BRACKET | XJ | |
||
| 47 | 174084 | 1 | HOUSING SA | XJ | |
||
| 48 | 174072 | 1 | TRIGGER | XJ | |
||
| 49 | 174117 | 1 | VALVE | XJ | |
||
| 50 | 174073 | 1 | O RING | 2.05x2.62 | XJ | |
|
| 51 | 100298 | 1 | PIN | XJ | |
||
| 52 | 174070 | 1 | PIN | M3x30mm | XJ | |
|
| 53 | MHE5080-100 | 3 | LOCK NUT | XJ | |
||
| 54 | 9R199720 | 1 | SCREW | XJ | |
||
| 55 | 9R209550 | 1 | BRACKET | XJ | |
||
| 56 | MSC4070-10 | 1 | SCREW | XJ | |
||
| 57 | 174067 | 1 | O RING | 45.7mm x 2.62mm | XJ | |
|
| 58 | 175561 | 1 | END CAP | XJ | |
||
