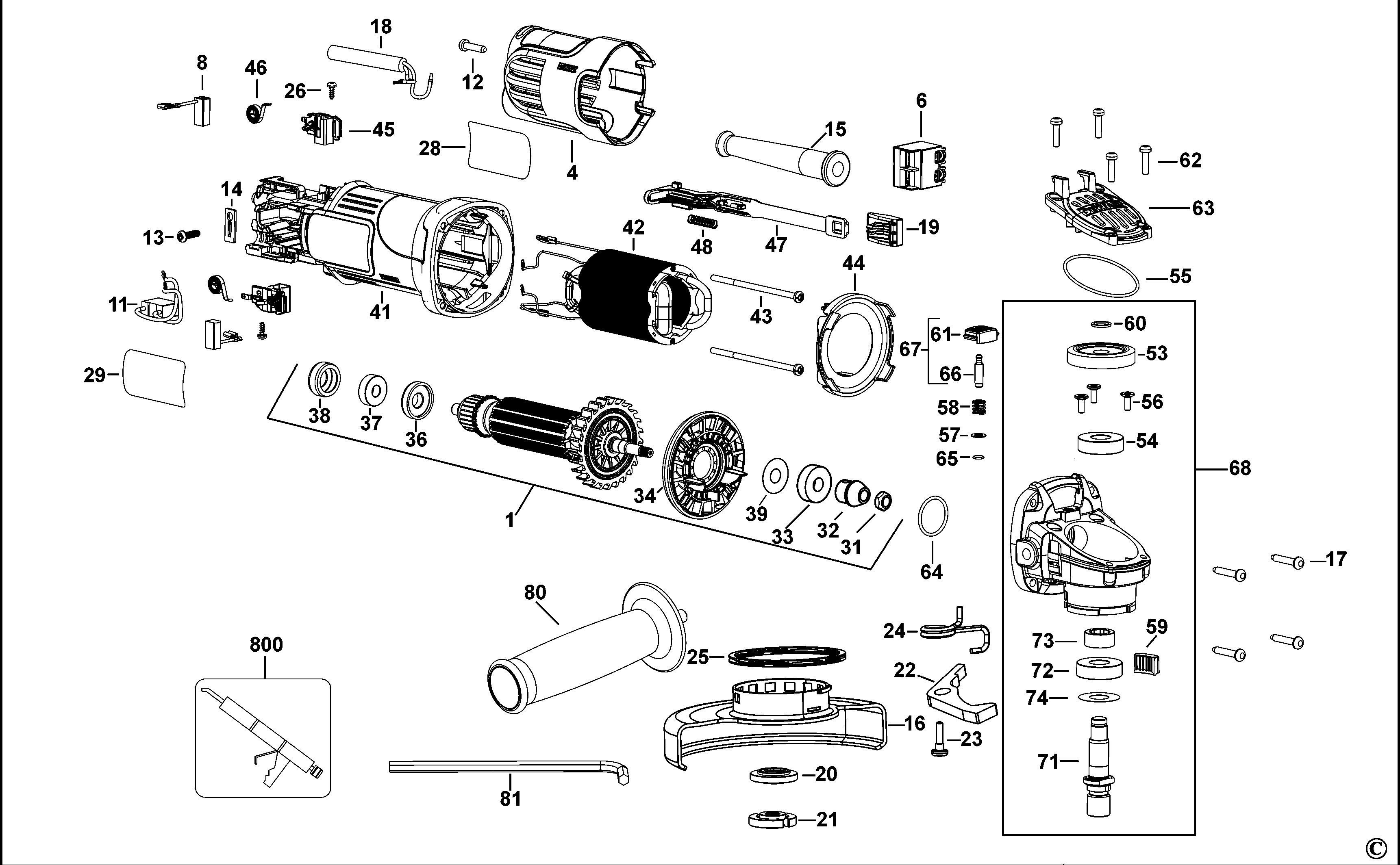

DWE4056 SMALL ANGLE GRINDER Type 1 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 1 | N419588 | 1 | ARMATURE SA | Incl. 31-38 | LX | ||
| 4 | N105642 | 1 | HOUSING | LX |  |
||
| 6 | N442172 | 1 | SWITCH | LV | LX |  |
|
| 8 | N183726 | 1 | BRUSH PAIR | 120V | LX | |
|
| 11 | N442344 | 1 | CAPACITOR SA | LX | |
||
| 12 | N017839 | 1 | SCREW | LX | |
||
| 13 | 562097-00 | 1 | SCREW | LX | |
||
| 14 | N194291 | 1 | CORD CLAMP | LX | |||
| 15 | 401088-03 | 1 | CORD PROTECTOR | LX | |
||
| 16 | N143896 | 1 | GUARD | 115MM KEYLESS | LX | |
|
| 17 | 330065-31 | 4 | PLASTIC SCREW | LX | |
||
| 18 | N133092 | 1 | CORDSET | LX | LX | |
|
| 19 | N097844 | 1 | BUTTON | LX | |
||
| 20 | 391969-00 | 1 | INNER FLANGE | LX | |
||
| 21 | N134466 | 1 | OUTER FLANGE | LX | |
||
| 22 | N136731 | 1 | LEVER | LX | |
||
| 23 | N137733 | 1 | SCREW | LX | |
||
| 24 | N105579 | 1 | SPRING | LX | |
||
| 25 | N135116 | 1 | WASHER SPRING | LX | |
||
| 26 | 593478-00 | 2 | SCREW | M3 X 8 | LX | |
|
| 28 | N149175 | 1 | BRAND LABEL | LX | |
||
| 29 | N437128 | 1 | RATING PLATE | LX | LX | ||
| 31 | 604484-00 | 1 | NUT | LX | |
||
| 32 | N095840 | 1 | PINION | LX | |
||
| 33 | N214432 | 1 | BEARING | LX | |
||
| 34 | N132042 | 1 | BAFFLE | LX | |
||
| 36 | N118549 | 1 | SPACER | LX | |
||
| 37 | N130916 | 1 | BEARING | LX | |
||
| 38 | 641823-00 | 1 | SLEEVE | LX | |
||
| 39 | N213812 | 1 | WASHER | LX | |
||
| 41 | N105641 | 1 | FIELDCASE | LX | |
||
| 42 | N185184 | 1 | FIELD 120V | 115/120V PKGDN093329 | LX | ||
| 43 | N098351 | 2 | SCREW | LX | |
||
| 44 | N129051 | 1 | BAFFLE | LX | |
||
| 45 | N097702 | 2 | BRUSHBOX | LX | |
||
| 46 | N097703 | 2 | SPRING | LX | |
||
| 47 | N093409 | 1 | LINK | LX | |
||
| 48 | N093410 | 1 | SPRING | LX | |
||
| 53 | N097361 | 1 | GEAR | LX | |
||
| 54 | N150961 | 1 | BEARING | LX | |
||
| 55 | N094024 | 1 | O RING | LX | |
||
| 56 | N118088 | 3 | SCREW | LX | |
||
| 57 | N447838 | 1 | WASHER | LX | |
||
| 58 | N092954 | 1 | SPRING | LX | |
||
| 59 | N126708 | 1 | INSERT | LX | |
||
| 60 | 444793-00 | 1 | CIRCLIP | LX | |
||
| 61 | N126105 | 1 | BUTTON | LX | |
||
| 62 | N122904 | 4 | SCREW | LX | |
||
| 63 | N116180 | 1 | GEARCASE COVER | LX | |
||
| 64 | N119639 | 1 | O RING | LX | |
||
| 65 | N094012 | 1 | O RING | LX | |
||
| 66 | N114592 | 1 | SPINDLE LOCK | LX | |
||
| 67 | N181767 | 1 | SPINDLE LOCK | LX | |
||
| 68 | N235320 | 1 | GEARCASE SA | M14 | LX | |
|
| 71 | N110057 | 1 | SPINDLE | LX | |
||
| 72 | N150961 | 1 | BEARING | LX | |
||
| 73 | N095815 | 1 | SLEEVE | LX | |
||
| 74 | 638229-00 | 1 | WASHER | LX | |
||
| 80 | 562211-00 | 1 | HANDLE SIDE SA | LX | |
||
| 81 | N107295 | 1 | HEX KEY | 6 mm | LX | |
|
| 800 | 583534-00 | 1 | GREASE | 50 GRAMS - NYE RHEOLUB 380G1 | LX | |
