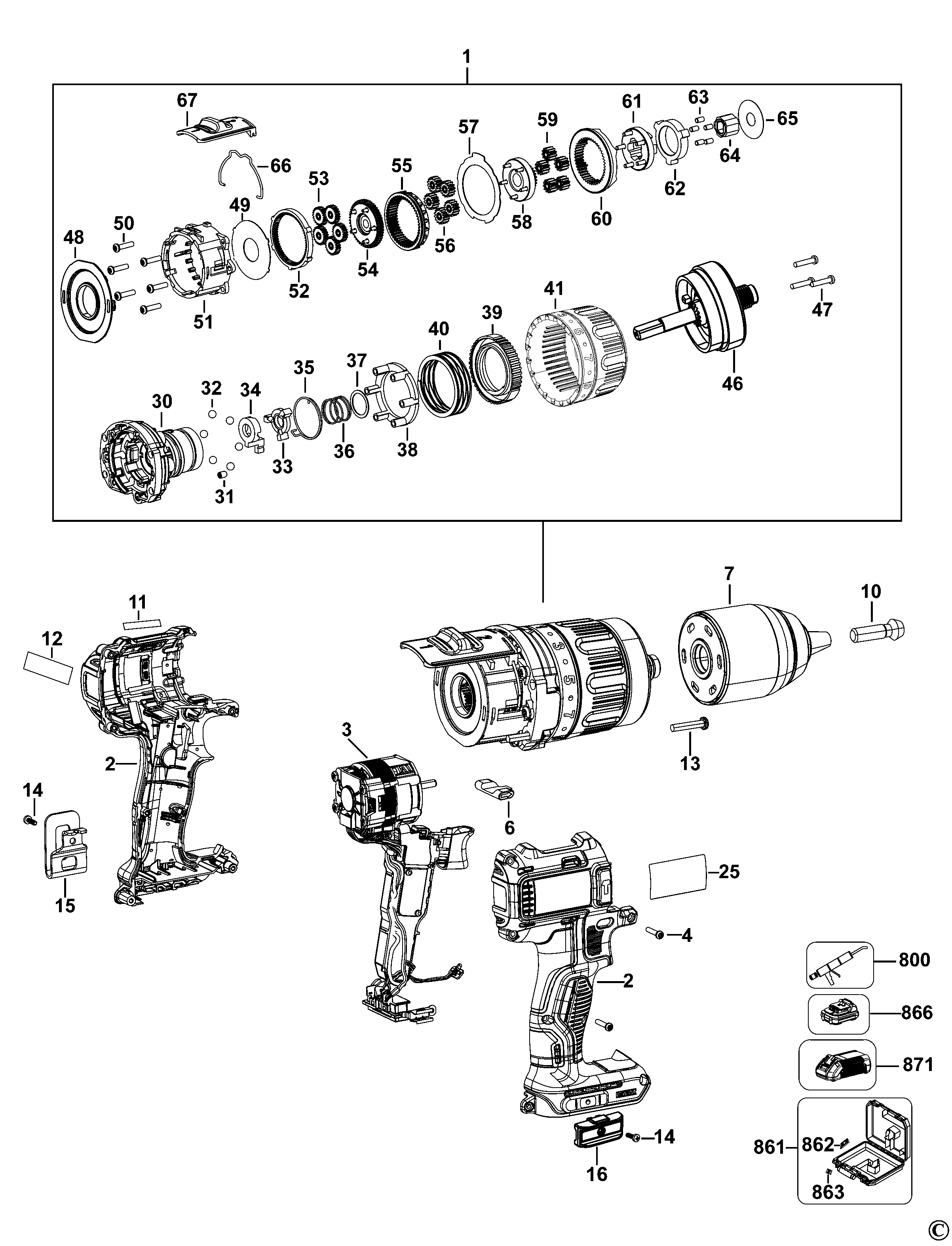

DCD737 CORDLESS DRILL Type 2 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 1 | N287497 | 1 | TRANSMISSION SA | XJ |  |
||
| 2 | N181498 | 1 | CLAMSHELL SET | 14.4V | XJ |  |
|
| 4 | 682211-00 | 7 | SCREW | XJ | |
||
| 6 | N399342 | 1 | ACTUATOR FWD/REV | XJ | |
||
| 7 | N485661 | 1 | CHUCK KEYLESS | XJ | |
||
| 10 | N092854 | 1 | SCREW | XJ | |
||
| 11 | N249161 | 1 | LABEL | XJ | |
||
| 12 | N298039 | 1 | LABEL | XJ | |
||
| 13 | N377990 | 4 | SCREW | XJ | |
||
| 14 | N042665 | 2 | SCREW | XJ | |
||
| 15 | N086039 | 1 | HOOK | XJ | |
||
| 16 | N095778 | 1 | HOLDER BIT | XJ | |
||
| 30 | N299719 | 1 | GEARCASE SA | XJ | |
||
| 31 | 326467-00 | 1 | DETENT | XJ | |
||
| 32 | 386690-00 | 6 | BALL | STEEL, 5MM | XJ | |
|
| 33 | N047986 | 1 | RATCHET | XJ | |
||
| 34 | N047987 | 1 | RATCHET | XJ | |
||
| 35 | N047989 | 1 | SPRING | XJ | |
||
| 36 | N047988 | 1 | SPRING | XJ | |
||
| 37 | N047985 | 1 | WASHER | XJ | |
||
| 38 | N063688 | 1 | PLATE | XJ | |
||
| 39 | N036372 | 1 | ADJUSTER TORQUE | XJ | |
||
| 40 | N077956 | 1 | SPRING | XJ | |
||
| 41 | N181497 | 1 | COLLAR | XJ | |
||
| 46 | N110039 | 1 | SPINDLE SA | XJ | |
||
| 47 | 682211-00 | 3 | SCREW | XJ | |
||
| 48 | N148081 | 1 | ADAPTOR | XJ | |
||
| 49 | N063567 | 1 | PLATE | XJ | |
||
| 50 | N075506 | 6 | SCREW | XJ | |
||
| 51 | N033869 | 1 | GEARCASE | XJ | |
||
| 52 | N030988 | 1 | GEAR | XJ | |
||
| 53 | N030999 | 5 | GEAR | XJ | |
||
| 54 | N124371 | 1 | CARRIER SA | XJ | |
||
| 55 | N031079 | 1 | GEAR | XJ | |
||
| 56 | N031080 | 5 | GEAR | XJ | |
||
| 57 | N032409 | 1 | WASHER | XJ | |
||
| 58 | N122400 | 1 | CARRIER SA | XJ | |
||
| 59 | N031083 | 5 | GEAR | XJ | |
||
| 60 | N078410 | 1 | GEAR | XJ | |
||
| 61 | N122401 | 1 | CARRIER SA | XJ | |
||
| 62 | N022985 | 1 | LOCKING RING | XJ | |
||
| 63 | N093416 | 5 | ROLLER | XJ | |
||
| 64 | N157720 | 1 | ANVIL ASSEMBLY | XJ | |
||
| 64 | N157720 | 1 | ANVIL ASSEMBLY | XJ | |
||
| 65 | N090435 | 1 | WASHER | XJ | |
||
| 66 | N035441 | 1 | WIRE STEEL | XJ | |
||
| 67 | N035051 | 1 | SELECTOR SA | XJ | |
||
| 800 | 808386-00 | 1 | GREASE | MOLYKOTE G68 100GMS | XJ | ||
| 861 | N197072 | 1 | KITBOX | XJ | |
||
| 862 | H1500082520 | 2 | LATCH | XJ | |||
| 863 | P910190 | 2 | LATCH | XJ | |
