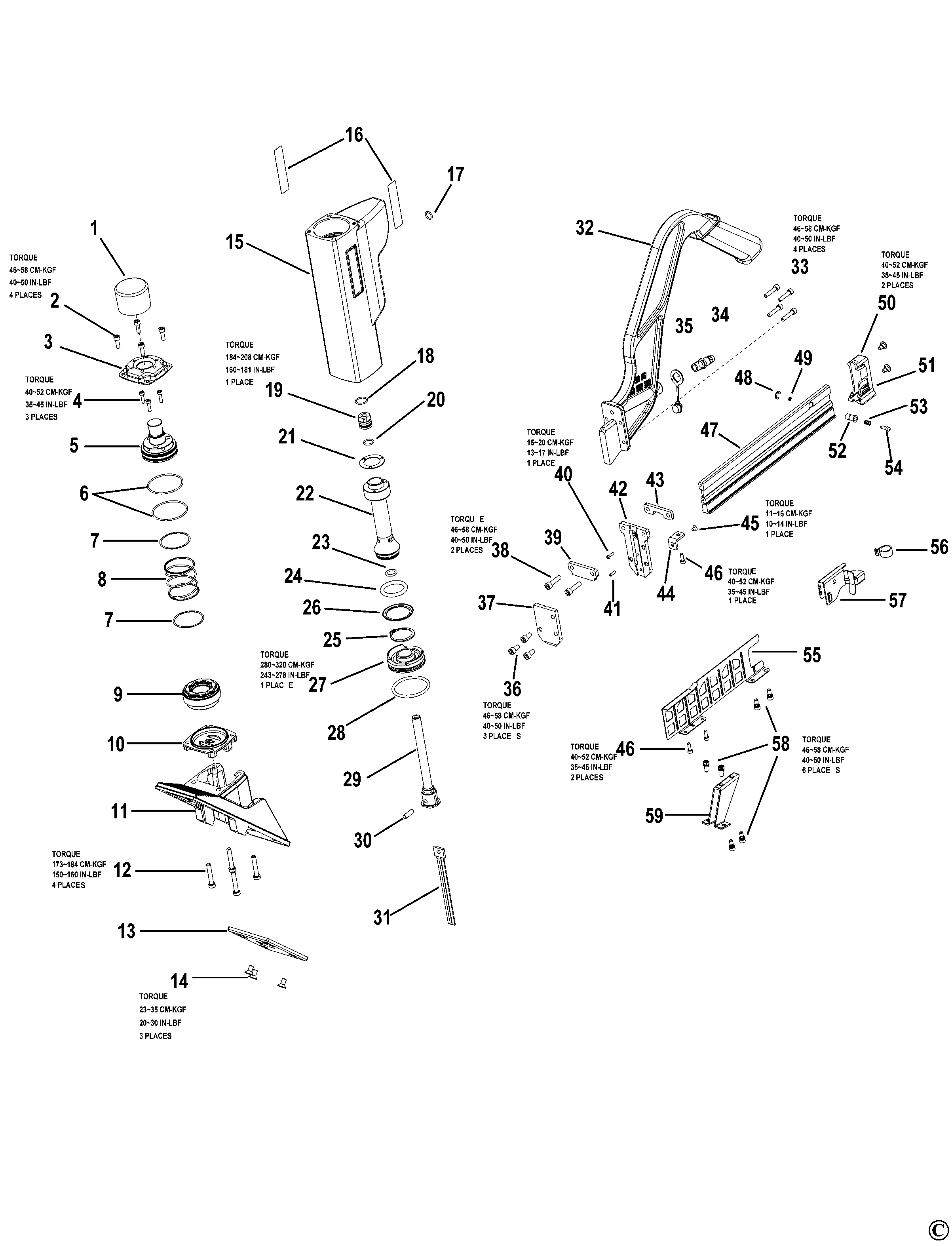

DPF1550 NAILER Type 1 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 1 | 87502 | 1 | ANVIL | XJ |  |
||
| 2 | 188771 | 4 | SCREW | M5X0.8X16 | XJ | |
|
| 3 | 9R199438 | 1 | CAP | XJ | |
||
| 4 | 188626 | 1 | SCREW | M4x0.70x16 | XJ | |
|
| 5 | 9R198186 | 1 | VALVE | XJ | |
||
| 6 | 9R199440 | 2 | O RING | 5038X2.0 | XJ | |
|
| 7 | 9R199614 | 2 | SPACER | XJ | |
||
| 8 | 9R199616 | 1 | SPRING COMPRESSION | XJ | |
||
| 9 | 9R199467 | 1 | BUMPER | XJ | |
||
| 10 | 9R199469 | 1 | BASE | XJ | |
||
| 11 | 9R198174 | 1 | SHOE | XJ | |
||
| 12 | 173767 | 4 | SCREW | M6x1.00x35 | XJ | |
|
| 13 | 105055 | 1 | SHOE | XJ | |
||
| 14 | UA4808-13 | 3 | SCREW | 1/4-20x1/2 | XJ | |
|
| 15 | 9R199461 | 1 | FRAME | XJ | |
||
| 16 | 9R199633 | 2 | IDENTITY LABEL | XJ | |
||
| 17 | 184452 | 1 | O RING | 9.8x1.9mm | XJ | |
|
| 18 | 9R199490 | 1 | O RING | 0.614x0.070mm | XJ | |
|
| 19 | 9R198191 | 1 | PLUNGER | XJ | |
||
| 20 | 86458 | 1 | O RING | .489x.070 | XJ | |
|
| 21 | 9R199608 | 1 | GASKET | XJ | |
||
| 22 | 9R199433 | 1 | CYLINDER | XJ | |
||
| 23 | 850143 | 1 | O RING | 0.487x 0.103 | XJ | |
|
| 24 | 9R199435 | 1 | O RING | 31.12x5.33(90') | XJ | |
|
| 25 | 9R199436 | 1 | CAP | XJ | |
||
| 26 | 9R199437 | 1 | RING | "C" 34mm Ext | XJ | |
|
| 27 | 9R198184 | 1 | HEAD | XJ | |
||
| 28 | 9R199432 | 1 | O RING | 50x4mm | XJ | |
|
| 29 | 9R199483 | 1 | VENT | SA | XJ | |
|
| 30 | UB4112-3 | 1 | PIN | XJ | |
||
| 31 | 9R198183 | 1 | DRIVER | XJ | |
||
| 32 | 9R199484 | 1 | HANDLE SA | XJ |  |
||
| 33 | 9R199466 | 4 | SCREW | m5x0.8x25 | XJ | |
|
| 34 | 159977 | 1 | ADAPTOR | XJ | |
||
| 35 | 9R195380 | 1 | COVER | 1/4NPT | XJ | |
|
| 36 | 9R199442 | 1 | SCREW | M6x1x12 | XJ | |
|
| 37 | 9R198181 | 1 | DOOR | XJ | |
||
| 38 | 9R199475 | 2 | BOLT | XJ | |
||
| 39 | 9R198182 | 1 | DOOR | XJ | |
||
| 41 | 9R199485 | 1 | SCREW | XJ | |
||
| 42 | 9R198178 | 1 | BACKPLATE | XJ | |
||
| 43 | 9R198179 | 1 | SPACER | XJ | |
||
| 44 | 9R198180 | 1 | BRACKET | XJ | |
||
| 45 | 9R199443 | 1 | SCREW | m4x0.7x12 | XJ | |
|
| 46 | 9R199448 | 3 | SCREW | m4x0.7x12 | XJ | |
|
| 47 | 9R198188 | 2 | MAGAZINE | XJ | |
||
| 48 | 184468 | 1 | RING | XJ | |
||
| 49 | 180494 | 1 | CIRCLIP | XJ | |
||
| 50 | 9R199455 | 2 | SCREW.SPECIAL | XJ | |
||
| 51 | 9R199454 | 1 | COVER REAR | XJ | |
||
| 52 | 9R199453 | 1 | BUSHING | XJ | |
||
| 53 | 9R199452 | 1 | SPRING | XJ | |
||
| 54 | 9R199451 | 1 | BAR | XJ | |
||
| 55 | 9R198177 | 1 | COVER | XJ | |
||
| 56 | 9R199445 | 1 | SPRING | XJ | |
||
| 57 | 9R198175 | 1 | PUSHER | XJ | |
||
| 58 | 9R199476 | 6 | SCREW | m5x0.8x12 | XJ | |
|
| 59 | 9R199489 | 1 | SUPPORT | XJ | |
