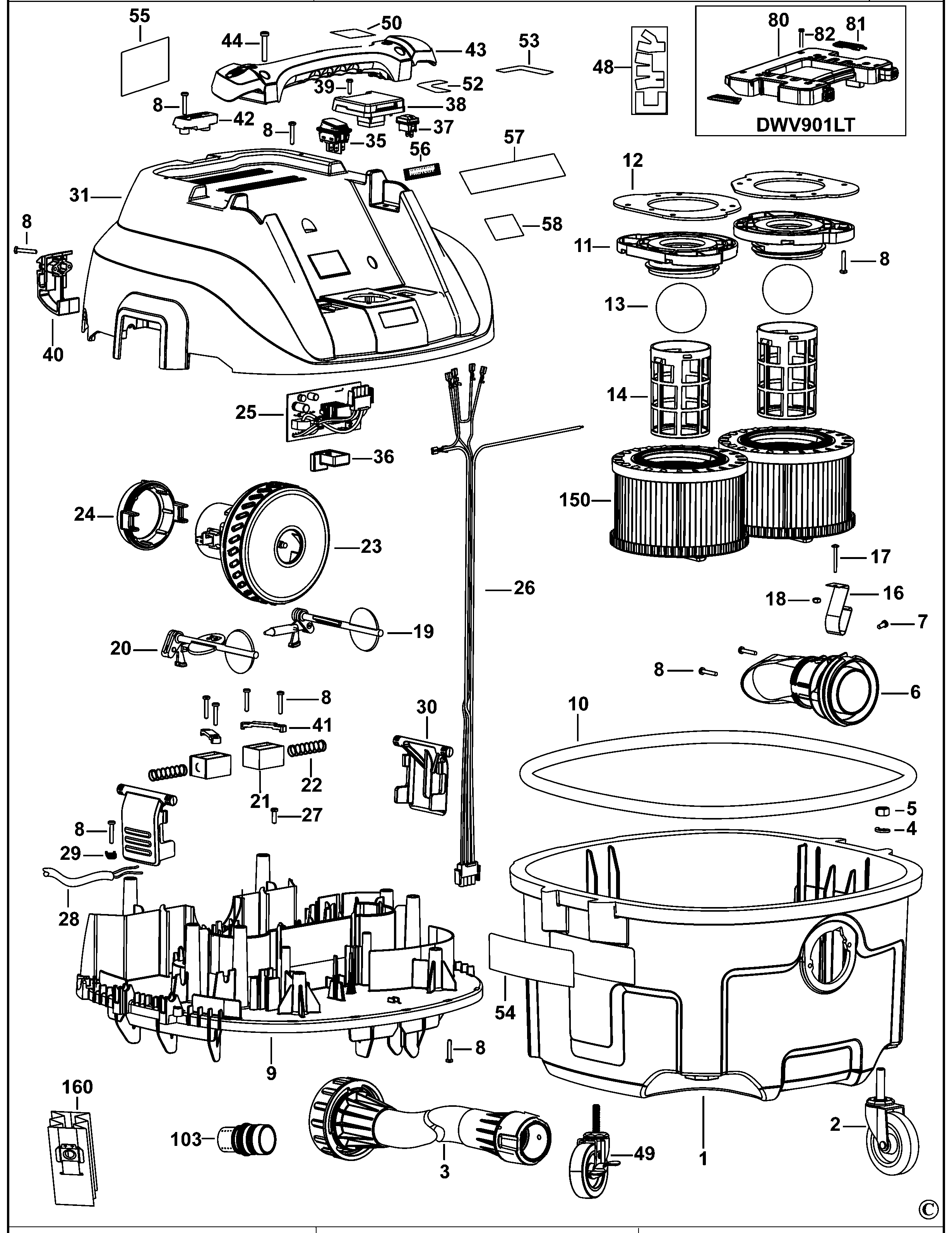

DWV901L VACUUM EXTRACTOR Type 1 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 1 | N291160 | 1 | TANK | 30LT | GB |  |
|
| 2 | N289839 | 3 | CASTOR | NON LOCK | GB | |
|
| 3 | N433594 | 1 | HOSE SA | 4.1M x 32mm dia | GB | ||
| 4 | N371460 | 4 | WASHER LOCK | GB | |
||
| 5 | N371459 | 4 | NUT | 3/8 X 16 | GB | |
|
| 6 | N294562 | 1 | INLET | GB | |
||
| 7 | N142827 | 1 | SCREW | GB | |
||
| 8 | 330019-14 | 34 | SCREW | GB | |
||
| 9 | N289899 | 1 | HOUSING | GB | |
||
| 10 | N395128 | 1 | GASKET | GB | |
||
| 11 | N294525 | 2 | MOUNT | GB | |
||
| 12 | N146653 | 2 | GASKET | GB | |
||
| 13 | N206771 | 2 | VALVE FLOATING | GB | |
||
| 14 | N265199 | 2 | CAGE | GB | |
||
| 16 | N137853 | 1 | PLATE | GB | |
||
| 17 | N142836 | 1 | SCREW | GB | |
||
| 18 | N142838 | 1 | LOCK NUT | GB | |
||
| 19 | N409097 | 1 | VALVE | LH | GB | |
|
| 20 | N409096 | 1 | VALVE | RH | GB | |
|
| 21 | N338941 | 2 | SOLENOID ASSEMBLY | 230V | GB | |
|
| 22 | N362634 | 2 | SPRING | GB | |
||
| 23 | N483601 | 1 | MOTOR SA 230V | GB | |
||
| 25 | N365860 | 1 | CONTROL MODULE SA | 230V | GB | |
|
| 26 | N380016 | 1 | LEAD SA | GB | |
||
| 27 | 330019-24 | 1 | SCREW | GB | |
||
| 28 | N376741 | 1 | CORDSET (M/PLUG) GB | GB | GB | |
|
| 29 | 450877-00 | 1 | CORD CLAMP | GB | |
||
| 30 | N294563 | 2 | LATCH | GB | |
||
| 31 | N291119 | 1 | HOUSING TOP | GB | |
||
| 35 | N296522 | 1 | SWITCH | GB | |
||
| 36 | N373779 | 1 | BOOT | SWITCH | GB | |
|
| 37 | 656494-00 | 1 | SWITCH | GB | |
||
| 38 | N135487 | 1 | OUTLET | GB | GB | |
|
| 39 | 330019-03 | 2 | SCREW | GB | |
||
| 40 | N378329 | 1 | HOOK | GB | |
||
| 41 | N391183 | 2 | STRAP | GB | |
||
| 42 | N378050 | 1 | CLAMP | GB | |
||
| 43 | N135179 | 1 | HANDLE | DWV901L | GB | |
|
| 44 | 330019-21 | 4 | SCREW.TEMP | GB | |
||
| 48 | N409100 | 1 | FOAM | GB | |
||
| 49 | N380031 | 1 | CASTOR | LOCKING | GB | |
|
| 50 | N408096 | 1 | WARNING LABEL | 1600W | GB | |
|
| 52 | N404196 | 1 | LABEL | MAIN SWITCH | GB | |
|
| 53 | N404197 | 1 | LABEL | SWITCH CONTROL | GB | |
|
| 54 | N405022 | 2 | BRAND LABEL | GB | |
||
| 55 | N383465 | 1 | RATING PLATE | GB | GB | |
|
| 56 | N177322 | 1 | LABEL | GB | |
||
| 57 | N147781 | 1 | WARNING LABEL | GB | |
||
| 58 | N406852 | 1 | LABEL | AUTO CLEAN | GB | |
|
| 80 | N310159 | 1 | RACK | DWV901LT | GB | |
|
| 81 | N376128 | 2 | LATCH | DWV901LT | GB | |
|
| 82 | 330019-21 | 2 | SCREW.TEMP | DWV901LT | GB | |
|
| 103 | N070902 | 1 | ADAPTOR | GB | |
||
| 150 | 1004772-04 | 2 | FILTER SA | GB | |
||
| 160 | 1004772-10 | 1 | DUST BAG SA | GB | |
