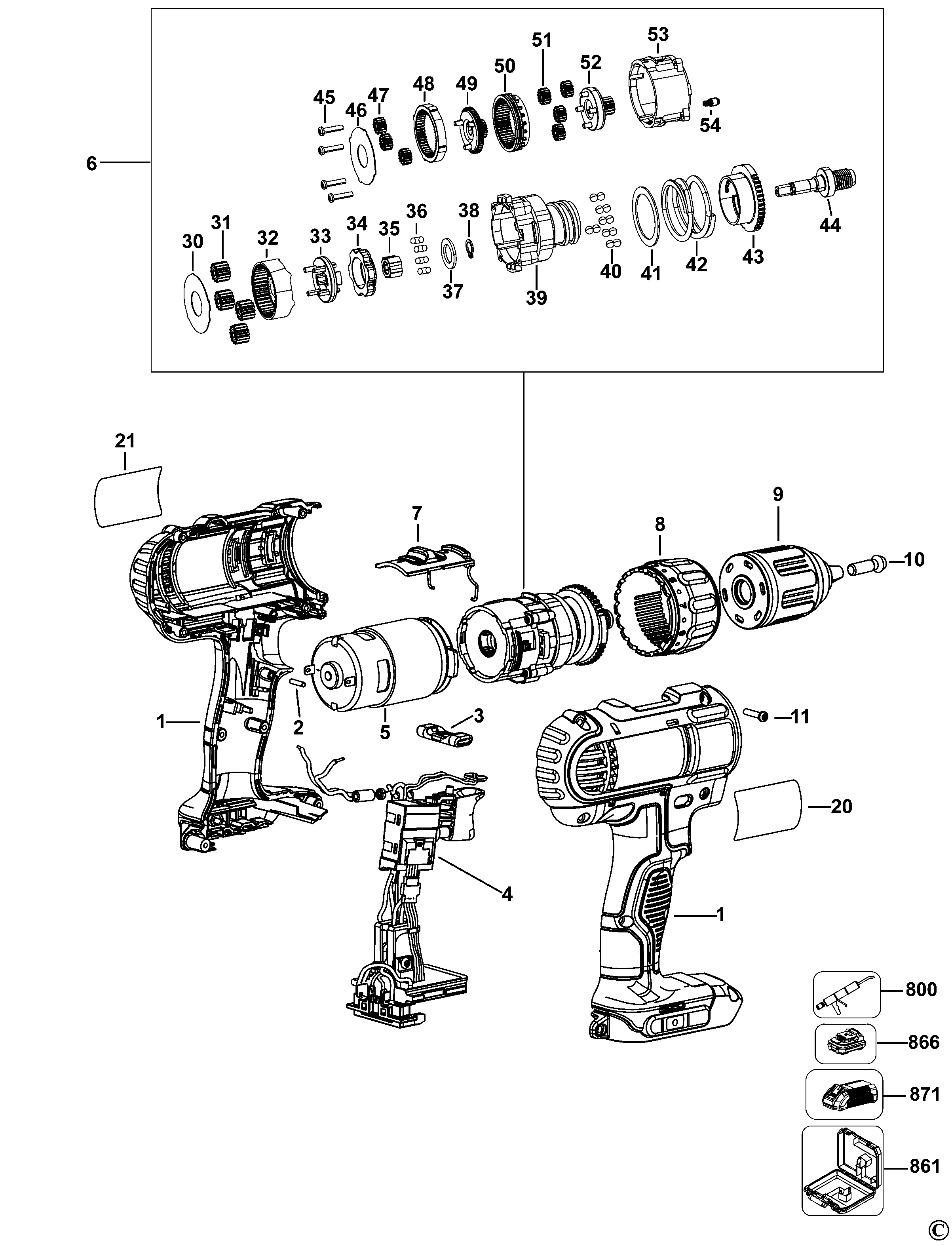

DCD734 CORDLESS DRILL Type 1 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 1 | N371819 | 1 | CLAMSHELL SET | GB |  |
||
| 2 | N071836 | 1 | ROLL PIN | GB |  |
||
| 3 | N151983 | 1 | ACTUATOR FWD/REV | GB | |
||
| 4 | N382018 | 1 | SWITCH SA | GB | |
||
| 5 | N382016 | 1 | MOTOR SA | GB | |
||
| 6 | N279940 | 1 | TRANSMISSION SA | GB | |
||
| 7 | N153906 | 1 | SELECTOR SA | GB | |
||
| 8 | N207252 | 1 | COLLAR | GB | |
||
| 9 | N472497 | 1 | CHUCK | GB | |
||
| 10 | N092854 | 1 | SCREW | GB | |
||
| 11 | 682211-00 | 8 | SCREW | GB | |
||
| 20 | N378099 | 1 | RATING PLATE | EURO | GB | |
|
| 21 | N309544 | 1 | BRAND LABEL | GB | |
||
| 30 | N225459 | 1 | PLATE | GB | |
||
| 31 | N215913 | 4 | GEAR | GB | |
||
| 32 | N215912 | 1 | GEAR | GB | |
||
| 33 | N362740 | 1 | CARRIER | GB | |
||
| 34 | N209232 | 1 | LOCKING RING | GB | |
||
| 35 | N218992 | 1 | ANVIL | GB | |
||
| 36 | N236379 | 4 | PIN | GB | |
||
| 37 | N223513 | 1 | WASHER | GB | |
||
| 38 | N034090 | 1 | RETAINER | GB | |
||
| 39 | N376647 | 1 | HOUSING SA | GB | |
||
| 40 | 386690-00 | 12 | BALL | STEEL, 5MM | GB | |
|
| 41 | N256699 | 1 | WASHER | GB | |
||
| 42 | N210954 | 1 | SPRING | GB | |
||
| 43 | N203616 | 1 | SELECTOR | GB | |
||
| 44 | N376648 | 1 | SPINDLE SA | GB | |
||
| 45 | N036457 | 4 | SCREW | GB | |
||
| 45 | N317559 | 4 | SCREW | GB | |
||
| 46 | N225458 | 1 | PLATE | GB | |
||
| 47 | N215916 | 3 | GEAR | GB | |
||
| 48 | N215917 | 1 | GEAR | GB | |||
| 49 | N362719 | 1 | CARRIER | GB | |
||
| 50 | N256760 | 1 | GEAR | GB | |
||
| 51 | N215916 | 4 | GEAR | GB | |
||
| 52 | N362739 | 1 | CARRIER | GB | |
||
| 53 | N218316 | 1 | HOUSING | GB | |
||
| 54 | 326467-00 | 1 | DETENT | GB | |
||
| 861 | N237399 | 1 | KITBOX | GB | |||
| 866 | N342079 | 1 | BATTERY 14.4V - 2.0AH - 29WH | Li-ion - DCB143-XJ | DCD734D2 | GB | |
| 871 | N450537 | 1 | CHARGER 10.8V - 18V | GB | |
