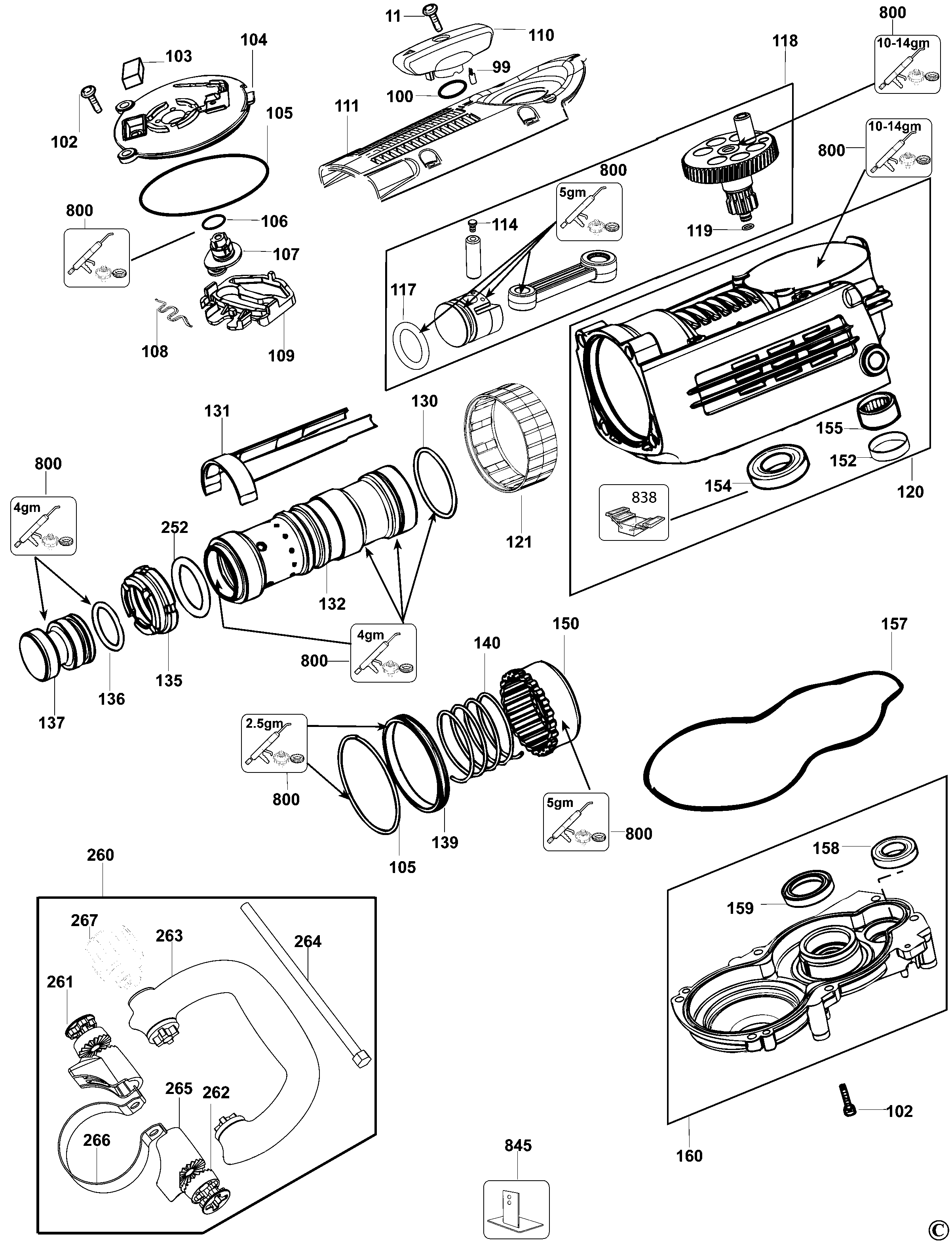

D25840K CHIPPING HAMMER Type 1 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 1 | N019871 | 1 | REPAIR KIT | LX |  |
||
| 2 | 586415-00 | 1 | GUIDE SA | LX | |
||
| 3 | 585171-01 | 1 | HANDLE COVER | LX | |
||
| 4 | 588639-00 | 1 | BELLOWS | LX | |
||
| 5 | 586045-00 | 1 | LENS | LX | |
||
| 6 | 586411-00 | 1 | ROLLER | LX | |
||
| 7 | 488065-01 | 1 | TRIGGER | LX |  |
||
| 8 | 581070-01 | 1 | SWITCH | LX | |
||
| 9 | 587090-00 | 1 | HANDLE COVER | LX | |
||
| 11 | 330065-08 | 19 | SCREW | M4x18 T20 | LX | |
|
| 13 | 821070 | 1 | CORD CLAMP | LX | |
||
| 14 | 582319-24 | 1 | CORDSET (M/PLUG) | LX | |
||
| 16 | 494477-00 | 1 | STOP | LX | |
||
| 17 | 586414-00 | 1 | GUIDE ROD | LX | |||
| 18 | 587085-02 | 1 | HANDLE | LX | |
||
| 19 | 586413-00 | 2 | DRIVER | LX | |
||
| 20 | 1005496-00 | 2 | BUSHING | LX | |
||
| 21 | N019871 | 1 | REPAIR KIT | LX | |
||
| 22 | 949886-33 | 1 | SCREW | LX | |
||
| 24 | 330019-33 | 1 | SCREW | LX | |
||
| 28 | 577746-00 | 1 | RING | LX | |
||
| 29 | 586597-00 | 1 | GUARD SA | LX | |
||
| 30 | 586412-00 | 2 | AXLE | LX | |
||
| 31 | 588640-00 | 1 | BELLOWS | LX | |
||
| 32 | 586423-00 | 1 | CARRIER | LX | |
||
| 33 | 586421-00 | 1 | SPRING COMPRESSION | LX | |
||
| 34 | 586422-00 | 1 | RETAINER | LX | |
||
| 35 | 489252-00 | 1 | ARMATURE 120V | LX | |
||
| 36 | 330019-30 | 2 | SCREW | LX | |
||
| 37 | 585169-01 | 1 | MOTOR COVER | LX | |
||
| 38 | 403395-00 | 1 | CORD PROTECTOR | LX | |
||
| 39 | 489255-00 | 1 | FIELD 115V | LX | |
||
| 40 | 577745-00 | 1 | BEARING | LX | |
||
| 41 | 590191-00 | 1 | SLEEVE INSULATING | LX | |
||
| 44 | 489257-00 | 1 | BRUSH PAIR 115V | LX | |
||
| 45 | 487377-00 | 2 | BRUSH SPRING | LX | |
||
| 46 | 586611-00 | 1 | FAN SA | LX | |
||
| 47 | 324119-02 | 1 | SCREW | LX | |
||
| 48 | 586614-00 | 1 | BAFFLE | LX | |
||
| 49 | 330019-30 | 2 | SCREW | LX | |
||
| 50 | 662695-07 | 1 | ELECTRONIC 115V | LX | |
||
| 52 | 585170-00 | 1 | END CAP | LX | |
||
| 57 | 586609-05 | 1 | MOTOR HOUSING SA | LX | |
||
| 99 | 326467-00 | 1 | DETENT | LX | |
||
| 100 | 323711-49 | 1 | O RING | LX | |
||
| 102 | 324007-11 | 22 | SCREW | M5 X 18 | LX | |
|
| 103 | 488067-00 | 1 | FILTER | LX | |
||
| 104 | 586031-00 | 1 | COVER | LX | |
||
| 105 | 323711-56 | 2 | O RING | LX | |
||
| 106 | 323711-48 | 1 | O RING | LX | |
||
| 107 | 586032-00 | 1 | ECCENTRIC | LX | |
||
| 108 | 586033-00 | 1 | SPRING | LX | |
||
| 109 | 586036-00 | 1 | SLIDER | LX | |
||
| 110 | 586038-00 | 1 | SELECTOR | LX | |
||
| 111 | 585168-01 | 1 | COVER-TOP | LX | |
||
| 112 | 488689-00 | 1 | PISTON KIT | LX | |
||
| 114 | 581656-00 | 2 | PIN | LX | |
||
| 117 | 584703-00 | 1 | O RING | LX | |
||
| 118 | N513280 | 1 | CRANKSHAFT | LX | |
||
| 119 | 323711-26 | 1 | O RING | LX | |
||
| 120 | 490610-00 | 1 | HOUSING | LX | |
||
| 121 | 489244-00 | 1 | BUSH | LX | |
||
| 130 | 577744-07 | 1 | O RING | LX | |
||
| 131 | 586034-00 | 1 | SLIDER | LX | |
||
| 132 | N146117 | 1 | CYLINDER KIT | LX | |
||
| 135 | 584715-00 | 1 | BUSH | LX | |
||
| 136 | 584706-00 | 1 | O RING | LX | |
||
| 137 | 489180-00 | 1 | RAM | LX | |
||
| 139 | 478650-00 | 1 | BUSH | LX | |
||
| 140 | 584726-00 | 1 | SPRING | LX | |
||
| 150 | 489181-01 | 1 | SLEEVE | LX | |
||
| 152 | 479974-00 | 1 | SPACER | LX | |
||
| 154 | 577745-02 | 1 | BEARING,BALL | LX | |
||
| 155 | 489245-00 | 1 | BEARING NEEDLE | LX | |
||
| 157 | 586022-00 | 1 | SEAL | LX | |
||
| 158 | 330003-39 | 1 | BEARING | LX | |
||
| 159 | 327141-08 | 1 | SEAL | LX | |
||
| 160 | 490606-00 | 1 | HOUSING GEAR | LX | |
||
| 200 | 487238-01 | 1 | SEAL | LX | |
||
| 201 | 487205-00 | 1 | RING | LX | |
||
| 202 | 487241-00 | 1 | WASHER | LX | |
||
| 203 | 487244-00 | 1 | RUBBER | LX | |
||
| 204 | 487236-00 | 1 | SLEEVE | LX | |
||
| 205 | 579784-00 | 1 | LOCKING RING | LX | |
||
| 206 | 487218-00 | 1 | SPRING | LX | |
||
| 207 | 489672-00 | 2 | KEY | LX | |
||
| 208 | 487249-00 | 1 | BUSH | LX | |
||
| 209 | 590377-00 | 1 | GUIDE BUSH | LX | |
||
| 210 | 487216-00 | 1 | SPRING | LX | |
||
| 220 | 584696-00 | 1 | GUIDE | LX | |
||
| 221 | 585167-01 | 1 | COVER | LX | |
||
| 223 | 949886-32 | 4 | SCREW | LX | |
||
| 224 | 327141-07 | 1 | LIP SEAL | LX | |
||
| 225 | 488679-00 | 1 | BEARING SET | LX | |
||
| 226 | 488787-00 | 1 | RING | LX | |
||
| 227 | 488678-00 | 1 | HOUSING FRONT | LX | |
||
| 228 | 589096-00 | 1 | BUSH | LX | |
||
| 229 | 589223-00 | 1 | DAMPER | LX | |
||
| 230 | 584727-00 | 1 | BUSH | LX | |
||
| 240 | 488546-00 | 1 | O RING | LX | |
||
| 250 | 488676-00 | 1 | SPINDLE SA | LX | |
||
| 251 | N014007 | 1 | SEAL | LX | |
||
| 252 | 488546-00 | 1 | O RING | LX | |
||
| 252 | 1005597-00 | 1 | O RING | LX | |
||
| 253 | 488685-00 | 1 | BEARING | LX | |
||
| 254 | 488681-00 | 1 | BEAT PIECE | LX | |
||
| 255 | 488680-00 | 1 | WASHER | LX | |
||
| 256 | 577744-06 | 1 | O RING | LX | |
||
| 257 | 488686-00 | 1 | BUSH | LX | |
||
| 260 | 479321-00 | 1 | HANDLE SIDE SA | LX | |||
| 261 | 479319-00 | 2 | CLAMPING INSERT | LX | |
||
| 262 | 479317-00 | 2 | WASHER LOCK | LX | |
||
| 263 | 487277-00 | 1 | HANDLE | LX | |
||
| 264 | 487343-00 | 1 | BOLT | LX | |
||
| 265 | 479320-00 | 2 | WASHER CLAMP | LX | |
||
| 266 | 479318-00 | 1 | CLAMP | LX | |
||
| 267 | 487291-00 | 1 | KNOB SA | LX | |
||
| 800 | 578970-04 | 1 | GREASE | 80g | LX | |
|
| 801 | 328771-07 | 1 | GREASE | 50G, BIT GREASE | LX | |
|
| 821 | N041696 | 1 | RATING PLATE | LX | |
||
| 826 | 487395-01 | 1 | LABEL | LX | |
||
| 836 | 559652-99 | 1 | S.T.CIRCLIP REMOVER | LX | |
||
| 836 | 559651-99 | 1 | S.T.CIRCLIP REMOVER | LX | |
||
| 837 | 559653-99 | 1 | S.T.BEARING EXTRACTOR | O Ring/Bush extracto | LX | |
|
| 838 | 559657-99 | 1 | S.T.BEARING EXTRACTOR | Bearing puller, assm | LX | |
|
| 840 | 559659-99 | 1 | S.T.SEAL FITTING TOOL | LX | |
||
| 845 | 559656-99 | 1 | S.T.SUPPORT JIG | LX | |
||
| 847 | 491211-00 | 1 | SERVICE KIT 115V | LX | |
||
| 856 | 351086-02 | 1 | BIT | LX | |
||
| 861 | 381297-94 | 1 | KITBOX | LX | |
