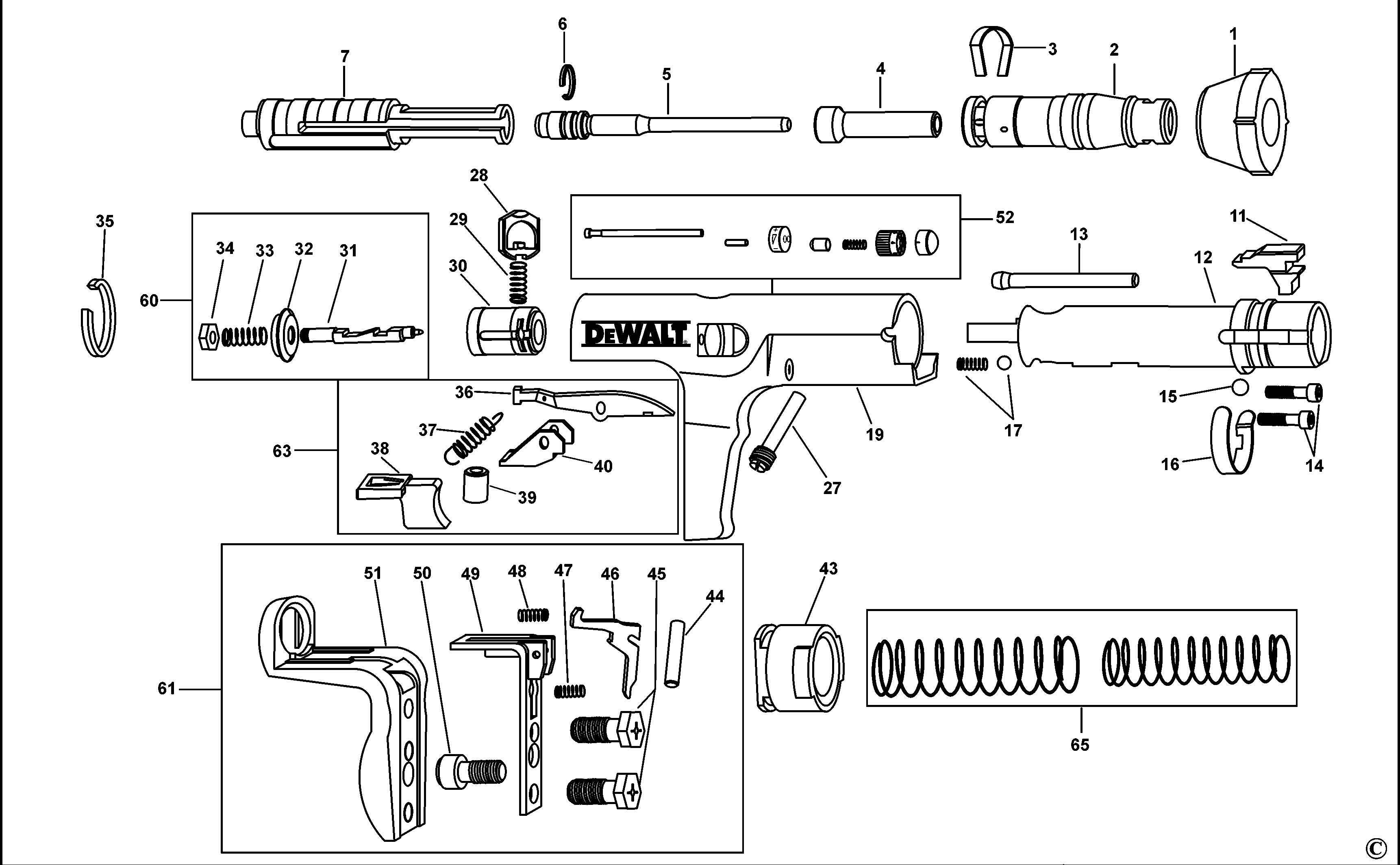

DDF2120400 NAILER Type 1 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 1 | 52166-PWR | 1 | STABILISER LEG | XJ |  |
||
| 2 | 52110-PWR | 1 | BASEPLATE | XJ | |
||
| 3 | 52120-PWR | 1 | CLIP | XJ | |
||
| 4 | 52108-PWR | 1 | GUIDE | XJ | |
||
| 5 | 52103-PWR | 1 | PISTON | XJ | |
||
| 6 | 52106-PWR | 1 | PISTON RING | XJ | |
||
| 7 | 52160-PWR | 1 | GUIDE | XJ | |
||
| 11 | 52112-PWR | 1 | STOP | XJ | |
||
| 12 | 52163-PWR | 1 | LINER | XJ | |
||
| 13 | 52152-PWR | 1 | PIN | XJ | |
||
| 14 | 52158-PWR | 2 | SCREW | XJ |  |
||
| 15 | 52122-PWR | 1 | BALL STEEL | XJ | |
||
| 16 | 52136-PWR | 1 | SPRING CLIP | XJ | |
||
| 17 | 52140-PWR | 1 | KIT | XJ | |
||
| 19 | 1004697-07 | 1 | HOUSING | DeWALT | XJ | |
|
| 27 | 52128-PWR | 1 | PIN | XJ | |
||
| 28 | 52146-PWR | 1 | LEVER | XJ | |
||
| 29 | 52134-PWR | 1 | SPRING COMPRESSION | XJ | |
||
| 30 | 52178-PWR | 1 | SPRING GUIDE | XJ | |
||
| 31 | 52148-PWR | 1 | PIN | XJ | |
||
| 32 | 52180-PWR | 1 | DETENT | XJ | |
||
| 33 | 52138-PWR | 1 | SPRING COMPRESSION | XJ | |
||
| 34 | 52156-PWR | 1 | NUT | XJ | |
||
| 35 | 52172-PWR | 1 | RING | XJ | |
||
| 36 | 52130-PWR | 1 | LEVER | XJ | |
||
| 37 | 52142-PWR | 1 | SPRING | XJ | |
||
| 38 | 52118-PWR | 1 | TRIGGER | XJ | |
||
| 39 | 52176-PWR | 1 | BUSHING | XJ | |
||
| 40 | 52132-PWR | 1 | GUIDE | XJ | |
||
| 43 | 52150-PWR | 1 | END CAP | XJ | |
||
| 44 | 52124-PWR | 1 | PIN | XJ | |
||
| 45 | 52182-PWR | 2 | SCREW | XJ | |
||
| 46 | 52170-PWR | 1 | LEVER | XJ | |
||
| 47 | 52174-PWR | 1 | SPRING COMPRESSION | XJ | |
||
| 48 | 52154-PWR | 1 | SPRING COMPRESSION | XJ | |
||
| 49 | 52168-PWR | 1 | GLIDE STRIP | XJ | |
||
| 50 | 52184-PWR | 1 | SCREW | XJ | |
||
| 51 | 52186-PWR | 1 | GRIP | XJ | |
||
| 52 | 52159-PWR | 1 | ADJUSTER SA | XJ | |
||
| 60 | 52181-PWR | 1 | KIT | XJ | |
||
| 61 | 52187-PWR | 1 | REPAIR KIT | XJ | |
||
| 63 | 52126-PWR | 1 | KIT | XJ | |
||
| 65 | 52144-PWR | 1 | SPRING SA | XJ | |
