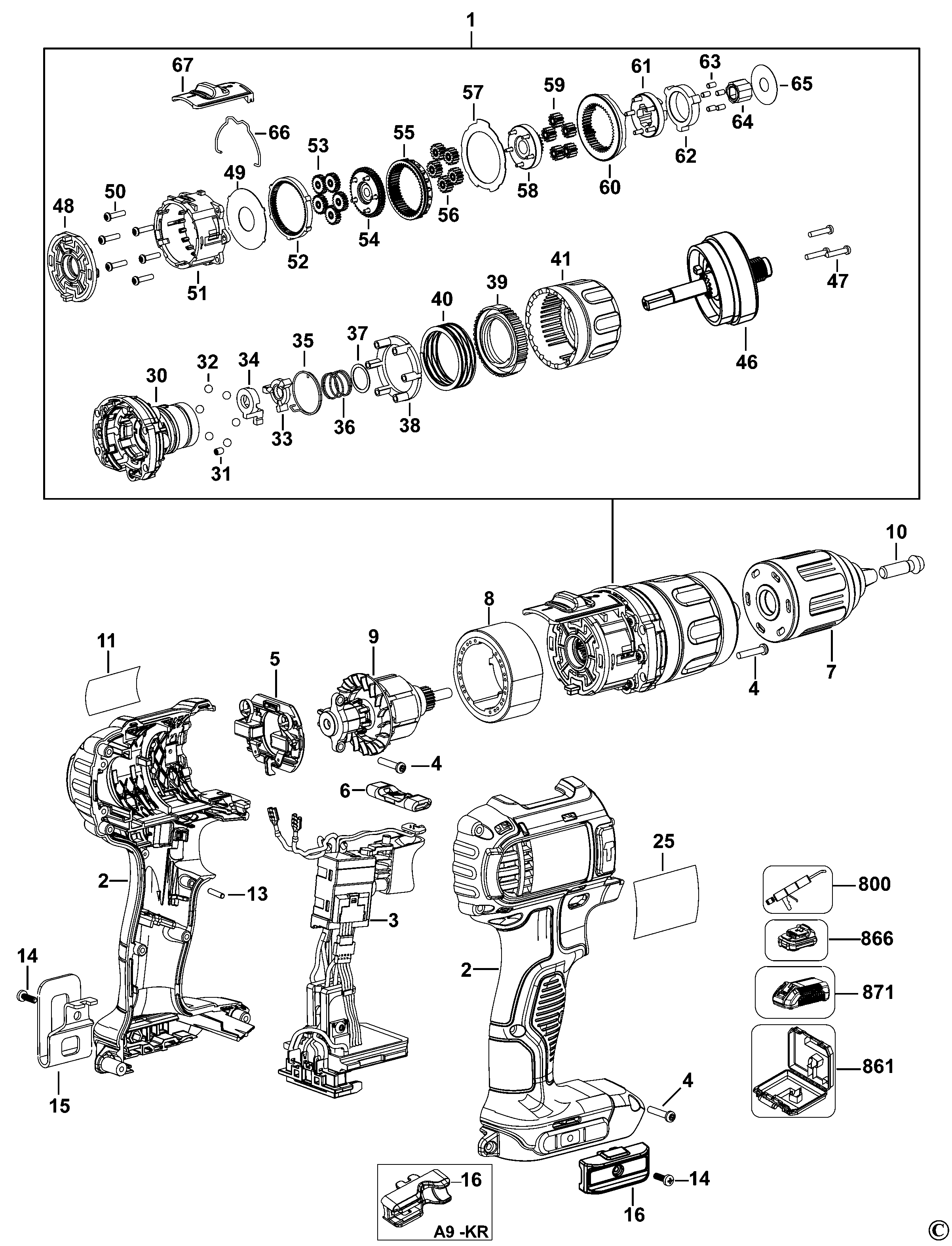

DCD735L CORDLESS DRILL Type 1 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 1 | N110035 | 1 | TRANSMISSION SA | GB |  |
||
| 2 | N391699 | 1 | CLAMSHELL SET | 14.4V WELD TERMINAL | GB |  |
|
| 2 | N377753 | 1 | CLAMSHELL PAIR | EMI, WELD | GB | |
|
| 3 | N384403 | 1 | SWITCH KIT | WELD TERMINC CLAMSH | GB | |
|
| 4 | 682211-00 | 12 | SCREW | GB | |
||
| 5 | N109433 | 1 | BRUSH PLATE SA | GB | |
||
| 6 | N039788 | 1 | ACTUATOR FWD/REV | GB | |
||
| 7 | N092054 | 1 | CHUCK KEYLESS | GB | |
||
| 8 | N109712 | 1 | MAGNET | GB | |
||
| 9 | N110037 | 1 | ARMATURE SA | 14.4V | GB | |
|
| 10 | N092854 | 1 | SCREW | GB | |
||
| 11 | N093952 | 1 | BRAND LABEL | GB | |
||
| 13 | N071836 | 1 | ROLL PIN | GB | |
||
| 14 | N042665 | 2 | SCREW | GB | |
||
| 15 | N086039 | 1 | HOOK | GB | |
||
| 16 | N095778 | 1 | HOLDER BIT | GB | |
||
| 25 | N091252 | 1 | RATING PLATE | EURO | GB | |
|
| 30 | N124588 | 1 | HOUSING | GB | |
||
| 31 | 326467-00 | 1 | DETENT | GB | |
||
| 32 | 386690-00 | 6 | BALL | STEEL, 5MM | GB | |
|
| 33 | N047986 | 1 | RATCHET | GB | |
||
| 34 | N047987 | 1 | RATCHET | GB | |
||
| 35 | N047989 | 1 | SPRING | GB | |
||
| 36 | N047988 | 1 | SPRING | GB | |
||
| 37 | N047985 | 1 | WASHER | GB | |
||
| 38 | N063688 | 1 | PLATE | GB | |
||
| 39 | N036372 | 1 | ADJUSTER TORQUE | GB | |
||
| 40 | N077956 | 1 | SPRING | GB | |
||
| 41 | N047992 | 1 | COLLAR | GB | |
||
| 46 | N110039 | 1 | SPINDLE SA | GB | |
||
| 47 | 682211-00 | 3 | SCREW | GB | |
||
| 48 | N022994 | 1 | ADAPTOR | GB | |
||
| 49 | N063567 | 1 | PLATE | GB | |
||
| 50 | N075506 | 6 | SCREW | GB | |
||
| 51 | N033869 | 1 | GEARCASE | GB | |
||
| 52 | N030988 | 1 | GEAR | 1ST RED | GB | |
|
| 53 | N030999 | 5 | GEAR | GB | |
||
| 54 | N124371 | 1 | CARRIER SA | GB | |
||
| 55 | N031079 | 1 | GEAR | GB | |
||
| 56 | N031080 | 5 | GEAR | GB | |
||
| 57 | N032409 | 1 | WASHER | GB | |
||
| 58 | N122400 | 1 | CARRIER SA | GB | |
||
| 59 | N031083 | 5 | GEAR | GB | |
||
| 60 | N078410 | 1 | GEAR | GB | |
||
| 61 | N122401 | 1 | CARRIER SA | GB | |
||
| 62 | N022985 | 1 | LOCKING RING | GB | |
||
| 63 | N093416 | 5 | ROLLER | GB | |
||
| 64 | N157720 | 1 | ANVIL ASSEMBLY | GB | |
||
| 65 | N090435 | 1 | WASHER | GB | |
||
| 66 | N035441 | 1 | WIRE STEEL | GB | |
||
| 67 | N035051 | 1 | SELECTOR SA | GB | |
||
| 800 | 808386-00 | 1 | GREASE | MOLYKOTE G68 100GMS | GB | ||
| 861 | N087499 | 1 | KITBOX | GB | |
||
| 866 | N394622 | 1 | BATTERY 14.4V - 5.0AH - 72WH | Li-Ion - DCB144-XJ | DCD735L2 | GB | |
| 871 | N450537 | 1 | CHARGER 10.8V - 18V | GB | |
