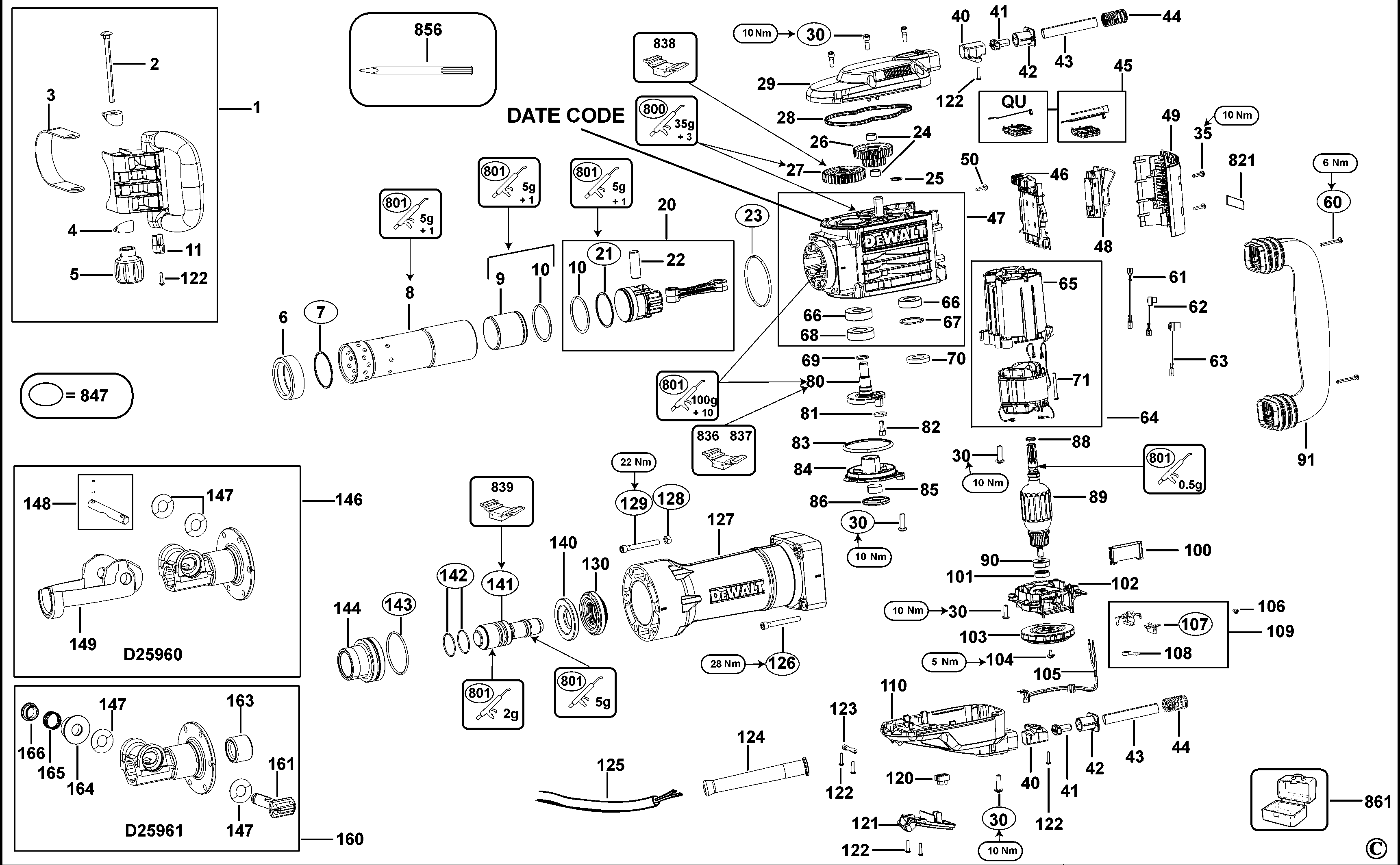

D25960 DEMOLITION HAMMER Type 1 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 1 | N087487 | 1 | HANDLE SA | LX |  |
||
| 2 | N044219 | 1 | BOLT | LX | |
||
| 3 | N044098 | 1 | CLAMP | LX | |
||
| 4 | N044099 | 2 | INSERT | LX | |
||
| 5 | N086186 | 1 | HANDLE | LX | |
||
| 6 | N087359 | 1 | RING | LX | |
||
| 7 | N069978 | 1 | O RING | LX | |
||
| 8 | N087327 | 1 | CYLINDER | LX |  |
||
| 9 | N087416 | 1 | RAM | LX | |
||
| 10 | N088404 | 1 | PISTON RING | LX | |
||
| 11 | N044100 | 2 | CAP | LX | |
||
| 20 | N161207 | 1 | FSO REPAIR KIT | <052012 | LX | |
|
| 20 | N164668 | 1 | PISTON KIT | >052012 | LX | |
|
| 21 | N056464 | 1 | O RING | LX | |
||
| 22 | N087484 | 1 | BOLT | LX | |
||
| 23 | N050696 | 1 | O RING | LX | |
||
| 24 | 494549-00 | 1 | BEARING SET | LX | |
||
| 25 | N071623 | 1 | CIRCLIP | LX | |
||
| 26 | 494573-00 | 1 | GEAR SA | inc 2 x 24 | LX | |
|
| 27 | N087483 | 1 | GEAR | LX | |
||
| 28 | N043534 | 1 | SEAL | LX | |
||
| 29 | N026222 | 1 | COVER | LX | |
||
| 30 | 493968-00 | 18 | SCREW | LX | |
||
| 35 | 330045-23 | 4 | SCREW | LX | |
||
| 40 | N043530 | 2 | BUSH | LX | |
||
| 41 | N043533 | 2 | STOP | LX | |
||
| 42 | N043529 | 2 | GUIDE BUSH | LX | |
||
| 43 | N043532 | 2 | TUBE METAL | LX | |
||
| 44 | N069674 | 2 | SPRING | LX | |
||
| 45 | N108387 | 1 | GACC MODULE 115V | LX | |
||
| 46 | N043527 | 1 | HOUSING SWITCH | LX | |
||
| 47 | N088431 | 1 | HOUSING SA | Inc 66. 68, 67 | LX | |
|
| 48 | N485854 | 1 | SWITCH | LX | |
||
| 48 | N485854 | 1 | SWITCH | LX | |
||
| 49 | N031170 | 1 | COVER REAR | LX | |
||
| 50 | 326619-00 | 1 | SCREW | LX | |
||
| 60 | 1005672-01 | 2 | SCREW | LX | |
||
| 61 | N106177 | 1 | LEAD WHITE | LX | |
||
| 62 | N103817 | 1 | LEAD BLUE | LX | |
||
| 63 | N106096 | 1 | LEAD YELLOW | LX | |
||
| 64 | N087486 | 1 | FIELD SA 115V | Inc 65, 71 | LX | |
|
| 65 | N020776 | 1 | HOUSING MOTOR | LX | |
||
| 66 | 330003-69 | 2 | BEARING | LX | |
||
| 67 | 616726-00 | 1 | RETAINER | LX | |
||
| 68 | 577745-03 | 1 | BEARING,BALL | LX | |
||
| 69 | N049232 | 1 | O RING | LX | |
||
| 70 | N050316 | 1 | FELT | LX | |
||
| 71 | 330019-27 | 2 | SCREW | LX | |
||
| 80 | N161207 | 1 | FSO REPAIR KIT | <052012 | LX | |
|
| 80 | N164667 | 1 | CRANKSHAFT | >052012 | LX | |
|
| 81 | 330016-21 | 1 | WASHER | LX | |
||
| 82 | 494356-00 | 1 | SCREW | LX | |
||
| 83 | N075322 | 1 | O RING | LX | |
||
| 84 | N030647 | 1 | COVER | LX | |
||
| 85 | 487229-00 | 1 | FILTER | LX | |
||
| 86 | 487438-00 | 1 | CAP | LX | |
||
| 88 | 577746-01 | 1 | RING | LX | |
||
| 89 | N087479 | 1 | ARMATURE 115/120V | LX | |
||
| 90 | 577745-00 | 1 | BEARING | LX | |
||
| 91 | N031103 | 1 | HANDLE | LX | |
||
| 100 | N038446 | 2 | BRUSH COVER | LX | |
||
| 101 | N167638 | 1 | SLEEVE INSULATING | LX | |
||
| 102 | N020777 | 1 | BRUSHPLATE | LX | |
||
| 103 | 586611-00 | 1 | FAN SA | LX | |
||
| 104 | 324119-02 | 1 | SCREW | LX | |
||
| 105 | N062068-02 | 1 | SET OF LEAD WIRES | LX | |
||
| 106 | 330065-06 | 2 | SCREW | LX | |
||
| 107 | 1005550-03 | 1 | BRUSH PAIR 115V | LX | |
||
| 108 | 487377-00 | 2 | BRUSH SPRING | LX | |
||
| 109 | N184446 | 1 | BRUSH PAIR 120V | LX | |
||
| 110 | N026214-00 | 1 | MOTOR COVER | LX | |
||
| 120 | 1006389-00 | 1 | TERMINAL BLOCK | LX | |
||
| 121 | N030582 | 1 | COVER | LX | |
||
| 122 | 330065-08 | 10 | SCREW | M4x18 T20 | LX | |
|
| 123 | 821070 | 1 | CORD CLAMP | LX | |
||
| 124 | 947964-01 | 1 | CORD PROTECTOR | LX | |
||
| 125 | 582319-47 | 1 | CORDSET | LX | |
||
| 126 | 949886-40 | 4 | SCREW | LX | |
||
| 127 | N161206 | 1 | HOUSING FRONT | LX | |
||
| 128 | N074448 | 6 | NUT | LX | |
||
| 129 | 949886-39 | 6 | SCREW | LX | |
||
| 130 | N100041 | 1 | DAMPER | LX | |
||
| 140 | N087384 | 1 | WASHER | LX | |
||
| 141 | N087403 | 1 | BEAT PIECE | 28mm inc 2x142 | LX | |
|
| 142 | 487213-00 | 2 | O RING | LX | |
||
| 143 | N069976 | 1 | O RING | LX | |
||
| 144 | 000000-20 | 1 | PLEASE SEE REPAIR INSTRUCTION | LX | |||
| 146 | N142417 | 1 | HOLDER SA | Inc 143,144 | LX | |
|
| 147 | N098357 | 2 | DAMPER | LX | |
||
| 148 | N500415 | 1 | REPAIR KIT | LX | |
||
| 149 | 478066-00 | 1 | RETAINER | 28mm Hex | LX | |
|
| 800 | 870889-03 | 2 | GREASE | RENOLIT PARAGON EP ½ - 20 GRAMS | LX | |
|
| 801 | 578970-06 | 1 | GREASE 150 GMS | LX | |
||
| 821 | N072268 | 1 | RATING PLATE | LX | |
||
| 836 | 1003944-99 | 1 | SERVICE TOOL | Crankshaft support. | LX | |
|
| 837 | 1003945-99 | 1 | SERVICE TOOL | Drift for Crankshaft | LX | |
|
| 838 | 1003946-98 | 1 | SERVICE TOOL | 55mm | LX | |
|
| 839 | 1003947-99 | 1 | SERVICE TOOL | O Ring fitting tool. | LX | |
|
| 847 | N127076 | 1 | SERVICE KIT 120V | LX | |
||
| 856 | N183931 | 1 | BIT | 400mm | LX | |
|
| 861 | N074467 | 1 | KITBOX | LX | |
