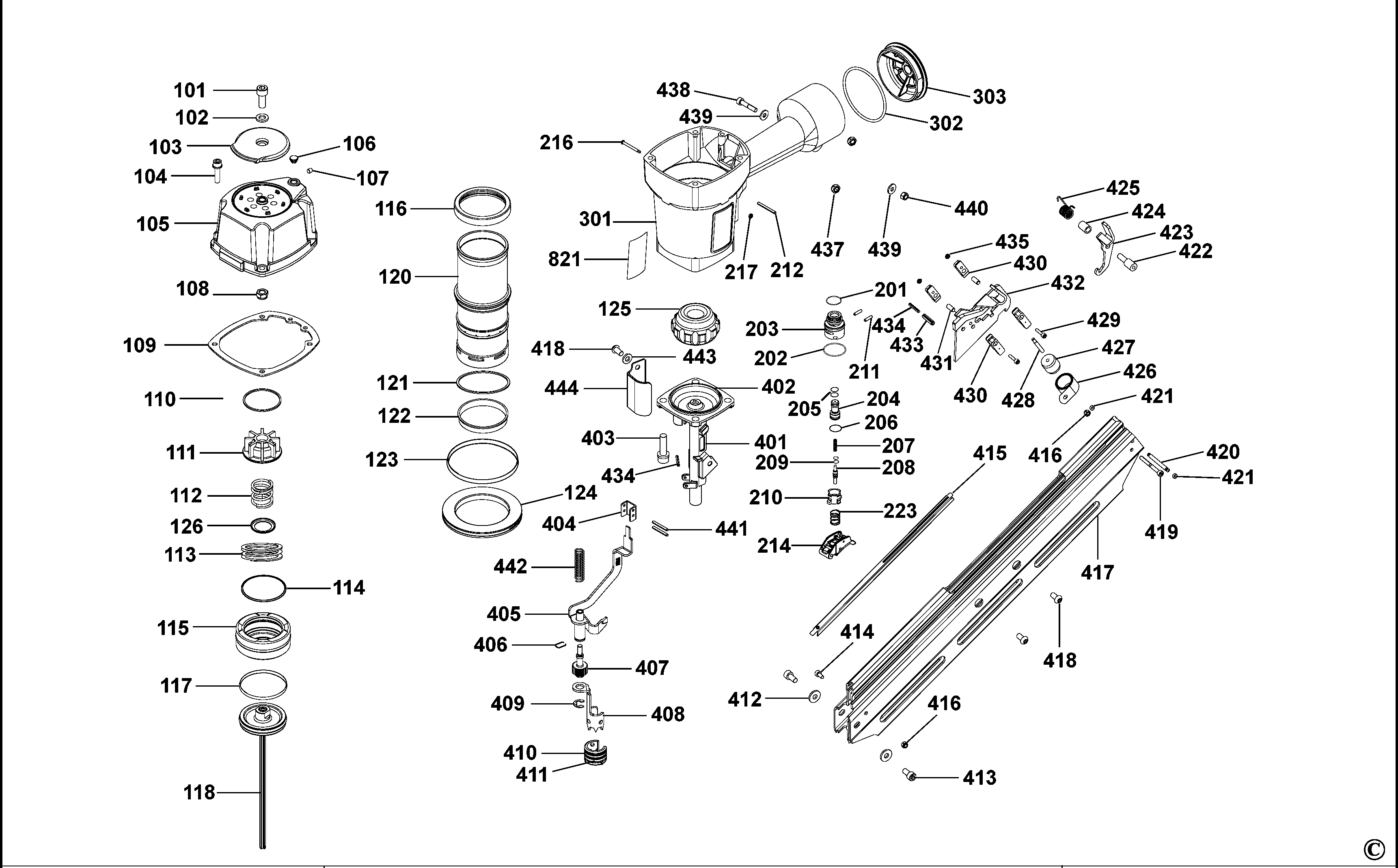

D51856 NAILER Type 1 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 101 | 1004333-00 | 1 | BOLT | HEX HD | XJ |  |
|
| 102 | 1004334-00 | 1 | WASHER | XJ | |
||
| 103 | 1004335-00 | 1 | DEFLECTOR | XJ | |
||
| 104 | 1004336-00 | 1 | BOLT | XJ | |
||
| 105 | 1004337-00 | 1 | CAP | XJ | |
||
| 106 | 1004338-00 | 1 | GROMMET | XJ | |
||
| 107 | 1004339-00 | 1 | SCREW | HEX HD | XJ | |
|
| 108 | 1004340-00 | 1 | LOCK NUT | XJ | |
||
| 109 | 1004341-00 | 1 | SEAL | XJ | |
||
| 110 | 1004342-00 | 1 | GASKET | XJ | |
||
| 111 | 1004343-00 | 1 | SEAL | XJ | |
||
| 112 | 1004344-00 | 1 | SPRING COMPRESSION | XJ | |
||
| 113 | 1004345-00 | 1 | O RING | XJ | |
||
| 114 | 1004346-00 | 1 | O RING | XJ | |
||
| 115 | 1004347-00 | 1 | PISTON | XJ | |
||
| 116 | 1004348-00 | 1 | COLLAR | XJ | |
||
| 117 | 1004349-00 | 1 | O RING | XJ | |
||
| 118 | 1004350-00 | 1 | DRIVER | XJ | |
||
| 120 | 1004351-00 | 1 | CYLINDER | XJ | |
||
| 121 | 1004352-00 | 1 | O RING | XJ | |
||
| 122 | 1004353-00 | 1 | RING | XJ | |
||
| 123 | 1004354-00 | 1 | SPACER | XJ | |
||
| 124 | 1004355-00 | 1 | O RING | XJ | |
||
| 125 | 1004356-00 | 1 | BUMPER | XJ | |
||
| 126 | 1004357-00 | 1 | WASHER | XJ | |
||
| 201 | 1004358-00 | 1 | O RING | XJ | |
||
| 202 | 1004359-00 | 1 | O RING | XJ | |
||
| 203 | 1004360-00 | 1 | PLUNGER | XJ | |
||
| 204 | 1004361-00 | 1 | VALVE | XJ | |
||
| 205 | 1004362-00 | 1 | O RING | XJ | |
||
| 206 | 1004363-00 | 1 | O RING | XJ | |
||
| 207 | 1004364-00 | 1 | SPRING | XJ | |
||
| 208 | 1004365-00 | 1 | PLUNGER | XJ | |
||
| 209 | 1004366-00 | 1 | O RING | XJ | |
||
| 210 | 1004367-00 | 1 | TRIGGER | XJ | |
||
| 211 | 1004368-00 | 1 | PIN | XJ | |
||
| 212 | 1004369-00 | 1 | PIN | XJ | |
||
| 214 | 1004370-00 | 1 | TRIGGER | XJ | |
||
| 216 | 1004371-00 | 1 | PIN | XJ | |
||
| 217 | 1004372-00 | 1 | RETAINER | XJ | |
||
| 223 | 1004373-00 | 1 | SPRING | XJ | |
||
| 301 | 1004374-00 | 1 | CLAMSHELL SET | XJ | |
||
| 302 | 1004375-00 | 1 | O RING | XJ | |
||
| 303 | 1004376-00 | 1 | END CAP | XJ | |
||
| 401 | 1004377-00 | 1 | NOSE | XJ | |
||
| 402 | 1004378-00 | 1 | O RING | XJ | |
||
| 403 | 1004379-00 | 1 | BOLT | XJ | |
||
| 404 | 1004380-00 | 1 | GUIDE | XJ | |
||
| 405 | 1004381-00 | 1 | SAFETY CAP | XJ | |
||
| 406 | 1004382-00 | 1 | RING | XJ | |
||
| 407 | 1004383-00 | 1 | ADJUSTER | XJ | |
||
| 408 | 1004384-00 | 1 | SAFETY CAP | XJ | |
||
| 409 | 1004385-00 | 1 | RING | XJ | |
||
| 410 | 1004386-00 | 1 | CASING | XJ | |
||
| 411 | 1004387-00 | 1 | RING | XJ | |
||
| 412 | 1004388-00 | 1 | WASHER | XJ | |
||
| 413 | 1004389-00 | 1 | BOLT | HEX HD | XJ | |
|
| 414 | 1004390-00 | 1 | BOLT | HEX HD | XJ | |
|
| 415 | 1004391-00 | 1 | BASE CHANNEL | XJ | |
||
| 416 | 1004392-00 | 1 | LOCK NUT | XJ | |
||
| 417 | 1004393-00 | 1 | MAGAZINE | XJ | |
||
| 418 | 1004394-00 | 1 | BOLT | HEX HD | XJ | |
|
| 419 | 1004395-00 | 1 | BOLT | HEX HD | XJ | |
|
| 420 | 1004396-00 | 1 | PIN | XJ | |
||
| 421 | 1004397-00 | 1 | RING | XJ | |
||
| 422 | 1004398-00 | 1 | SPACER | XJ | |
||
| 423 | 1004399-00 | 1 | LATCH | XJ | |
||
| 424 | 1004400-00 | 1 | BUSHING | XJ | |
||
| 425 | 1004401-00 | 1 | SPRING | XJ | |
||
| 426 | 1004402-00 | 1 | SPRING | XJ | |
||
| 427 | 1004403-00 | 1 | ROLLER | XJ | |
||
| 428 | 1004404-00 | 1 | ROLL PIN | XJ | |
||
| 429 | 1004405-00 | 1 | BOLT | HEX HD | XJ | |
|
| 430 | 1004406-00 | 1 | BEARING | XJ | |
||
| 431 | 1004407-00 | 1 | PIN | XJ | |
||
| 432 | 1004408-00 | 1 | DRIVER SA | XJ | |
||
| 433 | 1004409-00 | 1 | PIN | XJ | |
||
| 434 | 1004410-00 | 1 | PIN | XJ | |
||
| 435 | 1004411-00 | 1 | LOCK NUT | XJ | |
||
| 437 | 1004413-00 | 1 | LOCK NUT | XJ | |
||
| 438 | 1004414-00 | 1 | BOLT | XJ | |
||
| 439 | 1004415-00 | 1 | WASHER | XJ | |
||
| 440 | 1004416-00 | 1 | LOCK NUT | XJ | |
||
| 441 | 1004417-00 | 1 | PIN | XJ | |
||
| 442 | 1004418-00 | 1 | PIN | XJ | |
||
| 443 | 1004419-00 | 1 | WASHER | XJ | |
||
| 444 | 1004420-00 | 1 | COVER | XJ | |
