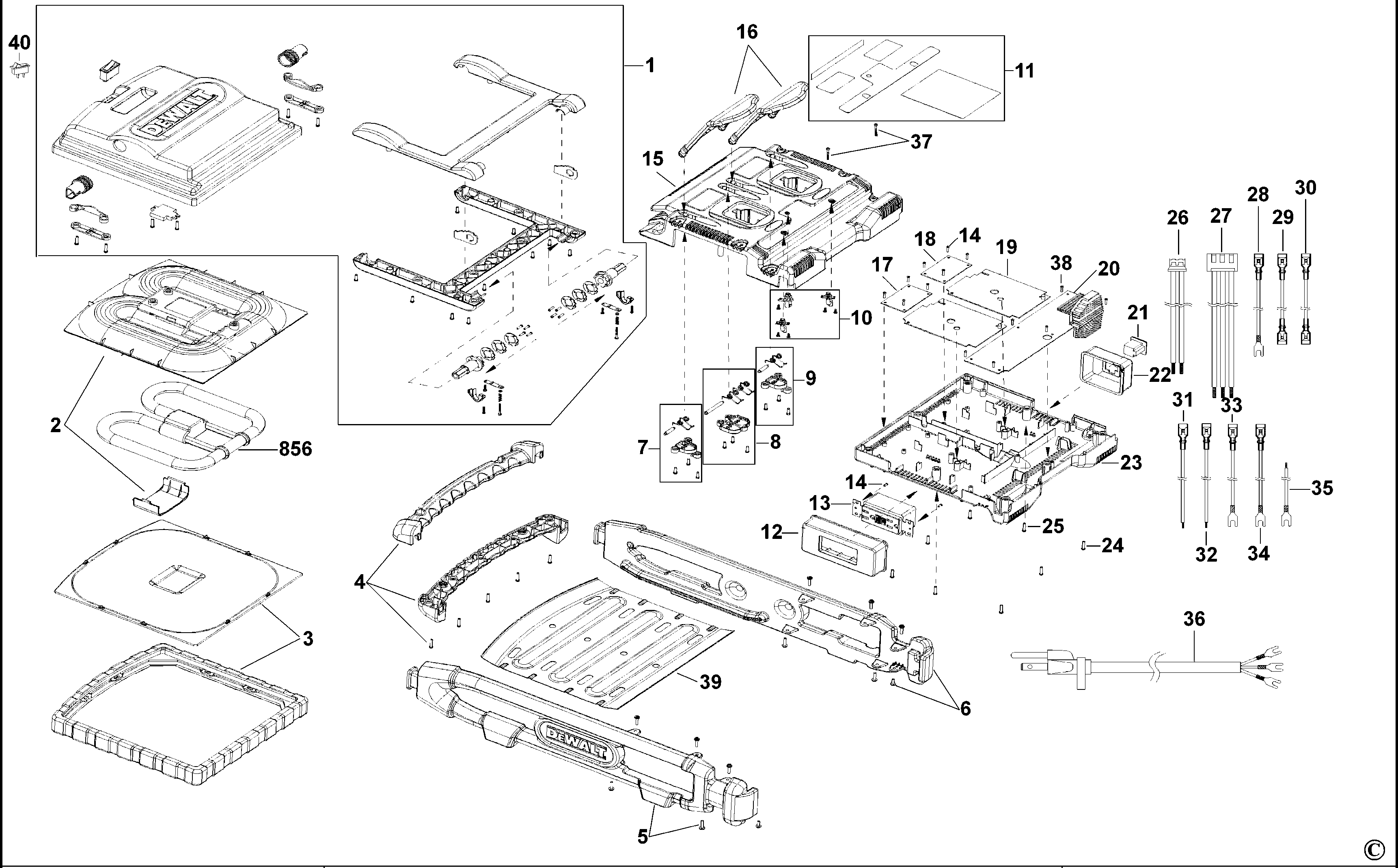

DC022 SPOTLIGHT Type 1 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 1 | 1003823-00 | 1 | LAMPHOLDER SA | GB |  |
||
| 2 | 1003824-00 | 1 | REFLECTOR SA | GB | |
||
| 3 | 5140046-53 | 1 | LENS | Lens & Gasket Assy. | GB | |
|
| 4 | 5140046-54 | 1 | HANDLE SA | GB | |
||
| 5 | 5140046-55 | 1 | RAIL SA | Left | GB | |
|
| 6 | 5140046-56 | 1 | RAIL SA | Right | GB | |
|
| 7 | 5140046-57 | 1 | SPRING SA | & cover | GB | |
|
| 8 | 5140046-58 | 1 | SPRING SA | Center | GB | |
|
| 9 | 5140046-59 | 1 | SPRING SA | & cover | GB | |
|
| 10 | 5140046-60 | 1 | PIPE SA | SET | GB | |
|
| 11 | 1003825-00 | 1 | LABEL SET | GB | |
||
| 12 | 1003828-00 | 1 | HOUSING | Outlet GB | GB | |
|
| 13 | 1003831-00 | 1 | SOCKET | GB | |
||
| 14 | 5140046-64 | 1 | SCREW | 2.6x6 Pt. | GB | |
|
| 15 | 5140046-65 | 1 | HOUSING TOP | GB | |
||
| 16 | 5140046-66 | 2 | CLAMP | Battery Guard | GB | |
|
| 17 | 000000-00 | 1 | NO LONGER AVAILABLE | NOT ON EUROPEAN UNIT | GB | ||
| 18 | 000000-00 | 1 | NO LONGER AVAILABLE | NOT ON EUROPEAN UNIT | GB | ||
| 19 | 1003833-00 | 1 | PCB 230V | GB | |
||
| 20 | 1003834-00 | 1 | PCB 230V | GB | |
||
| 21 | 000000-00 | 1 | NO LONGER AVAILABLE | NOT ON EUROPEAN UNIT | GB | ||
| 22 | 1003836-00 | 1 | HOUSING | GB | |
||
| 23 | 5140046-73 | 1 | HOUSING LOWER | GB | |
||
| 24 | 5140046-74 | 1 | SCREW | STBT4x15 PAN | GB | |
|
| 25 | 5140046-75 | 1 | SCREW | 3.5x15 | GB | |
|
| 26 | 5140046-76 | 1 | CABLE SA | GFCI/LED cable | GB | |
|
| 27 | 000000-00 | 1 | NO LONGER AVAILABLE | NOT ON EUROPEAN UNIT | GB | ||
| 28 | 1003839-00 | 1 | LEAD GREEN | GB | |
||
| 29 | 1003841-00 | 1 | LEAD BROWN | GB | |
||
| 30 | 1003843-00 | 1 | LEAD BLUE | GB | |
||
| 31 | 1003845-00 | 1 | LEAD BLUE | GB | |
||
| 32 | 1003846-00 | 1 | LEAD BROWN | GB | |
||
| 33 | 1003847-00 | 1 | LEAD BROWN | GB | |
||
| 34 | 1003849-00 | 1 | LEAD BLUE | GB | |
||
| 35 | 000000-00 | 1 | NO LONGER AVAILABLE | NOT ON EUROPEAN UNIT | GB | ||
| 36 | 1003851-00 | 1 | CORDSET | GB | |
||
| 37 | 5140046-87 | 1 | SCREW | PT 3.5x30 | GB | |
|
| 38 | 5140046-88 | 1 | SCREW | PT 2.6x10 | GB | |
|
| 39 | 5140046-89 | 1 | INSERT | Perforated Sheet | GB | |
|
| 40 | 1004457-27 | 1 | SWITCH | GB | |
||
| 856 | 1004000-00 | 1 | BULB | DC0213-XJ | DC0213-XJ | GB | |
