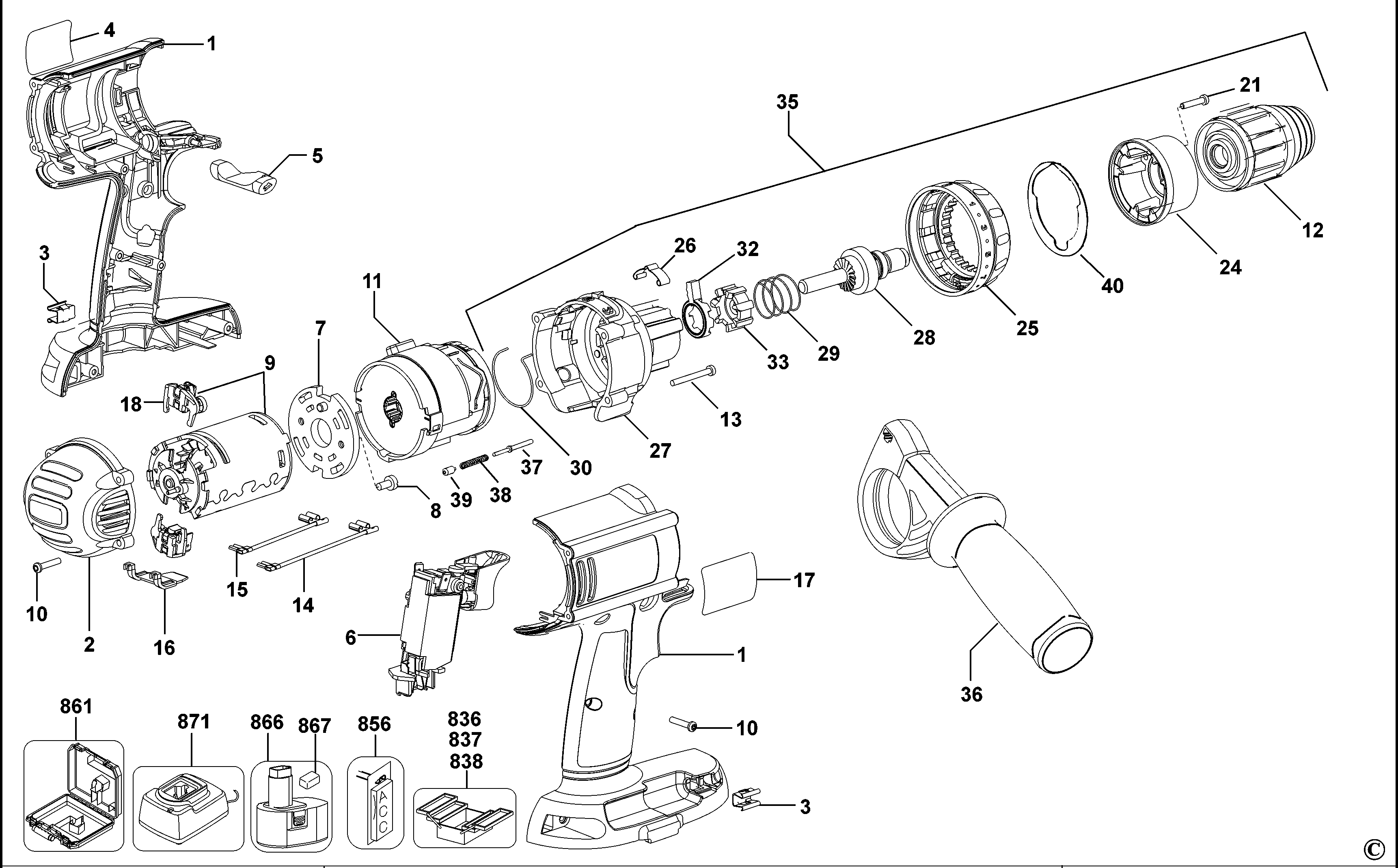

DC935K CORDLESS DRILL Type 1 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 1 | 629820-01 | 1 | CLAMSHELL | 14.4V | XJ | ||
| 1 | 1004745-98 | 1 | ADAPTOR | XJ |  |
||
| 2 | 629823-00 | 1 | END CAP | XJ |  |
||
| 3 | 148354-03 | 2 | HOLDER | XJ | |
||
| 4 | 395657-00 | 1 | BRAND LABEL | XJ | |
||
| 5 | 633327-02 | 1 | ACTUATOR FWD/REV | XJ | |
||
| 7 | 629172-00 | 1 | ADAPTOR | XJ | |
||
| 8 | 156179-01 | 2 | SCREW | XJ | |
||
| 9 | 629151-01 | 1 | MOTOR & PINION | XJ | |||
| 10 | 682211-00 | 5 | SCREW | XJ | |
||
| 11 | 613237-00SV | 1 | TRANSMISSION SA | XJ | |
||
| 12 | 330075-90 | 1 | CHUCK KEYLESS | XJ | |
||
| 13 | 330019-62 | 8 | SCREW | XJ | |
||
| 14 | 631282-01 | 1 | LEAD PURPLE | XJ | |
||
| 15 | 631283-01 | 1 | LEAD BROWN | Neg.14 AWG. Ang.Term | XJ | |
|
| 16 | 636634-00 | 1 | GUIDE | XJ | |
||
| 18 | 493511-00 | 2 | BRUSH PAIR | XJ | |
||
| 21 | 330019-00 | 3 | SCREW | M3x16 T10 PLASTITE | XJ | |
|
| 24 | 609133-00 | 1 | END CAP | XJ | |
||
| 25 | 1005638-00 | 1 | COLLAR SA | XJ | |
||
| 26 | 395460-00 | 1 | SPRING GUIDE | XJ | |
||
| 27 | 629829-00 | 1 | HOUSING SA | NOSECONE & BEARING | XJ | ||
| 28 | 638692-00 | 1 | SPINDLE SA | XJ | |||
| 29 | 394546-00 | 1 | SPRING | XJ | |
||
| 30 | 399059-00 | 1 | SPRING | XJ | |
||
| 32 | 394545-00 | 1 | CAM | XJ | |
||
| 33 | 394542-00 | 1 | RATCHET FIXED | XJ | |
||
| 35 | 629828-00 | 1 | REPAIR KIT | Nosecone Assy. | XJ | ||
| 36 | 646594-00 | 1 | SIDE HANDLE | XJ | |
||
| 836 | 559661-99 | 1 | S.T.CHUCK REMOVAL JIG | XJ | |
||
| 837 | 559662-99 | 1 | S.T.CHUCK REMOVAL JIG | XJ | |
||
| 838 | 559697-99 | 1 | S.T.INSERT | XJ | |
||
| 856 | 607918-41 | 1 | BIT SCREWDRIVER | XJ | |
||
| 861 | 660141-00 | 1 | KITBOX | XJ | |
||
| 867 | 608522-00 | 1 | SAFETY CAP | XJ | |
