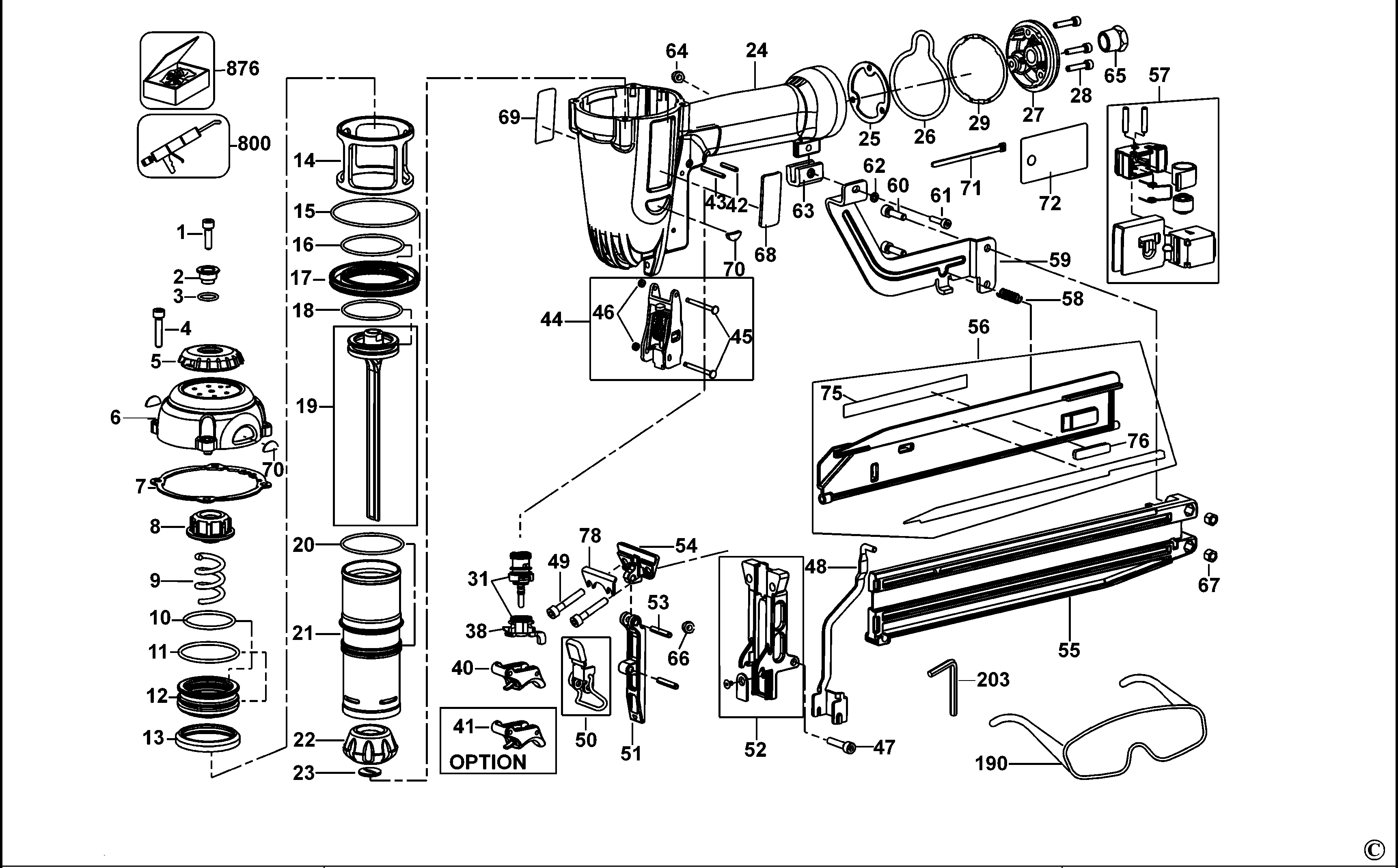

D51430 NAILER Type 2 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 1 | 098119-16 | 1 | SCREW | XJ |  |
||
| 2 | 623226-00 | 1 | BUSHING | XJ | |
||
| 3 | 614994-00 | 1 | O RING | XJ | |
||
| 4 | 608174-00 | 4 | SCREW | XJ |  |
||
| 5 | 614985-00 | 1 | DEFLECTOR | XJ | |
||
| 6 | 638763-00 | 1 | CAP | XJ | |
||
| 7 | 395376-00 | 1 | GASKET | XJ | |
||
| 8 | 640886-00 | 1 | BUMPER | XJ | |
||
| 9 | 395379-00 | 1 | SPRING | XJ | |
||
| 10 | 398163-00 | 1 | O RING | XJ | |
||
| 11 | 609019-00 | 1 | O RING | XJ | |
||
| 12 | 395378-00 | 1 | VALVE | XJ | |
||
| 13 | 395380-00 | 1 | SEAL | XJ | |
||
| 14 | 395381-00 | 1 | HOLDER SA | XJ | |
||
| 15 | 398166-00 | 1 | O RING | XJ | |
||
| 16 | 398167-00 | 1 | O RING | XJ | |
||
| 17 | 395416-00 | 1 | COVER | XJ | |
||
| 18 | 622865-00 | 1 | O RING | XJ | |
||
| 19 | 641093-00 | 1 | DRIVER SA | XJ | |
||
| 20 | 398165-00 | 1 | O RING | XJ | |
||
| 21 | 623227-00 | 1 | CYLINDER | XJ | |
||
| 22 | 395426-00 | 1 | BUMPER | XJ | |
||
| 23 | 622867-00 | 1 | PLATE | XJ | |
||
| 24 | 643997-00 | 1 | FRAME | XJ | |
||
| 25 | 395430-00 | 1 | GASKET | XJ | |
||
| 26 | 629190-00 | 1 | HOOK | BELT | XJ | |
|
| 27 | 622051-00 | 1 | END CAP | XJ | |
||
| 28 | 608178-00 | 3 | SCREW | XJ | |
||
| 29 | 395080-00 | 1 | PLATE | XJ | |
||
| 31 | N566148 | 1 | TRIGGER | XJ | |
||
| 38 | 641011-00 | 1 | CAP | XJ | |
||
| 40 | 398219-00 | 1 | TRIGGER | BUMP | XJ | |
|
| 41 | 603415-00 | 1 | TRIGGER | XJ | |
||
| 42 | 330036-19 | 1 | ROLL PIN | 3 x 18mm | XJ | |
|
| 43 | 330036-20 | 1 | ROLL PIN | 3 x 26mm | XJ | |
|
| 44 | N110774 | 1 | ADJUSTER | XJ | |
||
| 45 | 395091-00 | 2 | PIN | XJ | |
||
| 46 | 391814-00 | 2 | GROMMET | XJ | |
||
| 47 | 623651-00 | 1 | BOLT | XJ | |
||
| 48 | 645081-00 | 1 | CONTACT | XJ | |
||
| 49 | 608175-00 | 2 | SCREW | XJ | |
||
| 50 | 623276-00 | 1 | LATCH | XJ | |
||
| 51 | 623273-00 | 1 | DOOR | XJ | |
||
| 52 | 623643-01 | 1 | END CAP SA | XJ | |
||
| 53 | 330036-02 | 2 | SPIROL PIN | XJ | |
||
| 54 | 623271-00 | 1 | DOOR | XJ | |
||
| 55 | 623244-00 | 1 | MAGAZINE | XJ | |
||
| 56 | 647183-00 | 1 | COVER | XJ | |
||
| 57 | 623286-00 | 1 | SLIDER SA | XJ | |
||
| 58 | 623310-00 | 1 | SPRING | XJ | |
||
| 59 | 623265-00 | 1 | BRACKET | XJ | |
||
| 60 | 623311-00 | 2 | BOLT | XJ | |
||
| 61 | 623299-00 | 1 | BOLT | XJ | |
||
| 62 | 398218-00 | 1 | WASHER | PLAIN 4 X 8 | XJ | |
|
| 63 | 623309-00 | 1 | BRACKET | XJ | |
||
| 64 | 607156-00 | 1 | NUT | XJ | |
||
| 65 | 395195-00 | 1 | BUSHING | XJ | |
||
| 66 | 607155-00 | 1 | NUT | XJ | |
||
| 67 | 623308-00 | 2 | LOCK NUT | M5 | XJ | |
|
| 68 | 613090-00 | 1 | LABEL | LOGO, 16GA | XJ | |
|
| 69 | 647863-00 | 1 | RATING PLATE | TY 2 | XJ | |
|
| 70 | 619131-00 | 4 | LABEL | BUMPER, 16GA | XJ | |
|
| 71 | 149138-03 | 1 | CABLE TIE | 0.2 x11 INCHES | XJ | |
|
| 72 | 640766-00 | 1 | WARNING LABEL | XJ | |
||
| 75 | 646427-00 | 1 | WARNING LABEL | XJ | |
||
| 76 | 647959-00 | 1 | WARNING LABEL | XJ | |
||
| 78 | 641546-00 | 1 | SPACER | XJ | |
||
| 190 | 629042-01 | 1 | SAFETY GLASSES | XJ | |
||
| 203 | 497570-02 | 1 | KEY | 4mm | XJ | |
|
| 203 | 604407-02 | 1 | WRENCH | XJ | |
||
| 800 | 429995-00 | 1 | GREASE 150 GMS | XJ | |
||
| 876 | 622874-00 | 1 | O RING KIT | XJ | |
||
| 876 | 622871-00 | 1 | BUMPER | Kit | XJ | |
