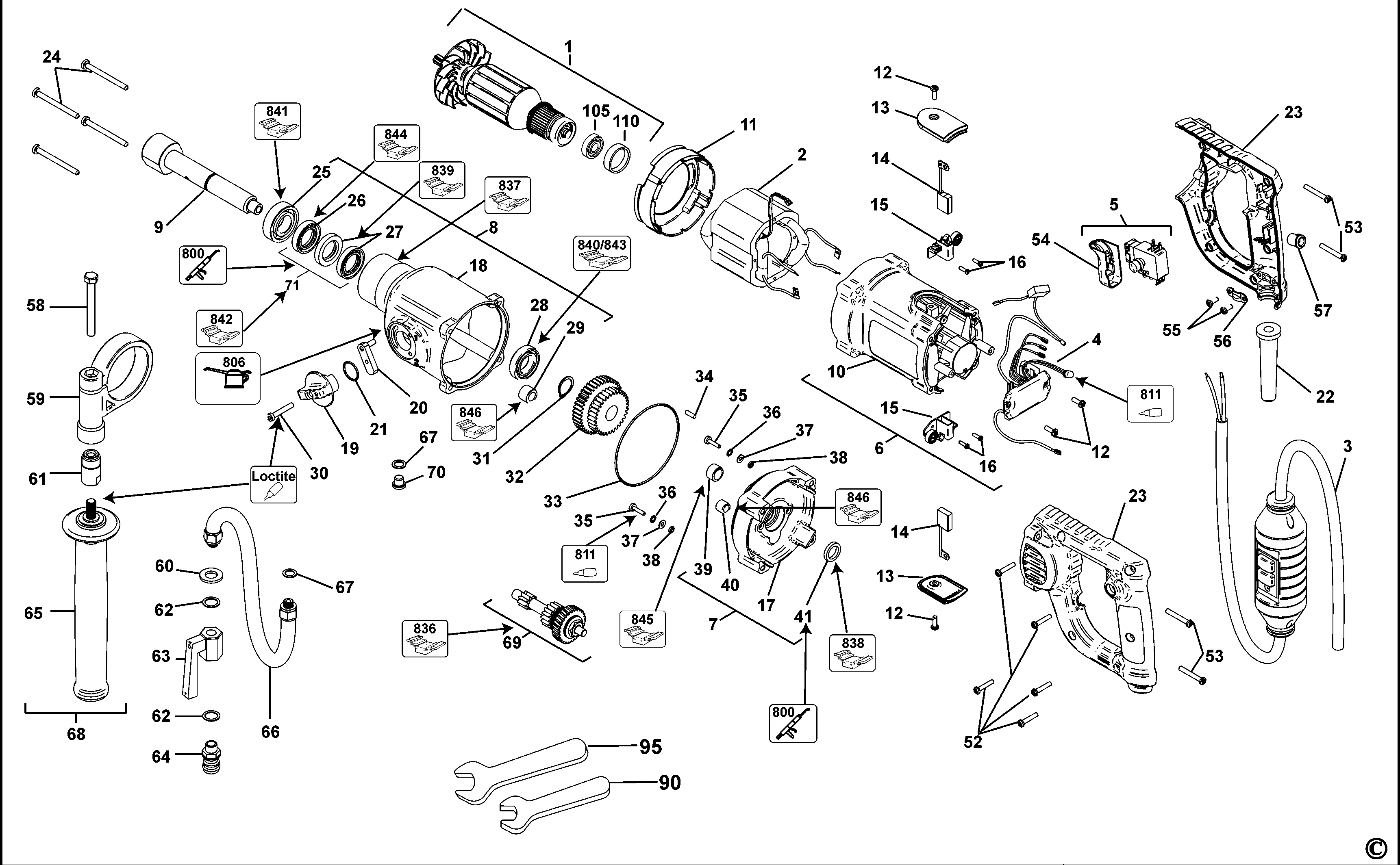

D21582K DIAMOND DRILL Type 1 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 1 | 1002571-00 | 1 | ROTOR | 230 V | GB |  |
|
| 2 | 1002575-00 | 1 | STATOR 230V | GB | |
||
| 3 | 1002742-00 | 1 | CORDSET | 230 V | GB | |
|
| 4 | 1002617-00 | 1 | PCB | 230 V | GB | |
|
| 5 | 492301-00 | 1 | SWITCH | GB | |
||
| 6 | 1002577-00 | 1 | MOTOR HOUSING SA | GB | |
||
| 7 | 1002578-00 | 1 | GEARCASE COVER | GB | |
||
| 8 | 1002620-00 | 1 | HOUSING GEARBOX | GB | |
||
| 9 | 1002621-00 | 1 | SPINDLE | GB | |
||
| 10 | 492277-00 | 1 | HOUSING MOTOR | GB | |
||
| 11 | 492283-00 | 1 | GUIDE | GB | |
||
| 12 | 330065-06 | 4 | SCREW | GB | |
||
| 13 | 492282-00 | 1 | BRUSH COVER | GB | |
||
| 14 | 1002581-00 | 2 | BRUSH & LEAD | 6.3 x 16 x 20 | GB | |
|
| 15 | 1002582-00 | 2 | BRUSH HOLDER | GB | |
||
| 16 | 330065-25 | 4 | SCREW | GB | |
||
| 17 | 492281-00 | 1 | GEARCASE COVER | GB | |
||
| 18 | 1002739-00 | 1 | HOUSING GEARBOX | GB | |||
| 19 | 1002583-00 | 1 | SELECTOR | GB | |||
| 20 | 1002584-00 | 1 | LEVER | Gear | GB | |
|
| 21 | 1002585-00 | 1 | O RING | 1.75 x 18.77 | GB | |
|
| 22 | 1002586-00 | 1 | CORD PROTECTOR | GB | |
||
| 23 | 492273-00 | 1 | HOUSING HANDLE | GB | |||
| 24 | 330019-19 | 4 | SCREW | GB | |
||
| 25 | 1002587-00 | 1 | BEARING | 6004 2RS | GB | ||
| 26 | 1002588-00 | 1 | SEAL | Shaft 20 x 33 x 7 | GB | |
|
| 27 | 1002622-00 | 2 | SEAL | Shaft 20 x 35 x 6 | GB | |
|
| 28 | 1002590-00 | 1 | BEARING | 6904 2RS | GB | |
|
| 29 | 1002589-00 | 1 | BEARING NEEDLE | DL1012 | GB | |
|
| 30 | 493899-00 | 1 | SCREW | M5 x 30 | GB | |
|
| 31 | 1002591-00 | 1 | CIRCLIP | 19 x 1.2 | GB | |
|
| 32 | 1002592-00 | 1 | GEAR | GB | |
||
| 33 | 1002597-00 | 1 | RING | 90 x 2 | GB | |
|
| 34 | 1002598-00 | 1 | PIN | 4 x 12 | GB | |
|
| 35 | 1002593-00 | 2 | SCREW | M4 x 16 | GB | |
|
| 36 | 1002594-00 | 2 | WASHER LOCK | GB | |
||
| 37 | 1002595-00 | 2 | DISC | GB | |
||
| 38 | 1002596-00 | 2 | RING | 3.68 x 1.78 | GB | |
|
| 39 | 1002599-00 | 1 | BEARING NEEDLE | HK 1210 | GB | |
|
| 40 | 1002600-00 | 1 | BEARING NEEDLE | HK 0810 | GB | ||
| 41 | 1002623-10 | 1 | SEAL | Shaft 15 x 21 x 3 | GB | |
|
| 52 | 330065-09 | 4 | SCREW | GB | |
||
| 53 | 330019-15 | 4 | SCREW | GB | |
||
| 54 | 492302-00 | 1 | TRIGGER | GB | |
||
| 55 | 330065-05 | 2 | SCREW | GB | |
||
| 56 | 1002613-00 | 1 | CORD CLAMP | GB | |
||
| 57 | 1002624-00 | 1 | HOLDER | LED | GB | |
|
| 58 | 1002614-00 | 1 | SCREW | M8 x 70 | GB | |
|
| 59 | 492326-00 | 1 | COLLAR | GB | |
||
| 60 | 1002625-00 | 1 | DISC | GB | |
||
| 61 | 492548-00 | 1 | ADAPTOR | GB | |
||
| 62 | 1002626-00 | 2 | SEAL | 1/4" | GB | |
|
| 63 | 1002627-00 | 1 | VALVE | Ball | GB | |
|
| 64 | 1002628-00 | 1 | CONNECTOR | GB | |
||
| 65 | N021120 | 1 | HANDLE | GB | |
||
| 66 | 1002629-00 | 1 | HOSE SA | Connecting | GB | |
|
| 67 | 1002630-00 | 2 | SEAL | 1/8" | GB | |
|
| 68 | 1002615-00 | 1 | HANDLE SIDE SA | GB | |
||
| 69 | 1002616-00 | 1 | CLUTCH SA | GB | |
||
| 70 | 1002655-00 | 1 | SCREW | 1/8"-SW5 | GB | |
|
| 71 | 1003199-00 | 1 | SEAL SA | Kit | GB | |
|
| 90 | 1004303-00 | 1 | SPANNER | 32mm | GB | |
|
| 95 | 868111-00 | 1 | SPANNER | GB | |
||
| 105 | 1003777-00 | 1 | BEARING,BALL | 6000 2Z | GB | |
|
| 110 | 1003776-00 | 1 | SLEEVE INSULATING | GB | |
||
| 800 | 1003362-00 | 1 | GREASE | 400 g | GB | |
|
| 806 | 1003363-00 | 1 | OIL | 1 Litre | GB | |
|
| 811 | 1004773-44 | 1 | TUBE SILICONE | ERGO R3140 Super RTV | GB | |
|
| 836 | 559671-99 | 1 | S.T.ASSEMBLY JIG | Clutch Checking | GB | |
|
| 837 | 559672-99 | 1 | S.T.SUPPORT JIG | Support | GB | |
|
| 838 | 559673-99 | 1 | S.T.SEAL FITTING TOOL | Seal tool | GB | |
|
| 839 | 559674-99 | 1 | S.T.SEAL FITTING TOOL | Seal tool | GB | |
|
| 840 | 559675-99 | 1 | S.T.BEARING EXTRACTOR | Bearing removal | GB | |
|
| 841 | 559676-99 | 1 | S.T.SUPPORT JIG | Support | GB | |
|
| 842 | 559677-99 | 1 | SERVICE TOOL | Seal/bearing removal | GB | |
|
| 843 | 559678-99 | 1 | S.T.BEARING INSERTOR | Bearing tool | GB | |
|
| 844 | 559680-99 | 1 | S.T.SEAL FITTING TOOL | Seal tool | GB |  |
|
| 845 | 559690-99 | 1 | S.T.BEARING INSERTOR | Bearing tool | GB | |
|
| 846 | 559692-99 | 1 | S.T.BEARING INSERTOR | Bearing tool | GB | |
