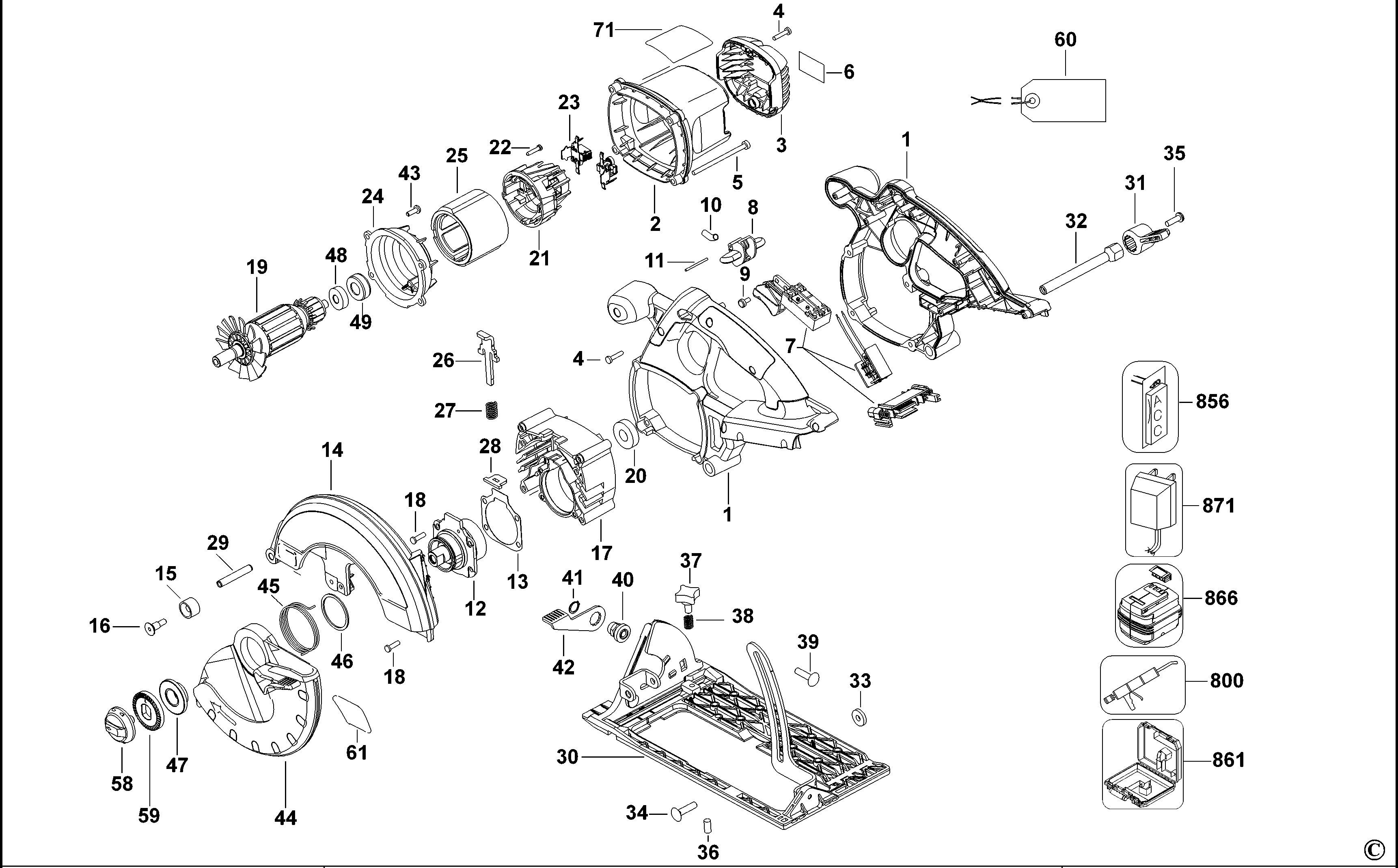

DC300K CORDLESS CIRCULAR SAW Type 1 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 1 | 629578-00 | 1 | CLAMSHELL SET | XJ |  |
||
| 2 | 629546-00 | 1 | HOUSING MOTOR | XJ | |
||
| 3 | 629547-00 | 1 | END CAP | XJ | |
||
| 4 | 90611830 | 8 | SCREW | XJ |  |
||
| 5 | 398987-00 | 4 | SCREW | XJ | |
||
| 6 | 629586-00 | 1 | BRAND LABEL | XJ | |
||
| 7 | 648688-00SV | 1 | SWITCH SA | XJ | |
||
| 7 | 648688-00SV | 1 | SWITCH SA | XJ | |
||
| 8 | 605107-00 | 1 | BUTTON LOCK-OFF | XJ | |
||
| 9 | 90611830 | 1 | SCREW | XJ | |
||
| 10 | 389120-00 | 1 | SPRING | XJ | |
||
| 11 | 388531-00 | 1 | PIN | XJ | |
||
| 12 | 629573-00 | 1 | SPINDLE & GEAR | XJ | |
||
| 13 | 605081-01 | 1 | GASKET | XJ | |
||
| 14 | 629574-00 | 1 | GUARD UPPER | XJ | |
||
| 15 | 389132-00 | 1 | BUMPER | XJ | |||
| 16 | 610134-00 | 1 | SCREW | XJ | |
||
| 17 | 629593-00SV | 1 | GEARCASE SA | XJ | |
||
| 18 | 613783-00 | 1 | SCREW | XJ | |
||
| 19 | 629549-00 | 1 | ARMATURE 36V | XJ | |
||
| 20 | 330003-64 | 1 | BEARING | ID 12 x OD 28 x 8mm | XJ | |
|
| 21 | N171820 | 1 | SUPPORT BEARING | XJ | |
||
| 22 | 330019-25 | 2 | SCREW | XJ | |
||
| 23 | 636233-00 | 2 | BRUSHBOX SA | XJ | |
||
| 24 | 610124-01 | 1 | BAFFLE | XJ | |
||
| 25 | N271359 | 1 | MAGNET | 631177-00 PKG'D | XJ | |
|
| 26 | 629444-00 | 1 | SPINDLE LOCK | XJ | |
||
| 27 | 58698-00 | 1 | SPRING | XJ | |
||
| 28 | 605094-00 | 1 | WIPER | XJ | |
||
| 29 | 614048-00 | 1 | SPIROL PIN | XJ | |
||
| 30 | 629591-00 | 1 | SHOE SA | XJ | |
||
| 31 | 605105-00 | 1 | LEVER | XJ | |
||
| 32 | 629663-00 | 1 | SHAFT | XJ | |
||
| 33 | 142013-00 | 1 | WASHER | XJ | |
||
| 34 | 098128-85 | 1 | CARRIAGE BOLT | XJ | |
||
| 35 | 330045-14 | 1 | SCREW | XJ | |
||
| 36 | 381069-00 | 1 | SCREW | XJ | |
||
| 38 | 058287-00 | 1 | SPRING | XJ | |
||
| 39 | 98128-37 | 1 | CARRIAGE BOLT | XJ | |
||
| 40 | 610625-00 | 1 | NUT | XJ | |
||
| 41 | 152211-00 | 1 | RING | XJ | |
||
| 42 | 145347-00 | 1 | LEVER | XJ | |
||
| 43 | 330045-45 | 4 | SCREW | XJ | |
||
| 44 | N019727 | 1 | GUARD LOWER | XJ | |
||
| 46 | 388496-01 | 1 | RETAINER | External | XJ | |
|
| 48 | 330003-60 | 1 | BEARING | XJ | |
||
| 49 | 631563-00 | 1 | BOOT | XJ | |
||
| 59 | 636529-00 | 1 | WASHER SPECIAL | Notched | XJ | |
|
| 60 | 150394-00 | 1 | WARNING LABEL | XJ | |
||
| 800 | 870889-02 | 1 | GREASE | XJ | |
||
| 800 | 870889-02 | 1 | GREASE | XJ | |
||
| 861 | 633095-00 | 1 | KITBOX | XJ | |
