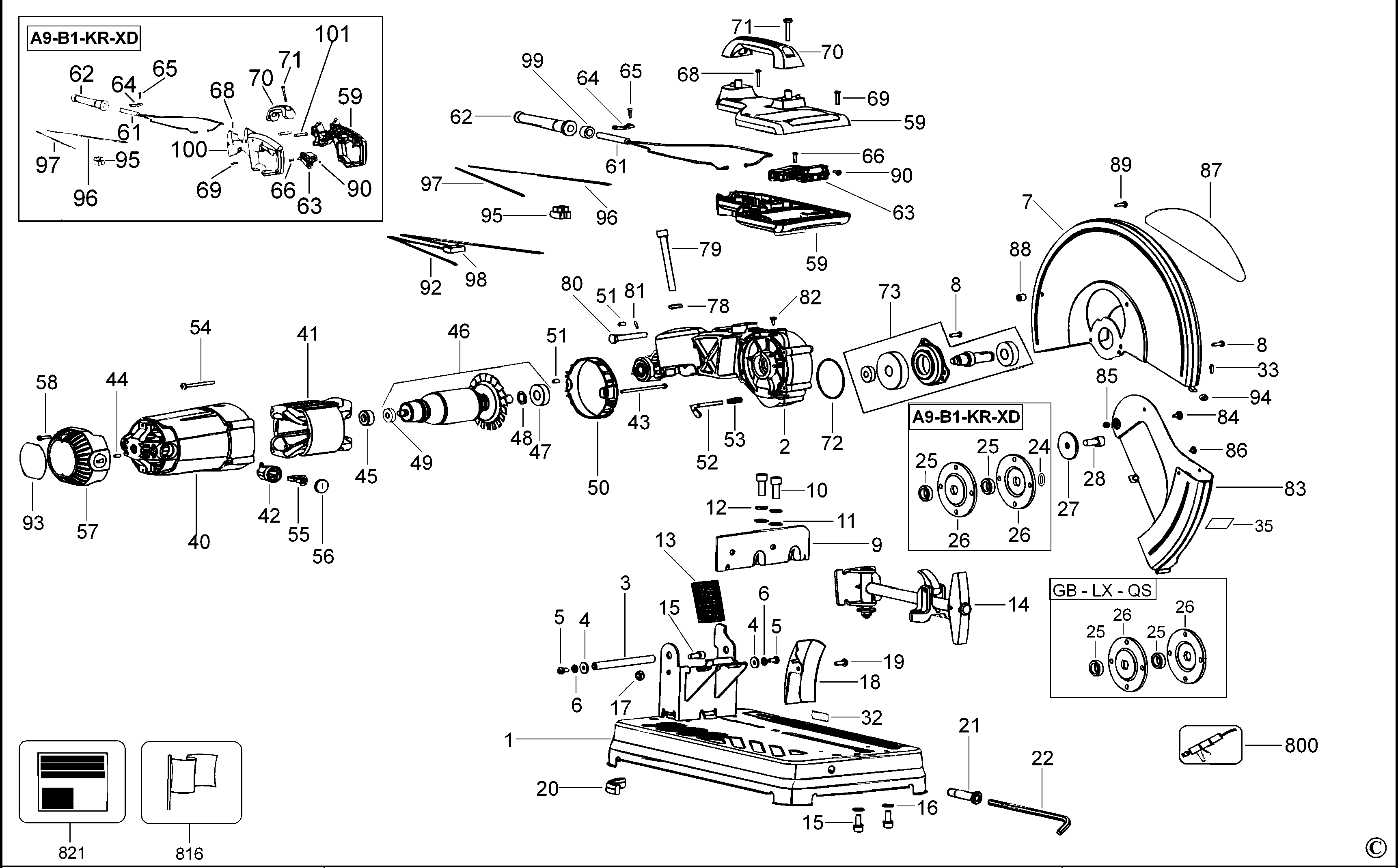

D28700 CHOP SAW Type 1 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 1 | 622274-02 | 1 | BASE SA | LX |  |
||
| 2 | N105335 | 1 | ARM | LX |  |
||
| 3 | 621101-00 | 1 | PIVOT SHAFT | LX | |
||
| 4 | 330016-18 | 2 | WASHER | LX | |
||
| 5 | 153778-01 | 2 | SCREW | LX | |
||
| 6 | 098197-10 | 2 | WASHER LOCK | LX | |
||
| 7 | 622262-00 | 1 | GUARD UPPER | LX | |
||
| 8 | 330045-14 | 4 | SCREW | LX | |
||
| 9 | 621096-00 | 1 | FENCE | LX | |
||
| 10 | 383450-00 | 2 | SCREW | LX | |
||
| 11 | 330016-04 | 2 | WASHER | LX | |
||
| 12 | 98197-07 | 2 | WASHER LOCK | LX | |
||
| 13 | 387282-00 | 1 | SPRING | LX | |
||
| 14 | 623024-00 | 1 | VICE JAW FRONT | LX | |
||
| 15 | 98123-20 | 2 | SCREW | LX | |
||
| 16 | 098197-09 | 2 | WASHER | LX | |
||
| 17 | 330021-02 | 1 | NUT | LX | |
||
| 18 | 384159-00 | 1 | DEFLECTOR | LX | |
||
| 19 | 330045-23 | 1 | SCREW | LX | |
||
| 20 | 621103-00 | 3 | FOOT | LX | |
||
| 21 | 386765-00 | 1 | HOLDER TOOL | LX | |
||
| 22 | 384717-00 | 1 | WRENCH | LX | |
||
| 24 | 695606-00 | 1 | O RING | LX | |
||
| 25 | 621081-00 | 1 | ADAPTOR | no flats on spindle | LX | |
|
| 25 | 649352-00 | 2 | ADAPTOR | flats on spindle | LX | |
|
| 26 | 621079-00 | 1 | WASHER CLAMP | no flats on spindle | LX | |
|
| 26 | 649353-00 | 2 | WASHER CLAMP | flats on spindle | LX | |
|
| 27 | 383246-00 | 1 | WASHER | LX | |
||
| 28 | 383286-00 | 1 | SCREW | LX | |
||
| 32 | 632303-00 | 1 | LABEL | LX | |
||
| 35 | 642025-00 | 1 | WARNING LABEL | LX | |
||
| 40 | 621067-00 | 1 | FIELDCASE | LX | |
||
| 41 | 621068-00 | 1 | FIELD 115V | LX | |
||
| 42 | 622440-00 | 2 | BRUSH HOLDER | LX | |
||
| 43 | 330019-34 | 2 | SCREW | LX | |
||
| 44 | 330022-16 | 2 | SCREW | LX | |
||
| 45 | 660165-00 | 1 | RUBBER BOOT | LX | |
||
| 46 | 621069-02SV | 1 | ARMATURE 115V | LX | |
||
| 47 | 330003-13 | 1 | BEARING | LX | |
||
| 48 | 398605-00 | 1 | RETAINER | LX | |
||
| 49 | 330003-60 | 1 | BEARING | LX | |
||
| 50 | 391375-00 | 1 | BAFFLE FAN | LX | |
||
| 51 | 623092-00 | 1 | PLUG | RUBBER | LX | |
|
| 52 | 621087-00 | 1 | SPINDLE LOCK | LX | |
||
| 53 | 621088-00 | 1 | SPRING | LX | |
||
| 54 | 98094-55 | 4 | SCREW | M5 X 55mm T25 | LX | |
|
| 55 | N088936 | 1 | BRUSH PAIR SA | 115V / 230V; 622437-00 x 2 | LX | |
|
| 56 | 622441-00 | 2 | BRUSH CAP | LX | |
||
| 57 | 621118-00 | 1 | END CAP | LX | |
||
| 58 | 330019-13 | 2 | SCREW | M4X19 T20 | LX | |
|
| 59 | 622918-00 | 1 | HANDLE SA | LX | |
||
| 61 | 330061-30 | 1 | CORDSET | 115V | LX | |
|
| 62 | 330005-02 | 1 | CORD PROTECTOR | LX | |
||
| 63 | 626214-00 | 1 | SWITCH | LX | |
||
| 64 | 003618-00 | 1 | CORD CLAMP | LX | |
||
| 65 | 330019-02 | 2 | SCREW | LX | |
||
| 66 | 330019-11 | 1 | SCREW | M4.55x13 T20 | LX | |
|
| 68 | 330045-08 | 4 | SCREW | LX | |
||
| 69 | 330019-32 | 8 | SCREW | LX | |
||
| 70 | 621082-00 | 1 | HANDLE | LX | |
||
| 71 | 330019-22 | 2 | SCREW | M5.74x32 | LX | |
|
| 72 | 099180-46 | 1 | O RING | LX | |
||
| 73 | 621074-01 | 1 | GEAR & SPINDLE SA | flats on spindle | LX | |
|
| 78 | 623091-00 | 1 | STOP | LOCK DOWN | LX | |
|
| 79 | 623090-00 | 1 | BOLT | DOWN STOP | LX | |
|
| 80 | 621104-00 | 1 | PIN | LOCK DOWN | LX | |
|
| 81 | 330036-00 | 1 | PIN | LX | |
||
| 82 | 385865-00 | 1 | SCREW | LX | |
||
| 83 | 621092-00 | 1 | GUARD LOWER | LX | |
||
| 84 | 384844-00 | 1 | SCREW SPECIAL | LX | |
||
| 85 | 330021-06 | 1 | NUT | LX | |
||
| 86 | 383637-00 | 3 | BUMPER | RUBBER | LX | |
|
| 87 | 621093-00 | 1 | IDENTITY LABEL | LX | |
||
| 88 | 629619-00 | 1 | SPACER | LX | |
||
| 89 | 330045-16 | 1 | SCREW | LX | |
||
| 90 | 330019-11 | 1 | SCREW | M4.55x13 T20 | LX | |
|
| 92 | 625933-00 | 2 | TERMINAL | RING INSULATED | LX | |
|
| 93 | 391325-00 | 1 | IDENTITY LABEL | LX | |
||
| 94 | 386526-00 | 1 | STOP RUBBER | LX | |
||
| 95 | 393520-00 | 1 | TERMINAL BLOCK | LX | |
||
| 96 | 628956-00 | 1 | LEAD BLACK | LX | |
||
| 97 | 628957-00 | 1 | LEAD WHITE | LX | |
||
| 98 | 628939-00 | 1 | CAPACITOR | LX | |
||
| 99 | 388414-01 | 1 | BUSH | LX | |
||
| 800 | 5140061-28 | 1 | GREASE | LX | |
||
| 821 | N055243 | 1 | RATING PLATE | LX | LX | |
