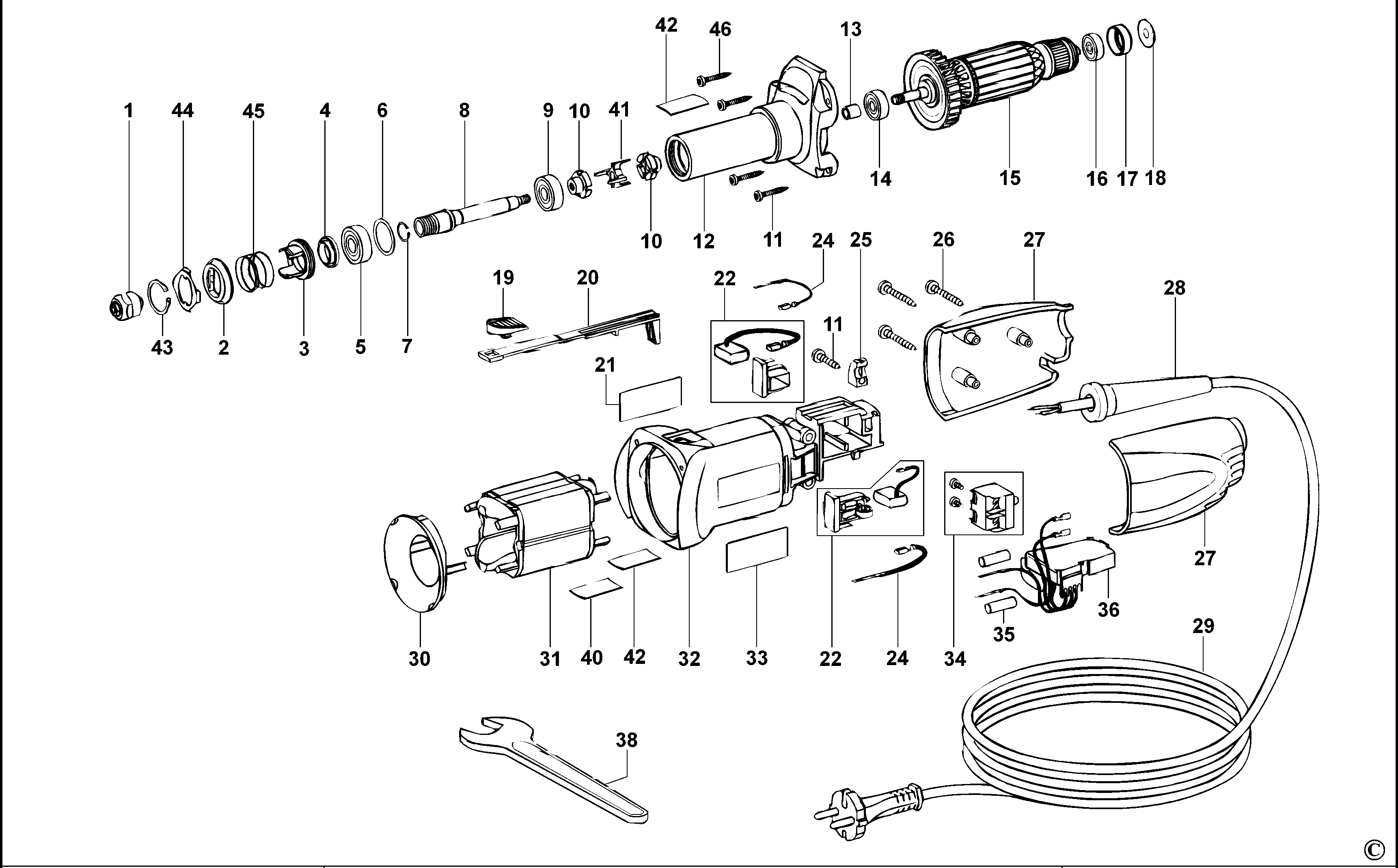

D28886 GRINDER Type 1 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 1 | 596606-00 | 1 | COLLET & NUT SA | 6mm - D288863-XJ | GB | ||
| 2 | 596637-00 | 1 | ACTUATOR | GB |  |
||
| 3 | 596638-00 | 1 | GUIDE | GB |  |
||
| 4 | 596639-00 | 1 | RING | GB | |
||
| 5 | 596640-00 | 1 | BEARING | 12 x 28 x 8 | GB | |
|
| 6 | 596641-00 | 1 | WASHER | GB | |
||
| 7 | 596642-00 | 1 | CIRCLIP | GB | |
||
| 8 | 596643-00 | 1 | SPINDLE | GB | |
||
| 9 | 596568-00 | 1 | BEARING | 10 x 26 x 8 | GB | |
|
| 10 | 596660-10 | 1 | CLUTCH SA | Inc 41, 10x2 | GB | |
|
| 11 | 596582-00 | 1 | SCREW | GB | |
||
| 12 | 596645-00 | 1 | HOUSING FRONT | GB | |
||
| 13 | 596646-00 | 1 | BUSH | GB | |
||
| 14 | 596647-00 | 1 | BEARING | 8 x 22 x 7 | GB | |
|
| 15 | 596648-00 | 1 | ARMATURE SA | 230V | GB | |
|
| 16 | 596649-00 | 1 | BEARING | 626ZT - 6x19x6 | GB | |
|
| 17 | 596650-00 | 1 | BEARING HOLDER | GB | |
||
| 18 | 596651-00 | 1 | WASHER | GB | |
||
| 19 | 596617-00 | 1 | BUTTON | GB | |
||
| 20 | 596618-00 | 1 | SLIDER | GB | |
||
| 21 | 596652-00 | 1 | RATING PLATE | GB | |
||
| 22 | 596621-00 | 2 | BRUSH HOLDER SA | 230V | GB | |
|
| 24 | 596622-00 | 2 | LEADWIRE | GB | |
||
| 25 | 596128-00 | 1 | CORD CLAMP | GB | |
||
| 26 | 596733-00 | 3 | SCREW | GB | |
||
| 27 | 596654-00 | 1 | CLAMSHELL | GB | |
||
| 28 | 596655-00 | 1 | CORD PROTECTOR | GB | |
||
| 29 | 596141-00 | 1 | CORDSET | GB | |
||
| 30 | 596656-00 | 1 | BAFFLE | GB | |
||
| 31 | 596657-00 | 1 | FIELD SA | 230V | GB | |
|
| 32 | 596658-00 | 1 | FIELDCASE | GB | |
||
| 33 | 596600-00 | 1 | BRAND LABEL | GB | |
||
| 34 | 596627-00 | 1 | SWITCH | 230V | GB | |
|
| 35 | 596632-00 | 2 | INSULATOR | GB | |
||
| 36 | 596659-00 | 1 | ELECTRONIC 230V | GB | |
||
| 38 | 596635-00 | 1 | SPANNER | GB | |
||
| 40 | 596636-00 | 1 | LABEL | GB | |
||
| 41 | 596660-10 | 1 | CLUTCH SA | Inc 41, 10x2 | GB | |
|
| 42 | 596661-00 | 1 | LABEL STOP | GB | |
||
| 43 | 596662-00 | 1 | CIRCLIP | GB | |
||
| 44 | 596663-00 | 1 | SHIELD | GB | |
||
| 45 | 596664-00 | 1 | SPRING | GB | |
||
| 46 | 596101-00 | 4 | SCREW | GB | |
