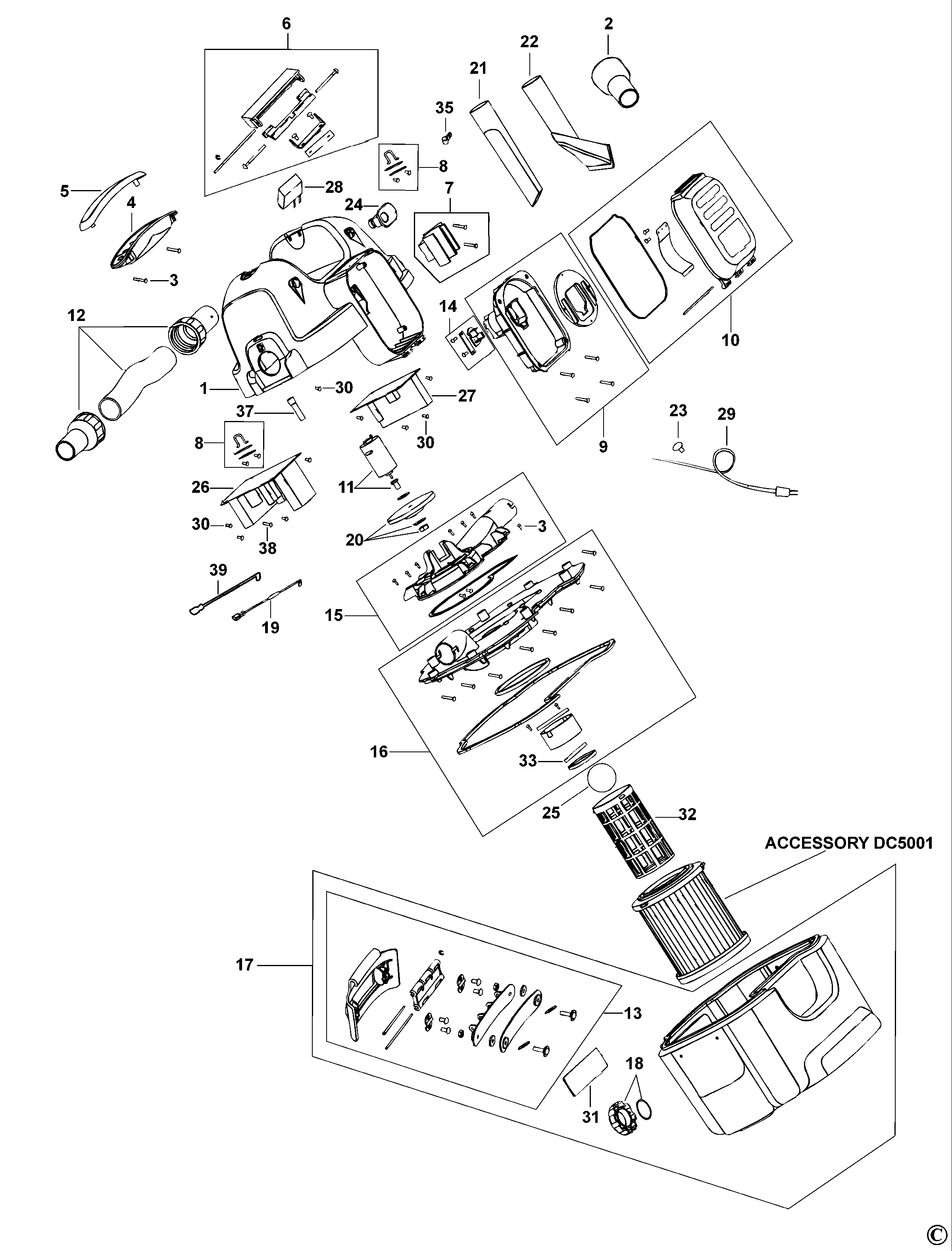

DC500 VACUUM CLEANER Type 2 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 1 | 5140017-01 | 1 | COVER-TOP | GB |  |
||
| 2 | 596452-08 | 1 | ADAPTOR | GB | |
||
| 3 | 5140017-03 | 2 | SCREW | GB | |
||
| 4 | 5140017-04 | 1 | LOWER HANDLE | GB | |
||
| 5 | 5140017-05 | 1 | HANDLE UPPER | GB | |
||
| 6 | 5140017-06 | 1 | LATCH | GB | |
||
| 7 | 5140017-07 | 1 | HOLDER TOOL | GB | |
||
| 8 | 5140017-08 | 1 | HOOK | GB | |
||
| 9 | 1004266-00 | 1 | REPAIR KIT,HOUSING | NANO-EURO | GB | |
|
| 10 | 1004266-00 | 1 | REPAIR KIT,HOUSING | NANO-EURO | GB | |
|
| 11 | 1004687-14 | 1 | MOTOR SA EMI | MOTOR AND SLEEVE | GB | |
|
| 12 | 5140017-12 | 1 | HOSE SA | GB |  |
||
| 13 | 5140017-13 | 1 | LATCH | GB | |
||
| 14 | 5140017-14 | 1 | TERMINAL SA | GB | |
||
| 15 | 596452-01 | 1 | HOUSING MOTOR | GB | |
||
| 16 | 596452-02 | 1 | BASE SA | GB | |
||
| 17 | 5140017-17 | 1 | TANK | GB | |
||
| 18 | 5140017-18 | 1 | PLUG | GB | |
||
| 19 | 5140017-19 | 1 | FUSE | GB | |
||
| 20 | 5140017-20 | 1 | FAN SA | GB | |
||
| 21 | 5140017-21 | 1 | TOOL CREVICE | GB | |
||
| 22 | 5140017-22 | 1 | NOZZLE | GB | |
||
| 23 | 5140017-23 | 1 | BUSH | CLIP, POWER CORD | GB | |
|
| 24 | 5140017-24 | 2 | BRACKET | CORD RELEASE HOOK | GB | |
|
| 25 | 5140017-25 | 1 | BALL | GB | |
||
| 26 | 596452-03 | 1 | PCB | AC-DC CONVERTOR 230v | GB | |
|
| 27 | 5140017-27 | 1 | PCB | GB | |
||
| 28 | 5140058-09 | 1 | SWITCH | GB | |
||
| 29 | 596452-05 | 1 | CORDSET | GB | |
||
| 30 | 5140017-30 | 8 | SCREW | GB | |
||
| 31 | N070646 | 1 | RATING PLATE | MD09 | GB | |
|
| 31 | 640423-00 | 1 | RATING PLATE | non-MD09 | GB | |
|
| 32 | 5140017-32 | 1 | CAGE | GB | |
||
| 33 | 5140017-33 | 1 | FILTER | GB | |
||
| 35 | 5140017-35 | 1 | CLIP CABLE | GB | |
||
| 37 | 5140017-37 | 1 | SLEEVE | GB | |
||
| 38 | 5140017-38 | 1 | SCREW | 4MM x 45 L | GB | |
|
| 39 | 1003684-00 | 1 | LEAD BLACK | GB | |
