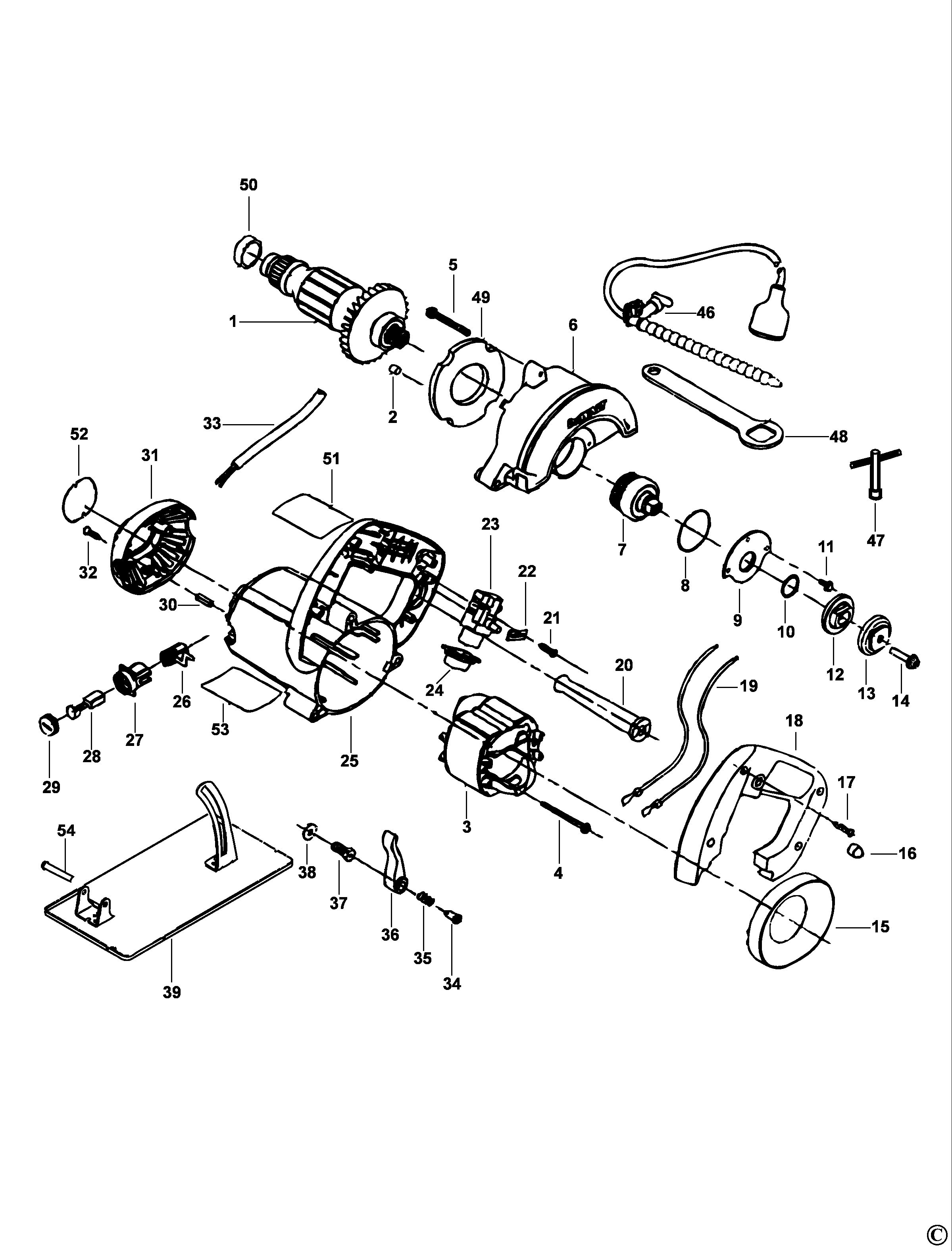

DW861 TILE CUTTER Type 1 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 2 | 561928-01 | 1 | PIN | XJ |  |
||
| 4 | 561914-02 | 2 | SCREW | XJ | |
||
| 5 | 561914-01 | 3 | SCREW | XJ | |
||
| 6 | 562228-00 | 1 | GEARCASE | XJ | |
||
| 7 | 562229-00 | 1 | SPINDLE & GEAR | XJ | |
||
| 8 | 561917-02 | 1 | O RING | XJ | |
||
| 9 | 562252-00 | 1 | GEARCASE COVER | XJ | |
||
| 10 | 561917-01 | 1 | O RING | XJ | |
||
| 11 | 561914-00 | 3 | SCREW | XJ | |
||
| 12 | 562231-00 | 1 | INNER FLANGE | XJ | |
||
| 13 | 562232-00 | 1 | OUTER FLANGE | XJ | |
||
| 14 | 562233-00 | 1 | SCREW | XJ | |
||
| 15 | 562215-00 | 1 | BAFFLE | XJ | |
||
| 16 | 562225-00 | 1 | BUTTON | XJ | |
||
| 17 | 562097-03 | 4 | SCREW | XJ |  |
||
| 18 | 562221-00 | 1 | HANDLE COVER | XJ | |
||
| 19 | 561913-00 | 2 | LEAD | XJ | |
||
| 20 | N542553 | 1 | CORD PROTECTOR | XJ | |||
| 20 | N918736 | 1 | CORD PROTECTOR | XJ | |
||
| 21 | 562097-00 | 2 | SCREW | XJ | |
||
| 22 | 930103-00 | 1 | CORD CLAMP | XJ | |
||
| 23 | 646568-00 | 1 | SWITCH | XJ | |
||
| 24 | 562224-00 | 1 | BOOT | XJ | |
||
| 25 | 562245-00 | 1 | FIELDCASE | XJ | |
||
| 26 | 562227-00 | 2 | BRUSH HOLDER | XJ | |
||
| 27 | 562218-00 | 2 | BRUSH FRAME | XJ | |
||
| 29 | 562219-00 | 2 | BRUSH CAP | XJ | |
||
| 30 | 561928-00 | 2 | PIN | XJ | |
||
| 31 | 562222-00 | 1 | END CAP | XJ | |
||
| 32 | 562097-05 | 2 | SCREW | XJ | |
||
| 34 | 561920-00 | 1 | PIN | XJ | |
||
| 35 | 562210-00 | 1 | SPRING | XJ | |
||
| 36 | 561918-00 | 1 | LEVER | XJ | |
||
| 37 | 562235-00 | 1 | BOLT | XJ | |
||
| 38 | 561916-00 | 1 | WASHER | XJ | |
||
| 39 | 562234-00 | 1 | SHOE | XJ | |
||
| 46 | 562239-00 | 1 | ACCESSORY KIT | XJ | |
||
| 47 | 562238-00 | 1 | HEX KEY | XJ | |
||
| 48 | 562237-00 | 1 | SPANNER | XJ | |
||
| 49 | 569723-00 | 1 | DEFLECTOR | XJ | |
||
| 50 | 949721-05 | 1 | SLEEVE | XJ | |
||
| 51 | 562230-00 | 1 | IDENTITY LABEL | XJ | |
||
| 52 | 561922-00 | 1 | LABEL | XJ | |
||
| 54 | 562254-00 | 1 | ROLL PIN | XJ | |
