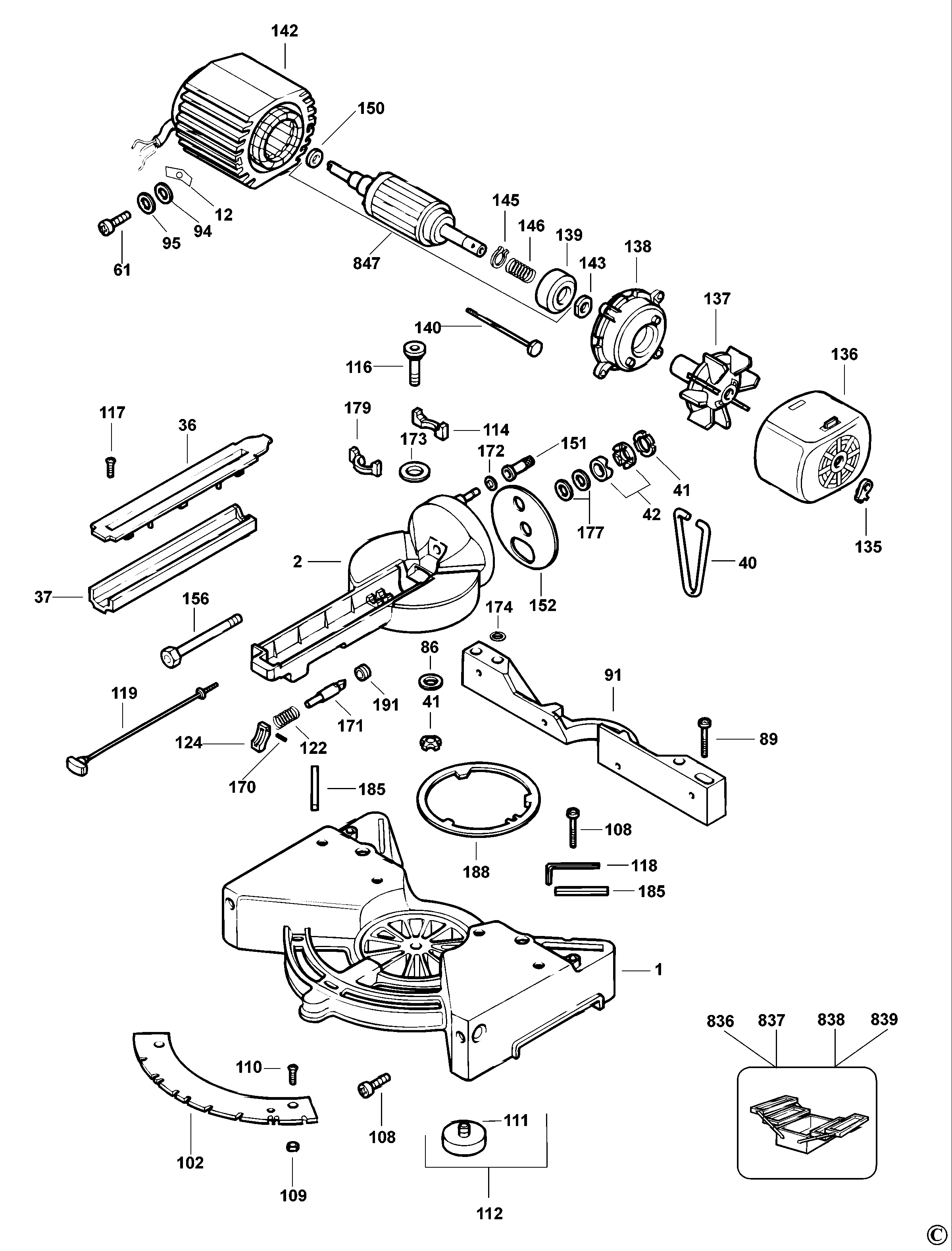

DW709 MITRE SAW Type 1 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 1 | 861848-00 | 1 | TABLE SA | XW |  |
||
| 2 | 946847-01 | 1 | ROTARY TABLE | XW | |
||
| 3 | 861057-01 | 1 | INNER FLANGE | XW |  |
||
| 4 | 861056-00 | 1 | OUTER FLANGE | XW | |
||
| 5 | 949886-21 | 1 | BOLT | XW | |
||
| 6 | 864693-04 | 1 | GUARD SA | XW | |
||
| 7 | 863039-02 | 1 | HUB | XW | |
||
| 8 | 860205-01 | 2 | SCREW | XW | |
||
| 10 | 860093-14 | 1 | SCREW | XW | |
||
| 11 | 860073-03 | 1 | WASHER M8 | XW | |
||
| 12 | 949761-01 | 2 | WASHER | XW | |
||
| 13 | 861918-04 | 1 | GUARD | XW | |
||
| 14 | 861929-00 | 1 | NUT | XW | |
||
| 15 | 860079-03 | 1 | CIRCLIP | XW | |
||
| 24 | 861953-00 | 1 | CAP | XW | |
||
| 25 | 863610-00 | 1 | PLATE | XW | |
||
| 29 | 939072-00 | 1 | SPANNER | XW | |
||
| 31 | 868319-03 | 1 | SWITCH SA | LX | 115V | XW | |
| 32 | 861692-00 | 1 | CLAMP | XW | |
||
| 33 | 949889-02 | 2 | SCREW | XW | |
||
| 34 | 868320-00 | 1 | COVER | XW | |
||
| 36 | 861925-02 | 1 | INSERT | XW | |
||
| 37 | 861926-00 | 1 | INSERT | XW | |
||
| 38 | 860085-09 | 1 | SCREW.TEMP | XW | |
||
| 39 | 860083-12 | 2 | NUT M6 | XW | |
||
| 40 | 947063-00 | 1 | LOCK HANDLE | XW | |
||
| 41 | 943016-01 | 1 | LOCK-NUT | XW | |
||
| 42 | 947062-00 | 2 | WASHER | XW | |
||
| 43 | 861913-00 | 1 | SEGMENT SA | XW | |
||
| 44 | 868308-00 | 1 | COVER | XW | |
||
| 45 | 868309-00 | 2 | LABEL | XW | |
||
| 46 | 860084-21 | 3 | SCREW | XW | |
||
| 47 | 860073-01 | 3 | WASHER | XW | |
||
| 48 | 865410-00 | 3 | FASTENER | XW | |
||
| 55 | 861890-00 | 1 | FRAME | XW | |
||
| 57 | 861920-00 | 1 | SPACER | XW | |
||
| 58 | 949761-02 | 1 | SHIM | XW | |
||
| 59 | 949759-01 | 1 | LOCK NUT | XW | |
||
| 60 | 860085-07 | 1 | SCREW | XW | |
||
| 61 | 930076-00 | 2 | SCREW | XW | |
||
| 62 | 863606-00 | 1 | SPRING LH | XW | |
||
| 63 | 863590-00 | 1 | SPRING RH | XW | |
||
| 64 | 863611-00 | 1 | SHIM | XW | |
||
| 65 | 863602-00 | 1 | SCREW | XW | |
||
| 67 | 863604-00 | 1 | SPRING | XW | |
||
| 68 | 863607-00 | 1 | PIN | XW | |
||
| 71 | 860094-02 | 1 | SCREW | XW | |
||
| 77 | 863605-00 | 1 | PIN | XW | |
||
| 78 | 946469-00 | 1 | KNOB | XW | |
||
| 79 | 863026-00 | 1 | GASKET | XW | |
||
| 81 | 944650-00 | 1 | WASHER SPRING | XW | |
||
| 82 | 863573-00 | 1 | INLET | XW | |
||
| 83 | 862429-05 | 1 | HANDLE & COVER | XW | |
||
| 84 | 863613-02 | 1 | ROD | XW | |
||
| 86 | 860073-05 | 1 | WASHER | XW | |
||
| 89 | 330045-26 | 1 | SCREW | XW | |
||
| 91 | 946853-03 | 1 | FENCE | XW | |
||
| 93 | 860084-09 | 1 | SCREW | XW | |
||
| 94 | 863025-00 | 1 | SHEATH | XW | |
||
| 95 | 860075-00 | 1 | WASHER | XW | |
||
| 98 | 949772-48 | 1 | CAPACITOR | 115V | XW | |
|
| 102 | 946861-01 | 1 | SCALE | XW | |
||
| 108 | N409486 | 4 | SCREW | XW | |
||
| 109 | 860092-00 | 2 | NUT | XW | |
||
| 110 | 949889-07 | 2 | SCREW | XW | |
||
| 111 | 330045-55 | 5 | SCREW | M5x55 MTL THD FMG | XW | |
|
| 112 | 861809-00 | 5 | FOOT SA | XW | |
||
| 114 | 946858-00 | 1 | CLAMP | XW | |
||
| 116 | 946848-00 | 1 | BOLT | XW | |
||
| 117 | 860205-04 | 3 | SCREW | XW | |
||
| 118 | 860098-04 | 1 | WRENCH 6 MM | XW | |
||
| 119 | 947015-01 | 1 | HANDLE SCREW SA | XW | |
||
| 122 | 946866-00 | 1 | SPRING | XW | |
||
| 124 | 946864-00 | 1 | LEVER | XW | |
||
| 125 | 868313-03 | 1 | CORDSET | 115V | XW | |
|
| 126 | 868313-05 | 1 | CABLE | 115V | XW | |
|
| 127 | 865975-00 | 1 | PLUG | 115 Volt | 115V | XW | |
| 130 | 862180-08 | 1 | SUPPORT BRACKET | XW | |
||
| 135 | 863112-00 | 1 | CAP | XW | |
||
| 136 | 860445-00 | 1 | COVER | XW | |
||
| 137 | 945841-00 | 1 | FAN | XW | |
||
| 138 | 861345-00 | 1 | HOUSING SA | XW | |
||
| 139 | 861336-02 | 1 | BRAKE | XW | |
||
| 140 | 863015-00 | 1 | TIE ROD | XW | |
||
| 142 | 868412-02 | 1 | STATOR 115V | 115V | XW | |
|
| 143 | 860080-02 | 1 | RING | XW | |
||
| 145 | 861349-00 | 1 | CIRCLIP | XW | |
||
| 146 | 861338-00 | 1 | SPRING | XW | |
||
| 147 | 949894-12 | 2 | SCREW | XW | |
||
| 149 | 868768-07 | 1 | BEARING | XW | |
||
| 150 | 861721-12 | 1 | BEARING | XW | |
||
| 151 | 947619-00 | 1 | CHANGE LEVER SA | XW | |
||
| 152 | 947614-00 | 1 | PLATE | XW | |
||
| 156 | 946859-00 | 1 | BOLT | XW | |
||
| 161 | 860084-03 | 1 | SCREW | XW | |
||
| 162 | 123106-00 | 1 | STRAP | XW | |
||
| 168 | 861257-00 | 1 | CONNECTOR | XW | |
||
| 170 | 949734-01 | 1 | PIN | XW | |
||
| 171 | 401176-00 | 1 | LATCH | XW | |
||
| 172 | 935857-00 | 1 | O RING | XW | |
||
| 173 | 949705-01 | 1 | WASHER | XW | |
||
| 175 | 946862-01 | 1 | SCALE | XW | |
||
| 177 | 949613-01 | 2 | WASHER | XW | |
||
| 179 | 946858-01 | 1 | CLAMP | XW | |
||
| 185 | 947068-02 | 2 | MAGNET | XW | |
||
| 188 | 947868-01 | 1 | WASHER SPECIAL | XW | |
||
| 191 | 401178-00 | 1 | BUSH | XW | |
||
| 196 | 949743-02 | 2 | SCREW | M8 x 14mm | XW | |
|
| 836 | 279663-99 | 1 | SPANNER TOOL | XW | |
||
| 837 | 559506-99 | 1 | SOCKET | XW | |
||
| 838 | 559570-99 | 1 | SOCKET | XW | |
||
| 839 | 559572-99 | 1 | BOLT | XW | |
||
| 847 | 868411-01 | 1 | ROTOR SA | XW | |
