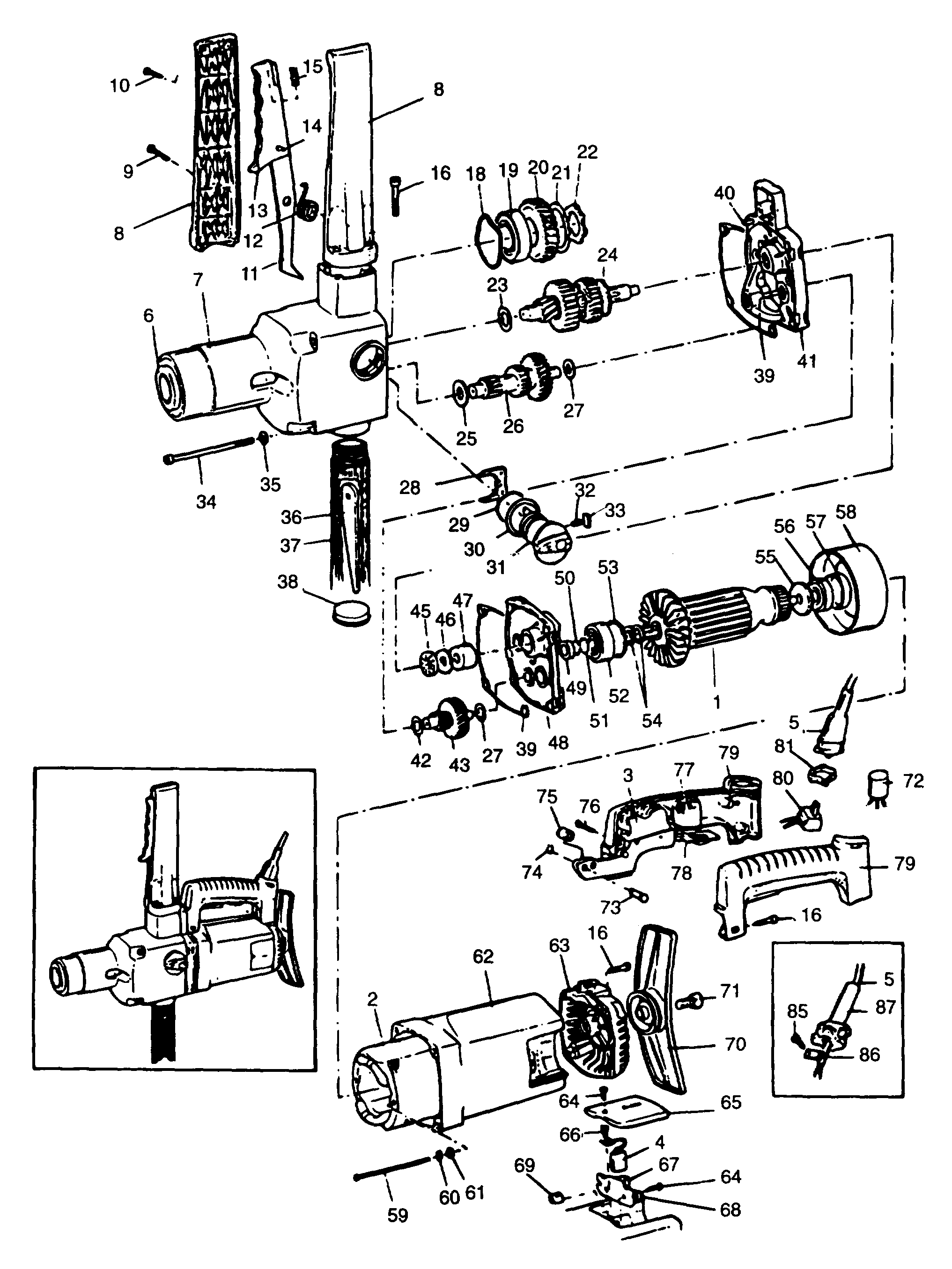

DW153 DRILL Type 1 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 1 | 868404-00 | 1 | ARMATURE | GB |  |
||
| 2 | 868503-04 | 1 | FIELD 240V | GB | GB | |
|
| 3 | 932401-00 | 1 | SWITCH | GB | |
||
| 4 | 932497-00 | 2 | BRUSH | GB |  |
||
| 5 | 949770-15 | 1 | CABLE & PLUG | GB | GB | |
|
| 6 | 932292-00 | 1 | TAPER HOLDER | GB | |
||
| 7 | 932222-00 | 1 | GEARCASE SA | GB | |
||
| 8 | 935833-02 | 1 | HANDLE SA | GB | |
||
| 9 | 949896-14 | 1 | SCREW | GB | |
||
| 10 | 949896-13 | 2 | SCREW | GB | |
||
| 11 | 932315-00 | 1 | LEVER | GB | |
||
| 12 | 932313-00 | 1 | SPRING | GB | |
||
| 13 | 932317-00 | 1 | COVER | Black | GB | |
|
| 14 | 932314-00 | 1 | PIN | GB | |
||
| 15 | 931013-00 | 1 | SPRING | GB | |
||
| 16 | 860093-11 | 6 | SCREW | GB | |
||
| 18 | 932293-00 | 2 | WASHER | GB | |
||
| 19 | 932294-00 | 1 | BEARING | GB | |
||
| 20 | 932295-00 | 1 | GEAR | GB | |
||
| 21 | 932296-00 | 1 | WASHER | GB | |
||
| 22 | 932298-00 | 1 | RING | GB | |
||
| 23 | 932287-00 | 1 | WASHER | GB | |
||
| 24 | 869219-00 | 1 | SPINDLE & GEAR SA | GB | |
||
| 25 | 932286-00 | 1 | WASHER | GB | |
||
| 26 | 869219-02 | 1 | SPINDLE & GEAR SA | GB | |
||
| 27 | 932285-00 | 2 | WASHER | GB | |
||
| 28 | 932288-00 | 1 | PLATE | GB | |
||
| 29 | 930039 | 1 | SEAL | GB | |
||
| 30 | 932289-00 | 1 | WASHER | GB | |
||
| 31 | 932265-00 | 1 | LEVER SA | GB | |
||
| 32 | 932290-00 | 1 | SPRING | GB | |
||
| 33 | 932291-00 | 1 | SPRING | GB | |
||
| 34 | 932407-00 | 4 | SCREW | GB | |
||
| 35 | 931429-00 | 4 | WASHER | GB | |
||
| 36 | 932303-00 | 1 | DRIFT | GB | |
||
| 37 | 948539-01 | 1 | HANDLE SIDE SA | GB | |
||
| 38 | 932308-01 | 1 | CAP | GB | |
||
| 39 | 932312-00 | 2 | GASKET | GB | |
||
| 40 | 932301-00 | 2 | PIN | GB | |
||
| 41 | 932250-00 | 1 | COVER SA | GB | |
||
| 42 | 932302-00 | 1 | WASHER | GB | |
||
| 43 | 932245-00 | 1 | SPINDLE & GEAR SA | GB | |
||
| 45 | 930017-00 | 1 | WASHER | GB | |
||
| 46 | 943733-00 | 1 | WASHER | GB | |
||
| 47 | 943959-00 | 1 | SPACER | GB | |
||
| 48 | 943961-00 | 1 | GEARCASE COVER SA | GB | |
||
| 49 | 932311-00 | 1 | SEAL | GB | |
||
| 50 | 931052-00 | 1 | RING | GB | |
||
| 51 | 930940-00 | 1 | RING | GB | |
||
| 52 | 868768-05 | 1 | BEARING | 6201-2RSH/C3LHT23 | GB | |
|
| 53 | 949729-02 | 1 | CIRCLIP | GB | |
||
| 54 | 932309-00 | 2 | WASHER | GB | |
||
| 55 | 930073-00 | 1 | SPACER | GB | |
||
| 56 | 868768-00 | 1 | BEARING | 6000-2RSLTN9/C3LHT23 | GB | |
|
| 57 | 934409-00 | 1 | SLEEVE | GB | |
||
| 58 | 930072-00 | 1 | BAFFLE | GB | |
||
| 59 | 930246-00 | 2 | SCREW | GB | |
||
| 60 | 761035-00 | 2 | WASHER | GB | |
||
| 61 | 949876-08 | 2 | WASHER | GB | |
||
| 62 | 932261-01 | 1 | FIELDCASE | GB | |
||
| 63 | 932272-02 | 1 | END CAP SA | GB | |
||
| 64 | 930251-01 | 6 | SCREW.TEMP | GB | |
||
| 65 | 932306-02 | 2 | COVER BRUSH | GB | |
||
| 66 | 930242-00 | 2 | SCREW | GB | |
||
| 67 | 930269-00 | 2 | BASEPLATE SA | GB | |
||
| 68 | 930099-00 | 2 | SPRING | GB | |
||
| 69 | 932307-00 | 2 | BLOCK | GB | |
||
| 70 | 932320-00 | 1 | PLATE | GB | |
||
| 71 | 932319-00 | 1 | SCREW | GB | |
||
| 72 | 932476-00 | 1 | CAPACITOR | GB | |
||
| 73 | 932406-00 | 1 | PIN | GB | |
||
| 74 | 932268-00 | 1 | RING | GB | |
||
| 75 | 932405-00 | 1 | ROLLER | GB | |
||
| 76 | 930079-01 | 1 | SCREW | GB | |
||
| 77 | 932403-00 | 1 | SWITCH REVERSE | GB | |
||
| 78 | 932402-00 | 1 | SLIDER | Black | GB | |
|
| 79 | 935896-02 | 1 | HANDLE SA | GB | |
||
| 79 | 869395-00 | 1 | HANDLE SA | GB | |
||
| 85 | 930076-00 | 2 | SCREW | GB | |
||
| 86 | 930103-00 | 1 | CORD CLAMP | GB | |
||
| 87 | 930981-00 | 1 | CORD PROTECTOR | GB | |
