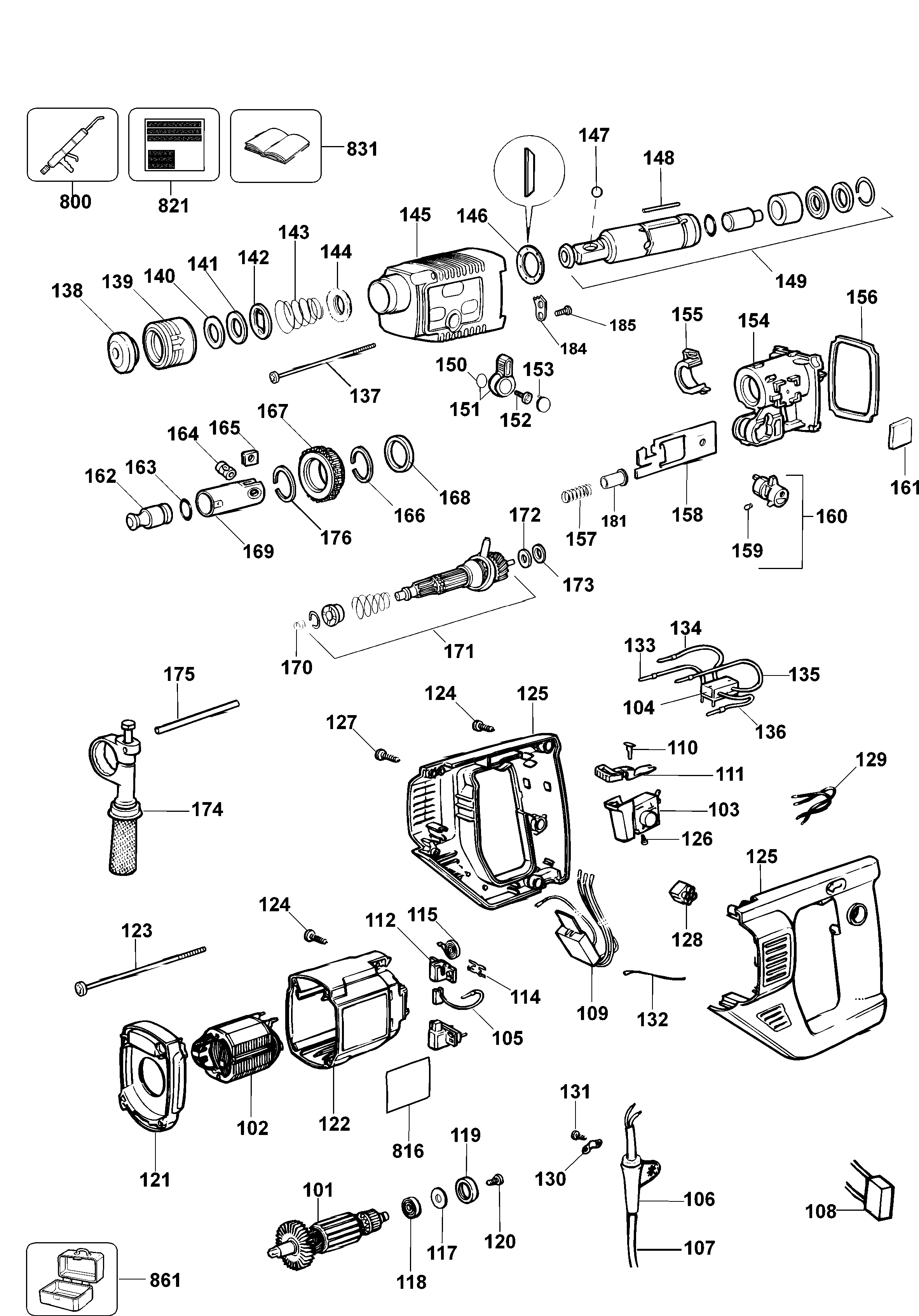

DW567 ROTARY HAMMER Type 3 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 101 | 377762-04 | 1 | ARMATURE 115V | XW |  |
||
| 101 | 377762-03 | 1 | ARMATURE 230V | 230V | XW | |
|
| 102 | 373874-09 | 1 | FIELD 115V | XW |  |
||
| 102 | 373874-08 | 1 | FIELD 230V | 230V | XW | |
|
| 103 | 324556-49 | 1 | SWITCH | XW | |
||
| 104 | 324400-00 | 1 | SWITCH REVERSE | XW | |
||
| 105 | 323660-00 | 2 | BRUSH 120V | XW | |
||
| 106 | 320785 | 1 | CORD PROTECTOR | XW | |
||
| 107 | 330061-03 | 1 | CORDSET | XW | |
||
| 108 | 320842-03 | 1 | CAPACITOR | XW | |
||
| 109 | 324552-02 | 1 | ELECTRONIC | 120V | XW | |
|
| 109 | 324552-04 | 1 | ELECTRONIC 115V | 115V | XW | |
|
| 109 | 324552-00 | 1 | ELECTRONIC 230V | 230V | XW | |
|
| 110 | 324165-03 | 1 | INSERT | XW | |
||
| 111 | 323490-08 | 1 | LEVER | XW | |
||
| 112 | 323496-01 | 2 | BRUSH HOLDER | XW | |
||
| 114 | 323482-00 | 2 | PLUG | XW | |
||
| 115 | 872843 | 2 | SPRING | XW | |
||
| 117 | 949876-25 | 1 | WASHER | XW | |
||
| 118 | 330003-19 | 1 | BEARING | XW | |
||
| 119 | 870052 | 1 | SLEEVE | XW | |
||
| 120 | 329794-00 | 1 | SCREW | XW | |
||
| 121 | 329826-03 | 1 | BAFFLE | XW | |
||
| 122 | 324188-05 | 1 | FIELDCASE | XW | |
||
| 123 | 911250 | 2 | SCREW.TEMP | XW | |
||
| 124 | 323924-02 | 4 | SCREW | XW | |
||
| 125 | 324189-05 | 1 | HANDLE SA | XW | |
||
| 126 | 911026 | 3 | SCREW | XW | |
||
| 127 | 330065-13 | 2 | SCREW | XW | |
||
| 128 | 323534-00 | 1 | CONNECTOR | XW | |
||
| 129 | 323635-10 | 2 | LEAD 70MM | XW | |
||
| 130 | 821070 | 1 | CORD CLAMP | XW | |
||
| 131 | 323924-08 | 2 | SCREW | XW | |
||
| 132 | 878846 | 1 | LEAD 360MM | XW | |
||
| 133 | 877358 | 1 | LEAD 220MM | XW | |
||
| 134 | 877357 | 1 | LEAD 160MM BLACK | XW | |
||
| 135 | 945402-28 | 1 | CHOKE SA | XW | |
||
| 136 | 945402-27 | 1 | CHOKE SA | XW | |
||
| 137 | 324044-01 | 4 | SCREW.TEMP | XW | |
||
| 138 | 323489-00 | 1 | CAP | XW | |
||
| 139 | 576756-00 | 1 | COLLAR | XW | |
||
| 140 | 323480-00 | 1 | SPACER | Upto date code 47-00 | XW | |
|
| 141 | 323492-00 | 1 | WASHER | Upto date code 47-00 | XW | |
|
| 142 | 578387-00 | 1 | WASHER | XW | |
||
| 143 | 871690 | 1 | SPRING | XW | |
||
| 144 | 324432-00 | 1 | SEAL SA | XW | |
||
| 145 | 329968-01 | 1 | GEARCASE SA | XW | |
||
| 146 | 329907-00 | 1 | WASHER | XW | |
||
| 147 | 583890-00 | 1 | BALL | XW | |
||
| 148 | 325880-05 | 1 | PIN | From date code 16-01 | XW | |
|
| 148 | 325880-03 | 1 | PIN | Upto date code 15-01 | XW | |
|
| 149 | 577080-01 | 1 | SPINDLE SA | XW | |
||
| 150 | 916323 | 1 | O RING | XW | |
||
| 151 | 327119-00 | 1 | LEVER | XW | |
||
| 152 | 323924-08 | 1 | SCREW | XW | |
||
| 153 | 328809-00 | 1 | COVER | XW | |
||
| 154 | 327100-00 | 1 | CASTING SA | XW | |
||
| 155 | 328507-00 | 1 | SHIELD | XW | |
||
| 156 | 323572-00 | 1 | SEAL | XW | |
||
| 157 | 323395-17 | 1 | SPRING | XW | |
||
| 158 | 487047-49 | 1 | REPAIR KIT | XW | |
||
| 159 | 326467-00 | 1 | DETENT | XW | |
||
| 160 | 327094-01 | 1 | CAM | XW | |
||
| 161 | 327093-00 | 1 | FILTER | XW | |
||
| 162 | N032136 | 1 | RAM SA | XW | |
||
| 163 | 577168-00 | 1 | O RING | XW | |
||
| 164 | 487143-00 | 1 | AXLE | XW | |
||
| 165 | 327072-00 | 1 | SHIM | XW | |
||
| 166 | 323762-02 | 2 | CIRCLIP | XW | |
||
| 167 | 487401-01 | 1 | CLUTCH SA | XW | |
||
| 168 | 327074-00 | 1 | RING | XW | |
||
| 169 | 487067-00 | 1 | PISTON | XW | |
||
| 170 | 323395-33 | 1 | SPRING | XW | |
||
| 171 | 327101-01 | 1 | INTERSHAFT SA | XW | |
||
| 172 | 324430-03 | 1 | BEARING AXIAL | XW | |
||
| 173 | 324431-03 | 1 | WASHER 7 | XW | |
||
| 174 | 939794-02 | 1 | HANDLE SIDE SA | XW | |
||
| 175 | 580787-00 | 1 | DEPTH STOP | XW | |
||
| 176 | 323762-08 | 1 | CIRCLIP | Upto date code 15-01 | XW | |
|
| 181 | 329211-00 | 1 | SLEEVE | XW | |
||
| 184 | 577058-00 | 1 | PLATE | XW | |
||
| 185 | 930553 | 2 | SCREW | XW | |
||
| 800 | 870889-02 | 1 | GREASE | XW | |
||
| 816 | 578775-00 | 1 | BRAND LABEL | XW | |
