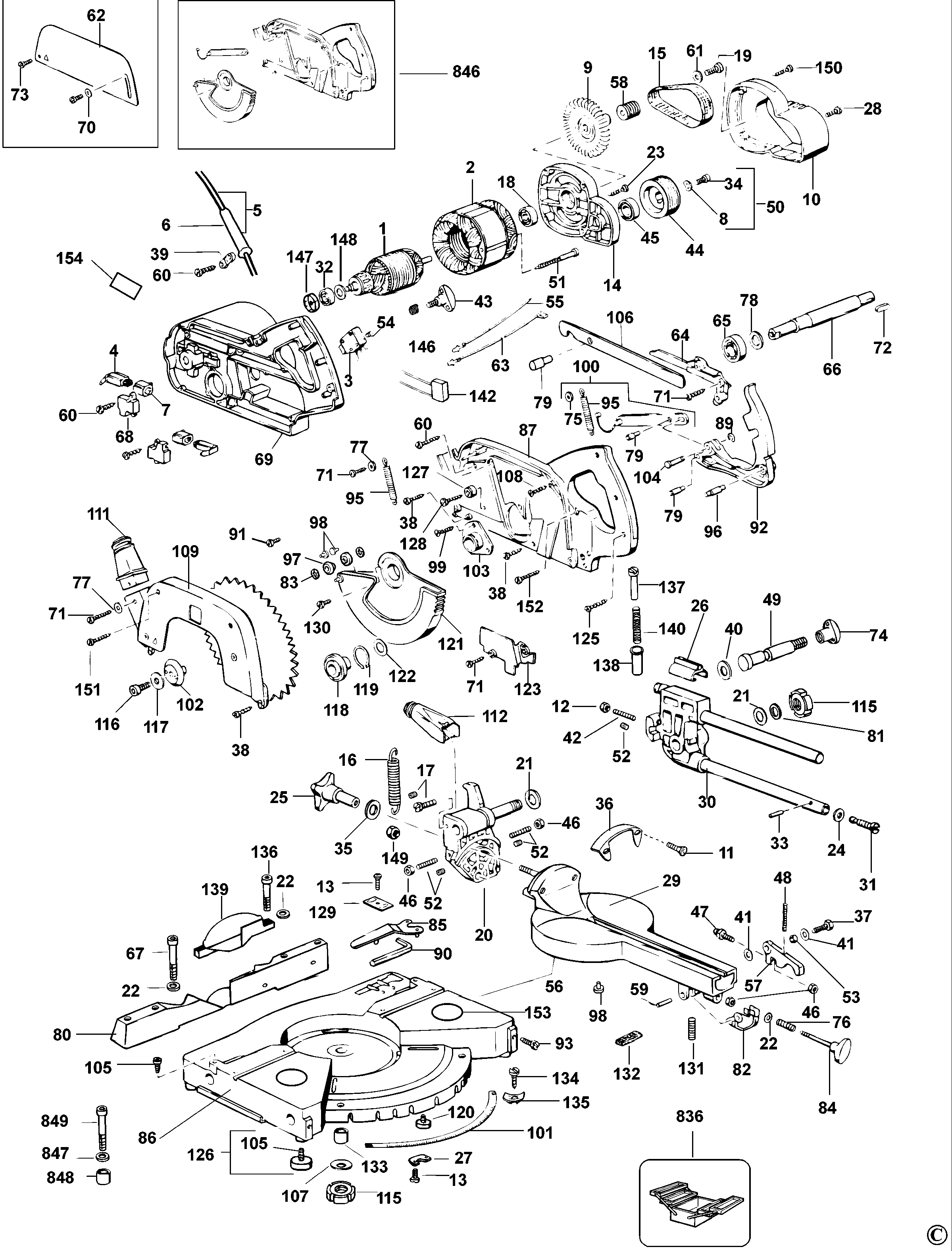

DW700 MITRE SAW Type 1 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 1 | 861379-07 | 1 | ARMATURE | GB |  |
||
| 2 | 868405-00 | 1 | FIELD | GB | |
||
| 3 | 864720-05 | 1 | SWITCH | GB | |||
| 4 | 940146-00 | 2 | BRUSH 230V | GB |  |
||
| 5 | 947108-10 | 1 | CABLE SA | GB | |
||
| 6 | 720703-00 | 1 | PROTECTOR | GB | |
||
| 7 | 761202-00 | 2 | BRUSHBOX SA | GB | |||
| 8 | 860073-14 | 1 | WASHER | GB | |
||
| 9 | 760210-00 | 1 | FAN | GB | |
||
| 10 | 942568-01 | 1 | COVER | GB | |
||
| 11 | 949894-12 | 2 | SCREW | GB | |
||
| 12 | 860083-14 | 1 | NUT | BEFORE WK 25 - 2000 | GB | |
|
| 13 | 860094-05 | 5 | SCREW | GB | |
||
| 14 | 942567-00 | 1 | HOUSING | GB | |
||
| 15 | 760215-00 | 1 | BELT | GB | |
||
| 16 | 760216-01 | 1 | SPRING | GB | |
||
| 17 | 949743-02 | 1 | SCREW | M8 x 14mm | FROM WEEK 25 - 2000 | GB | |
| 17 | 860089-23 | 1 | SCREW | BEFORE WK 25-2000 | GB | |
|
| 18 | 861721-02 | 1 | BEARING | GB | |
||
| 19 | 760219-00 | 1 | SCREW | GB | |
||
| 20 | 868317-00 | 1 | SEGMENT | FROM WK 25 - 2000 | GB | |
|
| 20 | 868317-00 | 1 | SEGMENT | GB | |
||
| 21 | 860226-02 | 2 | WASHER | GB | |
||
| 22 | 720959-00 | 7 | WASHER | GB | |
||
| 23 | 949896-10 | 6 | SCREW | GB | |
||
| 24 | 760224-00 | 1 | WASHER | GB | |
||
| 25 | 861838-00 | 1 | KNOB | GB | |
||
| 26 | 942597-01 | 1 | GUIDE | GB | |
||
| 27 | 943010-01 | 2 | INSERT | GB | |
||
| 28 | 949896-07 | 1 | SCREW | GB | |
||
| 29 | 861832-00 | 1 | TABLE ROTARY | WEEK 46-97> | GB | |
|
| 30 | 943005-01 | 1 | GUIDE | GB | |
||
| 31 | 760231-00 | 1 | SCREW | GB | |
||
| 32 | 577745-00 | 1 | BEARING | GB | |
||
| 33 | 760233-00 | 1 | PIN | GB | |
||
| 34 | 760219-00 | 1 | SCREW | GB | |
||
| 35 | 861483-00 | 1 | WASHER | GB | |
||
| 36 | 942996-02 | 1 | SCALE | GB | |
||
| 37 | 860085-09 | 1 | SCREW.TEMP | GB | |
||
| 38 | 860084-11 | 4 | SCREW | GB | |
||
| 39 | 720748-00 | 1 | CLAMP | GB | |
||
| 40 | 943030-00 | 1 | O RING | GB | |
||
| 41 | 760241-01 | 2 | SPACER | GB | |
||
| 42 | 949854-01 | 1 | SCREW | BEFORE WK 25 - 2000 | GB | |
|
| 43 | 760243-00 | 1 | SCREW | GB | |
||
| 44 | 861356-01 | 1 | PULLEY | GB | |
||
| 45 | 861721-01 | 1 | BEARING | GB | |
||
| 46 | 860083-12 | 2 | NUT M6 | FROM WK 25 - 2000 | GB | |
|
| 47 | 760247-00 | 1 | SCREW | GB | |
||
| 48 | 760248-00 | 1 | SPRING | GB | |
||
| 49 | 943003-00 | 1 | LOCKING PIN | GB | |
||
| 50 | 861703-01 | 1 | WASHER SA | GB | |
||
| 51 | 760251-00 | 2 | SCREW | GB | |
||
| 52 | 949743-02 | 3 | SCREW | M8 x 14mm | FROM WK 25 -2000 | GB | |
| 52 | 760252-00 | 3 | STUD | BEFORE WK25 - 2000 | GB | |
|
| 53 | 760253-00 | 1 | BUSH | GB | |
||
| 54 | 861378-00 | 1 | SCREW | GB | |
||
| 55 | 942590-00 | 2 | LEAD | GB | |
||
| 56 | 861834-00 | 1 | TABLE KIT | | GB |
| ||
| 57 | 760257-00 | 1 | RATCHET | GB | |
||
| 58 | 760258-00 | 1 | PULLEY | GB | |
||
| 59 | 760259-00 | 1 | PIN | GB | |
||
| 60 | 949896-12 | 9 | SCREW | GB | |
||
| 61 | 760261-00 | 2 | WASHER | GB | |
||
| 62 | 942577-01 | 1 | COVER | GB | |
||
| 63 | 942589-00 | 2 | LEAD | GB | |
||
| 64 | 942570-00 | 1 | COVER | GB | |
||
| 65 | 861721-12 | 1 | BEARING | GB | |
||
| 66 | 861369-01 | 1 | SPINDLE SA | GB | |
||
| 67 | 860094-11 | 4 | SCREW | GB | |
||
| 68 | 942569-00 | 2 | CLAMP | GB | |
||
| 69 | 945017-02 | 1 | FIELDCASE | GB | |
||
| 70 | 860073-01 | 1 | WASHER | GB | |
||
| 71 | 860084-20 | 3 | SCREW | GB | |
||
| 72 | 860539-01 | 1 | KEY | GB | |
||
| 73 | 943023-00 | 1 | SCREW | GB | |
||
| 74 | 941756-00 | 1 | KNOB | GB | |
||
| 75 | 941633-00 | 1 | WASHER | GB | |
||
| 76 | 760276-00 | 1 | SPRING | GB | |
||
| 77 | 860073-00 | 2 | WASHER | GB | |
||
| 78 | 760278-00 | 1 | WASHER | GB | |
||
| 79 | 760279-00 | 3 | PIN | GB | |
||
| 80 | 938855-01 | 1 | FENCE | GB | |
||
| 81 | 943014-00 | 1 | WASHER | GB | |
||
| 82 | 760282-00 | 1 | LEVER | GB | |
||
| 83 | 861366-00 | 2 | QUICKLOCK | GB | |
||
| 84 | 760284-00 | 1 | SCREW WING | GB | |
||
| 85 | 939072-00 | 1 | SPANNER | GB | |
||
| 86 | 861847-00 | 1 | BASE SA | WEEK 46-97> | GB | |
|
| 87 | 945018-06 | 1 | HANDLE COVER | Yellow | GB | |
|
| 89 | 860322-03 | 1 | CIRCLIP | GB | |
||
| 90 | 860098-04 | 1 | WRENCH 6 MM | GB | |
||
| 91 | 761209-01 | 2 | SCREW | GB | |
||
| 92 | 942993-02 | 1 | LEVER | GB | |
||
| 93 | N409486 | 2 | SCREW | GB | |
||
| 95 | 760295-01 | 1 | SPRING | GB | |
||
| 96 | 760296-01 | 1 | PIVOT | GB | |
||
| 97 | 861367-01 | 2 | ROLLER | GB | |
||
| 98 | 760298-01 | 3 | INSERT | GB | |
||
| 99 | 760299-00 | 3 | SCREW | GB | |
||
| 100 | 868398-00 | 1 | LEVER SA | GB | |
||
| 101 | 942997-01 | 1 | SCALE | GB | |
||
| 102 | 942959-02 | 1 | OUTER FLANGE | GB | |
||
| 103 | 760303-01 | 1 | FLANGE | GB | |
||
| 104 | 760304-00 | 1 | PIN | GB | |
||
| 105 | 330045-55 | 2 | SCREW | M5x55 MTL THD FMG | GB | |
|
| 106 | 942999-02 | 1 | LEVER | GB | |
||
| 107 | 760307-00 | 1 | WASHER | GB | |
||
| 108 | 949896-11 | 1 | SCREW | GB | |
||
| 109 | 943004-09 | 1 | GUARD | GB | |
||
| 111 | 760311-00 | 1 | ADAPTOR | GB | |
||
| 112 | 760312-00 | 1 | ADAPTOR | GB | |
||
| 115 | 943016-00 | 2 | LOCK NUT | GB | |
||
| 116 | 949886-27 | 1 | SCREW | BLACK | GB | |
|
| 117 | 949876-19 | 1 | WASHER | GB | |
||
| 118 | 947022-00 | 1 | INNER FLANGE | GB | |
||
| 119 | 949727-04 | 1 | CIRCLIP | GB | |
||
| 120 | 761299-00 | 1 | FOOT | | GB |
| ||
| 121 | 861362-03 | 1 | GUARD SA | GB | |
||
| 122 | 760270-00 | 1 | WASHER | GB | |
||
| 123 | 942572-00 | 1 | COVER | GB | |
||
| 125 | N456928 | 4 | SCREW | 3.9 X 22 T | GB | |
|
| 126 | 861809-00 | 5 | FOOT SA | GB | |
||
| 127 | 761306-00 | 1 | BUMPER | GB | |
||
| 128 | 761307-00 | 1 | SCREW | GB | |
||
| 129 | 942998-00 | 1 | CLAMP | GB | |
||
| 130 | 949894-06 | 1 | SCREW | GB | |
||
| 131 | 943017-00 | 1 | STUD | GB | |
||
| 132 | 943009-01 | 1 | FELT | GB | |
||
| 133 | 943021-00 | 3 | BUSH | GB | |
||
| 134 | 943024-01 | 2 | SCREW | GB | |
||
| 135 | 943025-00 | 2 | PLATE | GB | |
||
| 136 | 860093-11 | 2 | SCREW | GB | |
||
| 137 | 942578-01 | 1 | PLUNGER | GB | |
||
| 138 | 942584-01 | 1 | SOCKET | GB | |
||
| 139 | 401457-00 | 1 | INSERT SA | GB | |
||
| 139 | 401363-00 | 1 | INSERT | For Aluminium only | GB | |
|
| 140 | 942621-00 | 1 | SPRING | GB | |
||
| 146 | 760249-00 | 1 | SPRING | GB | |
||
| 147 | 934409-00 | 1 | SLEEVE | GB | |
||
| 148 | 944975-00 | 1 | SPACER | GB | |
||
| 149 | 943016-01 | 1 | LOCK-NUT | GB | |
||
| 150 | 760978-01 | 1 | SCREW | GB | |
||
| 151 | 949896-11 | 2 | SCREW | GB | |
||
| 152 | 720744-01 | 1 | SCREW | GB | |
||
| 154 | 942532-00 | 1 | LABEL | GB | |
||
| 836 | 559606-99 | 1 | S.T.SQUARE | Small square | GB | |
|
| 846 | 868399-00 | 1 | COVER SA | Yellow | BEFORE WK 42 2000 | GB | |
| 847 | 860083-14 | 2 | NUT | GB | |
||
| 848 | 949876-19 | 2 | WASHER | GB | |
||
| 849 | 860301-06 | 2 | BOLT | GB | |
