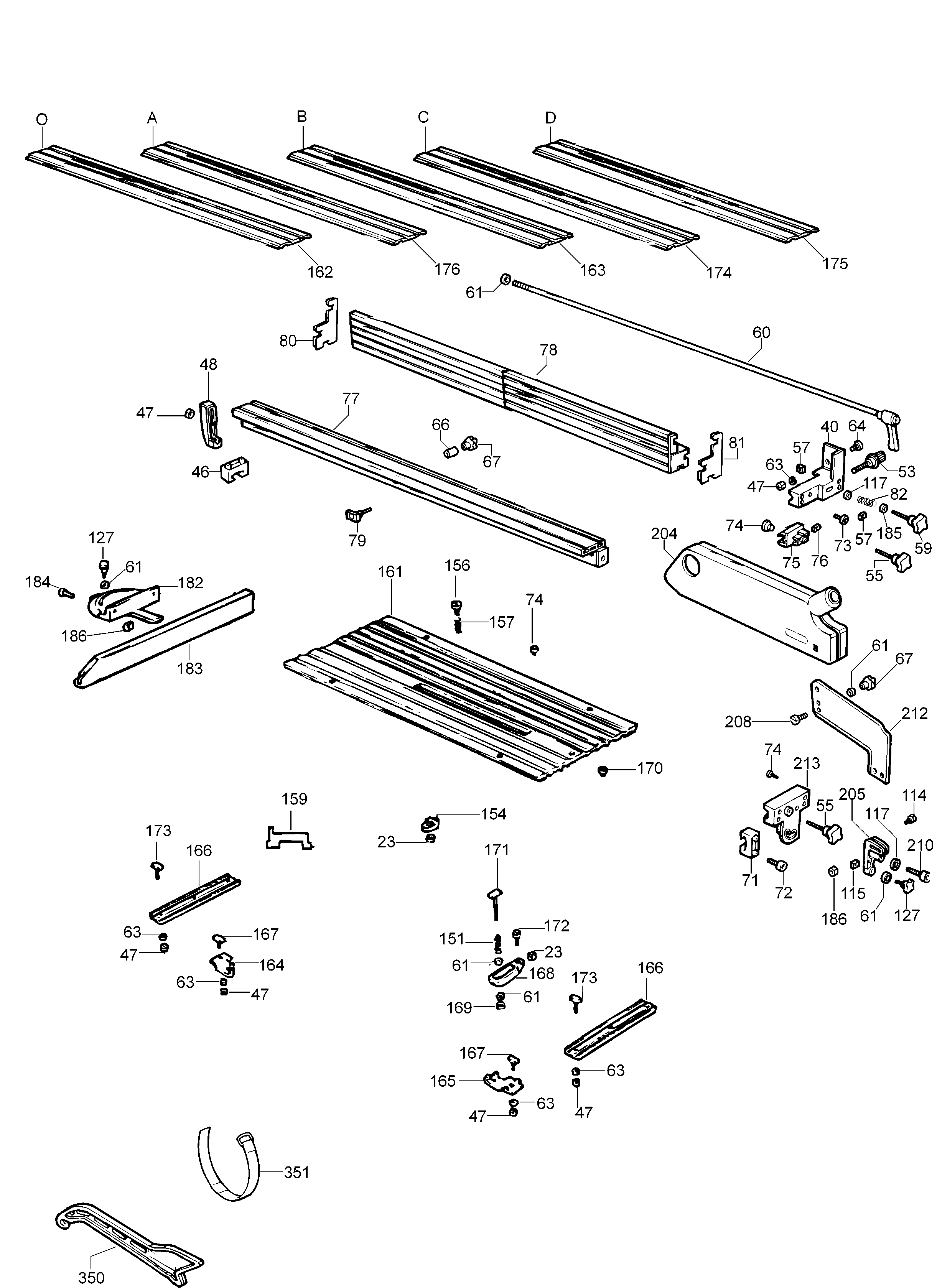

DE2011 INSERT SET Type 1 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 23 | 725187 | 8 | NUT | M8 | XJ |  |
|
| 40 | 743912 | 1 | BRACKET | XJ |  |
||
| 46 | 744917 | 1 | SLIDER | XJ | |
||
| 47 | 725125 | 13 | NUT | XJ | |
||
| 48 | 743986 | 1 | CLAMP | XJ | |
||
| 53 | 744004 | 1 | ADJUSTER | XJ | |
||
| 55 | 744800 | 2 | SCREW.SPECIAL | XJ | |
||
| 57 | 744209 | 3 | NUT | XJ | |
||
| 59 | 378358 | 1 | SCREW.SPECIAL | XJ | |
||
| 60 | 744918 | 1 | SPINDLE | XJ | |
||
| 61 | 880391 | 16 | WASHER | XJ | |
||
| 63 | 742040 | 12 | WASHER | XJ | |
||
| 64 | 744958 | 2 | SCREW | XJ | |
||
| 66 | 743930 | 2 | SPACER | XJ | |
||
| 67 | 744324 | 3 | KNOB SA | XJ | |
||
| 71 | 744208 | 4 | SLIDER | XJ | |
||
| 72 | 744216 | 6 | SCREW | XJ | |
||
| 73 | 744354 | 2 | SCREW | XJ | |
||
| 74 | 744212 | 3 | CAP | XJ | |
||
| 75 | 744088 | 1 | HOLDER | XJ | |
||
| 76 | 744515 | 1 | PLUG | XJ | |
||
| 77 | 743923 | 1 | FENCE | XJ | |
||
| 78 | 744098 | 1 | FENCE | XJ | |
||
| 79 | 743705 | 2 | SCREW.SPECIAL | XJ | |
||
| 80 | 744613 | 1 | END CAP | XJ | |
||
| 81 | 744614 | 1 | END CAP | XJ | |
||
| 82 | 744941 | 1 | SPRING | XJ | |
||
| 114 | 744323 | 2 | SCREW | XJ | |
||
| 115 | 742289 | 1 | NUT | XJ | |
||
| 117 | 725929 | 2 | WASHER | 8.4mm | XJ | |
|
| 127 | 744325 | 2 | SCREW.SPECIAL | XJ | |
||
| 151 | 744225 | 4 | SPRING | XJ | |
||
| 154 | 744224 | 4 | CLAMP | XJ | |
||
| 156 | 744365 | 4 | SCREW | XJ | |
||
| 157 | 744366 | 4 | SPRING | XJ | |
||
| 159 | 744770 | 4 | BLOCK | XJ | |
||
| 161 | 743907 | 1 | TABLE SECTION | XJ | |
||
| 162 | 743979-05 | 1 | INSERT | XJ | |
||
| 163 | 743979-06 | 1 | INSERT | XJ | |
||
| 164 | 744162 | 2 | CLAMP | XJ | |
||
| 165 | 744161 | 2 | CLAMP | XJ | |
||
| 166 | 743708-01 | 2 | HOLDER | XJ | |
||
| 167 | 744330 | 4 | SCREW.SPECIAL | XJ | |
||
| 168 | 744332 | 4 | CLAMP | XJ | |
||
| 169 | 330021-01 | 4 | NUT | XJ | |
||
| 170 | 744928 | 1 | SCREW | XJ | |
||
| 171 | 744334 | 4 | SCREW.SPECIAL | XJ | |
||
| 172 | 742047 | 4 | SCREW | XJ | |
||
| 173 | 743676 | 6 | SCREW.SPECIAL | XJ | |
||
| 174 | 743979-07 | 1 | INSERT | XJ | |
||
| 175 | 743979-08 | 1 | INSERT | XJ | |
||
| 176 | 743979-09 | 1 | INSERT | XJ | |
||
| 182 | 744796-10 | 1 | MITRE FENCE | XJ | |
||
| 183 | 744359 | 1 | GUIDE | XJ | |
||
| 184 | 744360 | 2 | SCREW | XJ | |
||
| 185 | 744361 | 2 | WASHER | XJ | |
||
| 186 | 914079 | 3 | NUT | XJ | |
||
| 204 | 744338 | 1 | GUARD | XJ | |
||
| 205 | 743949 | 1 | GUIDE | XJ | |
||
| 208 | 744342 | 1 | SCREW | XJ | |
||
| 210 | 744386 | 1 | SCREW | XJ | |
||
| 212 | 744992 | 1 | BRACKET | XJ | |
||
| 213 | 743946 | 1 | HOUSING | XJ | |
||
| 350 | 860610-01 | 1 | PUSHROD | XJ | |
||
| 351 | 744341 | 1 | BELT | XJ | |
