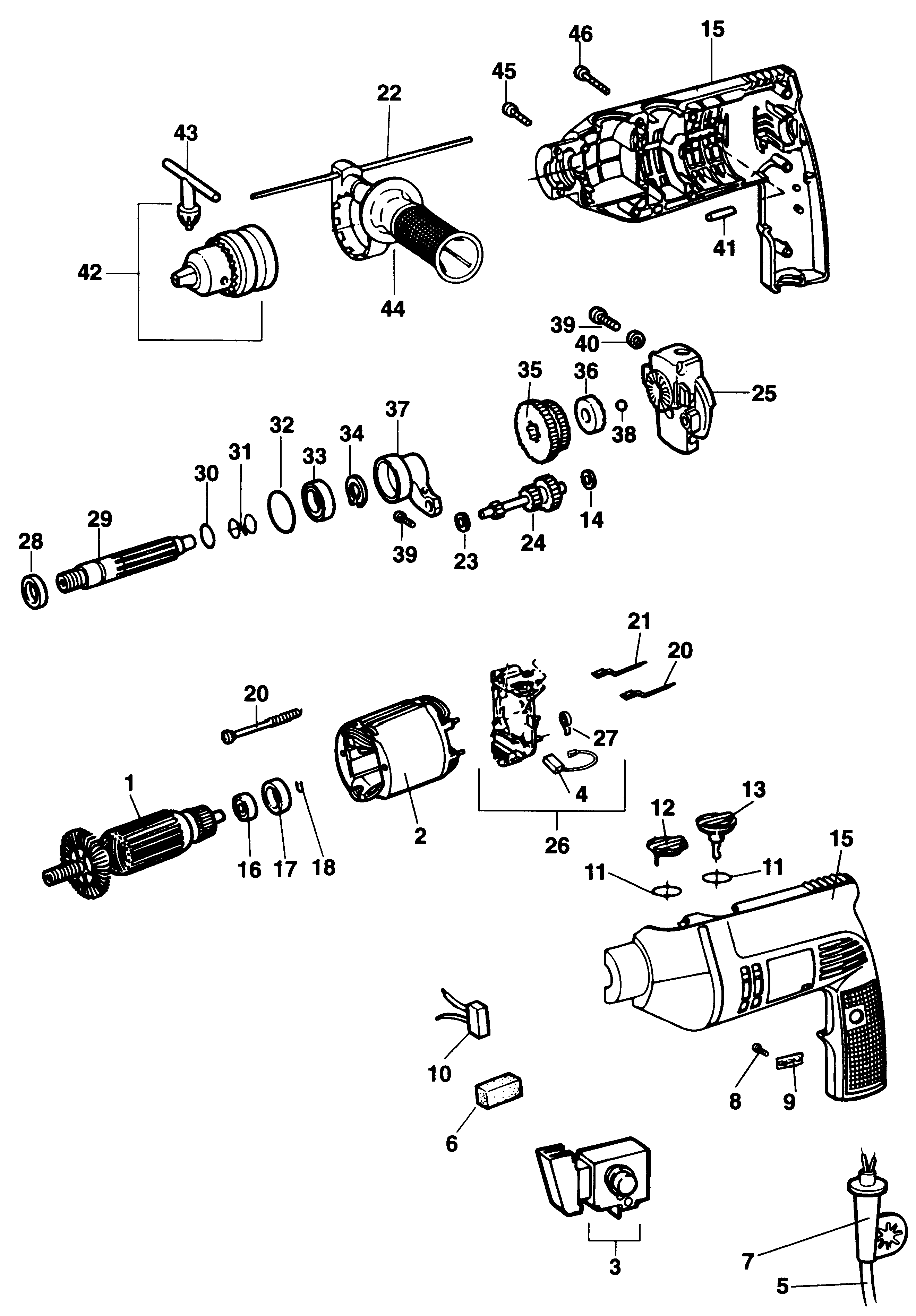

DW509 DRILL Type 1 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 1 | 949838-08 | 1 | ARMATURE 115V | GB 115V | XW |  |
|
| 2 | 949855-05 | 1 | FIELD 120V | XW | |
||
| 3 | 949731-05 | 1 | SWITCH | XW | |
||
| 4 | 930802-00 | 2 | BRUSH | XW |  |
||
| 5 | 330061-14 | 1 | CORDSET | XW | |
||
| 6 | 930026 | 1 | FOAM | XW | |
||
| 7 | 934961-01 | 1 | CORD PROTECTOR | XW | |
||
| 8 | 930276 | 2 | SCREW | XW | |
||
| 9 | 930103-00 | 1 | CORD CLAMP | XW | |
||
| 10 | 949877-01 | 1 | CAPACITOR | XW | |
||
| 11 | 930039 | 2 | SEAL | XW | |
||
| 12 | 939637 | 1 | SELECTOR | XW | |
||
| 13 | 946211-00 | 1 | LEVER SA | XW | |
||
| 14 | 931407-00 | 1 | WASHER | XW | |
||
| 15 | 946177-06 | 1 | FIELDCASE | XW | |
||
| 16 | 330003-02 | 1 | BEARING | XW | |
||
| 17 | 930275-00 | 1 | SLEEVE | XW | |
||
| 18 | 939624-00 | 1 | RING | XW | |
||
| 19 | 939635 | 2 | SCREW | XW | |
||
| 20 | 941450-00 | 1 | LEAD | XW | |
||
| 21 | 941450-01 | 1 | LEAD | XW | |
||
| 22 | 940357-00 | 1 | DEPTH STOP | XW | |
||
| 23 | 930102-00 | 1 | WASHER | XW | |
||
| 24 | 940489 | 1 | GEAR | XW | |
||
| 25 | 939639-03 | 1 | BLOCK SA | XW | |
||
| 26 | 930749-00 | 1 | BRUSH HOLDER PLATE | XW | |
||
| 27 | 930090-00 | 2 | BRUSH SPRING | XW | |
||
| 28 | 1006305-00 | 1 | SEAL | XW | |
||
| 29 | 939620-01 | 1 | SPINDLE | XW | |
||
| 30 | 930028-00 | 1 | O RING | XW | |
||
| 31 | 931890 | 1 | SPRING | XW | |
||
| 32 | 938133-00 | 1 | O RING | XW | |
||
| 33 | 605040-25 | 1 | BEARING,BALL | XW | |
||
| 34 | 944137-00 | 1 | CIRCLIP | XW | |
||
| 35 | 940475 | 1 | GEAR | XW | |
||
| 36 | 945706-00 | 1 | RATCHET | XW | |
||
| 37 | 943701 | 1 | HOUSING | XW | |
||
| 38 | 930012 | 1 | BALL | XW | |
||
| 39 | 938140 | 4 | SCREW | XW | |
||
| 40 | 932839-00 | 3 | WASHER | XW | |
||
| 41 | 941374-00 | 1 | RUBBER | XW | |
||
| 42 | 947137-02 | 1 | CHUCK & KEY SA | XW | |
||
| 43 | 330034-07 | 1 | CHUCK KEY | XW | |
||
| 44 | 939794-02 | 1 | HANDLE SIDE SA | XW | |
||
| 45 | 930284-01 | 2 | SCREW | XW | |
||
| 46 | 930079-01 | 9 | SCREW | XW | |
