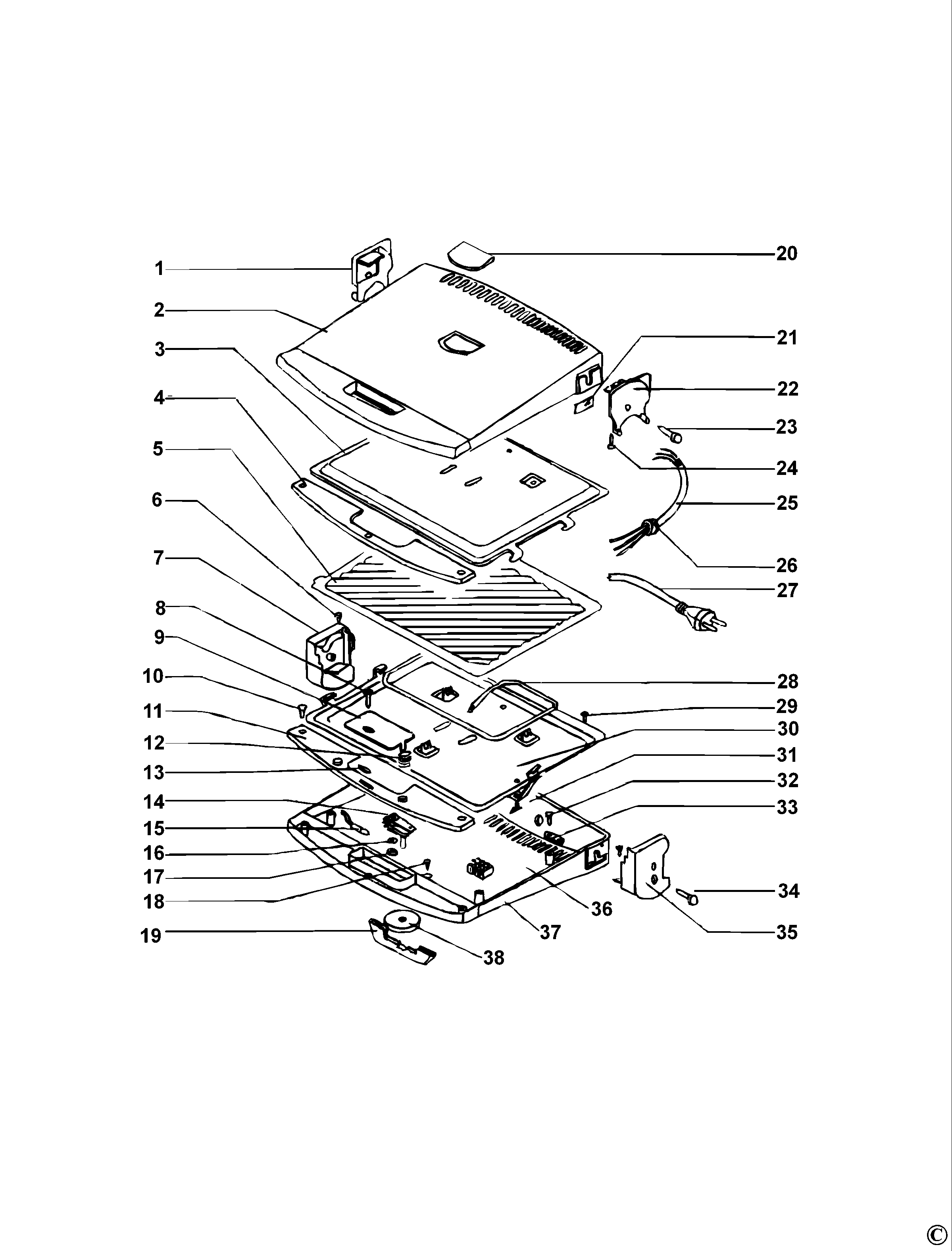

GM50 GRILL Type 1 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 1 | 6010082-01 | 1 | HINGE | LEFT CONNECTION | 1708 | XJ |  |
| 2 | 6010082-02 | 1 | BODY | UPPER BODY GRILL | 1700S | XJ | |
| 3 | 6010082-03 | 1 | PLATE | 1709S | XJ | ||
| 4 | 6010082-04 | 1 | COVER | UPPER HANDLE COVER | 1701S | XJ | |
| 5 | 6010082-05 | 1 | PLATE | PLATE WITH TEFLON | 1710 | XJ | |
| 6 | 6010082-06 | 1 | SCREW | 6P13TC | XJ | ||
| 7 | 6010082-07 | 1 | FOOT | LEFT | 1706 | XJ | |
| 8 | 6010082-08 | 1 | SCREW | M4 | 4M25TC | XJ | |
| 9 | 6010082-09 | 1 | STAND | THERMOSTAT STAND | 1717 | XJ | |
| 10 | 6010082-10 | 1 | SCREW | 6P9.5TC | XJ | ||
| 11 | 6010082-11 | 1 | COVER | INFERIOR HANDLE COVE | 17011 | XJ | |
| 12 | 6010082-12 | 1 | SPRING | 1714 | XJ | ||
| 13 | 6010082-13 | 1 | COVER | LAMP COVER | 1719 | XJ | |
| 14 | 6010082-14 | 1 | THERMOSTAT | 1712 | XJ | |
|
| 15 | 6010082-15 | 1 | NEON | NEON LAMP | 1713 | XJ | |
| 16 | 6010082-16 | 1 | WASHER | 04RD | XJ | ||
| 17 | 6010082-17 | 1 | NUT M4 | M4 | 4M4DEZ | XJ | |
| 18 | 6010082-18 | 1 | SCREW | 7P9.5TC | XJ | ||
| 19 | 6010082-19 | 1 | FOOT | CENTRAL | 1704 | XJ | |
| 20 | 6010082-20 | 1 | COVER | FOOT FOR UPPER COVER | 1702 | XJ | |
| 21 | 6010082-21 | 1 | PLATE | IRON | 1718 | XJ | |
| 22 | 6010082-22 | 1 | HINGE | RIGHT CONNECTION | 1707 | XJ | |
| 23 | 6010082-06 | 1 | SCREW | 6P13TC | XJ | ||
| 24 | 6010082-06 | 1 | SCREW | 6P13TC | XJ | ||
| 25 | 6010082-25 | 1 | CORD PROTECTOR | 1720 | XJ | ||
| 26 | 6010082-26 | 1 | LOCK | CABLE LOCK | 1716 | XJ | |
| 27 | 6010082-27 | 1 | CABLE | 1721/17211 | XJ | ||
| 28 | 6010082-28 | 1 | ELEMENT | 1711 | XJ | ||
| 29 | 6010082-06 | 1 | SCREW | 6P13TC | XJ | ||
| 30 | 6010082-30 | 1 | RIVET | RIVET | RI2.5 | XJ | |
| 31 | 6010082-31 | 1 | LEAF SPRING | 1715 | XJ | ||
| 32 | 6010082-06 | 1 | SCREW | 6P13TC | XJ | ||
| 33 | 6010082-33 | 1 | BLOCK | CABLE BLOCK | 2019 | XJ | |
| 34 | 6010082-34 | 1 | SCREW | 6P22TC | XJ | ||
| 35 | 6010082-35 | 1 | FOOT | RIGHT | 1705 | XJ | |
| 36 | 6010082-36 | 1 | CLAMP | CLAMP 4 POLE | 1213 | XJ | |
| 37 | 6010082-37 | 1 | BASE | INFERIOR BODY GRILL | 1700I | XJ | |
| 38 | 6010082-38 | 1 | HANDLE | THERMOSTAT HANDLE | 1703 | XJ | |
