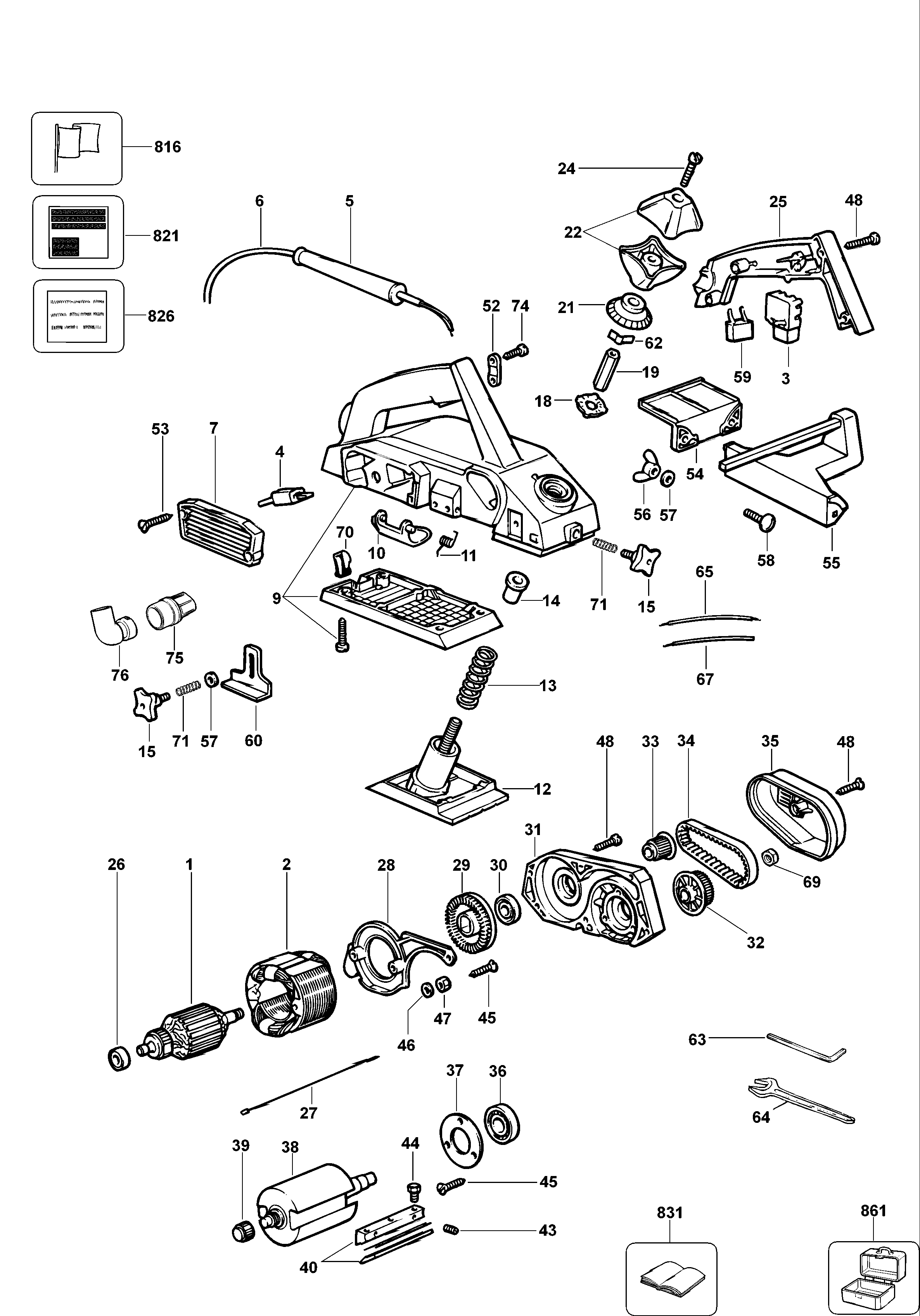

DW675K PLANER Type 1 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 5 | 320785 | 1 | CORD PROTECTOR | XJ |  |
||
| 7 | 248397-05 | 1 | COVER BRUSH | XJ |  |
||
| 9 | 248327-02 | 1 | HOUSING SA | XJ | |
||
| 10 | 326114-01 | 1 | GUARD | XJ | |
||
| 11 | 080930914 | 1 | SPRING | XJ | |
||
| 12 | 248331-00 | 1 | SHOE SA | XJ | |
||
| 13 | 572255-00 | 1 | SPRING | XJ | |
||
| 14 | 080120901 | 1 | BUSH | XJ | |
||
| 15 | 025922908 | 2 | KNOB | XJ | |
||
| 18 | 247557-00 | 1 | WASHER | XJ | |
||
| 19 | 247343-00 | 1 | NUT | XJ | |
||
| 22 | 248998-05 | 1 | HANDLE SA | XJ | |
||
| 24 | 249424-32 | 1 | SCREW | XJ | |
||
| 25 | 324589-02 | 1 | COVER | XJ | |
||
| 26 | N110358 | 1 | BEARING | XJ | |
||
| 29 | 580130500 | 1 | FAN | XJ | |
||
| 30 | 013830000 | 1 | BEARING | XJ | |
||
| 31 | 325108-00 | 1 | COVER | XJ | |
||
| 32 | 325104-00 | 1 | PULLEY | XJ | |
||
| 33 | 324105-00 | 1 | PULLEY | XJ | |
||
| 34 | 325106-00 | 1 | BELT TOOTHED | XJ | |
||
| 35 | 329269-00 | 1 | COVER | XJ | |
||
| 36 | 861721-01 | 1 | BEARING | XJ | |
||
| 37 | 868047-00 | 1 | PLATE | XJ | |
||
| 38 | 248316-02 | 1 | CUTTER BLOCK SA | XJ | |
||
| 39 | 330004-06 | 1 | BEARING NEEDLE | XJ | |
||
| 40 | 247941-00 | 1 | SUPPORT KIT | XJ | |
||
| 43 | 072815900 | 4 | SCREW.TEMP | XJ | |
||
| 44 | 578432-00 | 6 | SCREW | XJ | |
||
| 45 | 860428-04 | 4 | SCREW | XJ | |
||
| 46 | 093820600 | 2 | WASHER LOCK | XJ | |
||
| 47 | 249232-00 | 2 | NUT M4 | XJ | |
||
| 48 | 249416-04 | 10 | SCREW | XJ | |
||
| 52 | 910556 | 1 | CABLE CLAMP | XJ | |
||
| 53 | 949896-12 | 4 | SCREW | XJ | |
||
| 54 | 248476-00 | 1 | BRACKET | XJ | |
||
| 55 | 247447-00 | 1 | BRACKET | XJ | |
||
| 56 | 249225-00 | 1 | NUT WING | XJ | |
||
| 57 | 249221-00 | 2 | WASHER | XJ | |
||
| 58 | 249406-01 | 1 | SCREW | XJ | |
||
| 60 | 248477-00 | 1 | GUIDE | XJ | |
||
| 62 | 247556-00 | 4 | SPRING | XJ | |
||
| 63 | 000000-00 | 1 | NO LONGER AVAILABLE | XJ | |||
| 64 | 080351300 | 1 | SPANNER 10MM | XJ | |
||
| 65 | 080164507 | 1 | LEAD 255MM RED | XJ | |
||
| 67 | 080164508 | 1 | LEAD 340MM RED | XJ | |
||
| 69 | 761225-02 | 1 | NUT | XJ | |
||
| 70 | 324649-00 | 1 | STAND | XJ | |
||
| 74 | 249416-06 | 2 | SCREW | XJ | |
||
| 75 | 248629-00 | 1 | ADAPTOR | XJ | |
||
| 76 | 247751-00 | 1 | ADAPTOR | XJ | |
||
| 816 | 578758-00 | 1 | BRAND LABEL | XJ | |
||
| 826 | 324134-02 | 1 | WARNING LABEL | XJ | |
||
| 831 | 248402-00 | 1 | INSTRUCTION MANUAL | XJ | |
