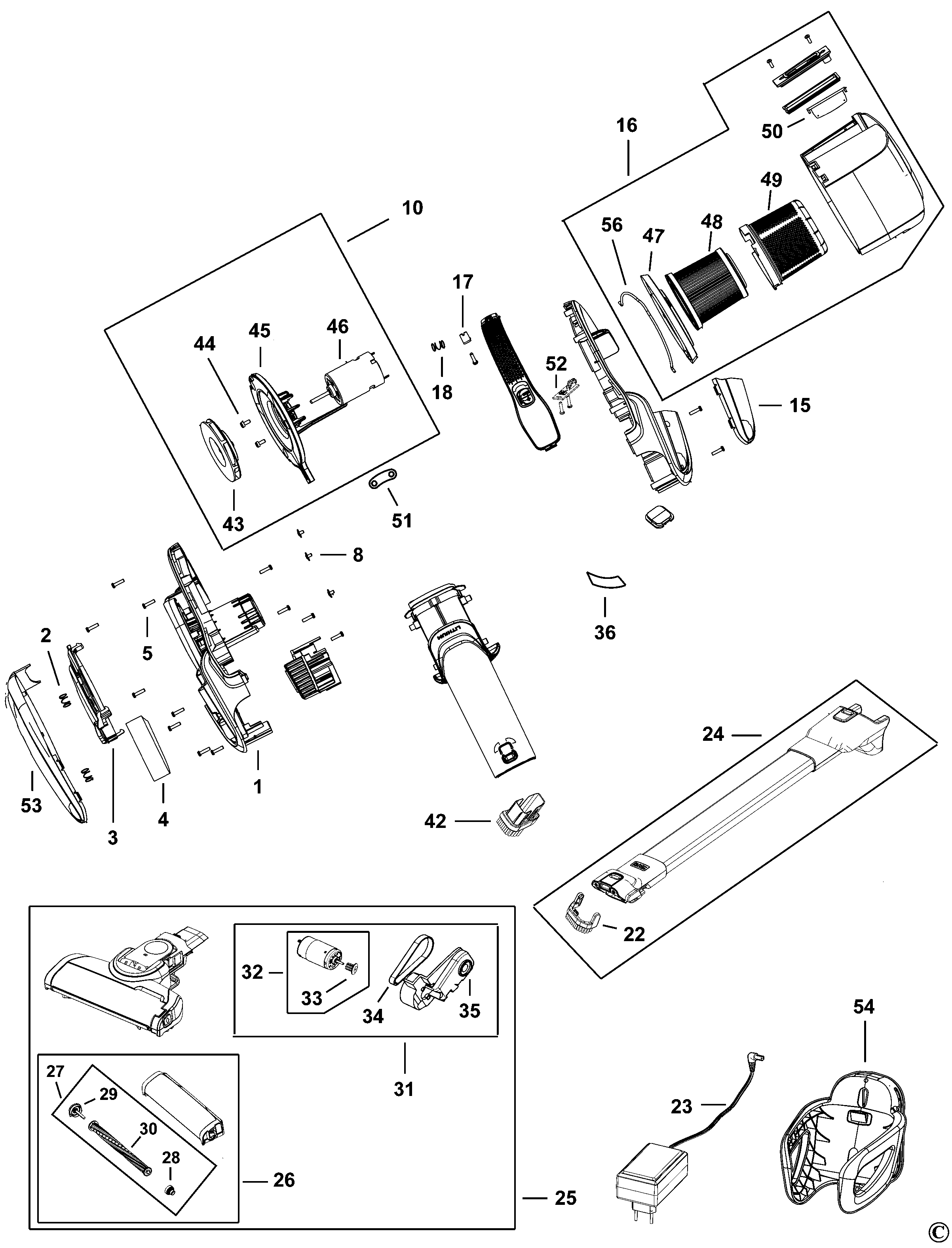

FEJ520JFH STICK-VAC Type H1 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 2 | 90627528 | 2 | SPRING | XJ |  |
||
| 3 | N599841 | 1 | LEVER RELEASE | FEJ520JFH | XJ | |
|
| 4 | 90605950 | 1 | EXHAUST | XJ | |
||
| 5 | 90571477-01 | 17 | SCREW | XJ | |
||
| 8 | 90627524 | 3 | SCREW | XJ | |
||
| 10 | N925219 | 1 | MOTOR SA | XJ | |
||
| 15 | 90620997 | 1 | COVER | XJ | |
||
| 16 | N607178 | 1 | BOWL | FEJ520JFH | XJ | ||
| 17 | 90624626 | 1 | RELEASE | XJ | |
||
| 18 | 90627527 | 1 | SPRING | XJ | |
||
| 22 | N599848 | 1 | BRUSH | FEJ520JFH | XJ | |
|
| 24 | N607184 | 1 | TUBE | FEJ520JFH | XJ | ||
| 25 | N925437 | 1 | FOOT SA | XJ | |
||
| 26 | N607183 | 1 | HEAD SA | FEJ520JFH | XJ | ||
| 27 | N607181 | 1 | ROLLER SA | FEJ520JFH | XJ | ||
| 28 | 90600500-01 | 1 | END CAP | XJ | |
||
| 29 | N925266 | 1 | DRIVE SHAFT | XJ | |
||
| 30 | N607007 | 1 | ROLLER | XJ | |
||
| 31 | N925414 | 1 | MOTOR SA & MOUNT | XJ | |
||
| 32 | N925343 | 1 | MOTOR SA | XJ | |
||
| 33 | N548025 | 1 | GEAR | XJ | |
||
| 34 | 90592224 | 1 | BELT DRIVE | XJ | |
||
| 35 | N924916 | 1 | MOUNT | XJ | |
||
| 42 | 90627690 | 1 | BRUSH | XJ | |
||
| 43 | 90562789-04 | 1 | FAN | XJ | |
||
| 43 | 90562789-04 | 1 | FAN | XJ | |
||
| 44 | 311940-01 | 2 | SCREW | XJ | |
||
| 45 | 90626637 | 1 | SUPPORT | XJ | |
||
| 46 | N760693 | 1 | MOTOR SA | XJ | |||
| 47 | N519708 | 1 | FRAME | XJ | |
||
| 48 | N599839 | 1 | FILTER | FEJ520JFH | XJ | |
|
| 49 | N599838 | 1 | PRE-FILTER | FEJ520JFH | XJ | |
|
| 50 | 90615870 | 1 | FLAP | XJ | |
||
| 51 | 90626425 | 1 | RETAINER | XJ | |
||
| 52 | 90620562-01 | 1 | PCB | XJ | |
||
| 53 | 90614011 | 1 | COVER | XJ | |
||
| 54 | 90621192 | 1 | BRACKET SA | XJ | |||
| 56 | 90621658 | 1 | HANDLE | XJ | |
