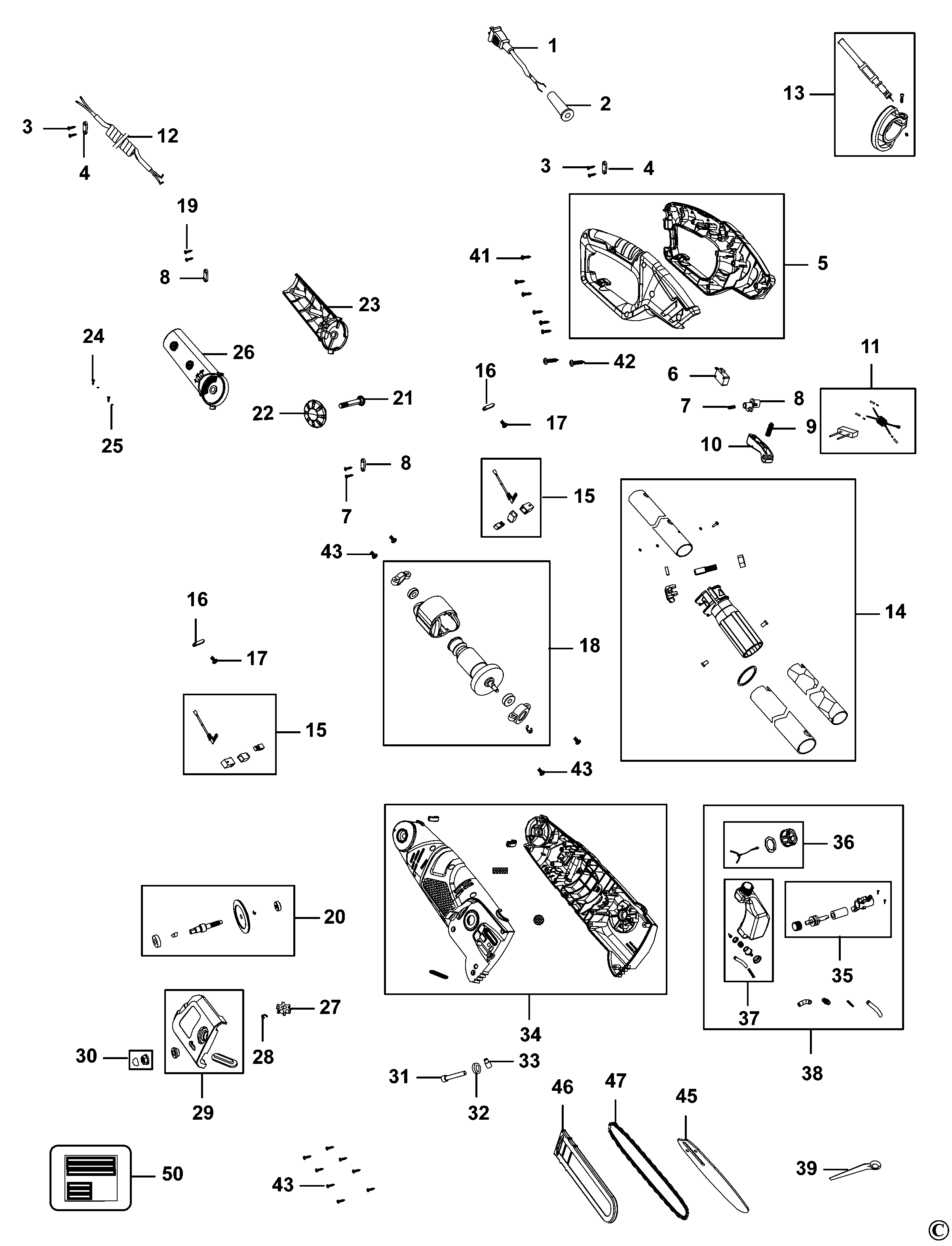

PS7525 PRUNER Type H1 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 1 | 1004697-49 | 1 | CORDSET | GB |  |
||
| 2 | 1004697-50 | 1 | CORD PROTECTOR | GB | |
||
| 3 | 1004697-51 | 8 | SCREW | GB | |
||
| 4 | 1004697-52 | 3 | CABLE CLAMP | GB | |
||
| 5 | 1004697-55 | 1 | HOUSING HANDLE | GB | |
||
| 6 | 1004697-56 | 1 | SWITCH | GB | |
||
| 7 | 1004697-57 | 1 | SPRING | GB | |
||
| 8 | 1004697-58 | 1 | BUTTON LOCK-OFF | GB | |
||
| 9 | 1004697-59 | 1 | SPRING | GB | |
||
| 10 | 1004697-60 | 1 | TRIGGER | GB | |
||
| 11 | 1004697-61 | 1 | CABLE & CAPACITOR | GB | |
||
| 12 | 1004697-62 | 1 | CABLE | GB | |
||
| 13 | 1004697-63 | 1 | STRAP | GB | |
||
| 14 | 1004697-64 | 1 | HANDLE TUBE SA | GB | |
||
| 15 | 1004697-65 | 1 | BRUSH PAIR SA | GB | |
||
| 16 | 1004697-66 | 2 | CABLE CLAMP | GB | |
||
| 17 | 1004697-67 | 2 | SCREW | GB | |
||
| 18 | 1004697-68 | 1 | MOTOR SA | GB | |
||
| 19 | 1004697-69 | 2 | SCREW | GB | |
||
| 20 | 1004697-70 | 1 | GEAR & SPINDLE SA | GB | |
||
| 21 | 1004697-71 | 1 | BOLT | GB | |
||
| 22 | 1004697-72 | 1 | KNOB | GB | |
||
| 23 | 1004697-73 | 1 | CASTING LH | GB | |
||
| 24 | 1004697-74 | 2 | SCREW | GB | |
||
| 25 | 1004697-75 | 2 | SPRING | GB | |
||
| 26 | 1004697-76 | 1 | CASTING RH | GB | |
||
| 27 | 1004697-78 | 1 | SPROCKET | GB | |
||
| 28 | 1004697-79 | 3 | RETAINER | GB | |
||
| 29 | 1004697-80 | 1 | END CAP | GB | |
||
| 30 | 1004697-81 | 1 | KNOB | GB | |
||
| 31 | 1004697-82 | 1 | SCREW | GB | |
||
| 32 | 1004697-83 | 1 | WASHER | GB | |
||
| 33 | 1004697-84 | 1 | NUT | GB | |
||
| 34 | 1004697-85 | 1 | HOUSING SA | GB | |
||
| 35 | 1004697-86 | 1 | PUMP SA | GB | |
||
| 36 | 1004697-87 | 1 | CAP SA | GB | |
||
| 37 | 1004697-88 | 1 | RESERVOIR | GB | |
||
| 38 | 1004697-93 | 1 | RESERVOIR SA | GB | |
||
| 39 | 1004697-89 | 1 | WRENCH SPECIAL | GB |  |
||
| 41 | 1004697-53 | 6 | SCREW | GB | |
||
| 42 | 1004697-54 | 2 | SCREW | GB | |
||
| 43 | 1004697-77 | 17 | SCREW | GB | |
||
| 45 | 1004697-92 | 1 | BAR | GB | |
||
| 46 | 1004697-90 | 1 | SHEATH | GB | |
||
| 47 | 1004697-91 | 1 | CHAIN 10" | GB | |
||
| 50 | 1004697-94 | 1 | RATING LABEL | GB | |
