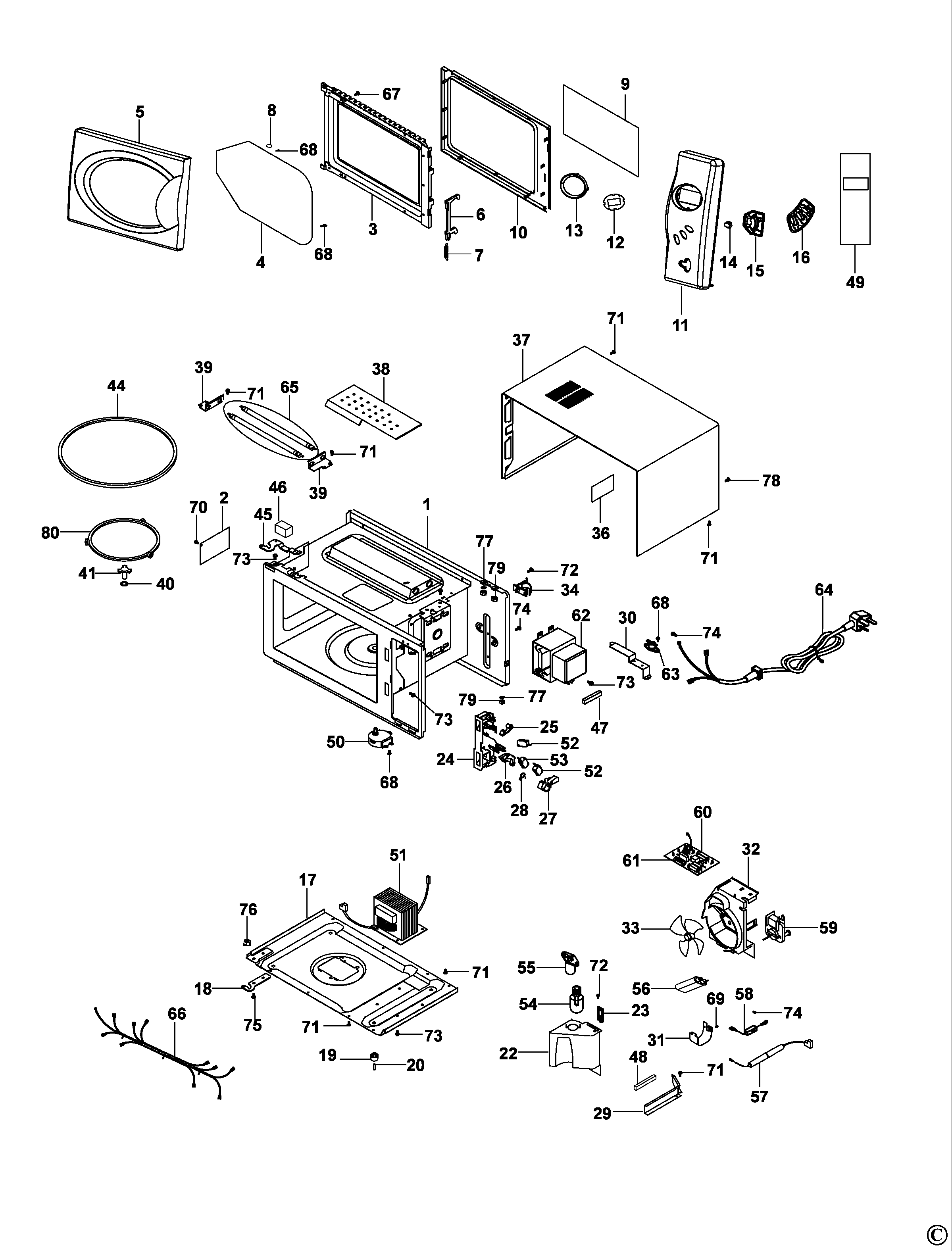

MY23PG MICROWAVE Type 1 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 1 | 6010154-01 | 1 | BODY | XJ | |||
| 2 | 6010154-02 | 1 | BOARD | XJ | |||
| 3 | 6010154-03 | 1 | DOOR | XJ |  |
||
| 4 | 6010154-04 | 1 | BOARD | XJ | |
||
| 5 | 6010154-05 | 1 | FRAME | XJ | |
||
| 6 | 6010154-06 | 1 | HOOK | XJ | |
||
| 7 | 6010154-07 | 1 | SPRING | XJ | |
||
| 8 | 6010154-08 | 3 | LOCK | XJ | |||
| 9 | 6010154-09 | 1 | PROTECTOR | XJ | |||
| 10 | 6010154-10 | 1 | FRAME | XJ | |
||
| 11 | 6010154-11 | 1 | PANEL | XJ | |||
| 12 | 6010154-12 | 1 | WINDOW | XJ | |||
| 13 | 6010154-13 | 1 | RING | XJ | |||
| 14 | 6010154-14 | 1 | BUTTON | XJ | |
||
| 15 | 6010154-15 | 1 | BOARD | XJ | |
||
| 16 | 6010154-16 | 1 | BUTTON | XJ | |
||
| 17 | 6010154-17 | 1 | BASE PLATE | XJ | |
||
| 18 | 6010154-18 | 1 | LEVER | XJ | |||
| 19 | 6010153-15 | 4 | LEG | XJ | |
||
| 20 | 6010153-16 | 4 | PIN | XJ | |
||
| 22 | 6010154-22 | 1 | COVER SA | XJ | |||
| 23 | 6010154-23 | 1 | CLAMP | XJ | |||
| 24 | 6010154-24 | 1 | SWITCH SUPPORT | XJ | |
||
| 25 | 6010154-25 | 1 | LEVER | XJ | |||
| 26 | 6010154-26 | 1 | LEVER | XJ | |||
| 27 | 6010154-27 | 1 | LEVER | XJ | |||
| 28 | 6010154-28 | 1 | SPRING | XJ | |||
| 29 | 6010154-29 | 1 | SUPPORT | XJ | |||
| 30 | 6010154-30 | 1 | SUPPORT | XJ | |||
| 31 | 6010154-31 | 1 | CLAMP | XJ | |||
| 32 | 6010153-23 | 1 | COVER SA | XJ | |
||
| 33 | 6010153-20 | 1 | FAN | XJ | |
||
| 34 | 6010153-24 | 1 | CLAMP | XJ | |||
| 36 | 6010153-26 | 1 | INSULATOR | XJ | |||
| 37 | 6010154-37 | 3 | COVER | XJ | |
||
| 38 | 6010154-38 | 1 | COVER | XJ | |||
| 39 | 6010154-39 | 1 | COVER | XJ | |||
| 40 | 6010153-29 | 1 | RING | XJ | |
||
| 41 | 6010154-41 | 1 | CONNECTOR | XJ | |
||
| 44 | 6010154-44 | 1 | PLATE | XJ | |||
| 45 | 6010154-45 | 1 | LEVER | XJ | |||
| 46 | 6010154-46 | 1 | GASKET | XJ | |||
| 47 | 6010154-47 | 1 | GASKET | XJ | |||
| 48 | 6010154-48 | 1 | GASKET | XJ | |||
| 49 | 6010154-49 | 4 | PCB CONTROLLER | XJ | |||
| 50 | 6010153-36 | 1 | MOTOR | XJ | |
||
| 51 | 6010153-37 | 1 | TRANSFORMER | XJ | |
||
| 52 | 6010153-38 | 2 | MICRO SWITCH | XJ | |||
| 53 | 6010153-39 | 1 | MICRO SWITCH | XJ | |||
| 54 | 6010153-40 | 1 | LAMP | XJ | |
||
| 55 | 6010153-41 | 1 | HOLDER | XJ | |||
| 56 | 6010153-42 | 1 | CAPACITOR | XJ | |
||
| 57 | 6010154-57 | 1 | FUSE | XJ | |
||
| 58 | 6010153-51 | 1 | DIODE | XJ | |
||
| 59 | 6010153-44 | 1 | MOTOR | XJ | |
||
| 60 | 6010153-46 | 1 | PCB SA | XJ | |
||
| 61 | 6010153-47 | 1 | FUSE | XJ | |||
| 62 | 6010154-62 | 1 | MAGNETRON | XJ | |||
| 63 | 6010154-63 | 1 | THERMOSTAT | XJ | |||
| 64 | 6010154-64 | 1 | CORDSET | XJ | |
||
| 65 | 6010154-65 | 1 | HEATER SA | XJ | |||
| 66 | 6010154-66 | 1 | SET OF LEAD WIRES | XJ | |||
| 67 | 6010153-52 | 14 | SCREW | XJ | |||
| 68 | 6010153-53 | 4 | SCREW | XJ | |
||
| 69 | 6010154-69 | 1 | SCREW | XJ | |||
| 70 | 6010154-70 | 1 | SCREW | XJ | |||
| 71 | 6010153-54 | 16 | SCREW | XJ | |||
| 72 | 6010153-55 | 5 | SCREW | XJ | |||
| 73 | 6010153-56 | 10 | SCREW | XJ | |||
| 74 | 6010153-57 | 6 | SCREW | XJ | |
||
| 75 | 6010154-75 | 2 | SCREW | XJ | |||
| 76 | 6010154-76 | 2 | NUT | XJ | |||
| 77 | 6010153-58 | 3 | SHIM | XJ | |||
| 78 | 6010153-59 | 1 | SCREW | XJ | |||
| 79 | 6010153-60 | 3 | NUT | XJ | |||
| 80 | 6010154-80 | 1 | RING | XJ | |
