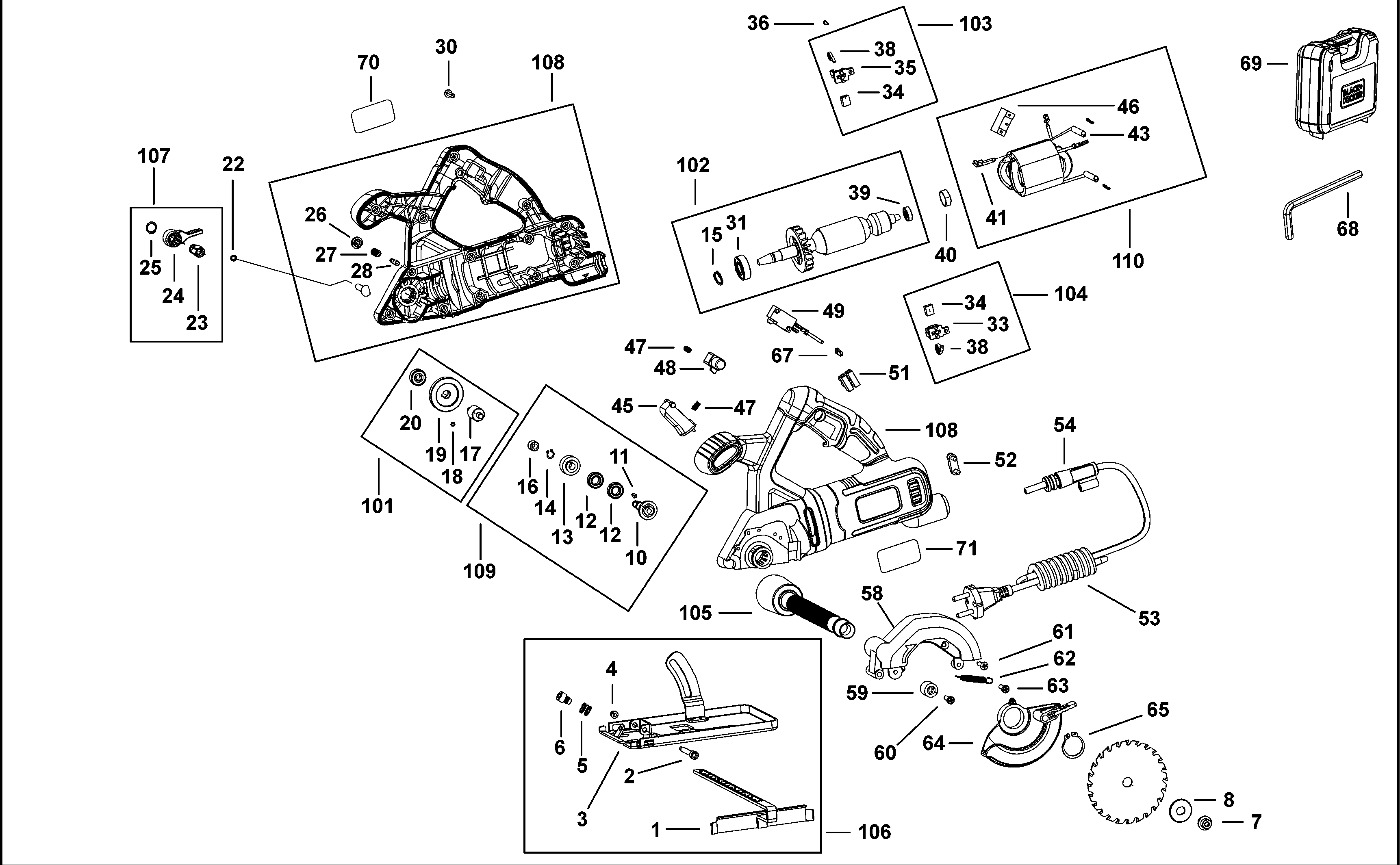

BES510 CIRCULAR SAW Type 1 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 1 | 1004762-80 | 1 | GUIDE | GB |  |
||
| 2 | 1004762-81 | 1 | BOLT | GB | |
||
| 3 | 1004762-82 | 1 | BASEPLATE | GB | |
||
| 4 | 1004762-83 | 1 | NUT | M4 | GB | |
|
| 5 | 1004762-84 | 1 | SPRING | GB | |
||
| 6 | 1004762-85 | 1 | BOLT | M6X12 | GB | |
|
| 7 | 1004762-86 | 1 | BOLT | M6X12 | GB | |
|
| 8 | 1004762-87 | 1 | OUTER FLANGE | GB | |
||
| 10 | 1004762-89 | 1 | SPINDLE | GB | |
||
| 11 | 1004762-90 | 1 | WOODRUFF KEY | GB | |
||
| 12 | 1004762-91 | 2 | BEARING | GB | |
||
| 13 | 1004762-92 | 1 | PINION | GB | |
||
| 14 | 1004762-93 | 1 | CIRCLIP | GB | |
||
| 15 | 1004762-94 | 1 | CIRCLIP | GB | |
||
| 16 | 1004762-95 | 1 | BEARING NEEDLE | GB | |
||
| 17 | 1004762-96 | 1 | GEARSHAFT | GB | |
||
| 18 | 1004762-97 | 1 | BALL STEEL | GB | |
||
| 19 | 1004762-98 | 1 | BEVEL GEAR | GB | |
||
| 20 | 1004763-00 | 1 | BEARING | GB | |
||
| 22 | 1004763-02 | 1 | WASHER | GB | |
||
| 23 | 1004763-03 | 1 | LEVER LOCK | GB | |
||
| 24 | 1004763-04 | 1 | ADJUSTER DEPTH | GB | |
||
| 25 | 1004763-05 | 1 | CIRCLIP | GB | |
||
| 26 | 1004763-06 | 1 | BUTTON | GB | |
||
| 27 | 1004763-07 | 1 | SPRING | GB | |
||
| 28 | 1004763-08 | 1 | PIN | GB | |
||
| 30 | 1004763-10 | 13 | SCREW | GB | |
||
| 31 | 1004763-11 | 1 | BEARING | GB | |
||
| 33 | 1004763-13 | 1 | HOLDER RH | GB | |
||
| 34 | 1004763-14 | 1 | BRUSH PAIR | GB | |
||
| 35 | 1004763-15 | 1 | HOLDER LH | GB | |
||
| 36 | 1004763-16 | 2 | SCREW | GB | |
||
| 38 | 1004763-18 | 2 | SPRING | GB | |
||
| 39 | 1004763-19 | 1 | BEARING | GB | |
||
| 40 | 1004763-20 | 1 | SLEEVE BEARING | GB | |
||
| 41 | 1004763-21 | 1 | TERMINAL | GB | |
||
| 43 | 1004763-23 | 1 | INDUCTOR | GB | |
||
| 45 | 1004763-25 | 1 | TRIGGER | GB | |
||
| 46 | 1004763-26 | 1 | CAPACITOR | GB | |
||
| 47 | 1004763-27 | 1 | SPRING | GB | |
||
| 48 | 1004763-28 | 1 | LOCK BUTTON | GB | |
||
| 49 | 1004763-29 | 1 | SWITCH | GB | |
||
| 51 | 1004763-31 | 1 | CONNECTOR | GB | |
||
| 52 | 1004763-32 | 1 | CLAMP | GB | |
||
| 53 | 1004763-12 | 1 | CORDSET | GB | |
||
| 54 | 1004763-34 | 1 | CORD PROTECTOR | GB | |
||
| 58 | 1004763-38 | 1 | GUARD UPPER | GB | |
||
| 59 | 1004763-39 | 1 | BLOCK | GB | |
||
| 60 | 1004763-40 | 1 | BOLT | GB | |
||
| 61 | 1004763-41 | 1 | SCREW | GB | |
||
| 62 | 1004763-42 | 1 | SPRING | GB | |
||
| 63 | 1004763-43 | 1 | SCREW | GB | |
||
| 64 | 1004763-44 | 1 | GUARD LOWER | GB | |
||
| 65 | 1004763-45 | 1 | CIRCLIP | GB | |
||
| 67 | 1004763-47 | 1 | BIT | GB | |
||
| 68 | 1004763-48 | 1 | HEX KEY | GB | |
||
| 69 | 1004763-63 | 1 | KITBOX | GB | |
||
| 70 | N650205 | 1 | RATING PLATE | GB | |
||
| 71 | 1004763-52 | 1 | BRAND LABEL | GB | |
||
| 101 | 1004763-55 | 1 | GEAR SA | GB | |
||
| 102 | 1004763-56 | 1 | ARMATURE SA | GB | |
||
| 103 | 1004763-57 | 1 | BRUSH SA | LH | GB | |
|
| 104 | 1004763-58 | 1 | BRUSH SA | RH | GB | |
|
| 105 | 1004763-59 | 1 | PIPE SA | DUST | GB | |
|
| 106 | 1004763-60 | 1 | PLATE SA | GB | |
||
| 107 | 1004763-61 | 1 | FASTENER | SA | GB | |
|
| 108 | 1004763-62 | 1 | CLAMSHELL RH | SA | GB | |
|
| 109 | 1004763-35 | 1 | SPINDLE SA | GB | |
||
| 110 | 1004763-36 | 1 | FIELD SA | DUST | GB | |
