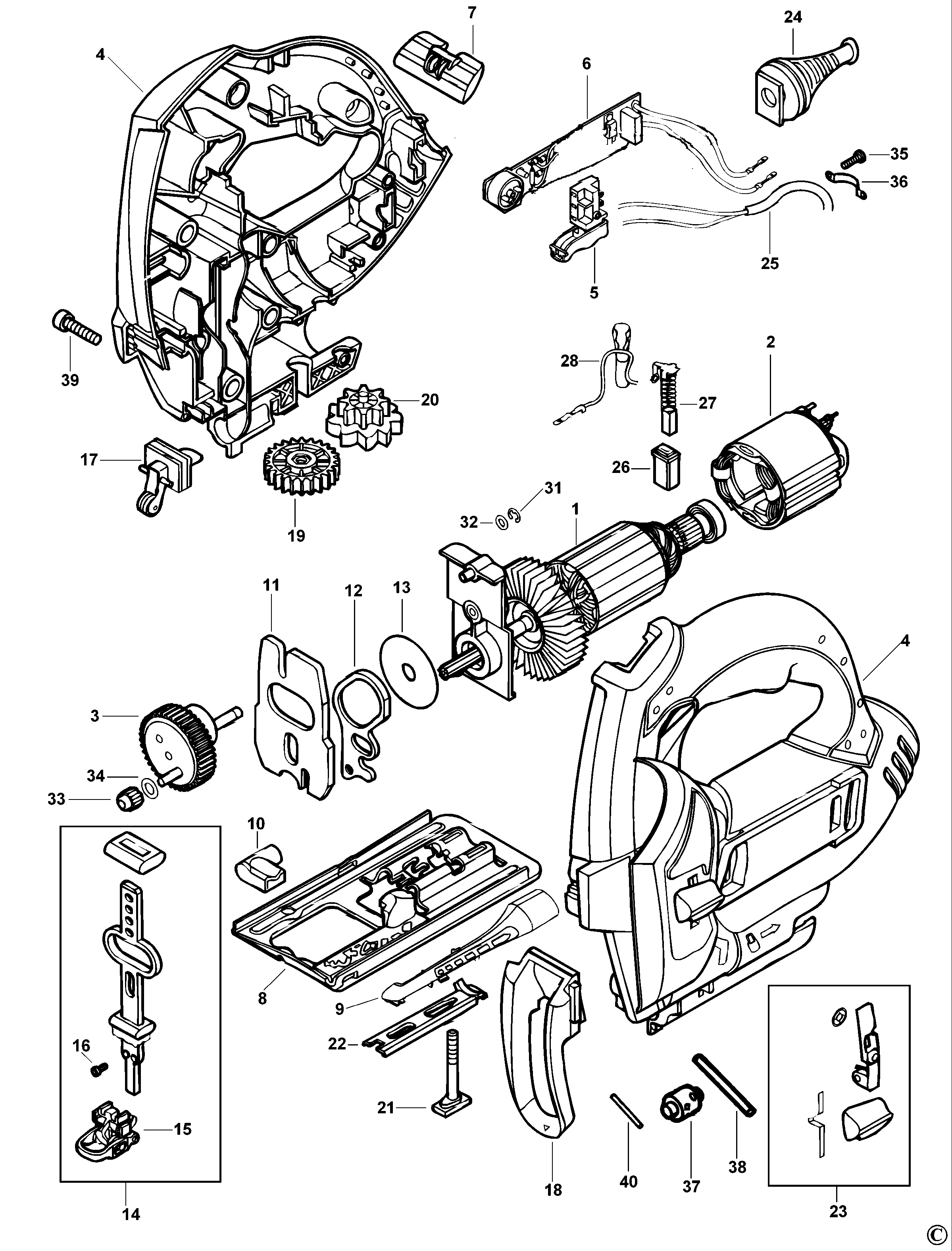

JS600K JIGSAW Type 1 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 1 | 583819-01 | 1 | ARMATURE SA | XJ |  |
||
| 2 | 583820-03 | 1 | FIELD SA | XJ | |
||
| 3 | 583821-00 | 1 | GEAR SA | XJ | |
||
| 4 | 582698-01 | 1 | CLAMSHELL SET | XJ | |
||
| 5 | 582741-00 | 1 | SWITCH SA | XJ | |
||
| 6 | 582763-01 | 1 | PCB SA | XJ | |
||
| 7 | 582606-00 | 1 | BUTTON LOCK-ON | XJ | |
||
| 8 | 583568-00 | 1 | SHOE SA | XJ | |
||
| 9 | 582614-00 | 1 | VACUUM ADAPTOR | XJ | |
||
| 10 | 582732-00 | 1 | ELBOW TUBE | XJ | |
||
| 11 | 583011-00 | 1 | BALANCE WEIGHT | XJ | |
||
| 12 | 583002-00 | 1 | FORK | XJ | |
||
| 13 | 795648 | 1 | WASHER | XJ | |
||
| 14 | 583822-00 | 1 | SHAFT SA | XJ | |
||
| 15 | 582593-00 | 1 | BLADE CLAMP | XJ |  |
||
| 16 | 583173-00 | 2 | SCREW | XJ | |
||
| 17 | 585414-00 | 1 | BLADE SUPPORT SA | XJ | |
||
| 18 | 583189-00 | 1 | GUARD | XJ | |
||
| 19 | 582768-00 | 1 | GEAR SA | XJ | |
||
| 20 | 582601-00 | 1 | ACTUATOR | XJ | |
||
| 21 | 582600-00 | 1 | LOCKING SCREW | XJ | |
||
| 22 | 582730-00 | 1 | BRACKET | XJ | |
||
| 23 | 583823-01 | 1 | SELECTOR SA | XJ | |
||
| 24 | 582722-00 | 1 | CORD PROTECTOR | XJ | |
||
| 25 | 372067-16 | 1 | CORDSET | XJ | |
||
| 25 | 372067-04 | 1 | CORDSET | XJ | |
||
| 26 | 582696-00 | 2 | BRUSHBOX | XJ | |
||
| 28 | 583353-00 | 2 | LEAD SA | XJ | |
||
| 31 | 571181-00 | 1 | CLIP | XJ | |
||
| 32 | 582717-00 | 1 | WASHER | XJ | |
||
| 33 | 795688-00 | 1 | ROLLER | XJ | |
||
| 34 | 823954 | 1 | WASHER | XJ | |
||
| 35 | 370748 | 2 | SCREW | XJ | |
||
| 36 | 821070 | 1 | CORD CLAMP | XJ | |
||
| 37 | 582925-00 | 1 | SELECTOR | XJ | |
||
| 38 | 795675 | 1 | ROD | XJ | |
||
| 39 | 809961 | 9 | SCREW | XJ | |
||
| 40 | 795650 | 1 | PIN | XJ | |
