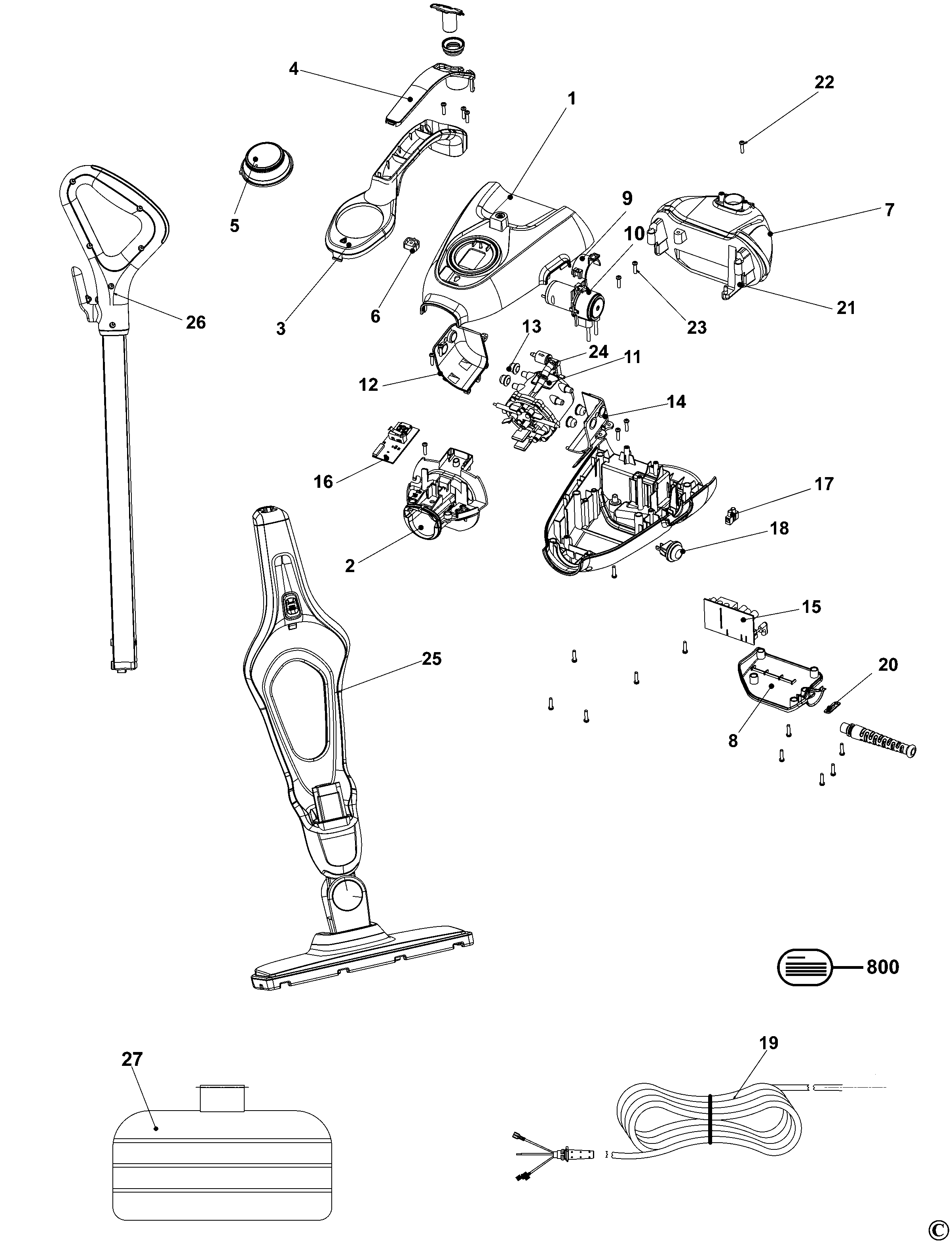

FSMH13101SM STEAM MOP Type 1 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 1 | 90637063 | 1 | HOUSING | GB |  |
||
| 2 | 90638373 | 1 | OUTLET | GB | |
||
| 3 | 90638922 | 1 | HANDLE SA | GB | |
||
| 4 | 90639591 | 1 | COVER | GB | |
||
| 5 | 90619694 | 1 | DIAL PLATE | GB | |
||
| 6 | 90623773 | 1 | CLIP | GB | |
||
| 7 | 90619686 | 1 | TANK | GB | |
||
| 8 | 90619691 | 1 | COVER | GB | |
||
| 9 | 90632999 | 1 | CLAMP | GB | |
||
| 10 | 90624976 | 1 | PUMP SA | GB | |
||
| 11 | 90636779 | 1 | BOILER SA | GB | |||
| 12 | 90581691 | 1 | BRACKET LH | GB | |
||
| 13 | 90578187 | 4 | RUBBER | GB | |
||
| 14 | 90581692 | 1 | BRACKET RH | GB | |
||
| 15 | 90623068-01 | 1 | PCB | GB | |
||
| 16 | N581101 | 1 | PCB | GB | |||
| 17 | 90581491 | 1 | TERMINAL | GB | |
||
| 18 | 90376599 | 1 | SWITCH SA | GB | |
||
| 19 | 90627849 | 1 | CORDSET | GB | |||
| 20 | 329301-00 | 1 | CORD CLAMP | GB | |
||
| 21 | 90587265 | 1 | CLIP | GB | |
||
| 22 | 143062-02 | 23 | SCREW | GB | |
||
| 23 | 90595772-01 | 2 | SCREW | GB | |
||
| 24 | 90579511 | 1 | CLIP | GB | |
||
| 25 | 90637716 | 1 | BODY | FOOT W/ PEDAL | GB | |
|
| 26 | 90619683 | 1 | HANDLE SA | GB | |
||
| 27 | 90585868 | 2 | PAD SA | GB | |
||
| 28 | 90603964 | 1 | BRUSH | QS\GB | GB | |
|
| 29 | 90586489 | 1 | HOLDER,RUBBER | GB | |
||
| 31 | N524612 | 1 | HOSE SA | GB | |
||
| 32 | 90609979 | 1 | PAD | GB | |
||
| 33 | 90585868 | 1 | PAD SA | GB | |
||
| 58 | N530271 | 1 | HOSE SA | FSMHG3MITT-XJ | GB | |
|
| 59 | 90638382 | 1 | PAD VELCRO | GB | |
||
| 64 | N524615 | 1 | HOSE SA | GB | |
||
| 800 | 90637611 | 1 | RATING LABEL | GB | |
