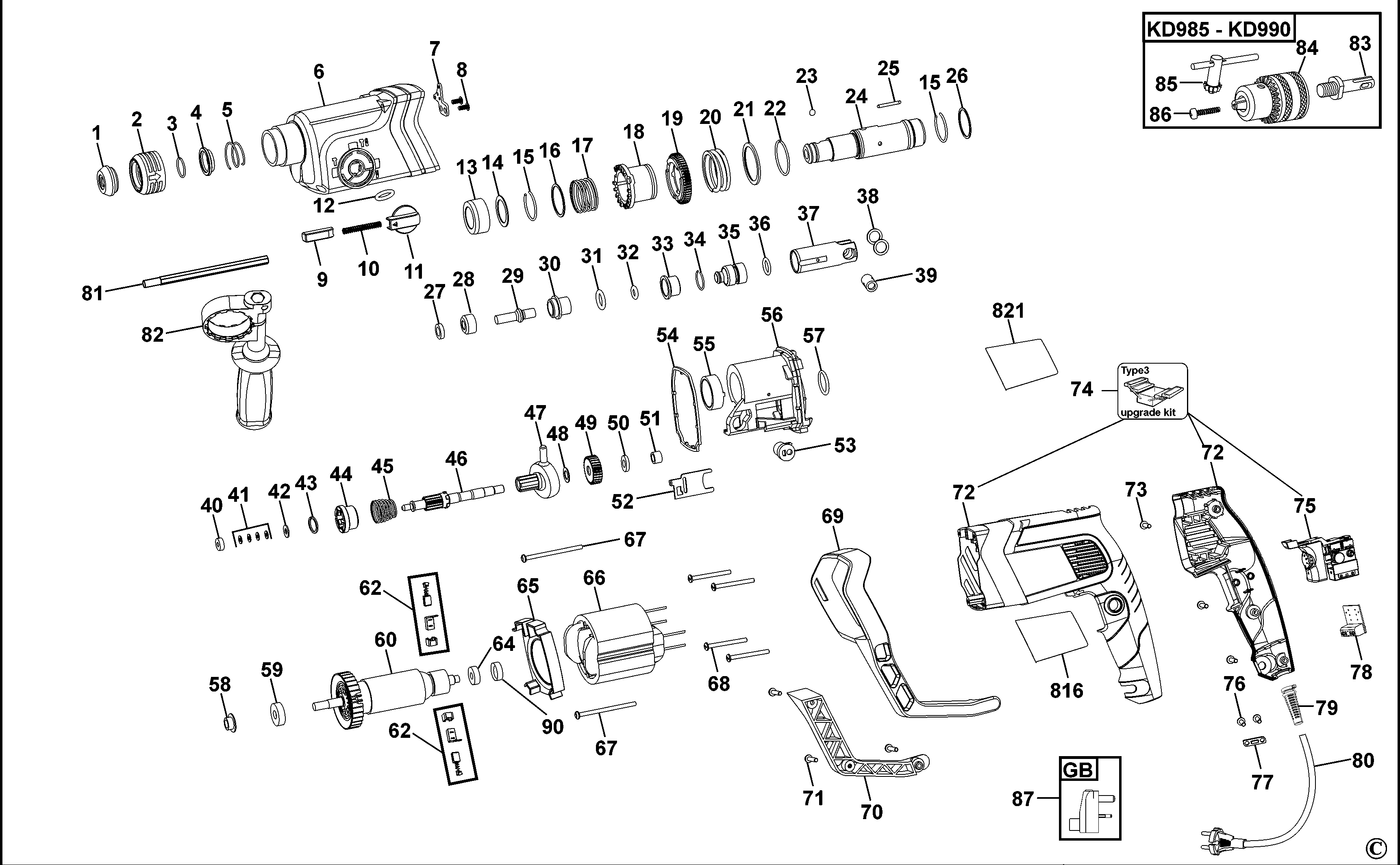

KD975 ROTARY HAMMER Type 1 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 1 | 90524563 | 1 | TIP | GB |  |
||
| 2 | 90524565 | 1 | COLLAR | GB | |
||
| 3 | 90553468 | 1 | CLIP | GB | |
||
| 4 | 90553469 | 1 | HOLDER | GB | |
||
| 5 | 90553470 | 1 | SPRING | GB | |
||
| 6 | 90524523 | 1 | GEARCASE | GB | |
||
| 7 | 90553471 | 1 | BRAKE | GB | |
||
| 8 | 90553472 | 2 | SCREW | ST4.2 X 8 | GB | |
|
| 9 | 90524526 | 1 | SELECTOR | GB | |||
| 10 | 90553473 | 1 | SPRING | GB | |
||
| 11 | 90524525 | 1 | KNOB | GB | |
||
| 12 | 90553474 | 1 | SEAL | GB | |
||
| 13 | 90553475 | 1 | BEARING | GB | |
||
| 14 | 90553476 | 1 | WASHER | GB | |
||
| 15 | 90553477 | 2 | RING | DIA 31 | GB | |
|
| 16 | 90553478 | 1 | RING | GB | |
||
| 17 | 90553479 | 1 | SPRING | GB | |
||
| 18 | 90553480 | 1 | SLEEVE | GB | |
||
| 19 | 90553481 | 1 | GEAR | GB | |
||
| 20 | 90553482 | 1 | SPRING | GB | |
||
| 21 | 90553483 | 1 | RING | GB | |
||
| 22 | 90553484 | 1 | RING | STEEL WIRE DIA 37 | GB | |
|
| 23 | 90550363 | 1 | BALL STEEL | GB | |
||
| 24 | 90553486 | 1 | SHAFT | GB | |
||
| 25 | 90553487 | 1 | PIN | P3 X 23.8 | GB | |
|
| 26 | 90553488 | 1 | WASHER | GB | |
||
| 27 | 90553674 | 1 | SEAL | GB | |
||
| 28 | 90553490 | 1 | BLOCK | GB | |
||
| 29 | 90553491 | 1 | COLUMN | GB | |
||
| 30 | 90553492 | 1 | SLEEVE | GB | |
||
| 31 | 90553493 | 1 | O RING | 18 x 3.55mm | GB | |
|
| 32 | 90553494 | 1 | O RING | 11 x 3.55mm | GB | |
|
| 33 | 90553495 | 1 | SLEEVE | GB | |
||
| 34 | 90553496 | 1 | WIRE STEEL | GB |  |
||
| 35 | 90553497 | 1 | RAM | GB | |
||
| 36 | 90553505 | 1 | O RING | 16mm | GB | |
|
| 37 | 90553506 | 1 | CYLINDER | GB | |
||
| 38 | 90549884 | 2 | WASHER | GB | |
||
| 39 | 90553557 | 1 | PIN | GB | |
||
| 40 | 90553558 | 1 | BEARING | 606 | GB | |
|
| 41 | 90553559 | 1 | WASHER | GB | |
||
| 42 | 90553508 | 1 | RING | GB | |
||
| 43 | 90553509 | 1 | RING | GB | |
||
| 44 | 90553510 | 1 | CLUTCH | GB | |
||
| 45 | 90553511 | 1 | SPRING | GB | |
||
| 46 | 90553512 | 1 | TRANSMISSION SA | GB | |
||
| 47 | 90553513 | 1 | BEARING | GB | |
||
| 48 | 90553514 | 1 | WASHER | GB | |
||
| 49 | 90553515 | 1 | GEAR | GB | |
||
| 50 | 90553516 | 1 | BEARING | AXK0817TN | GB | |
|
| 51 | 90553517 | 1 | BEARING | 0808 | GB | |
|
| 52 | 90553518 | 1 | PLATE | GB | |
||
| 53 | 90553519 | 1 | KNOB | GB | |
||
| 54 | 90553520 | 1 | RUBBER SEAL | GB | |
||
| 55 | 90553521 | 1 | SLEEVE BEARING | GB | |
||
| 56 | 90553522 | 1 | HOLDER | GB | |
||
| 57 | 90553523 | 1 | O RING | 23.6 x 2.65mm | GB | |
|
| 58 | 90553524 | 1 | SEAL | GB | |
||
| 59 | 90553525 | 1 | BEARING | 609 | GB | |
|
| 60 | 90534211 | 1 | ARMATURE SA | GB | |
||
| 62 | 90592921-01 | 2 | BRUSH & HOLDER 230V | GB | |
||
| 64 | 90553593 | 1 | BEARING | 607 | GB | |
|
| 65 | 90524500 | 1 | BAFFLE FAN | GB | |
||
| 66 | 90534218 | 1 | FIELD SA | GB | |
||
| 67 | 330065-11 | 2 | SCREW | GB | |
||
| 68 | 330065-16 | 4 | SCREW | GB | |
||
| 69 | 90524497 | 1 | CLAMSHELL SET | GB | |
||
| 70 | 90524497 | 1 | CLAMSHELL SET | GB | |
||
| 71 | 330065-07 | 3 | SCREW | GB | |
||
| 72 | 90524494 | 1 | HOUSING | GB | |
||
| 73 | 330065-07 | 1 | SCREW | GB | |
||
| 74 | 90524495 | 1 | HANDLE RH | GB | |
||
| 75 | 90606284N | 1 | SWITCH SA | GB | |
||
| 76 | 330065-05 | 2 | SCREW | GB | |
||
| 77 | 329301-00 | 1 | CORD CLAMP | GB | |
||
| 78 | 90552756 | 1 | PCB SA | GB | |
||
| 79 | 629648-00 | 1 | CORD PROTECTOR | GB | |
||
| 80 | N615231 | 1 | CORDSET | GB | |
||
| 81 | 580787-00 | 1 | DEPTH STOP | GB | |
||
| 82 | 90533273 | 1 | SIDE HANDLE | GB | |
||
| 87 | 588384-01 | 1 | PLUG | 13 amp 3 pin gb plug | GB | |
|
| 90 | 90553594 | 1 | SLEEVE BEARING | GB | |
||
| 816 | 90524542 | 1 | BRAND LABEL | GB | |
||
| 821 | 90524544 | 1 | RATING PLATE | GB | |
