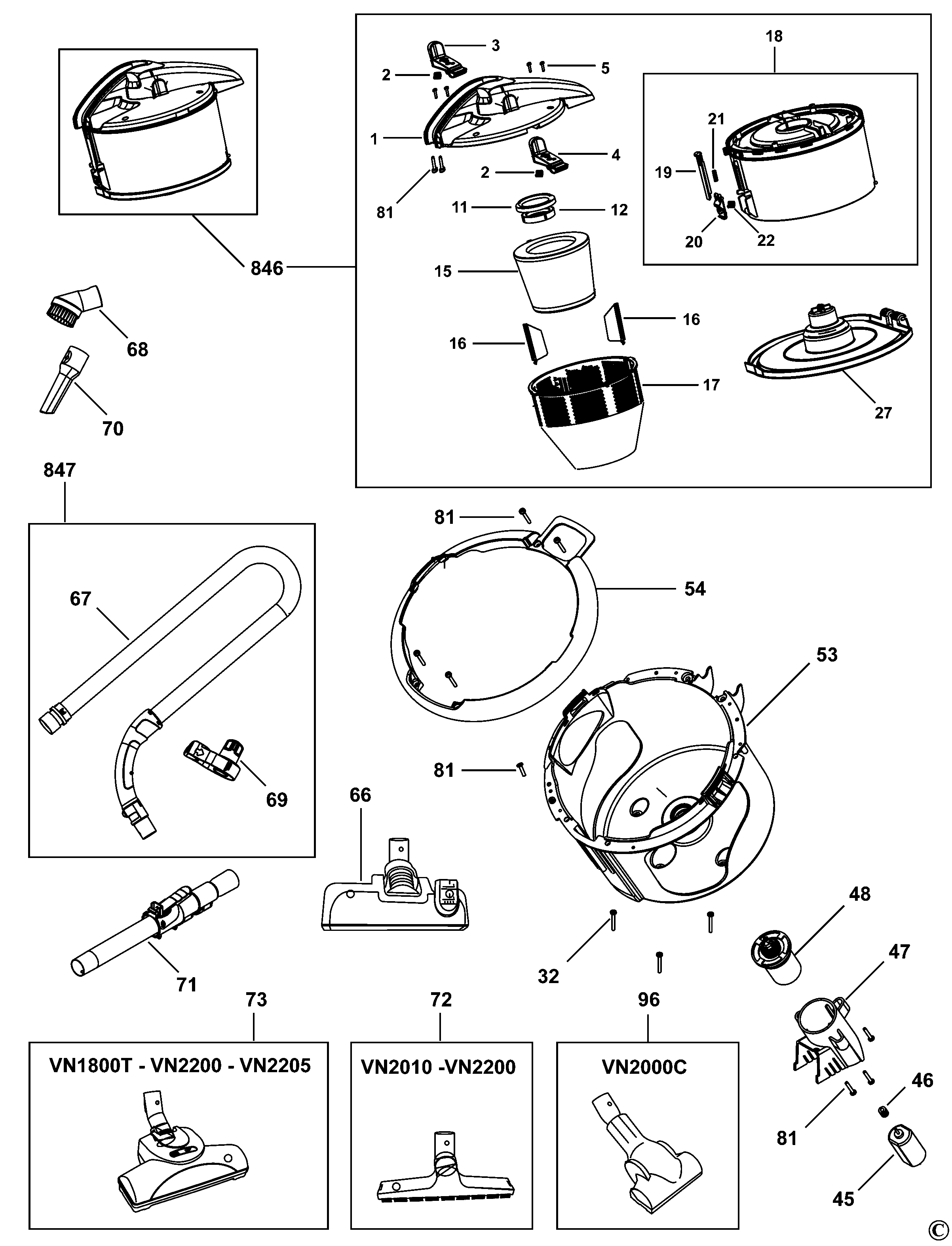

VN2000 VACUUM CLEANER Type 1 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 1 | 90508560 | 1 | LID SA | VN2000 | GB |  |
|
| 2 | 90505463 | 2 | SPRING | GB | |
||
| 3 | 490791-00 | 1 | LEVER RELEASE | LHS | GB | |
|
| 4 | 490773-00 | 1 | LEVER RELEASE | LHS | GB | |
|
| 5 | 90509747 | 14 | SCREW | M6 x 12 Torx | GB | |
|
| 6 | 90504912-01 | 1 | HOUSING LOWER | GB | |
||
| 7 | 90508362 | 1 | GASKET | GB | |
||
| 8 | 583404-01 | 1 | MOUNT | GB | |
||
| 9 | 90508549 | 1 | MOUNT | GB | |
||
| 10 | 490213-00 | 1 | HOUSING MOTOR | GB | |
||
| 11 | 90504881 | 1 | SEAL | GB | |
||
| 12 | 90504882 | 1 | CLIP | GB | |
||
| 13 | 90504868 | 1 | GUARD | GB | |
||
| 14 | 90508550 | 1 | SUPPORT | GB | |
||
| 15 | 90505168 | 1 | FILTER SA | VLF50 | GB | |
|
| 16 | 000000-07 | 2 | NO LONGER AVAILABLE - REF ITEM 846 | GB | |||
| 17 | 000000-07 | 1 | NO LONGER AVAILABLE - REF ITEM 846 | GB | |||
| 18 | 000000-07 | 1 | NO LONGER AVAILABLE - REF ITEM 846 | GB | |||
| 19 | 488711-00 | 1 | RELEASE | GB | |
||
| 20 | 90504900 | 1 | LEVER RELEASE | GB | |
||
| 21 | 90505257 | 1 | SPRING | GB | |
||
| 22 | 90505258 | 1 | SPRING | GB | |
||
| 23 | 90508322 | 1 | LEAD BLACK | GB | |
||
| 24 | 90507678 | 1 | LEAD YELLOW | GB | |
||
| 25 | 90507670 | 1 | LEAD BROWN | GB | |
||
| 26 | 90508316 | 1 | LEADWIRE | GB | |
||
| 27 | 90505167 | 1 | BASE SA | GB | |
||
| 28 | 90507465 | 9 | SCREW | M8 x 30 | GB | |
|
| 29 | 90505458 | 1 | SPRING | GB | |
||
| 30 | 90504781 | 1 | ACTUATOR | GB | |
||
| 31 | 490476-00 | 1 | INSERT | GB | |
||
| 32 | 90509749 | 3 | SCREW | GB | |
||
| 33 | 90509609 | 1 | CABLE GUIDE | GB | |
||
| 34 | 488227-00 | 1 | FILTER | GB | |
||
| 35 | 90504858-01 | 1 | HOUSING UPPER | GB | |
||
| 36 | 90508323 | 1 | LEAD WHITE | GB | |
||
| 37 | 90509249 | 1 | SWITCH | GB | |
||
| 38 | 90505462 | 1 | SPRING | GB | |
||
| 39 | 90504859 | 1 | HOUSING | GB | |
||
| 40 | 90507483 | 1 | SWITCH | GB | |
||
| 41 | 90505461 | 1 | SPRING | GB | |
||
| 42 | 488775-00 | 1 | BUTTON | GB | |
||
| 43 | 90509193 | 2 | SPRING | GB | |
||
| 44 | 90504856 | 1 | HANDLE | GB | |
||
| 45 | 90516288 | 1 | MOTOR 230V | GB | |
||
| 46 | 143139-00 | 1 | PINION | GB | |
||
| 47 | 90504872 | 1 | MOTOR COVER | GB | |
||
| 48 | 90504869 | 1 | GEARBOX SA | GB | |
||
| 51 | 490753-01 | 1 | SIDE LH | GB | |
||
| 52 | 90508201 | 1 | FOAM | GB | |
||
| 53 | 488803-00 | 1 | BEZEL | GB | |
||
| 54 | 90504861 | 1 | BEZEL | GB | |
||
| 55 | 90508284 | 1 | FOAM | GB | |
||
| 56 | 490754-01 | 1 | SIDE RH | GB | |
||
| 57 | 90504877 | 1 | SEAL | GB | |
||
| 58 | 488776-00 | 1 | INLET | GB | |
||
| 61 | 90507668 | 1 | FILTER | GB | |
||
| 63 | 90505158-01 | 1 | TUBE | GB | |
||
| 65 | 90507055 | 1 | CABLE SA | 7M | GB | |
|
| 66 | 90520469 | 1 | TOOL FLOOR | VN2000 FROM 200726 | GB | |
|
| 66 | 90520469 | 1 | TOOL FLOOR | VN2000 TO 200726 | GB | |
|
| 67 | 90542845 | 1 | SERVICE KIT | Incl # 67 + 69 | TO 200726 | GB | |
| 67 | 90521097 | 1 | HOSE SA | 170mm | FROM 200727 | GB | |
| 68 | 90508363 | 1 | BRUSH SA | GB | |
||
| 69 | 90521416 | 1 | TOOL POST | FROM 200727 | GB | |
|
| 69 | 90504910 | 1 | TOOL POST | TO 200726 | GB | |
|
| 70 | 90504908 | 1 | TOOL CREVICE | GB | |
||
| 71 | 90507578 | 1 | TUBE SA | TO 200719 | GB | |
|
| 71 | 90516112 | 1 | TUBE SA | FROM 200720 | GB | |
|
| 80 | 90505075 | 1 | WHEEL SET | GB | |
||
| 81 | 90509736 | 33 | SCREW | M6 x 17 torx | GB | |
|
| 82 | 90504779 | 1 | COVER | GB | |
||
| 83 | 90504778-01 | 1 | COVER | Green | GB | |
|
| 84 | 90504774 | 2 | WHEEL REAR | GB | |
||
| 85 | 000000-04 | 1 | NOT INCLUDED WITH THIS PRODUCT | GB | |||
| 86 | 90505752 | 1 | MOTOR SA | GB | |
||
| 87 | 90508545 | 1 | HOUSING MOTOR | GB | |
||
| 88 | 90504867 | 1 | LINK | GB | |
||
| 89 | 90508315 | 1 | RUBBER PAD | GB | |
||
| 90 | 90505984 | 1 | CLAMP | GB | |
||
| 91 | 90508365 | 1 | VALVE | GB | |
||
| 92 | 90538511 | 1 | PCB SA | GB | |
||
| 93 | 90508314 | 1 | LEAD RED | GB | |
||
| 94 | 90507671 | 1 | LEAD BLUE | GB | |
||
| 95 | 90505156-01 | 1 | HOUSING REAR | GB | |
||
| 96 | 90516831 | 1 | TURBO BRUSH | VN2000C | WV300 | GB | |
|
| 846 | 90508558 | 1 | SERVICE KIT | GB | |
||
| 847 | 90542845 | 1 | SERVICE KIT | Incl # 67 + 69 | GB | |
