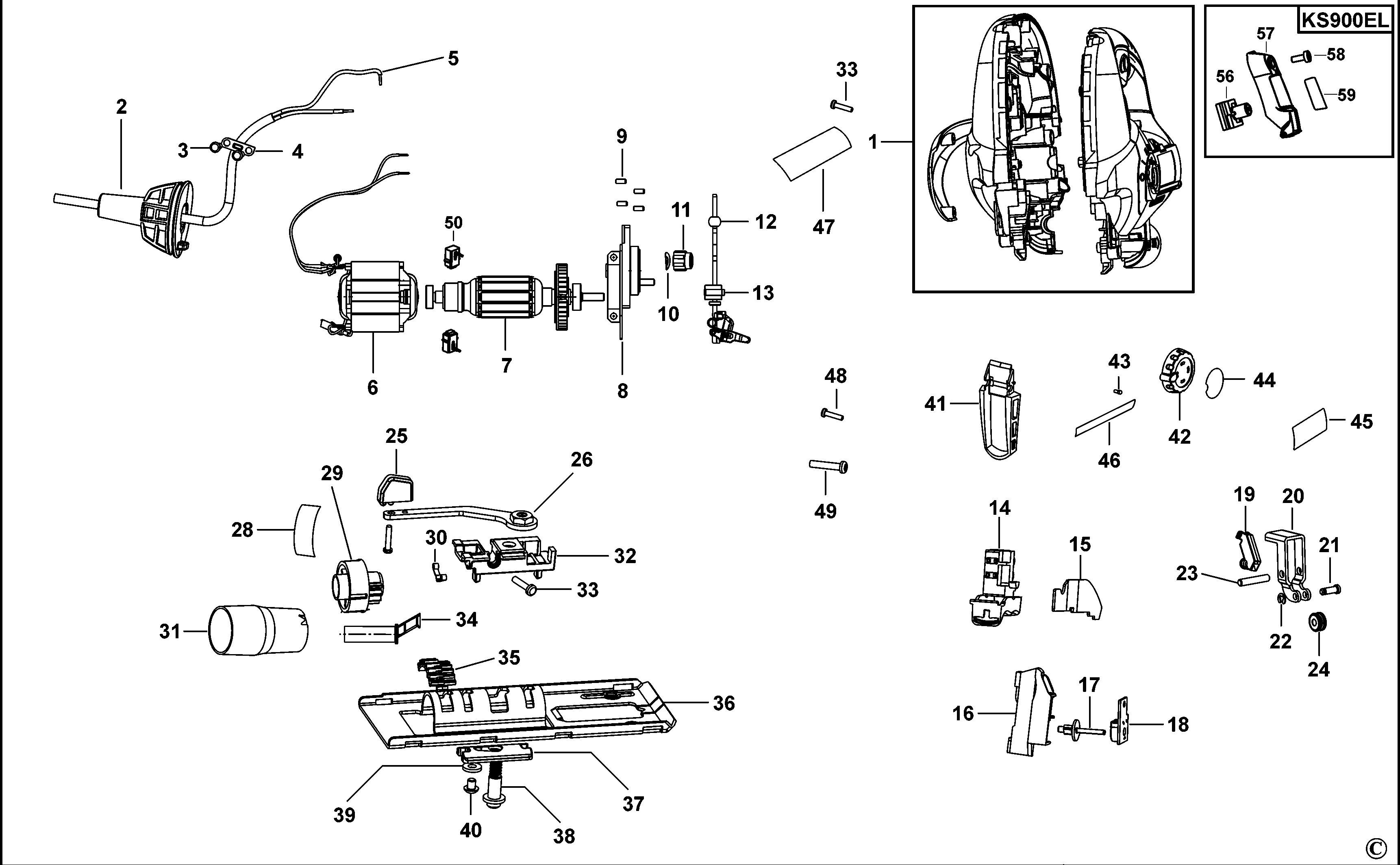

KS900E(K) JIGSAW Type 1 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 1 | 90532014 | 1 | CLAMSHELL SET | GB |  |
||
| 2 | 90514628 | 1 | CORD PROTECTOR | GB | |
||
| 3 | 370748 | 2 | SCREW | GB |  |
||
| 4 | 329301-00 | 1 | CORD CLAMP | GB | |
||
| 5 | 90523264 | 1 | CORDSET | GB | |
||
| 6 | 90530315 | 1 | FIELD SA 230V | GB | |
||
| 7 | 90530307 | 1 | ARMATURE SA | 230 V | GB | |
|
| 8 | 90532016 | 1 | TRANSMISSION SA | GB | |
||
| 9 | 90517281 | 4 | PIN | GB | |
||
| 10 | 823954 | 1 | WASHER | GB | |
||
| 11 | 795688-00 | 1 | ROLLER | GB | |
||
| 12 | 810893 | 1 | BEARING | GB | |
||
| 13 | 90517289 | 1 | SHAFT SA | GB | |
||
| 14 | 90532017 | 1 | SWITCH SA | GB | |
||
| 15 | 90532011 | 1 | PCB SA | GB | |
||
| 16 | 90514323 | 1 | SUPPORT | GB | |
||
| 17 | 90514375 | 1 | CAM | GB | |
||
| 18 | 90514354 | 1 | PLATE THRUST | GB | |
||
| 19 | 90514324 | 1 | DUST PORT | GB | |
||
| 20 | 90545786 | 1 | ROLLER SA | Inc items 21+22+24 | GB | |
|
| 21 | 90570680 | 1 | SUPPORT SA | GB | |
||
| 22 | 587375-00 | 1 | LOCKING RING | GB | |
||
| 23 | 90514424 | 1 | PIN | GB | |
||
| 24 | 90514422 | 1 | ROLLER | GB | |
||
| 25 | 90514276 | 1 | HANDLE | GB | |
||
| 26 | 90529814 | 1 | LEVER SA | GB | |
||
| 28 | 90520107 | 1 | LABEL | GB | |
||
| 29 | 90514273 | 1 | INDICATOR | GB | |
||
| 30 | 90521871 | 1 | SPRING | GB | |
||
| 31 | 90530405 | 1 | VACUUM ADAPTOR | GB | |
||
| 32 | 90513842 | 1 | BLOCK | GB | |
||
| 33 | 330019-13 | 9 | SCREW | M4X19 T20 | GB | |
|
| 35 | 90514228 | 1 | INSERT | GB | |
||
| 36 | 90532032 | 1 | SHOE SA | GB | |
||
| 37 | 90513772 | 1 | PLATE LOCK | GB | |
||
| 38 | 90514219 | 1 | BOLT | GB | |
||
| 39 | 90514216 | 1 | WASHER | GB | |
||
| 40 | 582827-00 | 1 | BOLT | GB | |
||
| 42 | 90530393 | 1 | KNOB | GB | |
||
| 43 | N403227 | 1 | DETENT | GB | |
||
| 44 | 90521787 | 1 | LABEL | GB | |
||
| 45 | 90521533 | 1 | BRAND LABEL | GB | |
||
| 46 | 90520273 | 1 | LABEL PIVOT | GB | |
||
| 47 | 90562648 | 1 | RATING PLATE | GB | |
||
| 48 | 330019-00 | 2 | SCREW | M3x16 T10 PLASTITE | GB | |
|
| 49 | 330019-17 | 2 | SCREW | GB | |
||
| 50 | 90549938 | 2 | BRUSHBOX SA | GB | |
